Canon 5DS vs Nikon D7500

The Canon EOS 5DS and the Nikon D7500 are two digital cameras that were announced, respectively, in February 2015 and April 2017. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (5DS) and an APS-C (D7500) sensor. The Canon has a resolution of 50.3 megapixels, whereas the Nikon provides 20.7 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 5DS		Nikon D7500
Digital single lens reflex		Digital single lens reflex
Canon EF mount lenses		Nikon F mount lenses
50.3 MP – Full Frame sensor		20.7 MP – APS-C sensor
1080/30p Video		4K/30p Video
ISO 100-6,400 (50 - 12,800)		ISO 100-51,200 (50 - 164,000)
Optical viewfinder		Optical viewfinder
3.2" LCD – 1040k dots		3.2" LCD – 922k dots
Fixed screen (not touch-sensitive)		Tilting touchscreen
5 shutter flaps per second		8 shutter flaps per second
Weathersealed body		Weathersealed body
700 shots per battery charge		950 shots per battery charge
152 x 116 x 76 mm, 930 g		136 x 104 x 73 mm, 720 g

Check 5DS offers at
ebay.com
Check D7500 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5DS and the Nikon D7500? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

An illustration of the physical size and weight of the Canon 5DS and the Nikon D7500 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D7500 is notably smaller (20 percent) than the Canon 5DS. Moreover, the D7500 is markedly lighter (23 percent) than the 5DS. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (5DS) and the Nikon Lens Catalog (D7500).

Concerning battery life, the 5DS gets 700 shots out of its Canon LP-E6 battery, while the D7500 can take 950 images on a single charge of its Nikon EN-EL15a power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 5DS	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	3,699	ebay.com
2.		Nikon D7500	136 mm	104 mm	73 mm	720 g	950	Y	Apr 2017	1,299	amazon.com
3.		Canon 6D Mark II	144 mm	111 mm	75 mm	765 g	1200	Y	Jun 2017	1,999	amazon.com
4.		Canon 1D X Mark II	158 mm	168 mm	83 mm	1530 g	1210	Y	Feb 2016	5,999	ebay.com
5.		Canon 5D Mark IV	151 mm	116 mm	76 mm	890 g	900	Y	Aug 2016	3,499	amazon.com
6.		Canon 80D	139 mm	105 mm	79 mm	730 g	960	Y	Feb 2016	1,199	ebay.com
7.		Canon 5DS R	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	3,699	ebay.com
8.		Canon 5D Mark III	152 mm	116 mm	76 mm	950 g	950	Y	Mar 2012	3,499	ebay.com
9.		Canon 6D	145 mm	111 mm	71 mm	770 g	1090	Y	Sep 2012	2,099	ebay.com
10.		Canon 5D Mark II	152 mm	114 mm	75 mm	850 g	850	Y	Sep 2008	3,499	ebay.com
11.		Nikon D850	146 mm	124 mm	79 mm	1005 g	1840	Y	Jul 2017	3,299	amazon.com
12.		Nikon D500	147 mm	115 mm	81 mm	860 g	1240	Y	Jan 2016	1,999	ebay.com
13.		Nikon D7200	136 mm	107 mm	76 mm	765 g	1110	Y	Mar 2015	1,199	ebay.com
14.		Nikon D810	146 mm	123 mm	82 mm	980 g	1200	Y	Jun 2014	3,299	ebay.com
15.		Nikon D7100	136 mm	107 mm	76 mm	765 g	950	Y	Feb 2013	1,199	ebay.com
16.		Nikon D7000	132 mm	105 mm	77 mm	780 g	1050	Y	Sep 2010	1,499	ebay.com
17.		Sony A99 II	143 mm	104 mm	76 mm	849 g	490	Y	Sep 2016	3,199	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The D7500 was launched at a markedly lower price (by 65 percent) than the 5DS, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

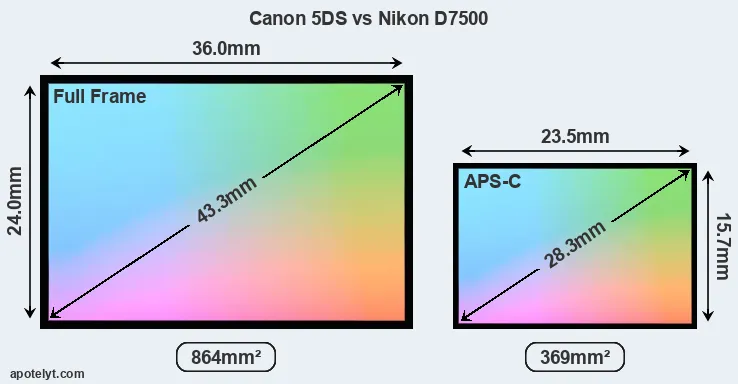

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 5DS features a full frame sensor and the Nikon D7500 an APS-C sensor. The sensor area in the D7500 is 57 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

With 50.3MP, the 5DS offers a higher resolution than the D7500 (20.7MP), but the 5DS has marginally smaller individual pixels (pixel pitch of 4.14μm versus 4.22μm for the D7500). Moreover, the D7500 is a much more recent model (by 2 years and 2 months) than the 5DS, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the D7500 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon 5DS implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5DS for good quality output (200 dots per inch) amounts to 43.4 x 29 inches or 110.3 x 73.6 cm, for very good quality (250 dpi) 34.8 x 23.2 inches or 88.3 x 58.8 cm, and for excellent quality (300 dpi) 29 x 19.3 inches or 73.6 x 49 cm. The corresponding values for the Nikon D7500 are 27.8 x 18.6 inches or 70.7 x 47.1 cm for good quality, 22.3 x 14.8 inches or 56.6 x 37.7 cm for very good quality, and 18.6 x 12.4 inches or 47.1 x 31.4 cm for excellent quality prints.

The Canon EOS 5DS has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 50-12800. The corresponding ISO settings for the Nikon D7500 are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-164000.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 5DS	Full Frame	50.3	8688	5792	1080/30p	24.7	12.4	2381	87
2.		Nikon D7500	APS-C	20.7	5568	3712	4K/30p	24.3	14.0	1483	86
3.		Canon 6D Mark II	Full Frame	26.0	6240	4160	1080/60p	24.4	11.9	2862	85
4.		Canon 1D X Mark II	Full Frame	20.0	5472	3648	4K/60p	24.1	13.5	3207	88
5.		Canon 5D Mark IV	Full Frame	30.1	6720	4480	4K/30p	24.8	13.6	2995	91
6.		Canon 80D	APS-C	24.0	6000	4000	1080/60p	23.6	13.2	1135	79
7.		Canon 5DS R	Full Frame	50.3	8688	5792	1080/30p	24.6	12.4	2308	86
8.		Canon 5D Mark III	Full Frame	22.1	5760	3840	1080/30p	24.0	11.7	2293	81
9.		Canon 6D	Full Frame	20.0	5472	3648	1080/30p	23.8	12.1	2340	82
10.		Canon 5D Mark II	Full Frame	21.0	5616	3744	1080/30p	23.7	11.9	1815	79
11.		Nikon D850	Full Frame	45.4	8256	5504	4K/30p	26.4	14.8	2660	100
12.		Nikon D500	APS-C	20.7	5568	3712	4K/30p	24.0	14.0	1324	83
13.		Nikon D7200	APS-C	24.0	6000	4000	1080/60p	24.5	14.6	1333	87
14.		Nikon D810	Full Frame	36.2	7360	4912	1080/60p	25.7	14.8	2853	97
15.		Nikon D7100	APS-C	24.0	6000	4000	1080/60p	24.2	13.7	1256	83
16.		Nikon D7000	APS-C	16.1	4928	3264	1080/24p	23.5	13.9	1167	80
17.		Sony A99 II	Full Frame	42.2	7952	5304	4K/30p	25.4	13.4	2317	92

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the D7500 provides a better video resolution than the 5DS. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The 5DS and the D7500 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the 5DS has a higher magnification than the one of the D7500 (0.71x vs 0.61x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 5DS and Nikon D7500 along with similar information for a selection of comparators.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 5DS	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
2.		Nikon D7500	optical	Y	3.2 / 922	tilting	Y	1/8000s	8.0/s	Y	n
3.		Canon 6D Mark II	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.5/s	n	n
4.		Canon 1D X Mark II	optical	Y	3.2 / 1620	fixed	Y	1/8000s	16.0/s	n	n
5.		Canon 5D Mark IV	optical	Y	3.2 / 1620	fixed	Y	1/8000s	7.0/s	n	n
6.		Canon 80D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
7.		Canon 5DS R	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
8.		Canon 5D Mark III	optical	Y	3.2 / 1040	fixed	n	1/8000s	6.0/s	n	n
9.		Canon 6D	optical	Y	3.0 / 1040	fixed	n	1/4000s	4.5/s	n	n
10.		Canon 5D Mark II	optical	Y	3.0 / 920	fixed	n	1/8000s	3.9/s	n	n
11.		Nikon D850	optical	Y	3.2 / 2359	tilting	Y	1/8000s	9.0/s	n	n
12.		Nikon D500	optical	Y	3.2 / 2359	tilting	Y	1/8000s	10.0/s	n	n
13.		Nikon D7200	optical	Y	3.2 / 1229	fixed	n	1/8000s	6.0/s	Y	n
14.		Nikon D810	optical	Y	3.2 / 1229	fixed	n	1/8000s	5.0/s	Y	n
15.		Nikon D7100	optical	Y	3.2 / 1229	fixed	n	1/8000s	6.0/s	Y	n
16.		Nikon D7000	optical	Y	3.0 / 921	fixed	n	1/8000s	6.0/s	Y	n
17.		Sony A99 II	2400	Y	3.0 / 1229	full-flex	n	1/8000s	12.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The D7500 has a touchscreen, while the 5DS has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Canon 5DS and the Nikon D7500 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The 5DS writes its imaging data to Compact Flash or SDXC cards, while the D7500 uses SDXC cards. The 5DS features dual card slots, which can be very useful in case a memory card fails. In contrast, the D7500 only has one slot. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5DS and Nikon D7500 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 5DS	Y	mono / mono	Y	-	mini	3.0	-	-	-
2.		Nikon D7500	Y	stereo / mono	Y	Y	mini	2.0	Y	-	Y
3.		Canon 6D Mark II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon 1D X Mark II	Y	mono / mono	Y	Y	mini	3.0	-	-	-
5.		Canon 5D Mark IV	Y	mono / mono	Y	Y	mini	3.0	Y	Y	-
6.		Canon 80D	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
7.		Canon 5DS R	Y	mono / mono	Y	-	mini	3.0	-	-	-
8.		Canon 5D Mark III	Y	mono / mono	Y	Y	mini	2.0	-	-	-
9.		Canon 6D	Y	mono / mono	Y	-	mini	2.0	Y	-	-
10.		Canon 5D Mark II	Y	mono / mono	Y	-	mini	2.0	-	-	-
11.		Nikon D850	Y	stereo / mono	Y	Y	mini	3.0	Y	Y	Y
12.		Nikon D500	Y	stereo / mono	Y	Y	mini	3.0	Y	Y	Y
13.		Nikon D7200	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
14.		Nikon D810	Y	stereo / mono	Y	Y	mini	3.0	Y	-	-
15.		Nikon D7100	Y	stereo / mono	Y	Y	mini	2.0	-	-	-
16.		Nikon D7000	Y	mono / mono	Y	-	mini	2.0	-	-	-
17.		Sony A99 II	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	Y

It is notable that the D7500 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 5DS does not provide wifi capability.

Studio photographers will appreciate that the Canon 5DS (unlike the D7500) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The D7500 is a recent model that features in the current product line-up of Nikon. In contrast, the 5DS has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the 5DS from Canon. Further information on the features and operation of the 5DS and D7500 can be found, respectively, in the Canon 5DS Manual (free pdf) or the online Nikon D7500 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Canon 5DS and the Nikon D7500? Which camera is better? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Canon EOS 5DS:

• More detail: Offers more megapixels (50.3 vs 20.7MP) with a 56% higher linear resolution.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better low-light sensitivity: Requires less light for good images (0.7 stops ISO advantage).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.71x vs 0.61x).
• More detailed LCD: Has a higher resolution rear screen (1040k vs 922k dots).
• Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been available for much longer (launched in February 2015).

Advantages of the Nikon D7500:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• More dynamic range: Captures a broader range of light and dark details (1.6 EV of extra DR).
• Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster burst: Shoots at higher frequency (8 vs 5 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (136x104mm vs 152x116mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 210g or 23 percent) and is thus easier to take along.
• Longer lasting: Gets more shots (950 versus 700) out of a single battery charge.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More affordable: Was introduced into a lower priced category (65 percent cheaper at launch).
• More modern: Reflects 2 years and 2 months of technical progress since the 5DS launch.

If the count of relative strengths (bullet points above) is taken as a measure, the D7500 is the clear winner of the contest (15 : 9 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 5DS and the Nikon D7500 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the 5DS or the D7500 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 5DS	..	+	..	83/100	4.5/5	4.5/5	Feb 2015	3,699	ebay.com
2.		Nikon D7500	4.5/5	+ +	4.5/5	86/100	5/5	4.5/5	Apr 2017	1,299	amazon.com
3.		Canon 6D Mark II	4/5	+	4/5	80/100	4.5/5	4/5	Jun 2017	1,999	amazon.com
4.		Canon 1D X Mark II	..	..	4.5/5	89/100	4.5/5	4.5/5	Feb 2016	5,999	ebay.com
5.		Canon 5D Mark IV	4.5/5	+ +	4/5	87/100	4.5/5	4.5/5	Aug 2016	3,499	amazon.com
6.		Canon 80D	4/5	+ +	4.5/5	84/100	4.5/5	4.5/5	Feb 2016	1,199	ebay.com
7.		Canon 5DS R	5/5	+	..	83/100	5/5	4.5/5	Feb 2015	3,699	ebay.com
8.		Canon 5D Mark III	..	+ +	..	82/100	4.5/5	4.5/5	Mar 2012	3,499	ebay.com
9.		Canon 6D	5/5	+ +	..	83/100	4.5/5	4.5/5	Sep 2012	2,099	ebay.com
10.		Canon 5D Mark II	4/5	91/100	..	79/100	4/5	..	Sep 2008	3,499	ebay.com
11.		Nikon D850	4.5/5	+ +	5/5	89/100	4.5/5	5/5	Jul 2017	3,299	amazon.com
12.		Nikon D500	5/5	+ +	4.7/5	91/100	4.5/5	5/5	Jan 2016	1,999	ebay.com
13.		Nikon D7200	4/5	+ +	..	84/100	4.5/5	4.5/5	Mar 2015	1,199	ebay.com
14.		Nikon D810	5/5	..	5/5	86/100	5/5	4.5/5	Jun 2014	3,299	ebay.com
15.		Nikon D7100	5/5	+ +	..	85/100	4.5/5	4.5/5	Feb 2013	1,199	ebay.com
16.		Nikon D7000	4/5	..	..	80/100	4.5/5	4.5/5	Sep 2010	1,499	ebay.com
17.		Sony A99 II	..	..	4.5/5	85/100	4.5/5	4.5/5	Sep 2016	3,199	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
