Canon 5DS vs Nikon D40
The Canon EOS 5DS and the Nikon D40 are two digital cameras that were announced, respectively, in February 2015 and November 2006. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (5DS) and an APS-C (D40) sensor. The Canon has a resolution of 50.3 megapixels, whereas the Nikon provides 6 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 5DS||Nikon D40|
|Digital single lens reflex||Digital single lens reflex|
|Canon EF mount lenses||Nikon F mount lenses|
|50.3 MP, Full Frame Sensor||6 MP, APS-C Sensor|
|1080/30p Video||no Video|
|ISO 100-6,400 (50 - 12,800)||ISO 200-1,600 (200 - 3,200)|
|Optical viewfinder||Optical viewfinder|
|3.2 LCD, 1040k dots||2.5 LCD, 230k dots|
|Fixed screen (not touch-sensitive)||Fixed screen (not touch-sensitive)|
|5 shutter flaps per second||2.5 shutter flaps per second|
|Weathersealed body||not weather sealed|
|700 shots per battery charge||470 shots per battery charge|
|152 x 116 x 76 mm, 930 g||124 x 94 x 64 mm, 522 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5DS and the Nikon D40? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

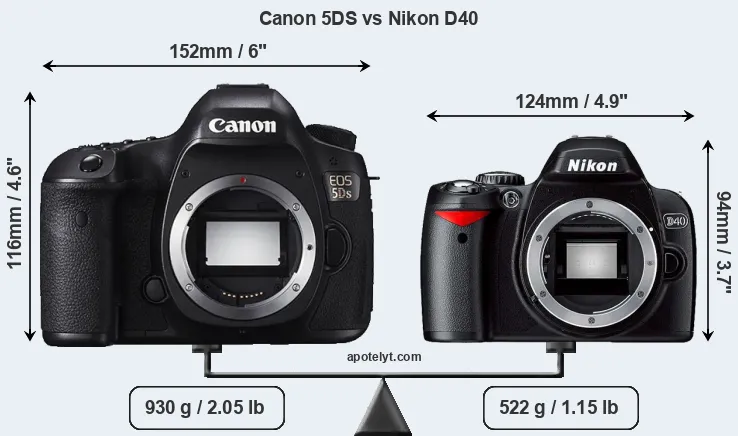

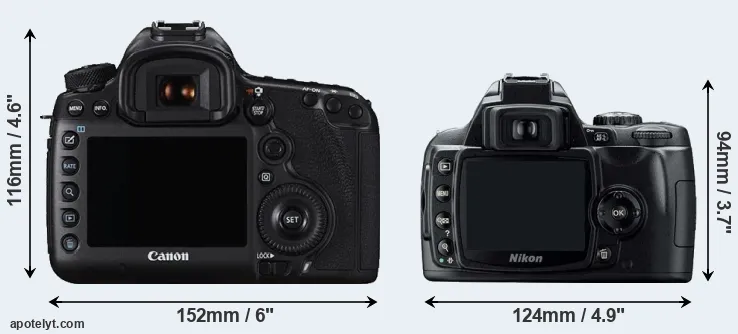

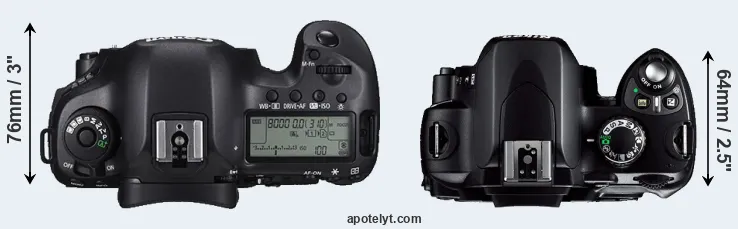

The side-by-side display below illustrates the physical size and weight of the Canon 5DS and the Nikon D40. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D40 is considerably smaller (34 percent) than the Canon 5DS. Moreover, the D40 is substantially lighter (44 percent) than the 5DS. It is worth mentioning in this context that the 5DS is splash and dust resistant, while the D40 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (5DS) and the Nikon Lens Catalog (D40).
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Canon 5DS||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699|
|Nikon D40||4.9 in||3.7 in||2.5 in||18.4 oz||470||n||Nov 2006||499|
|Canon 1D X Mark II||6.2 in||6.6 in||3.3 in||54.0 oz||1210||Y||Feb 2016||5,999|
|Canon 5D Mark IV||5.9 in||4.6 in||3.0 in||31.4 oz||900||Y||Aug 2016||3,499|
|Canon 5DS R||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699|
|Canon 5D Mark III||6.0 in||4.6 in||3.0 in||33.5 oz||950||Y||Mar 2012||3,499|
|Canon 6D||5.7 in||4.4 in||2.8 in||27.2 oz||1090||Y||Sep 2012||2,099|
|Canon 5D Mark II||6.0 in||4.5 in||3.0 in||30.0 oz||850||Y||Sep 2008||3,499|
|Canon 5D||6.0 in||4.4 in||3.0 in||31.6 oz||400||Y||Aug 2005||3,299|
|Nikon D850||5.7 in||4.9 in||3.1 in||35.5 oz||1840||Y||Jul 2017||3,299|
|Nikon D3400||4.9 in||3.9 in||3.0 in||15.7 oz||1200||n||Aug 2016||499|
|Nikon D810||5.7 in||4.8 in||3.2 in||34.6 oz||1200||Y||Jun 2014||3,299|
|Nikon D3300||4.9 in||3.9 in||3.0 in||15.2 oz||700||n||Jan 2014||499|
|Nikon D3100||4.9 in||3.8 in||3.0 in||17.8 oz||550||n||Aug 2010||599|
|Nikon D40X||4.9 in||3.7 in||2.5 in||18.4 oz||520||n||Mar 2007||729|
|Nikon D50||5.2 in||4.0 in||3.0 in||21.9 oz||400||n||Apr 2005||749|
|Sony A99 II||5.6 in||4.1 in||3.0 in||29.9 oz||490||Y||Sep 2016||3,199|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The D40 was launched at a markedly lower price (by 87 percent) than the 5DS, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

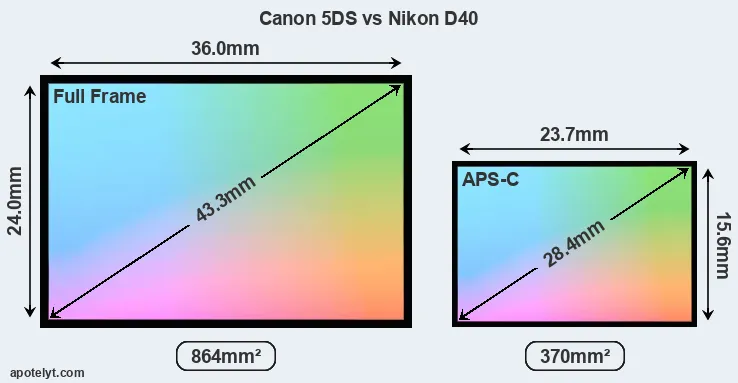

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 5DS features a full frame sensor and the Nikon D40 an APS-C sensor. The sensor area in the D40 is 57 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

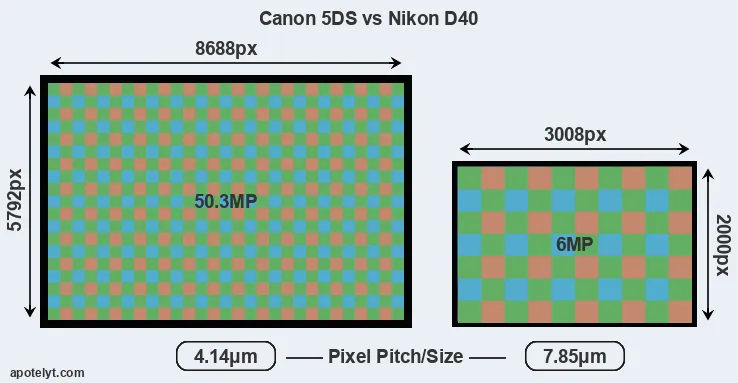

With 50.3MP, the 5DS offers a higher resolution than the D40 (6MP), but the 5DS has smaller individual pixels (pixel pitch of 4.14μm versus 7.85μm for the D40). However, the 5DS is a much more recent model (by 8 years and 2 months) than the D40, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon 5DS implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5DS for good quality output (200 dots per inch) amounts to 43.4 x 29 inches or 110.3 x 73.6 cm, for very good quality (250 dpi) 34.8 x 23.2 inches or 88.3 x 58.8 cm, and for excellent quality (300 dpi) 29 x 19.3 inches or 73.6 x 49 cm. The corresponding values for the Nikon D40 are 15 x 10 inches or 38.2 x 25.4 cm for good quality, 12 x 8 inches or 30.6 x 20.3 cm for very good quality, and 10 x 6.7 inches or 25.5 x 16.9 cm for excellent quality prints.
The Canon EOS 5DS has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 50-12800. The corresponding ISO settings for the Nikon D40 are ISO 200 to ISO 1600, with the possibility to increase the ISO range to 200-3200.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the 5DS provides substantially higher image quality than the D40, with an overall score that is 31 points higher. This advantage is based on 3.7 bits higher color depth, 1.4 EV in additional dynamic range, and 2.1 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71|
|Nikon D850||Full Frame||45.4||8256||5504||4K/30p||26.4||14.8||2660||100|
|Nikon D810||Full Frame||36.2||7360||4912||1080/60p||25.7||14.8||2853||97|
|Sony A99 II||Full Frame||42.2||7952||5304||4K/30p||25.4||13.4||2317||92|
Many modern cameras are not only capable of taking still images, but can also record movies. The 5DS indeed provides movie recording capabilities, while the D40 does not. The highest resolution format that the 5DS can use is 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. The 5DS and the D40 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 5DS offers a wider field of view (100%) than the one in the D40 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the 5DS has a higher magnification (0.71x vs 0.53x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 5DS, the Nikon D40, and comparable cameras.
|Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n|
|Canon 5DS R||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n|
|Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n|
|Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
|Sony A99 II||2400||Y||3.0||1229||full-flex||n||1/8000s||12.0||n||Y|
One feature that is present on the 5DS, but is missing on the D40 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The Canon 5DS has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 5DS writes its imaging data to Compact Flash or SDXC cards, while the D40 uses SDHC cards. The 5DS features dual card slots, which can be very useful in case a memory card fails. In contrast, the D40 only has one slot. The 5DS supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the D40 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5DS and Nikon D40 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-|
|Canon 5DS R||Y||mono||mono||Y||-||mini||3.0||-||-||-|
|Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
|Sony A99 II||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||Y|
Studio photographers will appreciate that the Canon 5DS (unlike the D40) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The 5DS is a recent model that features in the current product line-up of Canon. In contrast, the D40 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the D40 was succeeded by the Nikon D40X. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Nikon websites.
So how do things add up? Which of the two cameras – the Canon 5DS or the Nikon D40 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.
Arguments in favor of the Canon EOS 5DS:
- More detail: Offers more megapixels (50.3 vs 6MP) with a 189% higher linear resolution.
- Better image quality: Scores substantially higher (31 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (3.7 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (1.4 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (2.1 stops ISO advantage).
- Broader imaging potential: Can record not only still images but also 1080/30p movies.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.71x vs 0.53x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (5 vs 2.5 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Can take more shots (700 versus 470) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 8 years and 2 months of technical progress since the D40 launch.
Advantages of the Nikon D40:
- More compact: Is smaller (124x94mm vs 152x116mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 408g or 44 percent) and is thus easier to take along.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More affordable: Was introduced into a lower priced category (87 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in November 2006).
If the count of relative strengths (bullet points above) is taken as a measure, the 5DS is the clear winner of the match-up (21 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5DS and the Nikon D40 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 5DS or the D40. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 5DS||+||83/100||4.5/5||5/5||4.5/5||Feb 2015||3,699|
|Nikon D40||81/100||+ +||o||5/5||4.5/5||Nov 2006||499|
|Canon 1D X Mark II||..||89/100||4.5/5||5/5||4.5/5||Feb 2016||5,999|
|Canon 5D Mark IV||+ +||87/100||4.5/5||5/5||4.5/5||Aug 2016||3,499|
|Canon 5DS R||+||83/100||5/5||5/5||4.5/5||Feb 2015||3,699|
|Canon 5D Mark III||+ +||82/100||4.5/5||5/5||4.5/5||Mar 2012||3,499|
|Canon 6D||+ +||83/100||4.5/5||4.5/5||4.5/5||Sep 2012||2,099|
|Canon 5D Mark II||91/100||79/100||4/5||5/5||..||Sep 2008||3,499|
|Canon 5D||88/100||+ +||o||o||..||Aug 2005||3,299|
|Nikon D850||+ +||89/100||4.5/5||5/5||5/5||Jul 2017||3,299|
|Nikon D3400||+||76/100||4/5||4.5/5||4.5/5||Aug 2016||499|
|Nikon D810||..||86/100||5/5||4.5/5||4.5/5||Jun 2014||3,299|
|Nikon D3300||+||77/100||4.5/5||4.5/5||4.5/5||Jan 2014||499|
|Nikon D3100||+ +||72/100||4.5/5||5/5||4.5/5||Aug 2010||599|
|Nikon D40X||79/100||+ +||4/5||o||4/5||Mar 2007||729|
|Nikon D50||78/100||+ +||4/5||o||4.5/5||Apr 2005||749|
|Sony A99 II||..||85/100||4.5/5||4.5/5||4.5/5||Sep 2016||3,199|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 1Ds Mark III vs Canon 5DS R
- Canon 5DS R vs Canon M10
- Canon 5DS R vs Canon M6
- Canon 5DS R vs Canon XSi
- Canon 5DS R vs Leica V-LUX 5
- Canon 5DS R vs Nikon D810
- Canon 5DS R vs Panasonic LF1
- Canon 5DS R vs Sony H200
- Canon 5DS vs Panasonic TS7
- Canon 5DS vs Sony NEX-6
- Canon 800D vs Nikon D40
- Nikon D40 vs Sony A900
Specifications: Canon 5DS vs Nikon D40
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 5DS||Nikon D40|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Nikon F mount lenses|
|Launch Date||February 2015||November 2006|
|Launch Price||USD 3,699||USD 499|
|Sensor Specs||Canon 5DS||Nikon D40|
|Sensor Format||Full Frame Sensor||APS-C Sensor|
|Sensor Size||36.0 x 24.0 mm||23.7 x 15.6 mm|
|Sensor Area||864 mm2||369.72 mm2|
|Sensor Diagonal||43.3 mm||28.4 mm|
|Sensor Resolution||50.3 Megapixels||6 Megapixels|
|Image Resolution||8688 x 5792 pixels||3008 x 2000 pixels|
|Pixel Pitch||4.14 μm||7.85 μm|
|Pixel Density||5.82 MP/cm2||1.63 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||no Video|
|ISO Setting||100 - 6,400 ISO||200 - 1,600 ISO|
|ISO Boost||50 - 12,800 ISO||200 - 3,200 ISO|
|DXO Sensor Quality (score)||87||56|
|DXO Color Depth (bits)||24.7||21.0|
|DXO Dynamic Range (EV)||12.4||11.0|
|DXO Low Light (ISO)||2381||561|
|Screen Specs||Canon 5DS||Nikon D40|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View|
|Rear LCD Size||3.2inch||2.5inch|
|LCD Resolution||1040k dots||230k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon 5DS||Nikon D40|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||5 shutter flaps/s||2.5 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||CF or SDXC cards||SDHC cards|
|Second Storage Option||Dual card slots||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Canon 5DS||Nikon D40|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 3.0||USB 2.0|
|HDMI Port||mini HDMI||no HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 5DS||Nikon D40|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||700 shots per charge||470 shots per charge|
152 x 116 x 76 mm
(6.0 x 4.6 x 3.0 in)
124 x 94 x 64 mm
(4.9 x 3.7 x 2.5 in)
|Camera Weight||930 g (32.8 oz)||522 g (18.4 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
