Canon 5DS vs SX510

The Canon EOS 5DS and the Canon PowerShot SX510 HS are two digital cameras that were announced, respectively, in February 2015 and August 2013. The 5DS is a DSLR, while the SX510 is a fixed lens compact. The cameras are based on a full frame (5DS) and a 1/2.3-inch (SX510) sensor. The 5DS has a resolution of 50.3 megapixels, whereas the SX510 provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon 5DS
versus
Canon SX510
Canon 5DS   Canon SX510
Digital single lens reflex Fixed lens compact camera
Canon EF mount lenses 24-720mm f/3.4-5.8
50.3 MP – Full Frame sensor 15.9 MP – 1/2.3" sensor
1080/30p Video 1080/24p Video
ISO 100-6,400 (50 - 12,800) ISO 80-3,200
Optical viewfinder No viewfinder, LCD framing
3.2" LCD – 1040k dots 3.0" LCD – 461k dots
Fixed screen (not touch-sensitive) Fixed screen (not touch-sensitive)
5 shutter flaps per second 3.8 shutter flaps per second
Weathersealed bodynot weather sealed
700 shots per battery charge250 shots per battery charge
152 x 116 x 76 mm, 930 g 104 x 70 x 80 mm, 349 g
logo
Check 5DS offers at
ebay.com
logo
Check SX510 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5DS and the Canon PowerShot SX510 HS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

The physical size and weight of the Canon 5DS and the Canon SX510 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

Size Canon 5DS vs Canon SX510

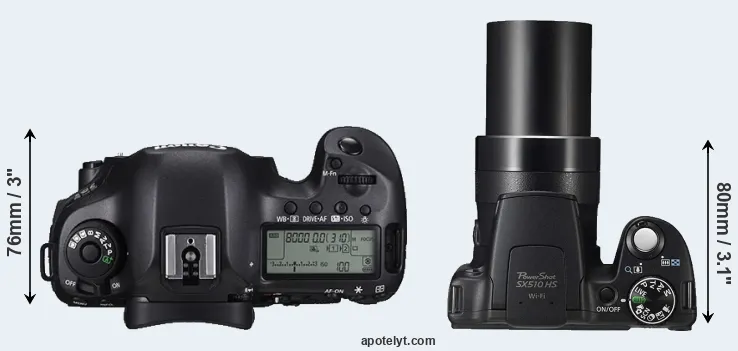

Compare 5DS versus SX510 top
Comparison 5DS or SX510 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SX510 is considerably smaller (59 percent) than the Canon 5DS. It is worth mentioning in this context that the 5DS is splash and dust resistant, while the SX510 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX510 has a lens built in, whereas the 5DS is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 5DS and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the 5DS gets 700 shots out of its Canon LP-E6 battery, while the SX510 can take 250 images on a single charge of its Canon NB-6LH power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

scroll hint
Body Specifications
# image Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon 5DS 152 mm 116 mm 76 mm 930 g 700 Y Feb 2015 3,699ebay.com
2.

Canon SX510 104 mm 70 mm 80 mm 349 g 250 n Aug 2013 249ebay.com
3.

Canon 1D X Mark II 158 mm 168 mm 83 mm 1530 g 1210 Y Feb 2016 5,999ebay.com
4.

Canon 5D Mark IV 151 mm 116 mm 76 mm 890 g 900 Y Aug 2016 3,499 amazon.com
5.

Canon SX420 104 mm 69 mm 85 mm 325 g 195 n Jan 2016 299ebay.com
6.

Canon 5DS R 152 mm 116 mm 76 mm 930 g 700 Y Feb 2015 3,699ebay.com
7.

Canon SX410 104 mm 69 mm 85 mm 325 g 185 n Feb 2015 279ebay.com
8.

Canon SX520 120 mm 82 mm 92 mm 441 g 210 n Jul 2014 399ebay.com
9.

Canon SX400 104 mm 69 mm 80 mm 313 g 190 n Jul 2014 249ebay.com
10.

Canon SX500 104 mm 70 mm 80 mm 341 g 195 n Aug 2012 329ebay.com
11.

Canon 5D Mark III 152 mm 116 mm 76 mm 950 g 950 Y Mar 2012 3,499ebay.com
12.

Canon 6D 145 mm 111 mm 71 mm 770 g 1090 Y Sep 2012 2,099ebay.com
13.

Canon 5D Mark II 152 mm 114 mm 75 mm 850 g 850 Y Sep 2008 3,499ebay.com
14.

Canon 5D 152 mm 113 mm 75 mm 895 g 400 Y Aug 2005 3,299ebay.com
15.

Nikon D850 146 mm 124 mm 79 mm 1005 g 1840 Y Jul 2017 3,299 amazon.com
16.

Nikon D810 146 mm 123 mm 82 mm 980 g 1200 Y Jun 2014 3,299ebay.com
17.

Sony A99 II 143 mm 104 mm 76 mm 849 g 490 Y Sep 2016 3,199ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
padding

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The SX510 was launched at a lower price than the 5DS, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 5DS features a full frame sensor and the Canon SX510 a 1/2.3-inch sensor. The sensor area in the SX510 is 97 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 5.6. The sensor in the 5DS has a native 3:2 aspect ratio, while the one in the SX510 offers a 4:3 aspect.

Canon 5DS and Canon SX510 sensor measures

With 50.3MP, the 5DS offers a higher resolution than the SX510 (15.9MP), but the 5DS nevertheless has larger individual pixels (pixel pitch of 4.14μm versus 1.33μm for the SX510) due to its larger sensor. Moreover, the 5DS is a somewhat more recent model (by 1 year and 5 months) than the SX510, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the SX510 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon 5DS implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5DS for good quality output (200 dots per inch) amounts to 43.4 x 29 inches or 110.3 x 73.6 cm, for very good quality (250 dpi) 34.8 x 23.2 inches or 88.3 x 58.8 cm, and for excellent quality (300 dpi) 29 x 19.3 inches or 73.6 x 49 cm. The corresponding values for the Canon SX510 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The Canon EOS 5DS has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 50-12800. The corresponding ISO settings for the Canon PowerShot SX510 HS are ISO 80 to ISO 3200 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

5DS versus SX510 MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

scroll hint
Sensor Characteristics
# image Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon 5DS Full Frame 50.3 8688 57921080/30p24.712.4238187
2.

Canon SX510 1/2.3 15.9 4608 34561080/24p20.011.358645
3.

Canon 1D X Mark II Full Frame 20.0 5472 36484K/60p24.113.5320788
4.

Canon 5D Mark IV Full Frame 30.1 6720 44804K/30p24.813.6299591
5.

Canon SX420 1/2.3 19.9 5152 3864720/25p20.311.780648
6.

Canon 5DS R Full Frame 50.3 8688 57921080/30p24.612.4230886
7.

Canon SX410 1/2.3 19.9 5152 3864720/30p20.211.672047
8.

Canon SX520 1/2.3 15.9 4608 34561080/30p20.111.567246
9.

Canon SX400 1/2.3 15.9 4608 3456720/30p20.111.567246
10.

Canon SX500 1/2.3 15.9 4608 3456720/30p19.811.149443
11.

Canon 5D Mark III Full Frame 22.1 5760 38401080/30p24.011.7229381
12.

Canon 6D Full Frame 20.0 5472 36481080/30p23.812.1234082
13.

Canon 5D Mark II Full Frame 21.0 5616 37441080/30p23.711.9181579
14.

Canon 5D Full Frame 12.7 4368 2912none22.911.1136871
15.

Nikon D850 Full Frame 45.4 8256 55044K/30p26.414.82660100
16.

Nikon D810 Full Frame 36.2 7360 49121080/60p25.714.8285397
17.

Sony A99 II Full Frame 42.2 7952 53044K/30p25.413.4231792
Note: DXO values in italics represent estimates based on sensor size and age.
padding

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the 5DS provides a higher frame rate than the SX510. It can shoot video footage at 1080/30p, while the SX510 is limited to 1080/24p.

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the 5DS has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the SX510 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon 5DS, the Canon SX510, and comparable cameras.

scroll hint
Core Features
# image Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon 5DSoptical Y3.2 / 1040 fixed n 1/8000s 5.0/s n n
2.

Canon SX510none n3.0 / 461 fixed n 1/1600s 3.8/s Y Y
3.

Canon 1D X Mark IIoptical Y3.2 / 1620 fixed Y 1/8000s 16.0/s n n
4.

Canon 5D Mark IVoptical Y3.2 / 1620 fixed Y 1/8000s 7.0/s n n
5.

Canon SX420none n3.0 / 230 fixed n 1/4000s 0.5/s Y Y
6.

Canon 5DS Roptical Y3.2 / 1040 fixed n 1/8000s 5.0/s n n
7.

Canon SX410none n3.0 / 230 fixed n 1/4000s 0.5/s Y Y
8.

Canon SX520none n3.0 / 461 fixed n 1/2000s 1.6/s Y Y
9.

Canon SX400none n3.0 / 230 fixed n 1/1600s 0.8/s Y Y
10.

Canon SX500none n3.0 / 461 fixed n 1/1600s 0.8/s Y Y
11.

Canon 5D Mark IIIoptical Y3.2 / 1040 fixed n 1/8000s 6.0/s n n
12.

Canon 6Doptical Y3.0 / 1040 fixed n 1/4000s 4.5/s n n
13.

Canon 5D Mark IIoptical Y3.0 / 920 fixed n 1/8000s 3.9/s n n
14.

Canon 5Doptical Y2.5 / 230 fixed n 1/8000s 3.0/s n n
15.

Nikon D850optical Y3.2 / 2359 tilting Y 1/8000s 9.0/s n n
16.

Nikon D810optical Y3.2 / 1229 fixed n 1/8000s 5.0/s Y n
17.

Sony A99 II2400 Y3.0 / 1229 full-flex n 1/8000s 12.0/s n Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
padding

One feature that is present on the 5DS, but is missing on the SX510 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The Canon 5DS has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The 5DS writes its imaging data to Compact Flash or SDXC cards, while the SX510 uses SDXC cards. The 5DS features dual card slots, which can be very useful in case a memory card fails. In contrast, the SX510 only has one slot. The 5DS supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the SX510 cannot take advantage of Ultra High Speed SD cards.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5DS and Canon PowerShot SX510 HS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
# image Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon 5DSYmono / monoY-mini3.0---
2.

Canon SX510-stereo / mono--mini2.0Y--
3.

Canon 1D X Mark IIYmono / monoYYmini3.0---
4.

Canon 5D Mark IVYmono / monoYYmini3.0YY-
5.

Canon SX420-mono / mono---2.0YY-
6.

Canon 5DS RYmono / monoY-mini3.0---
7.

Canon SX410-stereo / mono---2.0---
8.

Canon SX520-stereo / mono--mini2.0---
9.

Canon SX400-stereo / mono---2.0---
10.

Canon SX500-stereo / mono---2.0---
11.

Canon 5D Mark IIIYmono / monoYYmini2.0---
12.

Canon 6DYmono / monoY-mini2.0Y--
13.

Canon 5D Mark IIYmono / monoY-mini2.0---
14.

Canon 5DY- / ----2.0---
15.

Nikon D850Ystereo / monoYYmini3.0YYY
16.

Nikon D810Ystereo / monoYYmini3.0Y--
17.

Sony A99 IIYstereo / monoYYmicro2.0YYY
padding

It is notable that the 5DS has a hotshoe, while the SX510 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Studio photographers will appreciate that the Canon 5DS (unlike the SX510) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the 5DS and the SX510 have been discontinued, but can regularly be found used on ebay. The SX510 was replaced by the Canon SX520, while the 5DS does not have a direct successor. Further information on the features and operation of the 5DS and SX510 can be found, respectively, in the Canon 5DS Manual (free pdf) or the online Canon SX510 Manual.

ad

Review summary

So what is the bottom line? Is there a clear favorite between the Canon 5DS and the Canon SX510? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.


Reasons to prefer the Canon EOS 5DS:

  • More detail: Offers more megapixels (50.3 vs 15.9MP) with a 81% higher linear resolution.
  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Better image quality: Features a larger and more technologically advanced imaging sensor.
  • Richer colors: The sensor size advantage translates into images with better, more accurate colors.
  • More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
  • Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
  • Better video: Provides higher movie framerates (1080/30p versus 1080/24p).
  • Better sound: Can connect to an external microphone for higher quality sound recording.
  • Easier framing: Has an optical viewfinder for image composition and settings control.
  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (1040k vs 461k dots).
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/1600s) to freeze action.
  • Faster burst: Shoots at higher frequency (5 vs 3.8 flaps/sec) to capture the decisive moment.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • More flexible: Can take a variety of interchangeable lenses, including specialty optics.
  • Longer lasting: Can take more shots (700 versus 250) on a single battery charge.
  • Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
  • Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
  • Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
  • More modern: Is somewhat more recent (announced 1 year and 5 months after the SX510).


Arguments in favor of the Canon PowerShot SX510 HS:

  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Ready to shoot: Comes with an integrated lens, while the 5DS requires a separate lens.
  • More compact: Is smaller (104x70mm vs 152x116mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight even though it has a lens built in (unlike the 5DS).
  • Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
  • Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • More affordable: Was introduced at a lower price, despite coming with a built-in lens.
  • More heavily discounted: Has been on the market for longer (launched in August 2013).

If the count of individual advantages (bullet points above) is taken as a guide, the 5DS is the clear winner of the match-up (24 : 9 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

5DS 24:09 SX510

How about other alternatives? Do the specifications of the Canon 5DS and the Canon SX510 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 5DS and the SX510 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
# image  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon 5DS..+..83/1004.5/54.5/5 Feb 2015 3,699ebay.com
2.

Canon SX510..+ +....4.5/54/5 Aug 2013 249ebay.com
3.

Canon 1D X Mark II....4.5/589/1004.5/54.5/5 Feb 2016 5,999ebay.com
4.

Canon 5D Mark IV4.5/5+ +4/587/1004.5/54.5/5 Aug 2016 3,499 amazon.com
5.

Canon SX420..........3/5 Jan 2016 299ebay.com
6.

Canon 5DS R5/5+..83/1005/54.5/5 Feb 2015 3,699ebay.com
7.

Canon SX410..o........ Feb 2015 279ebay.com
8.

Canon SX520..+....3.5/53.5/5 Jul 2014 399ebay.com
9.

Canon SX400..+........ Jul 2014 249ebay.com
10.

Canon SX500..+ +....4/54/5 Aug 2012 329ebay.com
11.

Canon 5D Mark III..+ +..82/1004.5/54.5/5 Mar 2012 3,499ebay.com
12.

Canon 6D5/5+ +..83/1004.5/54.5/5 Sep 2012 2,099ebay.com
13.

Canon 5D Mark II4/591/100..79/1004/5.. Sep 2008 3,499ebay.com
14.

Canon 5D..88/100..+ +o.. Aug 2005 3,299ebay.com
15.

Nikon D8504.5/5+ +5/589/1004.5/55/5 Jul 2017 3,299 amazon.com
16.

Nikon D8105/5..5/586/1005/54.5/5 Jun 2014 3,299ebay.com
17.

Sony A99 II....4.5/585/1004.5/54.5/5 Sep 2016 3,199ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
padding

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

logo
Check 5DS offers at
ebay.com
logo
Check SX510 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader
    ad

    Specifications: Canon 5DS vs Canon SX510

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon 5DS Canon SX510
    Camera Type Digital single lens reflex Fixed lens compact camera
    Camera Lens Canon EF mount lenses 24-720mm f/3.4-5.8
    Launch Date February 2015 August 2013
    Launch Price USD 3,699 USD 249
    Sensor Specs Canon 5DS Canon SX510
    Sensor Technology CMOS CMOS
    Sensor Format Full Frame Sensor 1/2.3" Sensor
    Sensor Size 36.0 x 24.0 mm 6.17 x 4.55 mm
    Sensor Area 864 mm2 28.0735 mm2
    Sensor Diagonal 43.3 mm 7.7 mm
    Crop Factor 1.0x 5.6x
    Sensor Resolution 50.3 Megapixels 15.9 Megapixels
    Image Resolution 8688 x 5792 pixels 4608 x 3456 pixels
    Pixel Pitch 4.14 μm 1.33 μm
    Pixel Density 5.82 MP/cm2 56.73 MP/cm2
    Moiré control Anti-Alias filter no AA filter
    Movie Capability 1080/30p Video 1080/24p Video
    ISO Setting 100 - 6,400 ISO 80 - 3,200 ISO
    ISO Boost 50 - 12,800 ISO no Enhancement
    Image Processor DIGIC 6 (Dual) DIGIC 4
    DXO Sensor Quality (score) 87 ..
    DXO Color Depth (bits) 24.7 ..
    DXO Dynamic Range (EV) 12.4 ..
    DXO Low Light (ISO) 2381 ..
    Screen Specs Canon 5DS Canon SX510
    Viewfinder Type Optical viewfinder no viewfinder
    Viewfinder Field of View 100%
    Viewfinder Magnification 0.71x
    Top-Level Screen Control Panel no Top Display
    LCD Framing Live View Live View
    Rear LCD Size 3.2inch 3.0inch
    LCD Resolution 1040k dots 461k dots
    LCD Attachment Fixed screen Fixed screen
    Shooting Specs Canon 5DS Canon SX510
    Focus System Phase-detect AF Contrast-detect AF
    Continuous Shooting 5 shutter flaps/s 3.8 shutter flaps/s
    Time-Lapse PhotographyIntervalometer built-inno Intervalometer
    Fill Flash no On-Board Flash Built-in Flash
    Storage Medium CF or SDXC cards SDXC cards
    Single or Dual Card Slots Dual card slots Single card slot
    UHS card support UHS-I no
    Connectivity Specs Canon 5DS Canon SX510
    External Flash Hotshoe no Hotshoe
    Studio Flash PC Sync socket no PC Sync
    USB Connector USB 3.0 USB 2.0
    HDMI Port mini HDMI mini HDMI
    Microphone Port External MIC port no MIC socket
    Wifi Support no Wifi Wifi built-in
    Body Specs Canon 5DS Canon SX510
    Environmental SealingWeathersealed bodynot weather sealed
    Battery Type Canon LP-E6 Canon NB-6LH
    Battery Life (CIPA)700 shots per charge250 shots per charge
    Body Dimensions 152 x 116 x 76 mm
    (6.0 x 4.6 x 3.0 in)
    104 x 70 x 80 mm
    (4.1 x 2.8 x 3.1 in)
    Camera Weight 930 g (32.8 oz) 349 g (12.3 oz)
    logo
    Check 5DS offers at
    ebay.com
    logo
    Check SX510 offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon 5DS vs Canon SX510
