Canon 5DS R vs Pentax K-1 II
The Canon EOS 5DS R and the Pentax K-1 II are two digital cameras that were announced, respectively, in February 2015 and February 2018. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with a full frame sensor. The Canon has a resolution of 50.3 megapixels, whereas the Pentax provides 36.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 5DS R||Pentax K-1 II|
|Digital single lens reflex||Digital single lens reflex|
|Canon EF mount lenses||Pentax K mount lenses|
|50.3 MP, Full Frame Sensor||36.2 MP, Full Frame Sensor|
|1080/30p Video||1080/60i Video|
|ISO 100-6,400 (50 - 12,800)||ISO 100-819,200|
|Optical viewfinder||Optical viewfinder|
|3.2 LCD, 1040k dots||3.2 LCD, 1037k dots|
|Fixed screen (not touch-sensitive)||Fully flexible screen (no touchscreen)|
|5 shutter flaps per second||4.4 shutter flaps per second|
|Lens stabilization only||In-body stabilization|
|Weathersealed body||Weathersealed body|
|700 shots per battery charge||670 shots per battery charge|
|152 x 116 x 76 mm, 930 g||137 x 110 x 86 mm, 1010 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5DS R and the Pentax K-1 II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The physical size and weight of the Canon 5DS R and the Pentax K-1 II are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
The K-1 II can be obtained in two different colors (black, silver), while the 5DS R is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax K-1 II is notably smaller (15 percent) than the Canon 5DS R. However, the K-1 II is markedly heavier (9 percent) than the 5DS R. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|Canon 5DS R||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699|
|Pentax K-1 II||5.4 in||4.3 in||3.4 in||35.6 oz||670||Y||Feb 2018||1,999|
|Canon 1D X Mark II||6.2 in||6.6 in||3.3 in||54.0 oz||1210||Y||Feb 2016||5,999|
|Canon 5D Mark IV||5.9 in||4.6 in||3.0 in||31.4 oz||900||Y||Aug 2016||3,499|
|Canon 5DS||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699|
|Canon 5D Mark III||6.0 in||4.6 in||3.0 in||33.5 oz||950||Y||Mar 2012||3,499|
|Canon 6D||5.7 in||4.4 in||2.8 in||27.2 oz||1090||Y||Sep 2012||2,099|
|Canon 5D Mark II||6.0 in||4.5 in||3.0 in||30.0 oz||850||Y||Sep 2008||3,499|
|Canon 5D||6.0 in||4.4 in||3.0 in||31.6 oz||400||Y||Aug 2005||3,299|
|Nikon D850||5.7 in||4.9 in||3.1 in||35.5 oz||1840||Y||Jul 2017||3,299|
|Nikon D810||5.7 in||4.8 in||3.2 in||34.6 oz||1200||Y||Jun 2014||3,299|
|Panasonic S1R||5.9 in||4.3 in||3.8 in||35.8 oz||380||Y||Feb 2019||3,699|
|Pentax K-1||5.4 in||4.3 in||3.4 in||35.6 oz||760||Y||Feb 2016||1,799|
|Sony A7R III||5.0 in||3.8 in||2.9 in||22.9 oz||650||Y||Oct 2017||3,199|
|Sony A99 II||5.6 in||4.1 in||3.0 in||29.9 oz||490||Y||Sep 2016||3,199|
|Sony A850||6.1 in||4.6 in||3.2 in||31.6 oz||880||Y||Aug 2009||1,999|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The K-1 II was launched at a markedly lower price (by 46 percent) than the 5DS R, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

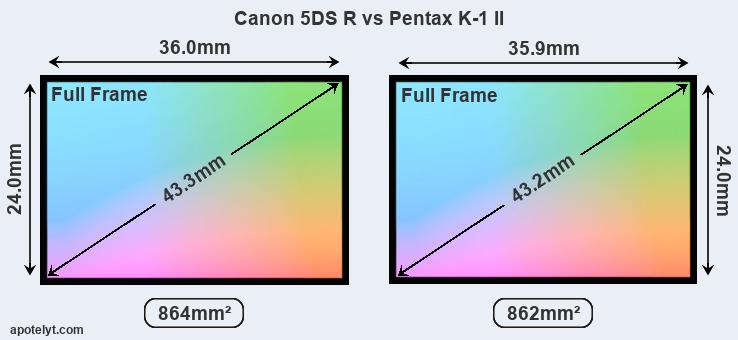

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Both cameras under consideration feature a full frame sensor, but their sensors differ slightly in size. They nevertheless have the same format factor of 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
With 50.3MP, the 5DS R offers a higher resolution than the K-1 II (36.2MP), but the 5DS R has smaller individual pixels (pixel pitch of 4.14μm versus 4.88μm for the K-1 II). Moreover, the K-1 II is a much more recent model (by 3 years) than the 5DS R, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.
The resolution advantage of the Canon 5DS R implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5DS R for good quality output (200 dots per inch) amounts to 43.4 x 29 inches or 110.3 x 73.6 cm, for very good quality (250 dpi) 34.8 x 23.2 inches or 88.3 x 58.8 cm, and for excellent quality (300 dpi) 29 x 19.3 inches or 73.6 x 49 cm. The corresponding values for the Pentax K-1 II are 36.8 x 24.6 inches or 93.5 x 62.4 cm for good quality, 29.4 x 19.6 inches or 74.8 x 49.9 cm for very good quality, and 24.5 x 16.4 inches or 62.3 x 41.6 cm for excellent quality prints.
Unlike the 5DS R, the K-1 II has the capacity to capture high quality composite images by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Canon EOS 5DS R has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 50-12800. The corresponding ISO settings for the Pentax K-1 II are ISO 100 to ISO 819200 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|Pentax K-1 II||Full Frame||36.2||7360||4912||1080/60i||..||..||..||..|
|Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71|
|Nikon D850||Full Frame||45.4||8256||5504||4K/30p||26.4||14.8||2660||100|
|Nikon D810||Full Frame||36.2||7360||4912||1080/60p||25.7||14.8||2853||97|
|Panasonic S1R||Full Frame||46.7||8368||5584||4K/60p||26.4||14.1||3525||100|
|Pentax K-1||Full Frame||36.2||7360||4912||1080/60i||25.4||14.6||3280||96|
|Sony A7R III||Full Frame||42.2||7952||5304||4K/30p||26.0||14.7||3523||100|
|Sony A99 II||Full Frame||42.2||7952||5304||4K/30p||25.4||13.4||2317||92|
|Sony A850||Full Frame||24.4||6048||4032||none||23.8||12.2||1415||79|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the K-1 II provides a faster frame rate than the 5DS R. It can shoot movie footage at 1080/60i, while the Canon is limited to 1080/30p.
Beyond body and sensor, cameras can and do differ across a range of features. The 5DS R and the K-1 II are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the 5DS R has a higher magnification than the one of the K-1 II (0.71x vs 0.70x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 5DS R, the Pentax K-1 II, and comparable cameras.
|Canon 5DS R||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n|
|Pentax K-1 II||optical||Y||3.2||1037||full-flex||n||1/8000s||4.4||n||Y|
|Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n|
|Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n|
|Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
|Sony A7R III||3686||n||3.0||1440||tilting||Y||1/8000s||10.0||n||Y|
|Sony A99 II||2400||Y||3.0||1229||full-flex||n||1/8000s||12.0||n||Y|
One feature that differentiates the K-1 II and the 5DS R is in-body image stabilization (IBIS). The K-1 II reduces the risk of handshake-induced blur with all attached lenses, while the 5DS R offers no blur reduction with lenses that themselves do not provide optical image stabilization.
The Canon 5DS R and the Pentax K-1 II both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 5DS R writes its imaging data to Compact Flash or SDXC cards, while the K-1 II uses SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5DS R and Pentax K-1 II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Canon 5DS R||Y||mono||mono||Y||-||mini||3.0||-||-||-|
|Pentax K-1 II||Y||stereo||mono||Y||Y||micro||2.0||Y||-||-|
|Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-|
|Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
|Sony A7R III||Y||stereo||mono||Y||Y||micro||3.1||Y||Y||Y|
|Sony A99 II||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||Y|
It is notable that the K-1 II offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 5DS R does not provide wifi capability.
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
Travel and landscape photographers will find it useful that the K-1 II has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
Both the 5DS R and the K-1 II are recent models that are part of the current product line-up. The K-1 II replaced the earlier Pentax K-1, while the 5DS R does not have a direct predecessor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Pentax websites.
So what conclusions can be drawn? Which of the two cameras – the Canon 5DS R or the Pentax K-1 II – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Canon EOS 5DS R:
- More detail: Offers more megapixels (50.3 vs 36.2MP) with a 18% higher linear resolution.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.71x vs 0.70x).
- Faster burst: Shoots at higher frequency (5 vs 4.4 flaps/sec) to capture the decisive moment.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- More heavily discounted: Has been available for much longer (launched in February 2015).
Reasons to prefer the Pentax K-1 II:
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Better video: Provides higher movie framerates (1080/60i versus 1080/30p).
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- More flexible LCD: Has a full-flex screen for odd-angle shots in portrait or landscape orientation.
- More compact: Is smaller (137x110mm vs 152x116mm) and will fit more readily into a bag.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More affordable: Was introduced into a lower priced category (46 percent cheaper at launch).
- More modern: Reflects 3 years of technical progress since the 5DS R launch.
If the number of relative strengths (bullet points above) is taken as a guide, the K-1 II is the clear winner of the contest (10 : 5 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5DS R and the Pentax K-1 II place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the 5DS R and the K-1 II in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 5DS R||+||83/100||5/5||5/5||4.5/5||Feb 2015||3,699|
|Pentax K-1 II||..||79/100||4.5/5||4.5/5||4.5/5||Feb 2018||1,999|
|Canon 1D X Mark II||..||89/100||4.5/5||5/5||4.5/5||Feb 2016||5,999|
|Canon 5D Mark IV||+ +||87/100||4.5/5||5/5||4.5/5||Aug 2016||3,499|
|Canon 5DS||+||83/100||4.5/5||5/5||4.5/5||Feb 2015||3,699|
|Canon 5D Mark III||+ +||82/100||4.5/5||5/5||4.5/5||Mar 2012||3,499|
|Canon 6D||+ +||83/100||4.5/5||4.5/5||4.5/5||Sep 2012||2,099|
|Canon 5D Mark II||91/100||79/100||4/5||5/5||..||Sep 2008||3,499|
|Canon 5D||88/100||+ +||o||o||..||Aug 2005||3,299|
|Nikon D850||+ +||89/100||4.5/5||5/5||5/5||Jul 2017||3,299|
|Nikon D810||..||86/100||5/5||4.5/5||4.5/5||Jun 2014||3,299|
|Panasonic S1R||..||89/100||4.5/5||5/5||4.5/5||Feb 2019||3,699|
|Pentax K-1||..||84/100||5/5||4.5/5||5/5||Feb 2016||1,799|
|Sony A7R III||+ +||90/100||4.5/5||5/5||5/5||Oct 2017||3,199|
|Sony A99 II||..||85/100||4.5/5||4.5/5||4.5/5||Sep 2016||3,199|
|Sony A850||..||75/100||..||4/5||4.5/5||Aug 2009||1,999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 30D vs Pentax K-1 II
- Canon 5DS R vs Canon G7 X Mark III
- Canon 5DS R vs Fujifilm X-E1
- Canon 5DS R vs Leica Q Typ 116
- Canon 5DS R vs Panasonic G6
- Canon T6s vs Pentax K-1 II
- Leica V-LUX 3 vs Pentax K-1 II
- Olympus E-PL2 vs Pentax K-1 II
- Olympus TG-6 vs Pentax K-1 II
- Panasonic TZ200 vs Pentax K-1 II
- Pentax K-1 II vs Sony A7C
- Pentax K-1 II vs Sony RX1R II
Specifications: Canon 5DS R vs Pentax K-1 II
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 5DS R||Pentax K-1 II|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Pentax K mount lenses|
|Launch Date||February 2015||February 2018|
|Launch Price||USD 3,699||USD 1,999|
|Sensor Specs||Canon 5DS R||Pentax K-1 II|
|Sensor Format||Full Frame Sensor||Full Frame Sensor|
|Sensor Size||36.0 x 24.0 mm||35.9 x 24.0 mm|
|Sensor Area||864 mm2||861.6 mm2|
|Sensor Diagonal||43.3 mm||43.2 mm|
|Sensor Resolution||50.3 Megapixels||36.2 Megapixels|
|Image Resolution||8688 x 5792 pixels||7360 x 4912 pixels|
|Pixel Pitch||4.14 μm||4.88 μm|
|Pixel Density||5.82 MP/cm2||4.20 MP/cm2|
|Moiré control||no AA filter||no AA filter|
|Movie Capability||1080/30p Video||1080/60i Video|
|ISO Setting||100 - 6,400 ISO||100 - 819,200 ISO|
|ISO Boost||50 - 12,800 ISO||no Enhancement|
|Image Processor||DIGIC 6 (Dual)||PRIME IV|
|DXO Sensor Quality (score)||86||..|
|DXO Color Depth (bits)||24.6||..|
|DXO Dynamic Range (EV)||12.4||..|
|DXO Low Light (ISO)||2308||..|
|Screen Specs||Canon 5DS R||Pentax K-1 II|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||100%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.2inch|
|LCD Resolution||1040k dots||1037k dots|
|LCD Attachment||Fixed screen||Fully flexible screen|
|Shooting Specs||Canon 5DS R||Pentax K-1 II|
|Focus System||Phase-detect AF||Phase-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/8000s|
|Continuous Shooting||5 shutter flaps/s||4.4 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||CF or SDXC cards||SDXC cards|
|Second Storage Option||Dual card slots||Dual card slots|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon 5DS R||Pentax K-1 II|
|Studio Flash||PC Sync socket||PC Sync socket|
|USB Connector||USB 3.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||Wifi built-in|
|Geotagging||no internal GPS||GPS built-in|
|Body Specs||Canon 5DS R||Pentax K-1 II|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Life (CIPA)||700 shots per charge||670 shots per charge|
152 x 116 x 76 mm
(6.0 x 4.6 x 3.0 in)
137 x 110 x 86 mm
(5.4 x 4.3 x 3.4 in)
|Camera Weight||930 g (32.8 oz)||1010 g (35.6 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
