Canon 5D vs Sony NEX-F3
The Canon EOS 5D and the Sony Alpha NEX-F3 are two digital cameras that were officially introduced, respectively, in August 2005 and May 2012. The 5D is a DSLR, while the NEX-F3 is a mirrorless interchangeable lens camera. The cameras are based on a full frame (5D) and an APS-C (NEX-F3) sensor. The Canon has a resolution of 12.7 megapixels, whereas the Sony provides 16 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D and the Sony Alpha NEX-F3? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
An illustration of the physical size and weight of the Canon 5D and the Sony NEX-F3 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
The NEX-F3 can be obtained in three different colors (black, silver, white), while the 5D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony NEX-F3 is considerably smaller (54 percent) than the Canon 5D. Moreover, the NEX-F3 is substantially lighter (65 percent) than the 5D. It is worth mentioning in this context that the 5D is splash and dust resistant, while the NEX-F3 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (5D) and the Sony E-Mount Lens Catalog (NEX-F3). Mirrorless cameras, such as the NEX-F3, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon 5D||152 mm||113 mm||75 mm||895 g||400||Y||Aug 2005||3,299|
|2.||Sony NEX-F3||117 mm||67 mm||42 mm||314 g||470||n||May 2012||599|
|3.||Canon 6D Mark II||144 mm||111 mm||75 mm||765 g||1200||Y||Jun 2017||1,999|
|4.||Canon 5DS||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|5.||Canon 5DS R||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|6.||Canon 5D Mark III||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499|
|7.||Canon 6D||145 mm||111 mm||71 mm||770 g||1090||Y||Sep 2012||2,099|
|8.||Canon 5D Mark II||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499|
|9.||Canon 1D Mark II N||156 mm||158 mm||80 mm||1565 g||1200||Y||Aug 2005||3,999|
|10.||Canon 1Ds Mark II||156 mm||158 mm||80 mm||1215 g||1200||Y||Sep 2004||7,999|
|11.||Canon 1Ds||156 mm||158 mm||80 mm||1265 g||600||Y||Sep 2002||8,999|
|12.||Nikon D700||147 mm||123 mm||77 mm||1074 g||1000||Y||Jul 2008||2,999|
|13.||Sony A5100||110 mm||63 mm||36 mm||283 g||400||n||Aug 2014||549|
|14.||Sony NEX-3N||110 mm||62 mm||35 mm||269 g||480||n||Feb 2013||499|
|15.||Sony NEX-5N||111 mm||59 mm||38 mm||269 g||460||n||Aug 2011||699|
|16.||Sony NEX-3||117 mm||62 mm||33 mm||297 g||330||n||May 2010||599|
|17.||Sony NEX-5||111 mm||59 mm||38 mm||287 g||330||n||May 2010||699|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The NEX-F3 was launched at a markedly lower price (by 82 percent) than the 5D, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

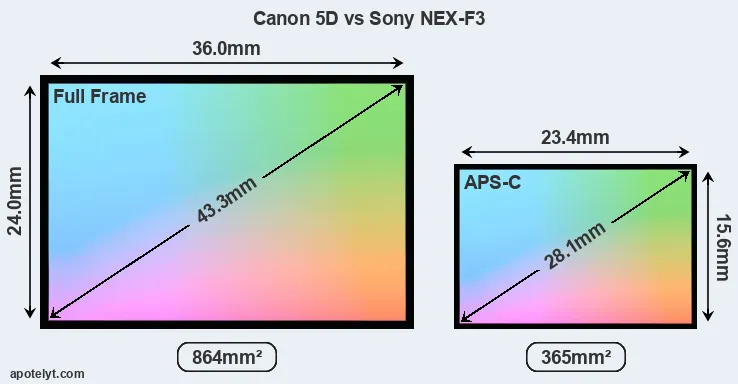

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 5D features a full frame sensor and the Sony NEX-F3 an APS-C sensor. The sensor area in the NEX-F3 is 58 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
In terms of underlying technology, both cameras are build around CMOS sensors.

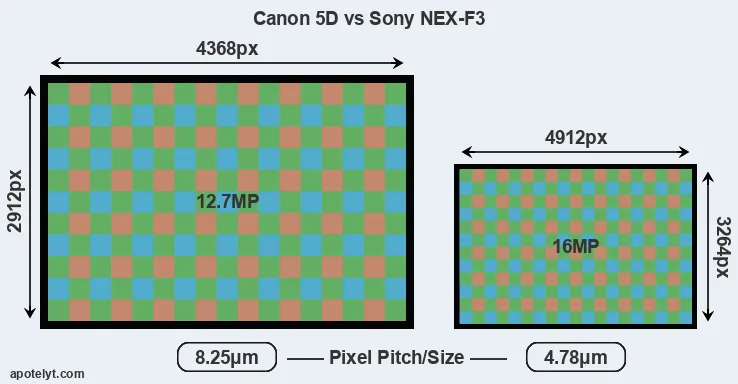

Despite having a smaller sensor, the NEX-F3 offers a higher resolution of 16 megapixels, compared with 12.7 MP of the 5D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.78μm versus 8.25μm for the 5D). However, it should be noted that the NEX-F3 is much more recent (by 6 years and 9 months) than the 5D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Sony NEX-F3 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the NEX-F3 for good quality output (200 dots per inch) amounts to 24.6 x 16.3 inches or 62.4 x 41.5 cm, for very good quality (250 dpi) 19.6 x 13.1 inches or 49.9 x 33.2 cm, and for excellent quality (300 dpi) 16.4 x 10.9 inches or 41.6 x 27.6 cm. The corresponding values for the Canon 5D are 21.8 x 14.6 inches or 55.5 x 37 cm for good quality, 17.5 x 11.6 inches or 44.4 x 29.6 cm for very good quality, and 14.6 x 9.7 inches or 37 x 24.7 cm for excellent quality prints.
The Canon EOS 5D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 50-3200. The corresponding ISO settings for the Sony Alpha NEX-F3 are ISO 100 to ISO 16000 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|1.||Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71|
|3.||Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|4.||Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|5.||Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|6.||Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|7.||Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|8.||Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|9.||Canon 1D Mark II N||APS-H||8.2||3504||2336||none||22.3||11.2||975||66|
|10.||Canon 1Ds Mark II||Full Frame||16.6||4992||3328||none||23.3||11.3||1480||74|
|11.||Canon 1Ds||Full Frame||11.0||4064||2704||none||21.8||11.0||954||63|
|12.||Nikon D700||Full Frame||12.1||4256||2832||none||23.5||12.2||2303||80|
Many modern cameras cannot only take still pictures, but also record videos. The NEX-F3 indeed provides for movie recording, while the 5D does not. The highest resolution format that the NEX-F3 can use is 1080/60i.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the 5D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the NEX-F3 relies on live view and the rear LCD for framing. That said, the NEX-F3 can be equipped with an optional viewfinder – the FDA-EV1S. The adjacent table lists some of the other core features of the Canon 5D and Sony NEX-F3 along with similar information for a selection of comparators.
|1.||Canon 5D||optical||Y||2.5 / 230||fixed||n||1/8000s||3.0||n||n|
|2.||Sony NEX-F3||optional||n||3.0 / 920||tilting||n||1/4000s||5.5||Y||n|
|3.||Canon 6D Mark II||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.5||n||n|
|4.||Canon 5DS||optical||Y||3.2 / 1040||fixed||n||1/8000s||5.0||n||n|
|5.||Canon 5DS R||optical||Y||3.2 / 1040||fixed||n||1/8000s||5.0||n||n|
|6.||Canon 5D Mark III||optical||Y||3.2 / 1040||fixed||n||1/8000s||6.0||n||n|
|7.||Canon 6D||optical||Y||3.0 / 1040||fixed||n||1/4000s||4.5||n||n|
|8.||Canon 5D Mark II||optical||Y||3.0 / 920||fixed||n||1/8000s||3.9||n||n|
|9.||Canon 1D Mark II N||optical||Y||2.5 / 230||fixed||n||1/8000s||8.5||n||n|
|10.||Canon 1Ds Mark II||optical||Y||2.0 / 230||fixed||n||1/8000s||4.0||n||n|
|11.||Canon 1Ds||optical||Y||2.0 / 120||fixed||n||1/8000s||3.0||n||n|
|12.||Nikon D700||optical||Y||3.0 / 922||fixed||n||1/8000s||8.0||Y||n|
|13.||Sony A5100||none||n||3.0 / 922||tilting||Y||1/4000s||6.0||Y||n|
|14.||Sony NEX-3N||optional||n||3.0 / 460||tilting||n||1/4000s||4.0||Y||n|
|15.||Sony NEX-5N||optional||n||3.0 / 920||tilting||Y||1/4000s||10.0||n||n|
|16.||Sony NEX-3||optional||n||3.0 / 920||tilting||n||1/4000s||7.0||n||n|
|17.||Sony NEX-5||optional||n||3.0 / 920||tilting||n||1/4000s||7.0||n||n|
One feature that is present on the 5D, but is missing on the NEX-F3 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The NEX-F3 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 5D does not have a selfie-screen.
The 5D writes its imaging data to Compact Flash cards, while the NEX-F3 uses SDXC or Memory Stick PRO Duo cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D and Sony Alpha NEX-F3 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon 5D||Y||- / -||-||-||-||2.0||-||-||-|
|2.||Sony NEX-F3||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|3.||Canon 6D Mark II||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|4.||Canon 5DS||Y||mono / mono||Y||-||mini||3.0||-||-||-|
|5.||Canon 5DS R||Y||mono / mono||Y||-||mini||3.0||-||-||-|
|6.||Canon 5D Mark III||Y||mono / mono||Y||Y||mini||2.0||-||-||-|
|7.||Canon 6D||Y||mono / mono||Y||-||mini||2.0||Y||-||-|
|8.||Canon 5D Mark II||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|9.||Canon 1D Mark II N||Y||- / -||-||-||-||1.1||-||-||-|
|10.||Canon 1Ds Mark II||Y||- / -||-||-||-||2.0||-||-||-|
|11.||Canon 1Ds||Y||- / -||-||-||-||FW||-||-||-|
|12.||Nikon D700||Y||- / -||-||-||mini||2.0||-||-||-|
|13.||Sony A5100||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|14.||Sony NEX-3N||-||stereo / mono||-||-||micro||2.0||-||-||-|
|15.||Sony NEX-5N||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|16.||Sony NEX-3||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|17.||Sony NEX-5||Y||stereo / mono||-||-||mini||2.0||-||-||-|
Studio photographers will appreciate that the Canon 5D (unlike the NEX-F3) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 5D and the NEX-F3 have been discontinued, but can regularly be found used on eBay. The 5D was replaced by the Canon 5D Mark II, while the NEX-F3 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Sony websites.
So what is the bottom line? Which of the two cameras – the Canon 5D or the Sony NEX-F3 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.
Advantages of the Canon EOS 5D:
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in August 2005).
Arguments in favor of the Sony Alpha NEX-F3:
- More detail: Has more megapixels (16 vs 12.7MP), which boosts linear resolution by 12%.
- More dynamic range: Captures a broader range of light and dark details (1.2 EV of extra DR).
- Broader imaging potential: Can capture not only stills but also 1080/60i video.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (920k vs 230k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (5.5 vs 3 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (117x67mm vs 152x113mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 581g or 65 percent) and is thus easier to take along.
- Longer lasting: Gets more shots (470 versus 400) out of a single battery charge.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More affordable: Was introduced into a lower priced category (82 percent cheaper at launch).
- More modern: Reflects 6 years and 9 months of technical progress since the 5D launch.
If the count of relative strengths (bullet points above) is taken as a measure, the NEX-F3 is the clear winner of the contest (15 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5D and the Sony NEX-F3 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 5D or the NEX-F3. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 5D||..||88/100||..||+ +||o||..||Aug 2005||3,299|
|2.||Sony NEX-F3||4/5||..||..||74/100||4.5/5||4.5/5||May 2012||599|
|3.||Canon 6D Mark II||4/5||+||4/5||80/100||4.5/5||4/5||Jun 2017||1,999|
|4.||Canon 5DS||..||+||..||83/100||4.5/5||4.5/5||Feb 2015||3,699|
|5.||Canon 5DS R||5/5||+||..||83/100||5/5||4.5/5||Feb 2015||3,699|
|6.||Canon 5D Mark III||..||+ +||..||82/100||4.5/5||4.5/5||Mar 2012||3,499|
|7.||Canon 6D||5/5||+ +||..||83/100||4.5/5||4.5/5||Sep 2012||2,099|
|8.||Canon 5D Mark II||4/5||91/100||..||79/100||4/5||..||Sep 2008||3,499|
|9.||Canon 1D Mark II N||..||..||..||..||..||..||Aug 2005||3,999|
|10.||Canon 1Ds Mark II||..||..||..||+ +||..||..||Sep 2004||7,999|
|11.||Canon 1Ds||..||..||..||+ +||..||..||Sep 2002||8,999|
|12.||Nikon D700||..||89/100||..||+ +||4.5/5||4.5/5||Jul 2008||2,999|
|13.||Sony A5100||4.5/5||+||..||..||4.5/5||5/5||Aug 2014||549|
|14.||Sony NEX-3N||3/5||..||..||..||4.5/5||4.5/5||Feb 2013||499|
|15.||Sony NEX-5N||3/5||+ +||..||79/100||4.5/5||4.5/5||Aug 2011||699|
|16.||Sony NEX-3||..||..||..||70/100||4.5/5||4/5||May 2010||599|
|17.||Sony NEX-5||3/5||+ +||..||71/100||4.5/5||4/5||May 2010||699|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Canon 5D vs Sony NEX-F3
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 5D||Sony NEX-F3|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Sony E mount lenses|
|Launch Date||August 2005||May 2012|
|Launch Price||USD 3,299||USD 599|
|Sensor Specs||Canon 5D||Sony NEX-F3|
|Sensor Format||Full Frame Sensor||APS-C Sensor|
|Sensor Size||36.0 x 24.0 mm||23.4 x 15.6 mm|
|Sensor Area||864 mm2||365.04 mm2|
|Sensor Diagonal||43.3 mm||28.1 mm|
|Sensor Resolution||12.7 Megapixels||16 Megapixels|
|Image Resolution||4368 x 2912 pixels||4912 x 3264 pixels|
|Pixel Pitch||8.25 μm||4.78 μm|
|Pixel Density||1.47 MP/cm2||4.39 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||1080/60i Video|
|ISO Setting||100 - 1,600 ISO||100 - 16,000 ISO|
|ISO Boost||50 - 3,200 ISO||no Enhancement|
|Image Processor||DIGIC 2||BIONZ|
|DXO Sensor Quality (score)||71||73|
|DXO Color Depth (bits)||22.9||22.7|
|DXO Dynamic Range (EV)||11.1||12.3|
|DXO Low Light (ISO)||1368||1114|
|Screen Specs||Canon 5D||Sony NEX-F3|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||96%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View|
|Rear LCD Size||2.5inch||3.0inch|
|LCD Resolution||230k dots||920k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Shooting Specs||Canon 5D||Sony NEX-F3|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||3 shutter flaps/s||5.5 shutter flaps/s|
|Fill Flash||no On-Board Flash||Built-in Flash|
|Storage Medium||CF cards||MS or SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon 5D||Sony NEX-F3|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||mini HDMI|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 5D||Sony NEX-F3|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||400 shots per charge||470 shots per charge|
152 x 113 x 75 mm
(6.0 x 4.4 x 3.0 in)
117 x 67 x 42 mm
(4.6 x 2.6 x 1.7 in)
|Camera Weight||895 g (31.6 oz)||314 g (11.1 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
