Canon 5D vs Sony A6300
The Canon EOS 5D and the Sony Alpha A6300 are two digital cameras that were announced, respectively, in August 2005 and February 2016. The 5D is a DSLR, while the A6300 is a mirrorless interchangeable lens camera. The cameras are based on a full frame (5D) and an APS-C (A6300) sensor. The Canon has a resolution of 12.7 megapixels, whereas the Sony provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 5D||Sony A6300|
|Digital single lens reflex||Mirrorless system camera|
|Canon EF mount lenses||Sony E mount lenses|
|12.7 MP, Full Frame Sensor||24 MP, APS-C Sensor|
|no Video||4K/30p Video|
|ISO 100-1600 (50-3200)||ISO 100-25600 (100-51200)|
|Optical viewfinder||Electronic viewfinder (2359k dots)|
|2.5" LCD, 230k dots||3.0" LCD, 922k dots|
|Fixed screen (not touch-sensitive)||Tilting screen (not touch-sensitive)|
|3 shutter flaps per second||11 shutter flaps per second|
|Weathersealed body||Weathersealed body|
|400 shots per battery charge||400 shots per battery charge|
|152 x 113 x 75 mm, 895 g||120 x 67 x 49 mm, 404 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D and the Sony Alpha A6300? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison: Canon 5D vs Sony A6300

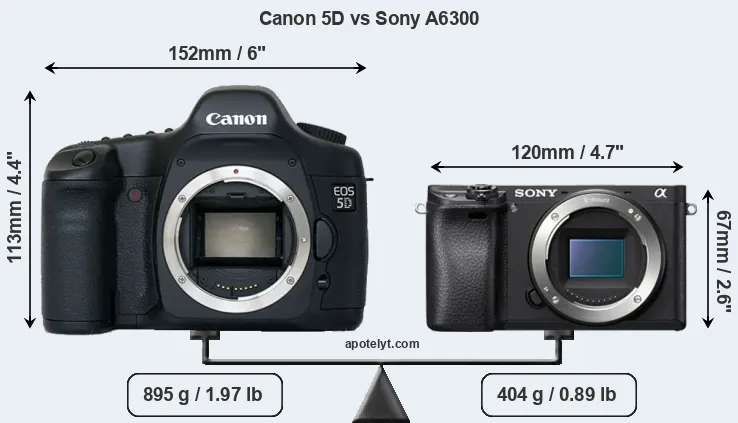

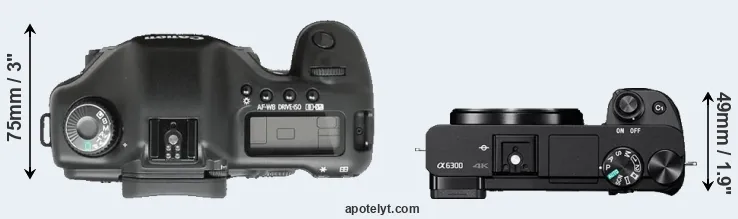

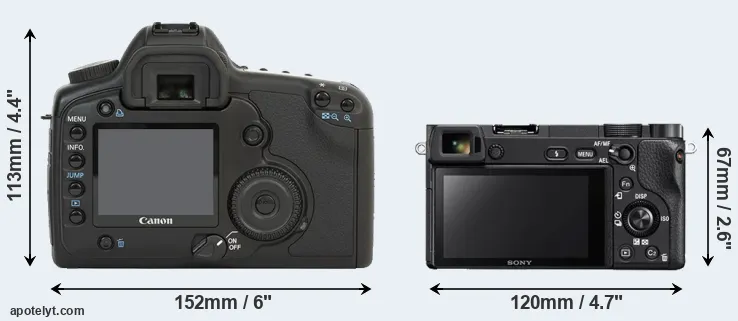

The side-by-side display below illustrates the physical size and weight of the Canon 5D and the Sony A6300. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
The A6300 can be obtained in two different colors (black, silver), while the 5D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony A6300 is considerably smaller (53 percent) than the Canon 5D. Moreover, the A6300 is substantially lighter (55 percent) than the 5D. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (5D) and the Sony E-Mount Lens Catalog (A6300). Mirrorless cameras, such as the A6300, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The power pack in the A6300 can be charged via the USB port, which can be very convenient when travelling.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Canon 5D»||6.0 in||4.4 in||3.0 in||31.6 oz||400||Y||Aug 2005||3,299||-||Canon 5D|
|Sony A6300«||4.7 in||2.6 in||1.9 in||14.3 oz||400||Y||Feb 2016||999||-||Sony A6300|
|Canon 6D Mark II« »||5.7 in||4.4 in||3.0 in||27.0 oz||1200||Y||Jun 2017||1,999||Canon 6D Mark II|
|Canon 5DS« »||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699||Canon 5DS|
|Canon 5DS R« »||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699||Canon 5DS R|
|Canon 5D Mark III« »||6.0 in||4.6 in||3.0 in||33.5 oz||950||Y||Mar 2012||3,499||-||Canon 5D Mark III|
|Canon 6D« »||5.7 in||4.4 in||2.8 in||27.2 oz||1090||Y||Sep 2012||2,099||-||Canon 6D|
|Canon 5D Mark II« »||6.0 in||4.5 in||3.0 in||30.0 oz||850||Y||Sep 2008||3,499||-||Canon 5D Mark II|
|Canon 1D Mark II N« »||6.1 in||6.2 in||3.1 in||55.2 oz||1200||Y||Aug 2005||3,999||-||Canon 1D Mark II N|
|Canon 1Ds Mark II« »||6.1 in||6.2 in||3.1 in||42.9 oz||1200||Y||Sep 2004||7,999||-||Canon 1Ds Mark II|
|Canon 1Ds« »||6.1 in||6.2 in||3.1 in||44.6 oz||600||Y||Sep 2002||8,999||-||Canon 1Ds|
|Nikon D5500« »||4.9 in||3.8 in||2.8 in||14.8 oz||820||n||Jan 2015||899||-||Nikon D5500|
|Nikon D7200« »||5.4 in||4.2 in||3.0 in||27.0 oz||1110||Y||Mar 2015||1,199||-||Nikon D7200|
|Nikon D700« »||5.8 in||4.8 in||3.0 in||37.9 oz||1000||Y||Jul 2008||2,999||-||Nikon D700|
|Sony A6500« »||4.7 in||2.6 in||2.1 in||16.0 oz||350||Y||Oct 2016||1,399||Sony A6500|
|Sony A6000« »||4.7 in||2.6 in||1.8 in||12.1 oz||360||n||Feb 2014||599||-||Sony A6000|
|Sony A3000« »||5.0 in||3.6 in||3.3 in||14.5 oz||470||n||Aug 2013||329||-||Sony A3000|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The A6300 was launched at a markedly lower price (by 70 percent) than the 5D, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
Sensor comparison: Canon 5D vs Sony A6300
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

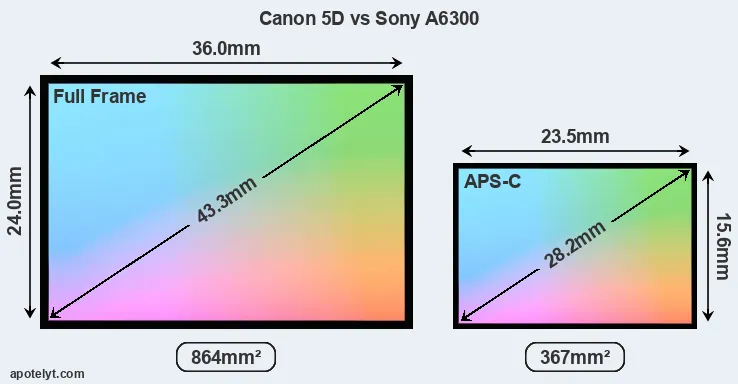

Of the two cameras under consideration, the Canon 5D features a full frame sensor and the Sony A6300 an APS-C sensor. The sensor area in the A6300 is 58 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

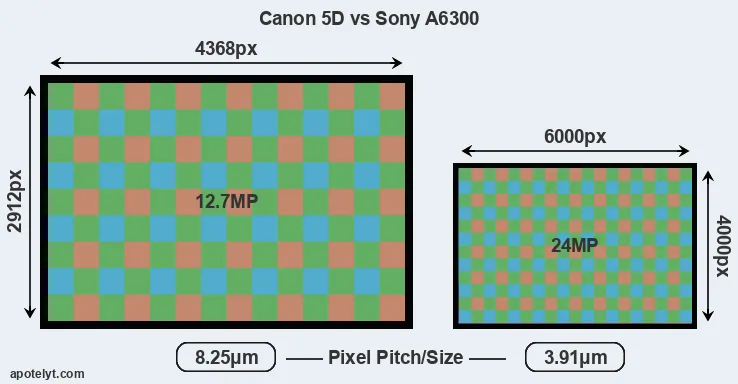

Despite having a smaller sensor, the A6300 offers a higher resolution of 24 megapixels, compared with 12.7 MP of the 5D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.91μm versus 8.25μm for the 5D). However, it should be noted that the A6300 is much more recent (by 10 years and 5 months) than the 5D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Sony A6300 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the A6300 for good quality output (200 dots per inch) amounts to 30 x 20 inch or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inch or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inch or 50.8 x 33.9 cm. The corresponding values for the Canon 5D are 21.8 x 14.6 inch or 55.5 x 37 cm for good quality, 17.5 x 11.6 inch or 44.4 x 29.6 cm for very good quality, and 14.6 x 9.7 inch or 37 x 24.7 cm for excellent quality prints.
The A6300 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 5D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 50-3200. The corresponding ISO settings for the Sony Alpha A6300 are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the A6300 offers substantially better image quality than the 5D (overall score 14 points higher). The advantage is based on 1.5 bits higher color depth, 2.6 EV in additional dynamic range, and 0.1 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Canon 5D»||Full Frame||12.7||4368||2912||-||22.9||11.1||1368||71||Canon 5D|
|Sony A6300«||APS-C||24.0||6000||4000||4K/30p||24.4||13.7||1437||85||Sony A6300|
|Canon 6D Mark II« »||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85||Canon 6D Mark II|
|Canon 5DS« »||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87||Canon 5DS|
|Canon 5DS R« »||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86||Canon 5DS R|
|Canon 5D Mark III« »||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81||Canon 5D Mark III|
|Canon 6D« »||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82||Canon 6D|
|Canon 5D Mark II« »||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79||Canon 5D Mark II|
|Canon 1D Mark II N« »||APS-H||8.2||3504||2336||-||22.3||11.2||975||66||Canon 1D Mark II N|
|Canon 1Ds Mark II« »||Full Frame||16.6||4992||3328||-||23.3||11.3||1480||74||Canon 1Ds Mark II|
|Canon 1Ds« »||Full Frame||11.0||4064||2704||-||21.8||11.0||954||63||Canon 1Ds|
|Nikon D5500« »||APS-C||24.0||6000||4000||1080/60p||24.1||14.0||1438||84||Nikon D5500|
|Nikon D7200« »||APS-C||24.0||6000||4000||1080/60p||24.5||14.6||1333||87||Nikon D7200|
|Nikon D700« »||Full Frame||12.1||4256||2832||-||23.5||12.2||2303||80||Nikon D700|
|Sony A6500« »||APS-C||24.0||6000||4000||4K/30p||24.5||13.7||1405||85||Sony A6500|
|Sony A6000« »||APS-C||24.0||6000||4000||1080/60p||24.1||13.1||1347||82||Sony A6000|
|Sony A3000« »||APS-C||19.8||5456||3632||1080/60i||23.7||12.8||1068||78||Sony A3000|
Many modern cameras are not only capable of taking still images, but can also record movies. The A6300 indeed provides for movie recording, while the 5D does not. The highest resolution format that the A6300 can use is 4K/30p.
Feature comparison: Canon 5D vs Sony A6300
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the A6300 has an electronic viewfinder (2359k dots), while the 5D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the A6300 offers a wider field of view (100%) than the one in the 5D (96%), so that a larger proportion of the captured image is visible in the finder. On the other hand, the viewfinder of the 5D has a higher magnification (0.71x vs 0.70x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 5D and Sony A6300 in connection with corresponding information for a sample of similar cameras.
|Canon 5D»||optical||Y||2.5||230||fixed||n||1/8000s||3.0||n||n||Canon 5D|
|Sony A6300«||2359||n||3.0||922||tilting||n||1/4000s||11.0||Y||n||Sony A6300|
|Canon 6D Mark II« »||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n||Canon 6D Mark II|
|Canon 5DS« »||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n||Canon 5DS|
|Canon 5DS R« »||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n||Canon 5DS R|
|Canon 5D Mark III« »||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n||Canon 5D Mark III|
|Canon 6D« »||optical||Y||3.0||1040||fixed||n||1/4000s||4.5||n||n||Canon 6D|
|Canon 5D Mark II« »||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n||Canon 5D Mark II|
|Canon 1D Mark II N« »||optical||Y||2.5||230||fixed||n||1/8000s||8.5||n||n||Canon 1D Mark II N|
|Canon 1Ds Mark II« »||optical||Y||2.0||230||fixed||n||1/8000s||4.0||n||n||Canon 1Ds Mark II|
|Canon 1Ds« »||optical||Y||2.0||120||fixed||n||1/8000s||3.0||n||n||Canon 1Ds|
|Nikon D5500« »||optical||n||3.2||1037||swivel||Y||1/4000s||5.0||Y||n||Nikon D5500|
|Nikon D7200« »||optical||Y||3.2||1229||fixed||n||1/8000s||6.0||Y||n||Nikon D7200|
|Nikon D700« »||optical||Y||3.0||922||fixed||n||1/8000s||8.0||Y||n||Nikon D700|
|Sony A6500« »||2359||n||3.0||922||tilting||Y||1/4000s||11.0||Y||Y||Sony A6500|
|Sony A6000« »||1440||n||3.0||922||tilting||n||1/4000s||11.0||Y||n||Sony A6000|
|Sony A3000« »||202||n||3.0||230||fixed||n||1/4000s||2.5||Y||n||Sony A3000|
One feature that is present on the 5D, but is missing on the A6300 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the A6300 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The 5D writes its imaging data to Compact Flash cards, while the A6300 uses SDXC or Memory Stick PRO Duo cards.
Connectivity comparison: Canon 5D vs Sony A6300
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D and Sony Alpha A6300 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Canon 5D»||Y||-||-||-||-||-||2.0||-||-||-||Canon 5D|
|Sony A6300«||Y||stereo||mono||Y||-||micro||2.0||Y||Y||-||Sony A6300|
|Canon 6D Mark II« »||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon 6D Mark II|
|Canon 5DS« »||Y||mono||mono||Y||-||mini||3.0||-||-||-||Canon 5DS|
|Canon 5DS R« »||Y||mono||mono||Y||-||mini||3.0||-||-||-||Canon 5DS R|
|Canon 5D Mark III« »||Y||mono||mono||Y||Y||mini||2.0||-||-||-||Canon 5D Mark III|
|Canon 6D« »||Y||mono||mono||Y||-||mini||2.0||Y||-||-||Canon 6D|
|Canon 5D Mark II« »||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon 5D Mark II|
|Canon 1D Mark II N« »||Y||-||-||-||-||-||1.1||-||-||-||Canon 1D Mark II N|
|Canon 1Ds Mark II« »||Y||-||-||-||-||-||2.0||-||-||-||Canon 1Ds Mark II|
|Canon 1Ds« »||Y||-||-||-||-||-||FW||-||-||-||Canon 1Ds|
|Nikon D5500« »||Y||stereo||mono||Y||-||mini||2.0||Y||-||-||Nikon D5500|
|Nikon D7200« »||Y||stereo||mono||Y||Y||mini||2.0||Y||Y||-||Nikon D7200|
|Nikon D700« »||Y||-||-||-||-||mini||2.0||-||-||-||Nikon D700|
|Sony A6500« »||Y||stereo||mono||Y||-||micro||2.0||Y||Y||-||Sony A6500|
|Sony A6000« »||Y||stereo||mono||-||-||micro||2.0||Y||Y||-||Sony A6000|
|Sony A3000« »||Y||stereo||mono||-||-||mini||2.0||-||-||-||Sony A3000|
It is notable that the A6300 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 5D does not offer wifi capability.
Studio photographers will appreciate that the Canon 5D (unlike the A6300) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 5D and the A6300 have been discontinued, but can regularly be found used on eBay. The 5D was replaced by the Canon 5D Mark II, while the A6300 was followed by the Sony A6500. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Sony websites.
Review summary: Canon 5D vs Sony A6300
So what is the bottom line? Is there a clear favorite between the Canon 5D and the Sony A6300? Which camera is better? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Canon EOS 5D:
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.71x vs 0.70x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in August 2005).
Advantages of the Sony Alpha A6300:
- More detail: Has more megapixels (24 vs 12.7MP), which boosts linear resolution by 37%.
- Better image quality: Scores substantially higher (14 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (1.5 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (2.6 EV of extra DR).
- Broader imaging potential: Can capture not only stills but also 4K/30p video.
- Better live-view autofocus: Features on-sensor phase-detection for quicker and more confident autofocus.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 96%).
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (922k vs 230k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Faster burst: Shoots at higher frequency (11 vs 3 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- More compact: Is smaller (120x67mm vs 152x113mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 491g or 55 percent) and is thus easier to take along.
- Easier travel charging: Can be conveniently charged via its USB port.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More affordable: Was introduced into a lower priced category (70 percent cheaper at launch).
- More modern: Reflects 10 years and 5 months of technical progress since the 5D launch.
If the number of relative strengths (bullet points above) is taken as a guide, the A6300 is the clear winner of the contest (21 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5D and the Sony A6300 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the 5D and the A6300 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
Expert reviews: Canon 5D vs Sony A6300
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 5D»||88/100||+ +||o||o||-||Aug 2005||3,299||-||Canon 5D|
|Sony A6300«||+||85/100||5/5||5/5||5/5||Feb 2016||999||-||Sony A6300|
|Canon 6D Mark II« »||+||80/100||4.5/5||4/5||4/5||Jun 2017||1,999||Canon 6D Mark II|
|Canon 5DS« »||+||83/100||4.5/5||5/5||4.5/5||Feb 2015||3,699||Canon 5DS|
|Canon 5DS R« »||+||83/100||5/5||5/5||4.5/5||Feb 2015||3,699||Canon 5DS R|
|Canon 5D Mark III« »||+ +||82/100||4.5/5||5/5||4.5/5||Mar 2012||3,499||-||Canon 5D Mark III|
|Canon 6D« »||+ +||83/100||4.5/5||4.5/5||4.5/5||Sep 2012||2,099||-||Canon 6D|
|Canon 5D Mark II« »||91/100||79/100||4/5||5/5||-||Sep 2008||3,499||-||Canon 5D Mark II|
|Canon 1D Mark II N« »||-||-||-||-||-||Aug 2005||3,999||-||Canon 1D Mark II N|
|Canon 1Ds Mark II« »||-||+ +||-||-||-||Sep 2004||7,999||-||Canon 1Ds Mark II|
|Canon 1Ds« »||-||+ +||-||-||-||Sep 2002||8,999||-||Canon 1Ds|
|Nikon D5500« »||+||79/100||4.5/5||5/5||4.5/5||Jan 2015||899||-||Nikon D5500|
|Nikon D7200« »||+ +||84/100||4.5/5||4/5||4.5/5||Mar 2015||1,199||-||Nikon D7200|
|Nikon D700« »||89/100||+ +||4.5/5||5/5||4.5/5||Jul 2008||2,999||-||Nikon D700|
|Sony A6500« »||+ +||85/100||4.5/5||5/5||4.5/5||Oct 2016||1,399||Sony A6500|
|Sony A6000« »||+||80/100||4.5/5||5/5||5/5||Feb 2014||599||-||Sony A6000|
|Sony A3000« »||+||-||4/5||4.5/5||4/5||Aug 2013||329||-||Sony A3000|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 5D Mark III vs Canon T5i
- Canon 5D Mark III vs Leica M10-P
- Canon 5D Mark III vs Nikon Df
- Canon 5D Mark IV vs Canon 60D
- Canon 5D Mark IV vs Fujifilm X-T10
- Canon 5D Mark IV vs Leica SL
- Canon 5D Mark IV vs Nikon D80
- Canon 5D Mark IV vs Sony A850
- Canon 5D vs Canon Rebel
- Canon 5D vs Nikon D7100
- Leica M9 vs Sony A6300
- Nikon D300 vs Sony A6300
Specifications: Canon 5D vs Sony A6300
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 5D||Sony A6300|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Sony E mount lenses|
|Launch Date||August 2005||February 2016|
|Launch Price||USD 3299||USD 999|
|Sensor Specs||Canon 5D||Sony A6300|
|Sensor Format||Full Frame Sensor||APS-C Sensor|
|Sensor Size||36.0 x 24.0 mm||23.5 x 15.6 mm|
|Sensor Area||864 mm2||366.6 mm2|
|Sensor Diagonal||43.3 mm||28.2 mm|
|Sensor Resolution||12.7 Megapixels||24 Megapixels|
|Image Resolution||4368 x 2912 pixels||6000 x 4000 pixels|
|Pixel Pitch||8.25 μm||3.91 μm|
|Pixel Density||1.47 MP/cm2||6.55 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||4K/30p Video|
|ISO Setting||100-1600 ISO||100-25600 ISO|
|ISO Boost||50-3200 ISO||100-51200 ISO|
|Image Processor||DIGIC 2||BIONZ X|
|DXO Sensor Quality (score)||71||85|
|DXO Color Depth (bits)||22.9||24.4|
|DXO Dynamic Range (EV)||11.1||13.7|
|DXO Low Light (ISO)||1368||1437|
|Screen Specs||Canon 5D||Sony A6300|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||96%||100%|
|Viewfinder Resolution||2359k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View|
|Rear LCD Size||2.5 inch||3.0 inch|
|LCD Resolution||230k dots||922k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Shooting Specs||Canon 5D||Sony A6300|
|Autofocus System||Phase-detect AF||On-Sensor Phase-detect|
|Manual Focusing Aid||No Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000/s||1/4000/s|
|Continuous Shooting||3 shutter flaps/s||11 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||100 000 actuations|
|Electronic Shutter||no E-Shutter||YES|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||CF cards||MS or SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon 5D||Sony A6300|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||micro HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Wifi Support||no Wifi||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Body Specs||Canon 5D||Sony A6300|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Type||BP-511A power pack||NP-FW50 power pack|
|Battery Life (CIPA)||400 shots per charge||400 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
152 x 113 x 75 mm
(6.0 x 4.4 x 3.0 in)
120 x 67 x 49 mm
(4.7 x 2.6 x 1.9 in)
|Camera Weight||895 g (31.6 oz)||404 g (14.3 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
