Canon 5D vs Panasonic G1

The Canon EOS 5D and the Panasonic Lumix DMC-G1 are two digital cameras that were officially introduced, respectively, in August 2005 and September 2008. The 5D is a DSLR, while the G1 is a mirrorless interchangeable lens camera. The cameras are based on a full frame (5D) and a Four Thirds (G1) sensor. The Canon has a resolution of 12.7 megapixels, whereas the Panasonic provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 5D		Panasonic G1
Digital single lens reflex		Mirrorless system camera
Canon EF mount lenses		Micro Four Thirds lenses
12.7 MP – Full Frame sensor		12 MP – Four Thirds sensor
no Video		no Video
ISO 100-1,600 (50 - 3,200)		ISO 100-1,600 (100 - 3,200)
Optical viewfinder		Electronic viewfinder (1440k dots)
2.5" LCD – 230k dots		3.0" LCD – 460k dots
Fixed screen (not touch-sensitive)		Swivel screen (not touch-sensitive)
3 shutter flaps per second		3 shutter flaps per second
Weathersealed body		not weather sealed
400 shots per battery charge		410 shots per battery charge
152 x 113 x 75 mm, 895 g		124 x 84 x 45 mm, 360 g

Check 5D offers at
ebay.com
Check G1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D and the Panasonic Lumix DMC-G1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

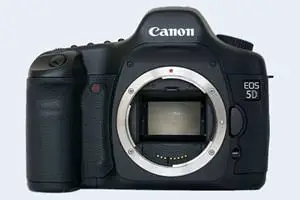

Body comparison

The side-by-side display below illustrates the physical size and weight of the Canon 5D and the Panasonic G1. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic G1 is considerably smaller (39 percent) than the Canon 5D. Moreover, the G1 is substantially lighter (60 percent) than the 5D. It is worth mentioning in this context that the 5D is splash and dust resistant, while the G1 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (5D) and the Micro Four Thirds Lens Catalog (G1). Mirrorless cameras, such as the G1, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the 5D gets 400 shots out of its Canon BP-511A battery, while the G1 can take 410 images on a single charge of its Panasonic DMW-BLB13 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 5D	152 mm	113 mm	75 mm	895 g	400	Y	Aug 2005	3,299	ebay.com
2.		Panasonic G1	124 mm	84 mm	45 mm	360 g	410	n	Sep 2008	599	ebay.com
3.		Canon 1D Mark II N	156 mm	158 mm	80 mm	1565 g	1200	Y	Aug 2005	3,999	ebay.com
4.		Canon 1Ds	156 mm	158 mm	80 mm	1265 g	600	Y	Sep 2002	8,999	ebay.com
5.		Canon 1Ds Mark II	156 mm	158 mm	80 mm	1215 g	1200	Y	Sep 2004	7,999	ebay.com
6.		Canon 5D Mark II	152 mm	114 mm	75 mm	850 g	850	Y	Sep 2008	3,499	ebay.com
7.		Canon 5D Mark III	152 mm	116 mm	76 mm	950 g	950	Y	Mar 2012	3,499	ebay.com
8.		Canon 5DS	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	3,699	ebay.com
9.		Canon 5DS R	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	3,699	ebay.com
10.		Canon 6D	145 mm	111 mm	71 mm	770 g	1090	Y	Sep 2012	2,099	ebay.com
11.		Canon 6D Mark II	144 mm	111 mm	75 mm	765 g	1200	Y	Jun 2017	1,999	amazon.com
12.		Nikon D700	147 mm	123 mm	77 mm	1074 g	1000	Y	Jul 2008	2,999	ebay.com
13.		Olympus E-410	130 mm	91 mm	53 mm	435 g	500	n	Mar 2007	699	ebay.com
14.		Panasonic G2	124 mm	84 mm	74 mm	428 g	360	n	Mar 2010	599	ebay.com
15.		Panasonic G10	124 mm	84 mm	74 mm	388 g	380	n	Mar 2010	499	ebay.com
16.		Panasonic GH1	124 mm	90 mm	45 mm	385 g	300	n	Mar 2009	899	ebay.com
17.		Panasonic L10	135 mm	96 mm	78 mm	556 g	450	n	Aug 2007	599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The G1 was launched at a markedly lower price (by 82 percent) than the 5D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 5D features a full frame sensor and the Panasonic G1 a Four Thirds sensor. The sensor area in the G1 is 74 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 2.0. The sensor in the 5D has a native 3:2 aspect ratio, while the one in the G1 offers a 4:3 aspect.

With 12.7MP, the 5D offers a slightly higher resolution than the G1 (12MP), but the 5D nevertheless has larger individual pixels (pixel pitch of 8.25μm versus 4.33μm for the G1) due to its larger sensor. However, the G1 is a much more recent model (by 3 years and 1 month) than the 5D, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon 5D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5D for good quality output (200 dots per inch) amounts to 21.8 x 14.6 inches or 55.5 x 37 cm, for very good quality (250 dpi) 17.5 x 11.6 inches or 44.4 x 29.6 cm, and for excellent quality (300 dpi) 14.6 x 9.7 inches or 37 x 24.7 cm. The corresponding values for the Panasonic G1 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The Canon EOS 5D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 50-3200. The corresponding ISO settings for the Panasonic Lumix DMC-G1 are ISO 100 to ISO 1600, with the possibility to increase the ISO range to 100-3200.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the 5D provides substantially higher image quality than the G1, with an overall score that is 18 points higher. This advantage is based on 1.8 bits higher color depth, 0.8 EV in additional dynamic range, and 1.6 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 5D	Full Frame	12.7	4368	2912	none	22.9	11.1	1368	71
2.		Panasonic G1	Four Thirds	12.0	4000	3000	none	21.1	10.3	463	53
3.		Canon 1D Mark II N	APS-H	8.2	3504	2336	none	22.3	11.2	975	66
4.		Canon 1Ds	Full Frame	11.0	4064	2704	none	21.8	11.0	954	63
5.		Canon 1Ds Mark II	Full Frame	16.6	4992	3328	none	23.3	11.3	1480	74
6.		Canon 5D Mark II	Full Frame	21.0	5616	3744	1080/30p	23.7	11.9	1815	79
7.		Canon 5D Mark III	Full Frame	22.1	5760	3840	1080/30p	24.0	11.7	2293	81
8.		Canon 5DS	Full Frame	50.3	8688	5792	1080/30p	24.7	12.4	2381	87
9.		Canon 5DS R	Full Frame	50.3	8688	5792	1080/30p	24.6	12.4	2308	86
10.		Canon 6D	Full Frame	20.0	5472	3648	1080/30p	23.8	12.1	2340	82
11.		Canon 6D Mark II	Full Frame	26.0	6240	4160	1080/60p	24.4	11.9	2862	85
12.		Nikon D700	Full Frame	12.1	4256	2832	none	23.5	12.2	2303	80
13.		Olympus E-410	Four Thirds	10.0	3648	2736	none	21.1	10.0	494	51
14.		Panasonic G2	Four Thirds	12.0	4000	3000	720/30p	21.2	10.3	493	53
15.		Panasonic G10	Four Thirds	12.0	4000	3000	720/30p	21.2	10.1	411	52
16.		Panasonic GH1	Four Thirds	12.0	4000	3000	1080/24p	21.6	11.6	772	64
17.		Panasonic L10	Four Thirds	10.0	3648	2736	none	21.3	10.8	429	55

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the G1 has an electronic viewfinder (1440k dots), while the 5D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the G1 offers a wider field of view (100%) than the one in the 5D (96%), so that a larger proportion of the captured image is visible in the finder. On the other hand, the viewfinder of the 5D has a higher magnification (0.71x vs 0.70x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 5D, the Panasonic G1, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 5D	optical	Y	2.5 / 230	fixed	n	1/8000s	3.0/s	n	n
2.		Panasonic G1	1440	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
3.		Canon 1D Mark II N	optical	Y	2.5 / 230	fixed	n	1/8000s	8.5/s	n	n
4.		Canon 1Ds	optical	Y	2.0 / 120	fixed	n	1/8000s	3.0/s	n	n
5.		Canon 1Ds Mark II	optical	Y	2.0 / 230	fixed	n	1/8000s	4.0/s	n	n
6.		Canon 5D Mark II	optical	Y	3.0 / 920	fixed	n	1/8000s	3.9/s	n	n
7.		Canon 5D Mark III	optical	Y	3.2 / 1040	fixed	n	1/8000s	6.0/s	n	n
8.		Canon 5DS	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
9.		Canon 5DS R	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
10.		Canon 6D	optical	Y	3.0 / 1040	fixed	n	1/4000s	4.5/s	n	n
11.		Canon 6D Mark II	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.5/s	n	n
12.		Nikon D700	optical	Y	3.0 / 922	fixed	n	1/8000s	8.0/s	Y	n
13.		Olympus E-410	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	n
14.		Panasonic G2	1440	n	3.0 / 460	swivel	Y	1/4000s	2.6/s	Y	n
15.		Panasonic G10	202	n	3.0 / 460	fixed	n	1/4000s	2.6/s	Y	n
16.		Panasonic GH1	1440	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
17.		Panasonic L10	optical	n	2.5 / 207	swivel	n	1/4000s	3.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the 5D, but is missing on the G1 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The 5D writes its imaging data to Compact Flash cards, while the G1 uses SDHC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D and Panasonic Lumix DMC-G1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 5D	Y	- / -	-	-	-	2.0	-	-	-
2.		Panasonic G1	Y	- / -	-	-	mini	2.0	-	-	-
3.		Canon 1D Mark II N	Y	- / -	-	-	-	1.1	-	-	-
4.		Canon 1Ds	Y	- / -	-	-	-	FW	-	-	-
5.		Canon 1Ds Mark II	Y	- / -	-	-	-	2.0	-	-	-
6.		Canon 5D Mark II	Y	mono / mono	Y	-	mini	2.0	-	-	-
7.		Canon 5D Mark III	Y	mono / mono	Y	Y	mini	2.0	-	-	-
8.		Canon 5DS	Y	mono / mono	Y	-	mini	3.0	-	-	-
9.		Canon 5DS R	Y	mono / mono	Y	-	mini	3.0	-	-	-
10.		Canon 6D	Y	mono / mono	Y	-	mini	2.0	Y	-	-
11.		Canon 6D Mark II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
12.		Nikon D700	Y	- / -	-	-	mini	2.0	-	-	-
13.		Olympus E-410	Y	- / -	-	-	-	2.0	-	-	-
14.		Panasonic G2	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Panasonic G10	Y	mono / -	-	-	mini	2.0	-	-	-
16.		Panasonic GH1	Y	stereo / -	Y	-	mini	2.0	-	-	-
17.		Panasonic L10	Y	- / -	-	-	-	2.0	-	-	-

Studio photographers will appreciate that the Canon 5D (unlike the G1) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the 5D and the G1 have been discontinued, but can regularly be found used on ebay. The 5D was replaced by the Canon 5D Mark II, while the G1 was followed by the Panasonic G2. Further information on the features and operation of the 5D and G1 can be found, respectively, in the Canon 5D Manual (free pdf) or the online Panasonic G1 Manual.

Review summary

So how do things add up? Which of the two cameras – the Canon 5D or the Panasonic G1 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Canon EOS 5D:

• More detail: Offers more megapixels (12.7 vs 12MP) with a 5% higher linear resolution.
• Better image quality: Scores substantially higher (18 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (1.8 bits more color depth).
• More dynamic range: Captures a larger spectrum of light and dark details (0.8 EV of extra DR).
• Better low-light sensitivity: Requires less light for good images (1.6 stops ISO advantage).
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.71x vs 0.70x).
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in August 2005).

Arguments in favor of the Panasonic Lumix DMC-G1:

• More framing info: Has an electronic viewfinder that displays shooting data.
• More complete view: Has a viewfinder with a larger field of view (100% vs 96%).
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (460k vs 230k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• More compact: Is smaller (124x84mm vs 152x113mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 535g or 60 percent) and is thus easier to take along.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More affordable: Was introduced into a lower priced category (82 percent cheaper at launch).
• More modern: Reflects 3 years and 1 month of technical progress since the 5D launch.

If the count of individual advantages (bullet points above) is taken as a guide, the match-up finishes in a tie (12 points each). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 5D and the Panasonic G1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the 5D and the G1 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 5D	..	88/100	..	+ +	o	..	Aug 2005	3,299	ebay.com
2.		Panasonic G1	..	+ +	..	70/100	4/5	4.5/5	Sep 2008	599	ebay.com
3.		Canon 1D Mark II N	..	..	..	..	..	..	Aug 2005	3,999	ebay.com
4.		Canon 1Ds	..	..	..	+ +	..	..	Sep 2002	8,999	ebay.com
5.		Canon 1Ds Mark II	..	..	..	+ +	..	..	Sep 2004	7,999	ebay.com
6.		Canon 5D Mark II	4/5	91/100	..	79/100	4/5	..	Sep 2008	3,499	ebay.com
7.		Canon 5D Mark III	..	+ +	..	82/100	4.5/5	4.5/5	Mar 2012	3,499	ebay.com
8.		Canon 5DS	..	+	..	83/100	4.5/5	4.5/5	Feb 2015	3,699	ebay.com
9.		Canon 5DS R	5/5	+	..	83/100	5/5	4.5/5	Feb 2015	3,699	ebay.com
10.		Canon 6D	5/5	+ +	..	83/100	4.5/5	4.5/5	Sep 2012	2,099	ebay.com
11.		Canon 6D Mark II	4/5	+	4/5	80/100	4.5/5	4/5	Jun 2017	1,999	amazon.com
12.		Nikon D700	..	89/100	..	+ +	4.5/5	4.5/5	Jul 2008	2,999	ebay.com
13.		Olympus E-410	..	86/100	..	+ +	4/5	4.5/5	Mar 2007	699	ebay.com
14.		Panasonic G2	..	..	..	72/100	4/5	4.5/5	Mar 2010	599	ebay.com
15.		Panasonic G10	3/5	..	..	70/100	4/5	4/5	Mar 2010	499	ebay.com
16.		Panasonic GH1	..	+ +	..	72/100	4.5/5	4.5/5	Mar 2009	899	ebay.com
17.		Panasonic L10	..	85/100	..	+	3.5/5	4/5	Aug 2007	599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
