Canon 5D vs Olympus E-PL3

The Canon EOS 5D and the Olympus PEN E-PL3 are two digital cameras that were revealed to the public, respectively, in August 2005 and June 2011. The 5D is a DSLR, while the E-PL3 is a mirrorless interchangeable lens camera. The cameras are based on a full frame (5D) and a Four Thirds (E-PL3) sensor. The Canon has a resolution of 12.7 megapixels, whereas the Olympus provides 12.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 5D		Olympus E-PL3
Digital single lens reflex		Mirrorless system camera
Canon EF mount lenses		Micro Four Thirds lenses
12.7 MP – Full Frame sensor		12.2 MP – Four Thirds sensor
no Video		1080/60i Video
ISO 100-1,600 (50 - 3,200)		ISO 200-12,800
Optical viewfinder		Viewfinder optional
2.5" LCD – 230k dots		3.0" LCD – 460k dots
Fixed screen (not touch-sensitive)		Tilting screen (no touchscreen)
3 shutter flaps per second		5.5 shutter flaps per second
Lens stabilization only		In-body stabilization
Weathersealed body		not weather sealed
400 shots per battery charge		300 shots per battery charge
152 x 113 x 75 mm, 895 g		110 x 64 x 37 mm, 313 g

Check 5D offers at
ebay.com
Check E-PL3 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D and the Olympus PEN E-PL3? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

An illustration of the physical size and weight of the Canon 5D and the Olympus E-PL3 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The E-PL3 can be obtained in four different colors (black, silver, red, white), while the 5D is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL3 is considerably smaller (59 percent) than the Canon 5D. Moreover, the E-PL3 is substantially lighter (65 percent) than the 5D. It is worth mentioning in this context that the 5D is splash and dust resistant, while the E-PL3 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (5D) and the Micro Four Thirds Lens Catalog (E-PL3). Mirrorless cameras, such as the E-PL3, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the 5D gets 400 shots out of its Canon BP-511A battery, while the E-PL3 can take 300 images on a single charge of its Olympus BLS-5 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 5D	152 mm	113 mm	75 mm	895 g	400	Y	Aug 2005	3,299	ebay.com
2.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	599	ebay.com
3.		Canon 6D Mark II	144 mm	111 mm	75 mm	765 g	1200	Y	Jun 2017	1,999	amazon.com
4.		Canon 5D Mark IV	151 mm	116 mm	76 mm	890 g	900	Y	Aug 2016	3,499	amazon.com
5.		Canon 5DS	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	3,699	ebay.com
6.		Canon 5DS R	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	3,699	ebay.com
7.		Canon 5D Mark III	152 mm	116 mm	76 mm	950 g	950	Y	Mar 2012	3,499	ebay.com
8.		Canon 6D	145 mm	111 mm	71 mm	770 g	1090	Y	Sep 2012	2,099	ebay.com
9.		Canon 5D Mark II	152 mm	114 mm	75 mm	850 g	850	Y	Sep 2008	3,499	ebay.com
10.		Canon 50D	146 mm	108 mm	74 mm	822 g	800	Y	Aug 2008	1,299	ebay.com
11.		Canon 1D Mark II N	156 mm	158 mm	80 mm	1565 g	1200	Y	Aug 2005	3,999	ebay.com
12.		Nikon D700	147 mm	123 mm	77 mm	1074 g	1000	Y	Jul 2008	2,999	ebay.com
13.		Olympus E-PL5	111 mm	64 mm	38 mm	325 g	360	n	Sep 2012	599	ebay.com
14.		Olympus E-P3	122 mm	69 mm	34 mm	369 g	330	n	Jun 2011	799	ebay.com
15.		Olympus E-PL2	114 mm	72 mm	42 mm	362 g	280	n	Jan 2011	599	ebay.com
16.		Olympus E-PM1	110 mm	64 mm	34 mm	265 g	330	n	Jun 2011	499	ebay.com
17.		Olympus E-PL1	115 mm	72 mm	42 mm	334 g	290	n	Feb 2010	599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-PL3 was launched at a markedly lower price (by 82 percent) than the 5D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

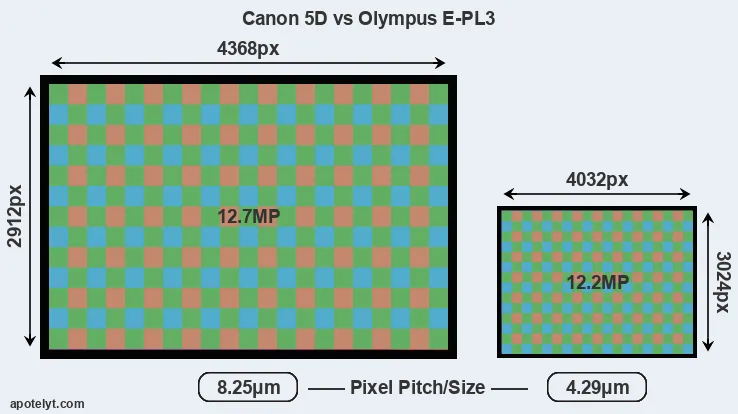

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 5D features a full frame sensor and the Olympus E-PL3 a Four Thirds sensor. The sensor area in the E-PL3 is 74 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 2.0. The sensor in the 5D has a native 3:2 aspect ratio, while the one in the E-PL3 offers a 4:3 aspect.

With 12.7MP, the 5D offers a slightly higher resolution than the E-PL3 (12.2MP), but the 5D nevertheless has larger individual pixels (pixel pitch of 8.25μm versus 4.29μm for the E-PL3) due to its larger sensor. However, the E-PL3 is a much more recent model (by 5 years and 10 months) than the 5D, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

The Canon EOS 5D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 50-3200. The corresponding ISO settings for the Olympus PEN E-PL3 are ISO 200 to ISO 12800 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the 5D provides substantially higher image quality than the E-PL3, with an overall score that is 19 points higher. This advantage is based on 2 bits higher color depth, 0.8 EV in additional dynamic range, and 1.5 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 5D	Full Frame	12.7	4368	2912	none	22.9	11.1	1368	71
2.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
3.		Canon 6D Mark II	Full Frame	26.0	6240	4160	1080/60p	24.4	11.9	2862	85
4.		Canon 5D Mark IV	Full Frame	30.1	6720	4480	4K/30p	24.8	13.6	2995	91
5.		Canon 5DS	Full Frame	50.3	8688	5792	1080/30p	24.7	12.4	2381	87
6.		Canon 5DS R	Full Frame	50.3	8688	5792	1080/30p	24.6	12.4	2308	86
7.		Canon 5D Mark III	Full Frame	22.1	5760	3840	1080/30p	24.0	11.7	2293	81
8.		Canon 6D	Full Frame	20.0	5472	3648	1080/30p	23.8	12.1	2340	82
9.		Canon 5D Mark II	Full Frame	21.0	5616	3744	1080/30p	23.7	11.9	1815	79
10.		Canon 50D	APS-C	15.1	4752	3168	none	21.8	11.4	696	63
11.		Canon 1D Mark II N	APS-H	8.2	3504	2336	none	22.3	11.2	975	66
12.		Nikon D700	Full Frame	12.1	4256	2832	none	23.5	12.2	2303	80
13.		Olympus E-PL5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	889	72
14.		Olympus E-P3	Four Thirds	12.2	4032	3024	1080/60i	20.8	10.1	536	51
15.		Olympus E-PL2	Four Thirds	12.2	4032	3024	720/30p	21.4	10.2	573	55
16.		Olympus E-PM1	Four Thirds	12.2	4032	3024	1080/60i	21.0	10.3	499	52
17.		Olympus E-PL1	Four Thirds	12.2	4032	3024	720/30p	21.5	10.1	487	54

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The E-PL3 indeed provides for movie recording, while the 5D does not. The highest resolution format that the E-PL3 can use is 1080/60i.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the 5D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-PL3 relies on live view and the rear LCD for framing. That said, the E-PL3 can be equipped with an optional viewfinder – the VF-2. The following table reports on some other key feature differences and similarities of the Canon 5D, the Olympus E-PL3, and comparable cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 5D	optical	Y	2.5 / 230	fixed	n	1/8000s	3.0/s	n	n
2.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
3.		Canon 6D Mark II	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.5/s	n	n
4.		Canon 5D Mark IV	optical	Y	3.2 / 1620	fixed	Y	1/8000s	7.0/s	n	n
5.		Canon 5DS	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
6.		Canon 5DS R	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
7.		Canon 5D Mark III	optical	Y	3.2 / 1040	fixed	n	1/8000s	6.0/s	n	n
8.		Canon 6D	optical	Y	3.0 / 1040	fixed	n	1/4000s	4.5/s	n	n
9.		Canon 5D Mark II	optical	Y	3.0 / 920	fixed	n	1/8000s	3.9/s	n	n
10.		Canon 50D	optical	Y	3.0 / 920	fixed	n	1/8000s	6.3/s	Y	n
11.		Canon 1D Mark II N	optical	Y	2.5 / 230	fixed	n	1/8000s	8.5/s	n	n
12.		Nikon D700	optical	Y	3.0 / 922	fixed	n	1/8000s	8.0/s	Y	n
13.		Olympus E-PL5	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
14.		Olympus E-P3	optional	n	3.0 / 614	fixed	Y	1/4000s	3.0/s	Y	Y
15.		Olympus E-PL2	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	Y
16.		Olympus E-PM1	optional	n	3.0 / 460	fixed	n	1/4000s	5.5/s	n	Y
17.		Olympus E-PL1	optional	n	2.7 / 230	fixed	n	1/2000s	3.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the 5D, but is missing on the E-PL3 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The 5D writes its imaging data to Compact Flash cards, while the E-PL3 uses SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D and Olympus PEN E-PL3 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 5D	Y	- / -	-	-	-	2.0	-	-	-
2.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
3.		Canon 6D Mark II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon 5D Mark IV	Y	mono / mono	Y	Y	mini	3.0	Y	Y	-
5.		Canon 5DS	Y	mono / mono	Y	-	mini	3.0	-	-	-
6.		Canon 5DS R	Y	mono / mono	Y	-	mini	3.0	-	-	-
7.		Canon 5D Mark III	Y	mono / mono	Y	Y	mini	2.0	-	-	-
8.		Canon 6D	Y	mono / mono	Y	-	mini	2.0	Y	-	-
9.		Canon 5D Mark II	Y	mono / mono	Y	-	mini	2.0	-	-	-
10.		Canon 50D	Y	- / -	-	-	mini	2.0	-	-	-
11.		Canon 1D Mark II N	Y	- / -	-	-	-	1.1	-	-	-
12.		Nikon D700	Y	- / -	-	-	mini	2.0	-	-	-
13.		Olympus E-PL5	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Olympus E-P3	Y	stereo / -	-	-	mini	2.0	-	-	-
15.		Olympus E-PL2	Y	stereo / -	-	-	mini	2.0	-	-	-
16.		Olympus E-PM1	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Olympus E-PL1	Y	stereo / -	-	-	mini	2.0	-	-	-

Studio photographers will appreciate that the Canon 5D (unlike the E-PL3) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the 5D and the E-PL3 have been discontinued, but can regularly be found used on ebay. The 5D was replaced by the Canon 5D Mark II, while the E-PL3 was followed by the Olympus E-PL5. Further information on the features and operation of the 5D and E-PL3 can be found, respectively, in the Canon 5D Manual (free pdf) or the online Olympus E-PL3 Manual.

Review summary

So how do things add up? Is the Canon 5D better than the Olympus E-PL3 or vice versa? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Canon EOS 5D:

• Better image quality: Scores substantially higher (19 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (2 bits more color depth).
• More dynamic range: Captures a larger spectrum of light and dark details (0.8 EV of extra DR).
• Better low-light sensitivity: Requires less light for good images (1.5 stops ISO advantage).
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Longer lasting: Can take more shots (400 versus 300) on a single battery charge.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in August 2005).

Arguments in favor of the Olympus PEN E-PL3:

• Broader imaging potential: Can capture not only stills but also 1080/60i video.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (460k vs 230k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (5.5 vs 3 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (110x64mm vs 152x113mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 582g or 65 percent) and is thus easier to take along.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• More affordable: Was introduced into a lower priced category (82 percent cheaper at launch).
• More modern: Reflects 5 years and 10 months of technical progress since the 5D launch.

If the number of relative strengths (bullet points above) is taken as a guide, the E-PL3 comes out slightly ahead of the 5D (12 : 11 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 5D and the Olympus E-PL3 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 5D or the E-PL3. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 5D	..	88/100	..	+ +	o	..	Aug 2005	3,299	ebay.com
2.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	599	ebay.com
3.		Canon 6D Mark II	4/5	+	4/5	80/100	4.5/5	4/5	Jun 2017	1,999	amazon.com
4.		Canon 5D Mark IV	4.5/5	+ +	4/5	87/100	4.5/5	4.5/5	Aug 2016	3,499	amazon.com
5.		Canon 5DS	..	+	..	83/100	4.5/5	4.5/5	Feb 2015	3,699	ebay.com
6.		Canon 5DS R	5/5	+	..	83/100	5/5	4.5/5	Feb 2015	3,699	ebay.com
7.		Canon 5D Mark III	..	+ +	..	82/100	4.5/5	4.5/5	Mar 2012	3,499	ebay.com
8.		Canon 6D	5/5	+ +	..	83/100	4.5/5	4.5/5	Sep 2012	2,099	ebay.com
9.		Canon 5D Mark II	4/5	91/100	..	79/100	4/5	..	Sep 2008	3,499	ebay.com
10.		Canon 50D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2008	1,299	ebay.com
11.		Canon 1D Mark II N	..	..	..	..	..	..	Aug 2005	3,999	ebay.com
12.		Nikon D700	..	89/100	..	+ +	4.5/5	4.5/5	Jul 2008	2,999	ebay.com
13.		Olympus E-PL5	3/5	+ +	..	..	4.5/5	4.5/5	Sep 2012	599	ebay.com
14.		Olympus E-P3	..	83/100	..	74/100	4.5/5	4.5/5	Jun 2011	799	ebay.com
15.		Olympus E-PL2	3/5	83/100	..	71/100	4.5/5	4.5/5	Jan 2011	599	ebay.com
16.		Olympus E-PM1	..	86/100	..	71/100	4.5/5	4.5/5	Jun 2011	499	ebay.com
17.		Olympus E-PL1	..	86/100	..	69/100	4/5	4.5/5	Feb 2010	599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
