Canon 5D Mark IV vs Sony NEX-5T
The Canon EOS 5D Mark IV and the Sony Alpha NEX-5T are two digital cameras that were revealed to the public, respectively, in August 2016 and August 2013. The 5D Mark IV is a DSLR, while the NEX-5T is a mirrorless interchangeable lens camera. The cameras are based on a full frame (5D Mark IV) and an APS-C (NEX-5T) sensor. The Canon has a resolution of 30.1 megapixels, whereas the Sony provides 16 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D Mark IV and the Sony Alpha NEX-5T? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

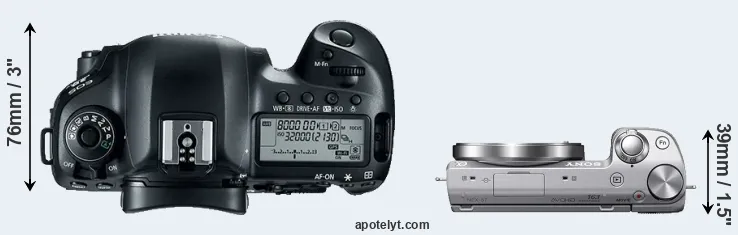

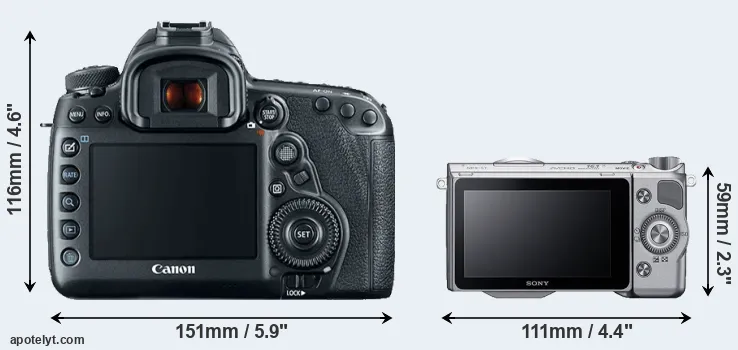

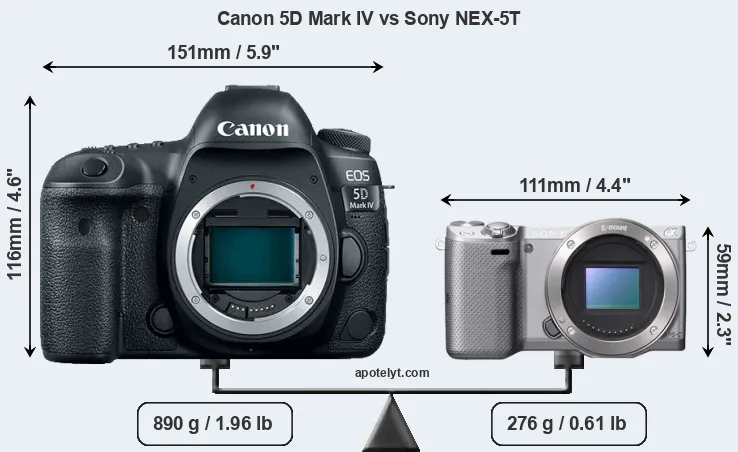

An illustration of the physical size and weight of the Canon 5D Mark IV and the Sony NEX-5T is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
The NEX-5T can be obtained in two different colors (black, silver), while the 5D Mark IV is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony NEX-5T is considerably smaller (63 percent) than the Canon 5D Mark IV. Moreover, the NEX-5T is substantially lighter (69 percent) than the 5D Mark IV. It is worth mentioning in this context that the 5D Mark IV is splash and dust resistant, while the NEX-5T does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (5D Mark IV) and the Sony E-Mount Lens Catalog (NEX-5T). Mirrorless cameras, such as the NEX-5T, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon 5D Mark IV||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499|
|2.||Sony NEX-5T||111 mm||59 mm||39 mm||276 g||330||n||Aug 2013||699|
|3.||Canon 6D Mark II||144 mm||111 mm||75 mm||765 g||1200||Y||Jun 2017||1,999|
|4.||Canon 1D X Mark II||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999|
|5.||Canon 5DS||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|6.||Canon 5DS R||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|7.||Canon 5D Mark III||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499|
|8.||Canon 5D Mark II||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499|
|9.||Canon 5D||152 mm||113 mm||75 mm||895 g||400||Y||Aug 2005||3,299|
|10.||Nikon D850||146 mm||124 mm||79 mm||1005 g||1840||Y||Jul 2017||3,299|
|11.||Nikon D800||146 mm||123 mm||82 mm||1000 g||900||Y||Feb 2012||2,999|
|12.||Nikon D800E||146 mm||123 mm||82 mm||1000 g||900||Y||Feb 2012||3,299|
|13.||Sony NEX-3N||110 mm||62 mm||35 mm||269 g||480||n||Feb 2013||499|
|14.||Sony NEX-5R||111 mm||59 mm||39 mm||276 g||330||n||Aug 2012||749|
|15.||Sony NEX-F3||117 mm||67 mm||42 mm||314 g||470||n||May 2012||599|
|16.||Sony NEX-3||117 mm||62 mm||33 mm||297 g||330||n||May 2010||599|
|17.||Sony NEX-5||111 mm||59 mm||38 mm||287 g||330||n||May 2010||699|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The NEX-5T was launched at a markedly lower price (by 80 percent) than the 5D Mark IV, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

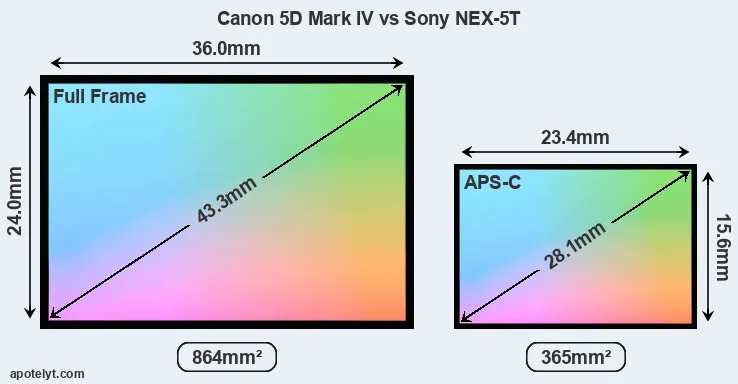

Of the two cameras under consideration, the Canon 5D Mark IV features a full frame sensor and the Sony NEX-5T an APS-C sensor. The sensor area in the NEX-5T is 58 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.

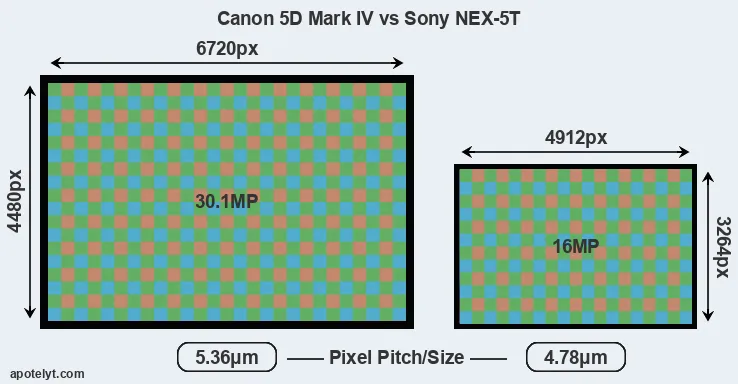

With 30.1MP, the 5D Mark IV offers a higher resolution than the NEX-5T (16MP), but the 5D Mark IV nevertheless has larger individual pixels (pixel pitch of 5.36μm versus 4.78μm for the NEX-5T) due to its larger sensor. Moreover, the 5D Mark IV is a much more recent model (by 2 years and 11 months) than the NEX-5T, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon 5D Mark IV implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5D Mark IV for good quality output (200 dots per inch) amounts to 33.6 x 22.4 inches or 85.3 x 56.9 cm, for very good quality (250 dpi) 26.9 x 17.9 inches or 68.3 x 45.5 cm, and for excellent quality (300 dpi) 22.4 x 14.9 inches or 56.9 x 37.9 cm. The corresponding values for the Sony NEX-5T are 24.6 x 16.3 inches or 62.4 x 41.5 cm for good quality, 19.6 x 13.1 inches or 49.9 x 33.2 cm for very good quality, and 16.4 x 10.9 inches or 41.6 x 27.6 cm for excellent quality prints.
The 5D Mark IV has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 5D Mark IV has a native sensitivity range from ISO 100 to ISO 32000, which can be extended to ISO 50-102400. The corresponding ISO settings for the Sony Alpha NEX-5T are ISO 100 to ISO 25600 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the 5D Mark IV provides substantially higher image quality than the NEX-5T, with an overall score that is 13 points higher. This advantage is based on 1.2 bits higher color depth, 0.6 EV in additional dynamic range, and 1.6 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
|1.||Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|3.||Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|4.||Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|5.||Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|6.||Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|7.||Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|8.||Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|9.||Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71|
|10.||Nikon D850||Full Frame||45.4||8256||5504||4K/30p||26.4||14.8||2660||100|
|11.||Nikon D800||Full Frame||36.2||7360||4912||1080/30p||25.3||14.4||2853||95|
|12.||Nikon D800E||Full Frame||36.2||7360||4912||1080/30p||25.6||14.3||2979||96|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the 5D Mark IV provides a higher video resolution than the NEX-5T. It can shoot video footage at 4K/30p, while the Sony is limited to 1080/60p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the 5D Mark IV has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the NEX-5T relies on live view and the rear LCD for framing. That said, the NEX-5T can be equipped with an optional viewfinder – the FDA-EV1S. The table below summarizes some of the other core capabilities of the Canon 5D Mark IV and Sony NEX-5T in connection with corresponding information for a sample of similar cameras.
|1.||Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n|
|3.||Canon 6D Mark II||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n|
|4.||Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|6.||Canon 5DS R||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n|
|7.||Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n|
|8.||Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
One feature that is present on the 5D Mark IV, but is missing on the NEX-5T is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The NEX-5T has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 5D Mark IV does not have a selfie-screen.
The Canon 5D Mark IV has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 5D Mark IV writes its imaging data to Compact Flash or SDXC cards, while the NEX-5T uses SDXC or Memory Stick PRO Duo cards. The 5D Mark IV features dual card slots, which can be very useful in case a memory card fails. In contrast, the NEX-5T only has one slot. The 5D Mark IV supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the NEX-5T cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D Mark IV and Sony Alpha NEX-5T and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|1.||Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-|
|3.||Canon 6D Mark II||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y|
|4.||Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|6.||Canon 5DS R||Y||mono||mono||Y||-||mini||3.0||-||-||-|
|7.||Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|8.||Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
It is notable that the 5D Mark IV has a microphone port, which is missing on the NEX-5T. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Studio photographers will appreciate that the Canon 5D Mark IV (unlike the NEX-5T) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Travel and landscape photographers will find it useful that the 5D Mark IV has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
The 5D Mark IV is a recent model that features in the current product line-up of Canon. In contrast, the NEX-5T has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the NEX-5T was succeeded by the Sony A5100. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Sony websites.
So how do things add up? Is the Canon 5D Mark IV better than the Sony NEX-5T or vice versa? The listing below highlights the relative strengths of the two models.
Advantages of the Canon EOS 5D Mark IV:
- More detail: Offers more megapixels (30.1 vs 16MP) with a 37% higher linear resolution.
- Better image quality: Scores substantially higher (13 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (1.2 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (0.6 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (1.6 stops ISO advantage).
- Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 922k dots).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Can take more shots (900 versus 330) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 2 years and 11 months of technical progress since the NEX-5T launch.
Reasons to prefer the Sony Alpha NEX-5T:
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (10 vs 7 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (111x59mm vs 151x116mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 614g or 69 percent) and is thus easier to take along.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- More affordable: Was introduced into a lower priced category (80 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in August 2013).
If the number of relative strengths (bullet points above) is taken as a guide, the 5D Mark IV is the clear winner of the match-up (23 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5D Mark IV and the Sony NEX-5T place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 5D Mark IV or the NEX-5T. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 5D Mark IV||4.5/5||+ +||87/100||4.5/5||4.5/5||Aug 2016||3,499|
|2.||Sony NEX-5T||..||..||..||4.5/5||4.5/5||Aug 2013||699|
|3.||Canon 6D Mark II||4/5||+||80/100||4.5/5||4/5||Jun 2017||1,999|
|4.||Canon 1D X Mark II||..||..||89/100||4.5/5||4.5/5||Feb 2016||5,999|
|5.||Canon 5DS||..||+||83/100||4.5/5||4.5/5||Feb 2015||3,699|
|6.||Canon 5DS R||5/5||+||83/100||5/5||4.5/5||Feb 2015||3,699|
|7.||Canon 5D Mark III||..||+ +||82/100||4.5/5||4.5/5||Mar 2012||3,499|
|8.||Canon 5D Mark II||4/5||91/100||79/100||4/5||..||Sep 2008||3,499|
|9.||Canon 5D||..||88/100||+ +||o||..||Aug 2005||3,299|
|10.||Nikon D850||4.5/5||+ +||89/100||4.5/5||5/5||Jul 2017||3,299|
|11.||Nikon D800||5/5||+ +||82/100||5/5||5/5||Feb 2012||2,999|
|12.||Nikon D800E||..||..||84/100||5/5||5/5||Feb 2012||3,299|
|13.||Sony NEX-3N||3/5||..||..||4.5/5||4.5/5||Feb 2013||499|
|14.||Sony NEX-5R||..||..||..||4.5/5||4.5/5||Aug 2012||749|
|15.||Sony NEX-F3||4/5||..||74/100||4.5/5||4.5/5||May 2012||599|
|16.||Sony NEX-3||..||..||70/100||4.5/5||4/5||May 2010||599|
|17.||Sony NEX-5||3/5||+ +||71/100||4.5/5||4/5||May 2010||699|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon 5D Mark IV vs Sony NEX-5T
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 5D Mark IV||Sony NEX-5T|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Sony E mount lenses|
|Launch Date||August 2016||August 2013|
|Launch Price||USD 3,499||USD 699|
|Sensor Specs||Canon 5D Mark IV||Sony NEX-5T|
|Sensor Format||Full Frame Sensor||APS-C Sensor|
|Sensor Size||36.0 x 24.0 mm||23.4 x 15.6 mm|
|Sensor Area||864 mm2||365.04 mm2|
|Sensor Diagonal||43.3 mm||28.1 mm|
|Sensor Resolution||30.1 Megapixels||16 Megapixels|
|Image Resolution||6720 x 4480 pixels||4912 x 3264 pixels|
|Pixel Pitch||5.36 μm||4.78 μm|
|Pixel Density||3.48 MP/cm2||4.39 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||4K/30p Video||1080/60p Video|
|ISO Setting||100 - 32,000 ISO||100 - 25,600 ISO|
|ISO Boost||50 - 102,400 ISO||no Enhancement|
|Image Processor||DIGIC 6+||BIONZ|
|DXO Sensor Quality (score)||91||78|
|DXO Color Depth (bits)||24.8||23.6|
|DXO Dynamic Range (EV)||13.6||13.0|
|DXO Low Light (ISO)||2995||1015|
|Screen Specs||Canon 5D Mark IV||Sony NEX-5T|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||100%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.0inch|
|LCD Resolution||1620k dots||922k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Shooting Specs||Canon 5D Mark IV||Sony NEX-5T|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/4000s|
|Continuous Shooting||7 shutter flaps/s||10 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||CF or SDXC cards||MS or SDXC cards|
|Second Storage Option||Dual card slots||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Canon 5D Mark IV||Sony NEX-5T|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 3.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||NFC built-in|
|Geotagging||GPS built-in||no internal GPS|
|Body Specs||Canon 5D Mark IV||Sony NEX-5T|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||900 shots per charge||330 shots per charge|
151 x 116 x 76 mm
(5.9 x 4.6 x 3.0 in)
111 x 59 x 39 mm
(4.4 x 2.3 x 1.5 in)
|Camera Weight||890 g (31.4 oz)||276 g (9.7 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
