Canon 5D Mark IV vs Olympus E-520
The Canon EOS 5D Mark IV and the Olympus E-520 are two digital cameras that were announced, respectively, in August 2016 and May 2008. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (5D Mark IV) and a Four Thirds (E-520) sensor. The Canon has a resolution of 30.1 megapixels, whereas the Olympus provides 10 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D Mark IV and the Olympus E-520? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

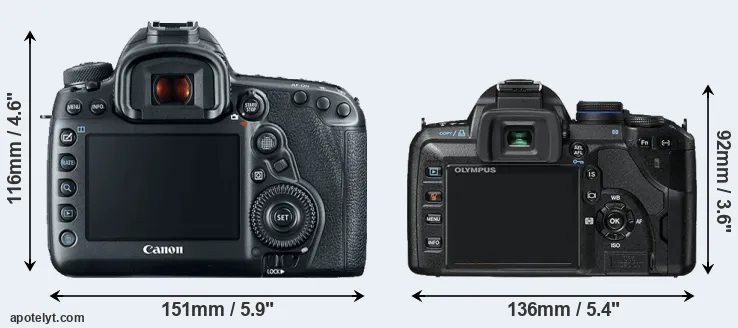

The side-by-side display below illustrates the physical size and weight of the Canon 5D Mark IV and the Olympus E-520. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-520 is notably smaller (29 percent) than the Canon 5D Mark IV. Moreover, the E-520 is substantially lighter (40 percent) than the 5D Mark IV. It is worth mentioning in this context that the 5D Mark IV is splash and dust resistant, while the E-520 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (5D Mark IV) and the Four Thirds Lens Catalog (E-520).
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon 5D Mark IV||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499|
|2.||Olympus E-520||136 mm||92 mm||68 mm||535 g||750||n||May 2008||699|
|3.||Canon 6D Mark II||144 mm||111 mm||75 mm||765 g||1200||Y||Jun 2017||1,999|
|4.||Canon 1D X Mark II||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999|
|5.||Canon 5DS||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|6.||Canon 5DS R||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|7.||Canon 5D Mark III||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499|
|8.||Canon 5D Mark II||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499|
|9.||Canon 5D||152 mm||113 mm||75 mm||895 g||400||Y||Aug 2005||3,299|
|10.||Nikon D850||146 mm||124 mm||79 mm||1005 g||1840||Y||Jul 2017||3,299|
|11.||Nikon D800||146 mm||123 mm||82 mm||1000 g||900||Y||Feb 2012||2,999|
|12.||Nikon D800E||146 mm||123 mm||82 mm||1000 g||900||Y||Feb 2012||3,299|
|13.||Olympus E-600||130 mm||94 mm||60 mm||535 g||500||n||Aug 2009||449|
|14.||Olympus E-620||130 mm||94 mm||60 mm||521 g||500||n||Feb 2009||699|
|15.||Olympus E-420||130 mm||91 mm||53 mm||440 g||500||n||Mar 2008||599|
|16.||Olympus E-410||130 mm||91 mm||53 mm||435 g||500||n||Mar 2007||699|
|17.||Olympus E-510||136 mm||92 mm||68 mm||538 g||750||n||Mar 2007||799|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-520 was launched at a markedly lower price (by 80 percent) than the 5D Mark IV, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 5D Mark IV features a full frame sensor and the Olympus E-520 a Four Thirds sensor. The sensor area in the E-520 is 74 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 2.0. The sensor in the 5D Mark IV has a native 3:2 aspect ratio, while the one in the E-520 offers a 4:3 aspect.
With 30.1MP, the 5D Mark IV offers a higher resolution than the E-520 (10MP), but the 5D Mark IV nevertheless has larger individual pixels (pixel pitch of 5.36μm versus 4.74μm for the E-520) due to its larger sensor. Moreover, the 5D Mark IV is a much more recent model (by 8 years and 3 months) than the E-520, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon 5D Mark IV implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5D Mark IV for good quality output (200 dots per inch) amounts to 33.6 x 22.4 inches or 85.3 x 56.9 cm, for very good quality (250 dpi) 26.9 x 17.9 inches or 68.3 x 45.5 cm, and for excellent quality (300 dpi) 22.4 x 14.9 inches or 56.9 x 37.9 cm. The corresponding values for the Olympus E-520 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.
The 5D Mark IV has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 5D Mark IV has a native sensitivity range from ISO 100 to ISO 32000, which can be extended to ISO 50-102400. The corresponding ISO settings for the Olympus E-520 are ISO 100 to ISO 1600 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the 5D Mark IV provides substantially higher image quality than the E-520, with an overall score that is 36 points higher. This advantage is based on 3.4 bits higher color depth, 3.2 EV in additional dynamic range, and 2.5 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|1.||Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|2.||Olympus E-520||Four Thirds||10.0||3648||2736||none||21.4||10.4||548||55|
|3.||Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|4.||Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|5.||Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|6.||Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|7.||Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|8.||Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|9.||Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71|
|10.||Nikon D850||Full Frame||45.4||8256||5504||4K/30p||26.4||14.8||2660||100|
|11.||Nikon D800||Full Frame||36.2||7360||4912||1080/30p||25.3||14.4||2853||95|
|12.||Nikon D800E||Full Frame||36.2||7360||4912||1080/30p||25.6||14.3||2979||96|
|13.||Olympus E-600||Four Thirds||12.2||4032||3024||none||21.5||10.3||541||55|
|14.||Olympus E-620||Four Thirds||12.2||4032||3024||none||21.3||10.3||536||55|
|15.||Olympus E-420||Four Thirds||10.0||3648||2736||none||21.5||10.4||527||56|
|16.||Olympus E-410||Four Thirds||10.0||3648||2736||none||21.1||10.0||494||51|
|17.||Olympus E-510||Four Thirds||10.0||3648||2736||none||21.2||10.0||442||52|
Many modern cameras cannot only take still pictures, but also record videos. The 5D Mark IV indeed provides movie recording capabilities, while the E-520 does not. The highest resolution format that the 5D Mark IV can use is 4K/30p.
Apart from body and sensor, cameras can and do differ across a range of features. The 5D Mark IV and the E-520 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 5D Mark IV offers a wider field of view (100%) than the one in the E-520 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the 5D Mark IV has a higher magnification (0.71x vs 0.46x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 5D Mark IV and Olympus E-520 in connection with corresponding information for a sample of similar cameras.
|1.||Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n|
|3.||Canon 6D Mark II||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n|
|4.||Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|6.||Canon 5DS R||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n|
|7.||Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n|
|8.||Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
One feature that is present on the 5D Mark IV, but is missing on the E-520 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The Canon 5D Mark IV has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 5D Mark IV writes its imaging data to Compact Flash or SDXC cards, while the E-520 uses Compact Flash or xD Picture cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D Mark IV and Olympus E-520 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|1.||Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-|
|3.||Canon 6D Mark II||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y|
|4.||Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|6.||Canon 5DS R||Y||mono||mono||Y||-||mini||3.0||-||-||-|
|7.||Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|8.||Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
It is notable that the 5D Mark IV offers wifi support, while the E-520 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Studio photographers will appreciate that the Canon 5D Mark IV (unlike the E-520) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Travel and landscape photographers will find it useful that the 5D Mark IV has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
The 5D Mark IV is a recent model that features in the current product line-up of Canon. In contrast, the E-520 has been discontinued (but can be found pre-owned on eBay). There has not been a direct replacement model for the E-520 from Olympus. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So how do things add up? Is there a clear favorite between the Canon 5D Mark IV and the Olympus E-520? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Canon EOS 5D Mark IV:
- More detail: Offers more megapixels (30.1 vs 10MP) with a 77% higher linear resolution.
- Better image quality: Scores substantially higher (36 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (3.4 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (3.2 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (2.5 stops ISO advantage).
- Broader imaging potential: Can record not only still images but also 4K/30p movies.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.71x vs 0.46x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 2.7") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 215k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (7 vs 3.5 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Can take more shots (900 versus 750) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More modern: Reflects 8 years and 3 months of technical progress since the E-520 launch.
Advantages of the Olympus E-520:
- More compact: Is smaller (136x92mm vs 151x116mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 355g or 40 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More affordable: Was introduced into a lower priced category (80 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in May 2008).
If the count of relative strengths (bullet points above) is taken as a measure, the 5D Mark IV is the clear winner of the match-up (24 : 6 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5D Mark IV and the Olympus E-520 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 5D Mark IV or the E-520. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 5D Mark IV||4.5/5||+ +||87/100||4.5/5||4.5/5||Aug 2016||3,499|
|2.||Olympus E-520||..||87/100||+ +||4.5/5||4.5/5||May 2008||699|
|3.||Canon 6D Mark II||4/5||+||80/100||4.5/5||4/5||Jun 2017||1,999|
|4.||Canon 1D X Mark II||..||..||89/100||4.5/5||4.5/5||Feb 2016||5,999|
|5.||Canon 5DS||..||+||83/100||4.5/5||4.5/5||Feb 2015||3,699|
|6.||Canon 5DS R||5/5||+||83/100||5/5||4.5/5||Feb 2015||3,699|
|7.||Canon 5D Mark III||..||+ +||82/100||4.5/5||4.5/5||Mar 2012||3,499|
|8.||Canon 5D Mark II||4/5||91/100||79/100||4/5||..||Sep 2008||3,499|
|9.||Canon 5D||..||88/100||+ +||o||..||Aug 2005||3,299|
|10.||Nikon D850||4.5/5||+ +||89/100||4.5/5||5/5||Jul 2017||3,299|
|11.||Nikon D800||5/5||+ +||82/100||5/5||5/5||Feb 2012||2,999|
|12.||Nikon D800E||..||..||84/100||5/5||5/5||Feb 2012||3,299|
|13.||Olympus E-600||..||..||..||..||4.5/5||Aug 2009||449|
|14.||Olympus E-620||3/5||88/100||72/100||4.5/5||5/5||Feb 2009||699|
|15.||Olympus E-420||..||85/100||+ +||4/5||4.5/5||Mar 2008||599|
|16.||Olympus E-410||..||86/100||+ +||4/5||4.5/5||Mar 2007||699|
|17.||Olympus E-510||..||89/100||+ +||3.5/5||4.5/5||Mar 2007||799|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon 5D Mark IV vs Olympus E-520
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 5D Mark IV||Olympus E-520|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Four Thirds lenses|
|Launch Date||August 2016||May 2008|
|Launch Price||USD 3,499||USD 699|
|Sensor Specs||Canon 5D Mark IV||Olympus E-520|
|Sensor Format||Full Frame Sensor||Four Thirds Sensor|
|Sensor Size||36.0 x 24.0 mm||17.3 x 13.0 mm|
|Sensor Area||864 mm2||224.9 mm2|
|Sensor Diagonal||43.3 mm||21.6 mm|
|Sensor Resolution||30.1 Megapixels||10 Megapixels|
|Image Resolution||6720 x 4480 pixels||3648 x 2736 pixels|
|Pixel Pitch||5.36 μm||4.74 μm|
|Pixel Density||3.48 MP/cm2||4.44 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||4K/30p Video||no Video|
|ISO Setting||100 - 32,000 ISO||100 - 1,600 ISO|
|ISO Boost||50 - 102,400 ISO||no Enhancement|
|Image Processor||DIGIC 6+||TruePic III|
|DXO Sensor Quality (score)||91||55|
|DXO Color Depth (bits)||24.8||21.4|
|DXO Dynamic Range (EV)||13.6||10.4|
|DXO Low Light (ISO)||2995||548|
|Screen Specs||Canon 5D Mark IV||Olympus E-520|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||2.7inch|
|LCD Resolution||1620k dots||215k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon 5D Mark IV||Olympus E-520|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||7 shutter flaps/s||3.5 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||no On-Board Flash||Built-in Flash|
|Storage Medium||CF or SDXC cards||CF or XD cards|
|Second Storage Option||Dual card slots||Dual card slots|
|Connectivity Specs||Canon 5D Mark IV||Olympus E-520|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 3.0||USB 2.0|
|HDMI Port||mini HDMI||no HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Geotagging||GPS built-in||no internal GPS|
|Body Specs||Canon 5D Mark IV||Olympus E-520|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||900 shots per charge||750 shots per charge|
151 x 116 x 76 mm
(5.9 x 4.6 x 3.0 in)
136 x 92 x 68 mm
(5.4 x 3.6 x 2.7 in)
|Camera Weight||890 g (31.4 oz)||535 g (18.9 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
