Canon 5D Mark IV vs Leica S3
The Canon EOS 5D Mark IV and the Leica S3 are two professional cameras that were revealed to the public, respectively, in August 2016 and September 2018. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (5D Mark IV) and a medium format (S3) sensor. The Canon has a resolution of 30.1 megapixels, whereas the Leica provides 64 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D Mark IV and the Leica S3? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
An illustration of the physical size and weight of the Canon 5D Mark IV and the Leica S3 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica S3 is notably larger (10 percent) than the Canon 5D Mark IV. Moreover, the S3 is substantially heavier (42 percent) than the 5D Mark IV. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

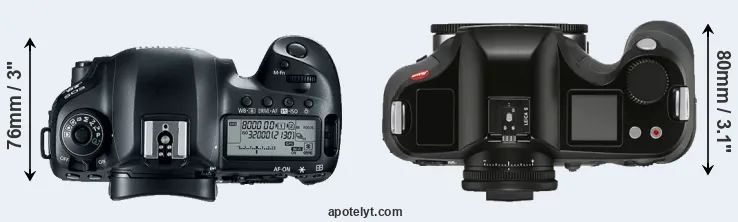

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|Canon 5D Mark IV||5.9 in||4.6 in||3.0 in||31.4 oz||900||Y||Aug 2016||3,499|
|Leica S3||6.3 in||4.7 in||3.1 in||44.4 oz||..||Y||Sep 2018||18,995|
|Canon 6D Mark II||5.7 in||4.4 in||3.0 in||27.0 oz||1200||Y||Jun 2017||1,999|
|Canon 1D X Mark II||6.2 in||6.6 in||3.3 in||54.0 oz||1210||Y||Feb 2016||5,999|
|Canon 5DS||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699|
|Canon 5DS R||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699|
|Canon 5D Mark III||6.0 in||4.6 in||3.0 in||33.5 oz||950||Y||Mar 2012||3,499|
|Canon 5D Mark II||6.0 in||4.5 in||3.0 in||30.0 oz||850||Y||Sep 2008||3,499|
|Canon 5D||6.0 in||4.4 in||3.0 in||31.6 oz||400||Y||Aug 2005||3,299|
|Leica M10||5.5 in||3.1 in||1.5 in||23.3 oz||210||Y||Jan 2017||6,595|
|Leica S-E Typ 006||6.3 in||4.7 in||3.1 in||44.4 oz||..||Y||Sep 2014||16,900|
|Leica S Typ 007||6.3 in||4.7 in||3.1 in||44.4 oz||..||Y||Sep 2014||24,490|
|Leica S Typ 006||6.3 in||4.7 in||3.1 in||44.4 oz||..||Y||Sep 2012||21,950|
|Leica S2||6.3 in||4.7 in||3.1 in||49.7 oz||..||Y||Sep 2008||22,995|
|Nikon D850||5.7 in||4.9 in||3.1 in||35.5 oz||1840||Y||Jul 2017||3,299|
|Nikon D800||5.7 in||4.8 in||3.2 in||35.3 oz||900||Y||Feb 2012||2,999|
|Nikon D800E||5.7 in||4.8 in||3.2 in||35.3 oz||900||Y||Feb 2012||3,299|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 5D Mark IV was launched at a markedly lower price (by 82 percent) than the S3, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 5D Mark IV features a full frame sensor and the Leica S3 a medium format sensor. The sensor area in the S3 is 56 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 0.8. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
In terms of underlying technology, both cameras are build around CMOS sensors.
With 64MP, the S3 offers a higher resolution than the 5D Mark IV (30.1MP), but the S3 has smaller individual pixels (pixel pitch of 4.59μm versus 5.36μm for the 5D Mark IV). Yet, the S3 is a much more recent model (by 2 years and 1 month) than the 5D Mark IV, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the S3 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Leica S3 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the S3 for good quality output (200 dots per inch) amounts to 49 x 32.7 inches or 124.5 x 83 cm, for very good quality (250 dpi) 39.2 x 26.1 inches or 99.6 x 66.4 cm, and for excellent quality (300 dpi) 32.7 x 21.8 inches or 83 x 55.3 cm. The corresponding values for the Canon 5D Mark IV are 33.6 x 22.4 inches or 85.3 x 56.9 cm for good quality, 26.9 x 17.9 inches or 68.3 x 45.5 cm for very good quality, and 22.4 x 14.9 inches or 56.9 x 37.9 cm for excellent quality prints.
The 5D Mark IV has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 5D Mark IV has a native sensitivity range from ISO 100 to ISO 32000, which can be extended to ISO 50-102400. The corresponding ISO settings for the Leica S3 are ISO 100 to ISO 50000 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|Leica S3||Medium Format||64.0||9800||6533||4K/24p||..||..||..||..|
|Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71|
|Leica M10||Full Frame||23.8||5952||3992||none||24.4||13.2||2133||86|
|Leica S-E Typ 006||Medium Format||37.5||7500||5000||none||..||..||..||..|
|Leica S Typ 007||Medium Format||37.5||7500||5000||4K/24p||..||..||..||..|
|Leica S Typ 006||Medium Format||37.5||7500||5000||none||23.9||12.2||824||76|
|Leica S2||Medium Format||37.5||7500||5000||none||..||..||..||..|
|Nikon D850||Full Frame||45.4||8256||5504||4K/30p||26.4||14.8||2660||100|
|Nikon D800||Full Frame||36.2||7360||4912||1080/30p||25.3||14.4||2853||95|
|Nikon D800E||Full Frame||36.2||7360||4912||1080/30p||25.6||14.3||2979||96|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the 5D Mark IV provides a higher frame rate than the S3. It can shoot video footage at 4K/30p, while the Leica is limited to 4K/24p.
Beyond body and sensor, cameras can and do differ across a range of features. The 5D Mark IV and the S3 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 5D Mark IV offers a wider field of view (100%) than the one in the S3 (98%), so that a larger proportion of the captured image is visible in the finder. On the other hand, the viewfinder of the S3 has a higher magnification (0.87x vs 0.71x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 5D Mark IV and Leica S3 in connection with corresponding information for a sample of similar cameras.
|Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n|
|Canon 6D Mark II||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n|
|Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|Canon 5DS R||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n|
|Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n|
|Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
|Leica S-E Typ 006||optical||Y||3.0||922||fixed||n||1/4000s||1.5||n||n|
|Leica S Typ 007||optical||Y||3.0||922||fixed||n||1/4000s||3.5||n||n|
|Leica S Typ 006||optical||Y||3.0||922||fixed||n||1/4000s||1.5||n||n|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The 5D Mark IV has a touchscreen, while the S3 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The Canon 5D Mark IV has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the 5D Mark IV and the S3 write their files to Compact Flash or SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails. The S3 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the 5D Mark IV can use UHS-I cards (up to 104 MB/s).
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D Mark IV and Leica S3 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-|
|Canon 6D Mark II||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y|
|Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|Canon 5DS R||Y||mono||mono||Y||-||mini||3.0||-||-||-|
|Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
|Leica S-E Typ 006||Y||-||-||-||-||mini||2.0||-||-||-|
|Leica S Typ 007||Y||stereo||mono||Y||Y||mini||3.0||Y||-||-|
|Leica S Typ 006||Y||-||-||-||-||mini||2.0||-||-||-|
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
Travel and landscape photographers will find it useful that both cameras feature internal geolocalization sensors and can record GPS coordinates in their EXIF data.
Both the 5D Mark IV and the S3 are recent models that are part of the current product line-up. The 5D Mark IV replaced the earlier Canon 5D Mark III, while the S3 followed on from the Leica S Typ 007. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Leica websites.
So how do things add up? Is there a clear favorite between the Canon 5D Mark IV and the Leica S3? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Canon EOS 5D Mark IV:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better video: Provides higher movie framerates (4K/30p versus 4K/24p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More complete view: Has a viewfinder with a larger field of view (100% vs 98%).
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 922k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (7 vs 3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Less heavy: Is lighter (by 370g or 29 percent) and hence easier to carry around.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More affordable: Was introduced into a lower priced category (82 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in August 2016).
Reasons to prefer the Leica S3:
- More detail: Has more megapixels (64 vs 30.1MP), which boosts linear resolution by 46%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Is equipped with a larger and more technologically advanced sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.87x vs 0.71x).
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
- More modern: Reflects 2 years and 1 month of technical progress since the 5D Mark IV launch.
If the count of relative strengths (bullet points above) is taken as a measure, the 5D Mark IV is the clear winner of the match-up (14 : 10 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5D Mark IV and the Leica S3 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the 5D Mark IV and the S3 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 5D Mark IV||+ +||87/100||4.5/5||5/5||4.5/5||Aug 2016||3,499|
|Leica S3||..||..||..||..||..||Sep 2018||18,995|
|Canon 6D Mark II||+||80/100||4.5/5||4/5||4/5||Jun 2017||1,999|
|Canon 1D X Mark II||..||89/100||4.5/5||5/5||4.5/5||Feb 2016||5,999|
|Canon 5DS||+||83/100||4.5/5||5/5||4.5/5||Feb 2015||3,699|
|Canon 5DS R||+||83/100||5/5||5/5||4.5/5||Feb 2015||3,699|
|Canon 5D Mark III||+ +||82/100||4.5/5||5/5||4.5/5||Mar 2012||3,499|
|Canon 5D Mark II||91/100||79/100||4/5||5/5||..||Sep 2008||3,499|
|Canon 5D||88/100||+ +||o||o||..||Aug 2005||3,299|
|Leica M10||..||..||4/5||..||4.5/5||Jan 2017||6,595|
|Leica S-E Typ 006||..||..||..||..||..||Sep 2014||16,900|
|Leica S Typ 007||..||..||..||..||..||Sep 2014||24,490|
|Leica S Typ 006||..||..||..||..||..||Sep 2012||21,950|
|Leica S2||..||..||..||..||..||Sep 2008||22,995|
|Nikon D850||+ +||89/100||4.5/5||5/5||5/5||Jul 2017||3,299|
|Nikon D800||+ +||82/100||5/5||5/5||5/5||Feb 2012||2,999|
|Nikon D800E||..||84/100||5/5||4.5/5||5/5||Feb 2012||3,299|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon 5D Mark IV vs Leica S3
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 5D Mark IV||Leica S3|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Leica S mount lenses|
|Launch Date||August 2016||September 2018|
|Launch Price||USD 3,499||USD 18,995|
|Sensor Specs||Canon 5D Mark IV||Leica S3|
|Sensor Format||Full Frame Sensor||Medium Format Sensor|
|Sensor Size||36.0 x 24.0 mm||45.0 x 30.0 mm|
|Sensor Area||864 mm2||1350 mm2|
|Sensor Diagonal||43.3 mm||54.1 mm|
|Sensor Resolution||30.1 Megapixels||64 Megapixels|
|Image Resolution||6720 x 4480 pixels||9800 x 6533 pixels|
|Pixel Pitch||5.36 μm||4.59 μm|
|Pixel Density||3.48 MP/cm2||4.74 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||4K/30p Video||4K/24p Video|
|ISO Setting||100 - 32,000 ISO||100 - 50,000 ISO|
|ISO Boost||50 - 102,400 ISO||no Enhancement|
|Image Processor||DIGIC 6+||Maestro II|
|DXO Sensor Quality (score)||91||..|
|DXO Color Depth (bits)||24.8||..|
|DXO Dynamic Range (EV)||13.6||..|
|DXO Low Light (ISO)||2995||..|
|Screen Specs||Canon 5D Mark IV||Leica S3|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||98%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.0inch|
|LCD Resolution||1620k dots||922k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon 5D Mark IV||Leica S3|
|Focus System||Phase-detect AF||Phase-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/4000s|
|Continuous Shooting||7 shutter flaps/s||3 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||CF or SDXC cards||CF or SDXC cards|
|Second Storage Option||Dual card slots||Dual card slots|
|UHS card support||UHS-I||UHS-II|
|Connectivity Specs||Canon 5D Mark IV||Leica S3|
|Studio Flash||PC Sync socket||PC Sync socket|
|USB Connector||USB 3.0||USB 3.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||Headphone port||Headphone port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||no NFC|
|Geotagging||GPS built-in||GPS built-in|
|Body Specs||Canon 5D Mark IV||Leica S3|
|Environmental Sealing||Weathersealed body||Weathersealed body|
151 x 116 x 76 mm
(5.9 x 4.6 x 3.0 in)
160 x 120 x 80 mm
(6.3 x 4.7 x 3.1 in)
|Camera Weight||890 g (31.4 oz)||1260 g (44.4 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
