Canon 5D Mark IV vs Canon M
The Canon EOS 5D Mark IV and the Canon EOS M are two digital cameras that were officially introduced, respectively, in August 2016 and July 2012. The 5D Mark IV is a DSLR, while the Canon M is a mirrorless interchangeable lens camera. The cameras are based on a full frame (5D Mark IV) and an APS-C (Canon M) sensor. The 5D Mark IV has a resolution of 30.1 megapixels, whereas the Canon M provides 17.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 5D Mark IV||Canon M|
|Digital single lens reflex||Mirrorless system camera|
|Canon EF mount lenses||Canon EF-M mount lenses|
|30.1 MP, Full Frame Sensor||17.9 MP, APS-C Sensor|
|4K/30p Video||1080/30p Video|
|ISO 100-32,000 (50 - 102,400)||ISO 100-12,800 (100 - 25,600)|
|Optical viewfinder||No viewfinder, LCD framing|
|3.2 LCD, 1620k dots||3.0 LCD, 1040k dots|
|Fixed touchscreen||Fixed touchscreen|
|7 shutter flaps per second||4.3 shutter flaps per second|
|Weathersealed body||not weather sealed|
|900 shots per battery charge||230 shots per battery charge|
|151 x 116 x 76 mm, 890 g||109 x 66 x 32 mm, 298 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D Mark IV and the Canon EOS M? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

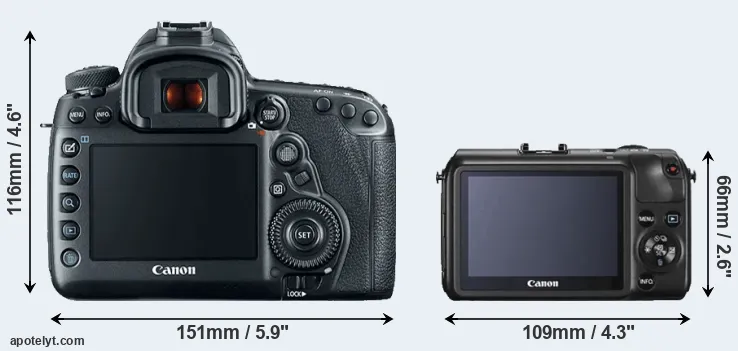

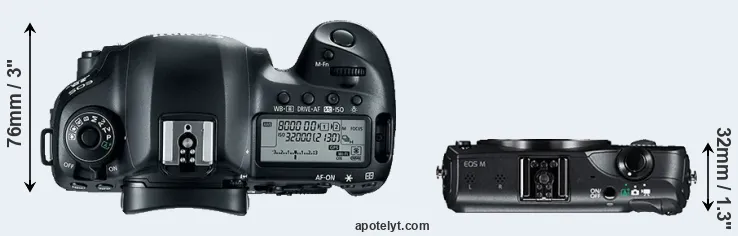

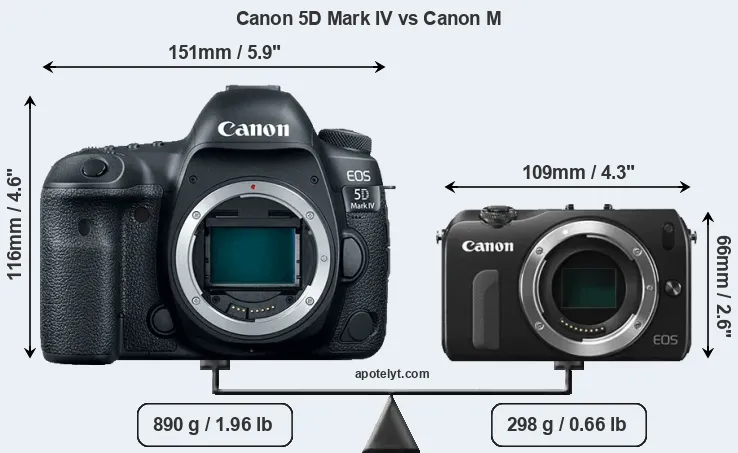

The physical size and weight of the Canon 5D Mark IV and the Canon M are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
The Canon M can be obtained in two different colors (black, white), while the 5D Mark IV is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon M is considerably smaller (59 percent) than the Canon 5D Mark IV. Moreover, the Canon M is substantially lighter (67 percent) than the 5D Mark IV. It is worth mentioning in this context that the 5D Mark IV is splash and dust resistant, while the Canon M does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Canon 5D Mark IV||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499|
|Canon M||109 mm||66 mm||32 mm||298 g||230||n||Jul 2012||599|
|Canon 6D Mark II||144 mm||111 mm||75 mm||765 g||1200||Y||Jun 2017||1,999|
|Canon M100||108 mm||67 mm||35 mm||302 g||295||n||Aug 2017||499|
|Canon 1D X Mark II||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999|
|Canon 80D||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199|
|Canon 5DS||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|Canon 5DS R||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|Canon M10||108 mm||67 mm||35 mm||301 g||255||n||Oct 2015||499|
|Canon G7 X||103 mm||60 mm||40 mm||304 g||210||n||Sep 2014||699|
|Canon G16||109 mm||76 mm||40 mm||356 g||360||n||Aug 2013||549|
|Canon 5D Mark III||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499|
|Canon 6D||145 mm||111 mm||71 mm||770 g||1090||Y||Sep 2012||2,099|
|Canon 5D Mark II||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499|
|Nikon D850||146 mm||124 mm||79 mm||1005 g||1840||Y||Jul 2017||3,299|
|Nikon D810||146 mm||123 mm||82 mm||980 g||1200||Y||Jun 2014||3,299|
|Panasonic G3||115 mm||84 mm||47 mm||336 g||270||n||May 2011||599|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The Canon M was launched at a markedly lower price (by 83 percent) than the 5D Mark IV, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

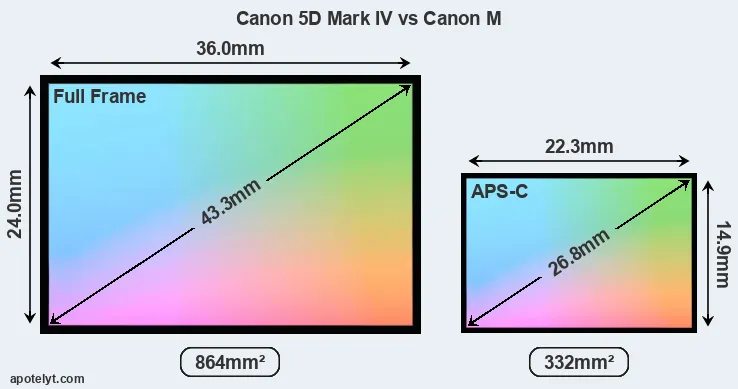

Of the two cameras under consideration, the Canon 5D Mark IV features a full frame sensor and the Canon M an APS-C sensor. The sensor area in the Canon M is 62 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
In terms of chip-set technology, the 5D Mark IV uses a more advanced image processing engine (DIGIC 6+) than the Canon M (DIGIC V), with benefits for noise reduction, color accuracy, and processing speed.

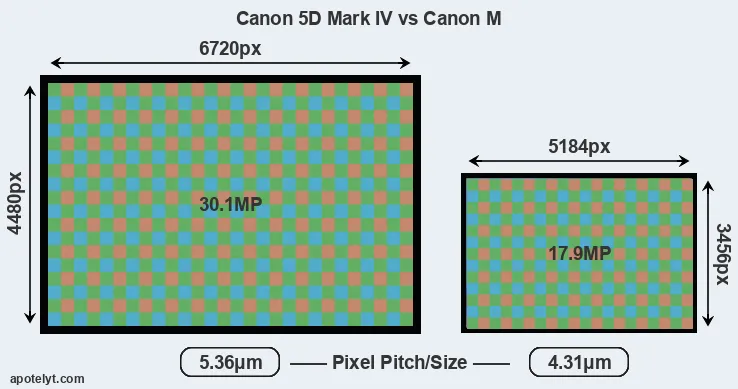

With 30.1MP, the 5D Mark IV offers a higher resolution than the Canon M (17.9MP), but the 5D Mark IV nevertheless has larger individual pixels (pixel pitch of 5.36μm versus 4.31μm for the Canon M) due to its larger sensor. Moreover, the 5D Mark IV is a much more recent model (by 4 years and 1 month) than the Canon M, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon 5D Mark IV implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5D Mark IV for good quality output (200 dots per inch) amounts to 33.6 x 22.4 inches or 85.3 x 56.9 cm, for very good quality (250 dpi) 26.9 x 17.9 inches or 68.3 x 45.5 cm, and for excellent quality (300 dpi) 22.4 x 14.9 inches or 56.9 x 37.9 cm. The corresponding values for the Canon M are 25.9 x 17.3 inches or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inches or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inches or 43.9 x 29.3 cm for excellent quality prints.
The Canon EOS 5D Mark IV has a native sensitivity range from ISO 100 to ISO 32000, which can be extended to ISO 50-102400. The corresponding ISO settings for the Canon EOS M are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 100-25600.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the 5D Mark IV provides substantially higher image quality than the Canon M, with an overall score that is 26 points higher. This advantage is based on 2.7 bits higher color depth, 2.4 EV in additional dynamic range, and 1.9 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71|
|Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|Nikon D850||Full Frame||45.4||8256||5504||4K/30p||26.4||14.8||2660||100|
|Nikon D810||Full Frame||36.2||7360||4912||1080/60p||25.7||14.8||2853||97|
|Panasonic G3||Four Thirds||15.8||4592||3448||1080/60i||21.0||10.6||667||56|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the 5D Mark IV provides a higher video resolution than the Canon M. It can shoot video footage at 4K/30p, while the Canon M is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the 5D Mark IV has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the Canon M relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon 5D Mark IV and Canon M along with similar information for a selection of comparators.
|Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n|
|Canon 6D Mark II||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n|
|Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|Canon 5DS R||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n|
|Canon G7 X||none||n||3.0||1040||tilting||Y||1/2000s||6.5||Y||Y|
|Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n|
|Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
One feature that is present on the 5D Mark IV, but is missing on the Canon M is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The Canon 5D Mark IV has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 5D Mark IV writes its imaging data to Compact Flash or SDXC cards, while the Canon M uses SDXC cards. The 5D Mark IV features dual card slots, which can be very useful in case a memory card fails. In contrast, the Canon M only has one slot. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D Mark IV and Canon EOS M and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-|
|Canon 6D Mark II||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y|
|Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|Canon 5DS R||Y||mono||mono||Y||-||mini||3.0||-||-||-|
|Canon G7 X||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
|Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
It is notable that the 5D Mark IV has a headphone jack, which is not present on the Canon M This port makes it possible to attach external headphones and monitor the quality of sound during the recording process.
Studio photographers will appreciate that the Canon 5D Mark IV (unlike the Canon M) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Travel and landscape photographers will find it useful that the 5D Mark IV has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
The 5D Mark IV is a recent model that features in the current product line-up of Canon. In contrast, the Canon M has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the Canon M was succeeded by the Canon EOS M3. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So what is the bottom line? Which of the two cameras – the Canon 5D Mark IV or the Canon M – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Canon EOS 5D Mark IV:
- More detail: Offers more megapixels (30.1 vs 17.9MP) with a 30% higher linear resolution.
- Better image quality: Scores substantially higher (26 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (2.7 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (2.4 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (1.9 stops ISO advantage).
- Better jpgs: Has a more modern image processing engine (DIGIC 6+ vs DIGIC V).
- Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 1040k dots).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (7 vs 4.3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Can take more shots (900 versus 230) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More modern: Reflects 4 years and 1 month of technical progress since the Canon M launch.
Advantages of the Canon EOS M:
- More compact: Is smaller (109x66mm vs 151x116mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 592g or 67 percent) and is thus easier to take along.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- More affordable: Was introduced into a lower priced category (83 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in July 2012).
If the count of individual advantages (bullet points above) is taken as a guide, the 5D Mark IV is the clear winner of the match-up (24 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5D Mark IV and the Canon M place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the 5D Mark IV and the Canon M in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 5D Mark IV||+ +||87/100||4.5/5||5/5||4.5/5||Aug 2016||3,499|
|Canon M||+||..||4/5||3.5/5||4/5||Jul 2012||599|
|Canon 6D Mark II||+||80/100||4.5/5||4/5||4/5||Jun 2017||1,999|
|Canon M100||+||..||4/5||..||3.5/5||Aug 2017||499|
|Canon 1D X Mark II||..||89/100||4.5/5||5/5||4.5/5||Feb 2016||5,999|
|Canon 80D||+ +||84/100||4.5/5||4.5/5||4.5/5||Feb 2016||1,199|
|Canon 5DS||+||83/100||4.5/5||5/5||4.5/5||Feb 2015||3,699|
|Canon 5DS R||+||83/100||5/5||5/5||4.5/5||Feb 2015||3,699|
|Canon M10||..||..||..||o||4/5||Oct 2015||499|
|Canon G7 X||+ +||77/100||4.5/5||3.5/5||4.5/5||Sep 2014||699|
|Canon G16||+||..||4.5/5||4.5/5||4.5/5||Aug 2013||549|
|Canon 5D Mark III||+ +||82/100||4.5/5||5/5||4.5/5||Mar 2012||3,499|
|Canon 6D||+ +||83/100||4.5/5||4.5/5||4.5/5||Sep 2012||2,099|
|Canon 5D Mark II||91/100||79/100||4/5||5/5||..||Sep 2008||3,499|
|Nikon D850||+ +||89/100||4.5/5||5/5||5/5||Jul 2017||3,299|
|Nikon D810||..||86/100||5/5||4.5/5||4.5/5||Jun 2014||3,299|
|Panasonic G3||+ +||75/100||4.5/5||4.5/5||5/5||May 2011||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 1Ds Mark III vs Canon 5D Mark IV
- Canon 5D Mark IV vs Fujifilm GFX 50R
- Canon 5D Mark IV vs Fujifilm X-H1
- Canon 5D Mark IV vs Nikon D40X
- Canon 5D Mark IV vs Nikon W150
- Canon 5D Mark IV vs Olympus E-30
- Canon 5D Mark IV vs Panasonic GX8
- Canon 5D Mark IV vs Sony A850
- Canon M vs Canon S120
- Canon M vs Fujifilm X-Pro2
- Canon M vs Fujifilm X-T1
- Canon M vs Sony RX100 V
Specifications: Canon 5D Mark IV vs Canon M
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 5D Mark IV||Canon M|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Canon EF-M mount lenses|
|Launch Date||August 2016||July 2012|
|Launch Price||USD 3,499||USD 599|
|Sensor Specs||Canon 5D Mark IV||Canon M|
|Sensor Format||Full Frame Sensor||APS-C Sensor|
|Sensor Size||36.0 x 24.0 mm||22.3 x 14.9 mm|
|Sensor Area||864 mm2||332.27 mm2|
|Sensor Diagonal||43.3 mm||26.8 mm|
|Sensor Resolution||30.1 Megapixels||17.9 Megapixels|
|Image Resolution||6720 x 4480 pixels||5184 x 3456 pixels|
|Pixel Pitch||5.36 μm||4.31 μm|
|Pixel Density||3.48 MP/cm2||5.39 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||4K/30p Video||1080/30p Video|
|ISO Setting||100 - 32,000 ISO||100 - 12,800 ISO|
|ISO Boost||50 - 102,400 ISO||100 - 25,600 ISO|
|Image Processor||DIGIC 6+||DIGIC V|
|DXO Sensor Quality (score)||91||65|
|DXO Color Depth (bits)||24.8||22.1|
|DXO Dynamic Range (EV)||13.6||11.2|
|DXO Low Light (ISO)||2995||827|
|Screen Specs||Canon 5D Mark IV||Canon M|
|Viewfinder Type||Optical viewfinder||no viewfinder|
|Viewfinder Field of View||100%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.0inch|
|LCD Resolution||1620k dots||1040k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon 5D Mark IV||Canon M|
|Focus System||Phase-detect AF||On-Sensor Phase-detect|
|Continuous Shooting||7 shutter flaps/s||4.3 shutter flaps/s|
|Shutter Life Expectancy||150 000 actuations||100 000 actuations|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||CF or SDXC cards||SDXC cards|
|Second Storage Option||Dual card slots||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon 5D Mark IV||Canon M|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 3.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Geotagging||GPS built-in||no internal GPS|
|Body Specs||Canon 5D Mark IV||Canon M|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||900 shots per charge||230 shots per charge|
151 x 116 x 76 mm
(5.9 x 4.6 x 3.0 in)
109 x 66 x 32 mm
(4.3 x 2.6 x 1.3 in)
|Camera Weight||890 g (31.4 oz)||298 g (10.5 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
