Canon 5D Mark III vs Olympus E-510
The Canon EOS 5D Mark III and the Olympus E-510 are two digital cameras that were announced, respectively, in March 2012 and March 2007. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (5D Mark III) and a Four Thirds (E-510) sensor. The Canon has a resolution of 22.1 megapixels, whereas the Olympus provides 10 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D Mark III and the Olympus E-510? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

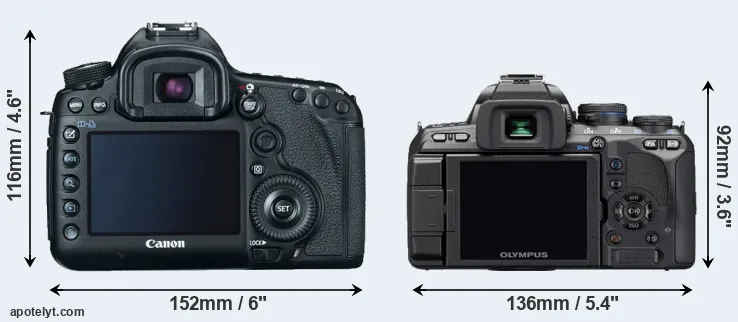

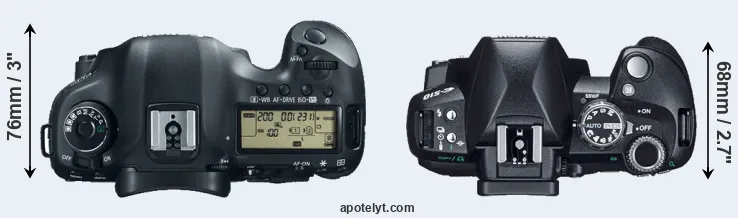

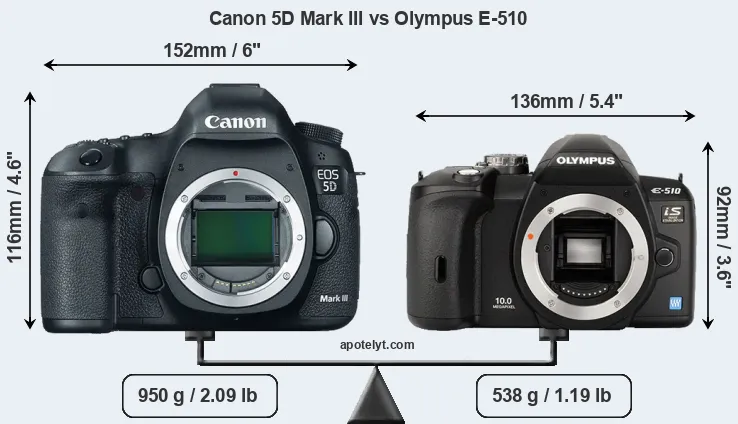

An illustration of the physical size and weight of the Canon 5D Mark III and the Olympus E-510 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-510 is notably smaller (29 percent) than the Canon 5D Mark III. Moreover, the E-510 is substantially lighter (43 percent) than the 5D Mark III. It is worth mentioning in this context that the 5D Mark III is splash and dust resistant, while the E-510 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (5D Mark III) and the Four Thirds Lens Catalog (E-510).
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|Canon 5D Mark III||6.0 in||4.6 in||3.0 in||33.5 oz||950||Y||Mar 2012||3,499|
|Olympus E-510||5.4 in||3.6 in||2.7 in||19.0 oz||750||n||Mar 2007||799|
|Canon 5D Mark IV||5.9 in||4.6 in||3.0 in||31.4 oz||900||Y||Aug 2016||3,499|
|Canon 5DS||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699|
|Canon 5DS R||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699|
|Canon 6D||5.7 in||4.4 in||2.8 in||27.2 oz||1090||Y||Sep 2012||2,099|
|Canon 5D Mark II||6.0 in||4.5 in||3.0 in||30.0 oz||850||Y||Sep 2008||3,499|
|Canon 5D||6.0 in||4.4 in||3.0 in||31.6 oz||400||Y||Aug 2005||3,299|
|Nikon D610||5.6 in||4.4 in||3.2 in||30.0 oz||900||Y||Oct 2013||1,999|
|Nikon D600||5.6 in||4.4 in||3.2 in||30.0 oz||900||Y||Sep 2012||2,099|
|Nikon D800||5.7 in||4.8 in||3.2 in||35.3 oz||900||Y||Feb 2012||2,999|
|Nikon D800E||5.7 in||4.8 in||3.2 in||35.3 oz||900||Y||Feb 2012||3,299|
|Olympus E-620||5.1 in||3.7 in||2.4 in||18.4 oz||500||n||Feb 2009||699|
|Olympus E-520||5.4 in||3.6 in||2.7 in||18.9 oz||750||n||May 2008||699|
|Olympus E-410||5.1 in||3.6 in||2.1 in||15.3 oz||500||n||Mar 2007||699|
|Olympus E-400||5.1 in||3.6 in||2.1 in||15.3 oz||500||n||Sep 2006||699|
|Olympus E-500||5.1 in||3.7 in||2.6 in||16.9 oz||750||n||Sep 2005||599|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-510 was launched at a markedly lower price (by 77 percent) than the 5D Mark III, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

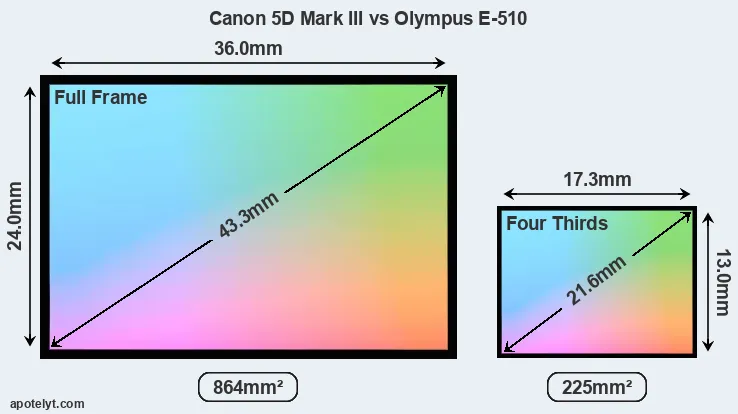

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 5D Mark III features a full frame sensor and the Olympus E-510 a Four Thirds sensor. The sensor area in the E-510 is 74 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 2.0. The sensor in the 5D Mark III has a native 3:2 aspect ratio, while the one in the E-510 offers a 4:3 aspect.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.

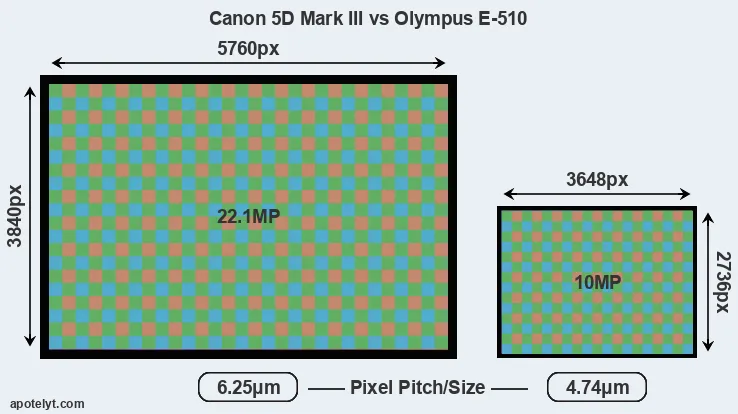

With 22.1MP, the 5D Mark III offers a higher resolution than the E-510 (10MP), but the 5D Mark III nevertheless has larger individual pixels (pixel pitch of 6.25μm versus 4.74μm for the E-510) due to its larger sensor. Moreover, the 5D Mark III is a much more recent model (by 4 years and 11 months) than the E-510, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon 5D Mark III implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5D Mark III for good quality output (200 dots per inch) amounts to 28.8 x 19.2 inches or 73.2 x 48.8 cm, for very good quality (250 dpi) 23 x 15.4 inches or 58.5 x 39 cm, and for excellent quality (300 dpi) 19.2 x 12.8 inches or 48.8 x 32.5 cm. The corresponding values for the Olympus E-510 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.
The Canon EOS 5D Mark III has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 50-102400. The corresponding ISO settings for the Olympus E-510 are ISO 100 to ISO 1600 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the 5D Mark III provides substantially higher image quality than the E-510, with an overall score that is 29 points higher. This advantage is based on 2.8 bits higher color depth, 1.7 EV in additional dynamic range, and 2.4 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|Olympus E-510||Four Thirds||10.0||3648||2736||none||21.2||10.0||442||52|
|Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71|
|Nikon D610||Full Frame||24.2||6016||4016||1080/30p||25.1||14.4||2925||94|
|Nikon D600||Full Frame||24.2||6016||4016||1080/30p||25.1||14.2||2980||94|
|Nikon D800||Full Frame||36.2||7360||4912||1080/30p||25.3||14.4||2853||95|
|Nikon D800E||Full Frame||36.2||7360||4912||1080/30p||25.6||14.3||2979||96|
|Olympus E-620||Four Thirds||12.2||4032||3024||none||21.3||10.3||536||55|
|Olympus E-520||Four Thirds||10.0||3648||2736||none||21.4||10.4||548||55|
|Olympus E-410||Four Thirds||10.0||3648||2736||none||21.1||10.0||494||51|
|Olympus E-400||Four Thirds||10.0||3648||2736||none||..||..||..||..|
|Olympus E-500||Four Thirds||8.0||3264||2448||none||..||..||..||..|
Many modern cameras cannot only take still pictures, but also record videos. The 5D Mark III indeed provides movie recording capabilities, while the E-510 does not. The highest resolution format that the 5D Mark III can use is 1080/30p.
Beyond body and sensor, cameras can and do differ across a range of features. The 5D Mark III and the E-510 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 5D Mark III offers a wider field of view (100%) than the one in the E-510 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the 5D Mark III has a higher magnification (0.71x vs 0.46x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 5D Mark III and Olympus E-510 along with similar information for a selection of comparators.
|Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n|
|Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n|
|Canon 5DS R||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n|
|Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
One feature that is present on the 5D Mark III, but is missing on the E-510 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The 5D Mark III writes its imaging data to Compact Flash or SDXC cards, while the E-510 uses Compact Flash or xD Picture cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D Mark III and Olympus E-510 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-|
|Canon 5DS R||Y||mono||mono||Y||-||mini||3.0||-||-||-|
|Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
Studio photographers will appreciate that the Canon 5D Mark III (unlike the E-510) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 5D Mark III and the E-510 have been discontinued, but can regularly be found used on eBay. The E-510 was replaced by the Olympus E-520, while the 5D Mark III was followed by the Canon 5D Mark IV. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So how do things add up? Is there a clear favorite between the Canon 5D Mark III and the Olympus E-510? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Advantages of the Canon EOS 5D Mark III:
- More detail: Offers more megapixels (22.1 vs 10MP) with a 52% higher linear resolution.
- Better image quality: Scores substantially higher (29 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (2.8 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (1.7 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (2.4 stops ISO advantage).
- Broader imaging potential: Can record not only still images but also 1080/30p movies.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.71x vs 0.46x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 215k dots).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (6 vs 3 flaps/sec) to capture the decisive moment.
- Longer lasting: Can take more shots (950 versus 750) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More modern: Reflects 4 years and 11 months of technical progress since the E-510 launch.
Arguments in favor of the Olympus E-510:
- More compact: Is smaller (136x92mm vs 152x116mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 412g or 43 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More affordable: Was introduced into a lower priced category (77 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in March 2007).
If the number of relative strengths (bullet points above) is taken as a guide, the 5D Mark III is the clear winner of the match-up (17 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5D Mark III and the Olympus E-510 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 5D Mark III and the E-510 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 5D Mark III||+ +||82/100||4.5/5||5/5||4.5/5||Mar 2012||3,499|
|Olympus E-510||89/100||+ +||3.5/5||o||4.5/5||Mar 2007||799|
|Canon 5D Mark IV||+ +||87/100||4.5/5||5/5||4.5/5||Aug 2016||3,499|
|Canon 5DS||+||83/100||4.5/5||5/5||4.5/5||Feb 2015||3,699|
|Canon 5DS R||+||83/100||5/5||5/5||4.5/5||Feb 2015||3,699|
|Canon 6D||+ +||83/100||4.5/5||4.5/5||4.5/5||Sep 2012||2,099|
|Canon 5D Mark II||91/100||79/100||4/5||5/5||..||Sep 2008||3,499|
|Canon 5D||88/100||+ +||o||o||..||Aug 2005||3,299|
|Nikon D610||+ +||87/100||4.5/5||4.5/5||4.5/5||Oct 2013||1,999|
|Nikon D600||+ +||87/100||5/5||4.5/5||4.5/5||Sep 2012||2,099|
|Nikon D800||+ +||82/100||5/5||5/5||5/5||Feb 2012||2,999|
|Nikon D800E||..||84/100||5/5||4.5/5||5/5||Feb 2012||3,299|
|Olympus E-620||88/100||72/100||4.5/5||o||5/5||Feb 2009||699|
|Olympus E-520||87/100||+ +||4.5/5||4/5||4.5/5||May 2008||699|
|Olympus E-410||86/100||+ +||4/5||o||4.5/5||Mar 2007||699|
|Olympus E-400||85/100||..||4/5||..||4/5||Sep 2006||699|
|Olympus E-500||76/100||+ +||..||..||..||Sep 2005||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 1200D vs Olympus E-510
- Canon 5D Mark III vs Canon 5DS R
- Canon 5D Mark III vs Leica TL
- Canon 5D Mark III vs Panasonic GX80
- Canon 5D Mark III vs Sony A7S III
- Canon 5D Mark III vs Sony HX400V
- Canon 5D Mark III vs Sony RX100 IV
- Canon G1 X Mark II vs Olympus E-510
- Canon G5 X vs Olympus E-510
- Canon M5 vs Olympus E-510
- Olympus E-510 vs Panasonic TZ95
- Olympus E-510 vs Sony NEX-5T
Specifications: Canon 5D Mark III vs Olympus E-510
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 5D Mark III||Olympus E-510|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Four Thirds lenses|
|Launch Date||March 2012||March 2007|
|Launch Price||USD 3,499||USD 799|
|Sensor Specs||Canon 5D Mark III||Olympus E-510|
|Sensor Format||Full Frame Sensor||Four Thirds Sensor|
|Sensor Size||36.0 x 24.0 mm||17.3 x 13.0 mm|
|Sensor Area||864 mm2||224.9 mm2|
|Sensor Diagonal||43.3 mm||21.6 mm|
|Sensor Resolution||22.1 Megapixels||10 Megapixels|
|Image Resolution||5760 x 3840 pixels||3648 x 2736 pixels|
|Pixel Pitch||6.25 μm||4.74 μm|
|Pixel Density||2.56 MP/cm2||4.44 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||no Video|
|ISO Setting||100 - 25,600 ISO||100 - 1,600 ISO|
|ISO Boost||50 - 102,400 ISO||no Enhancement|
|Image Processor||DIGIC 5+||TruePic III|
|DXO Sensor Quality (score)||81||52|
|DXO Color Depth (bits)||24.0||21.2|
|DXO Dynamic Range (EV)||11.7||10.0|
|DXO Low Light (ISO)||2293||442|
|Screen Specs||Canon 5D Mark III||Olympus E-510|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||2.5inch|
|LCD Resolution||1040k dots||215k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon 5D Mark III||Olympus E-510|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||6 shutter flaps/s||3 shutter flaps/s|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||CF or SDXC cards||CF or XD cards|
|Second Storage Option||Dual card slots||Dual card slots|
|Connectivity Specs||Canon 5D Mark III||Olympus E-510|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||no HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 5D Mark III||Olympus E-510|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||950 shots per charge||750 shots per charge|
152 x 116 x 76 mm
(6.0 x 4.6 x 3.0 in)
136 x 92 x 68 mm
(5.4 x 3.6 x 2.7 in)
|Camera Weight||950 g (33.5 oz)||538 g (19.0 oz)|
