Canon 5D Mark III vs T7i
The Canon EOS 5D Mark III and the Canon EOS Rebel T7i (labelled Canon 800D in some countries) are two digital cameras that were officially introduced, respectively, in March 2012 and February 2017. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (5D Mark III) and an APS-C (T7i) sensor. The 5D Mark III has a resolution of 22.1 megapixels, whereas the T7i provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 5D Mark III||Canon T7i|
|Digital single lens reflex||Digital single lens reflex|
|Canon EF mount lenses||Canon EF mount lenses|
|22.1 MP, Full Frame Sensor||24 MP, APS-C Sensor|
|1080/30p Video||1080/60p Video|
|ISO 100-25,600 (50 - 102,400)||ISO 100-25,600 (100 - 51,200)|
|Optical viewfinder||Optical viewfinder|
|3.2 LCD, 1040k dots||3.0 LCD, 1040k dots|
|Fixed screen (not touch-sensitive)||Swivel touchscreen|
|6 shutter flaps per second||6 shutter flaps per second|
|Weathersealed body||not weather sealed|
|950 shots per battery charge||600 shots per battery charge|
|152 x 116 x 76 mm, 950 g||131 x 100 x 76 mm, 532 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D Mark III and the Canon EOS Rebel T7i? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

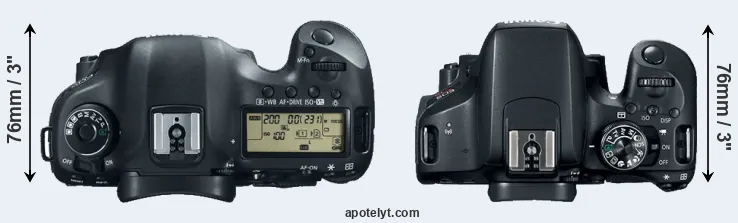

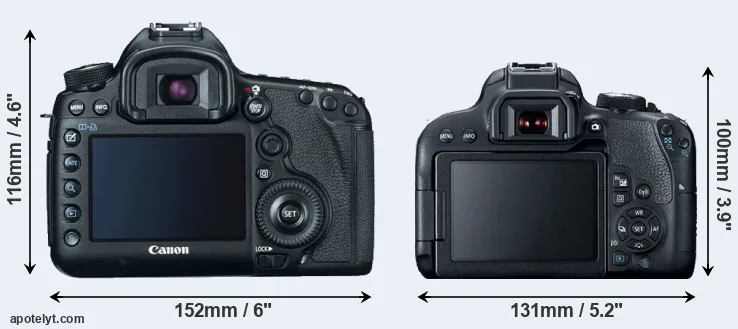

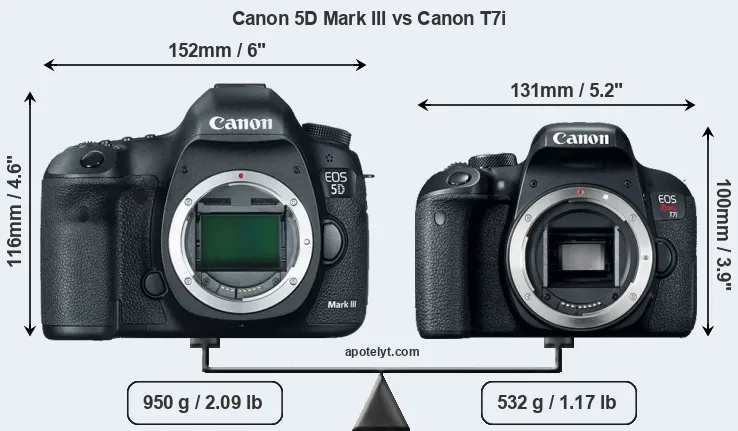

The physical size and weight of the Canon 5D Mark III and the Canon T7i are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon T7i is notably smaller (26 percent) than the Canon 5D Mark III. Moreover, the T7i is substantially lighter (44 percent) than the 5D Mark III. It is worth mentioning in this context that the 5D Mark III is splash and dust resistant, while the T7i does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the 5D Mark III) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (T7i). You can compare the optics available in the Canon EF Lens Catalog.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|Canon 5D Mark III||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499|
|Canon T7i||131 mm||100 mm||76 mm||532 g||600||n||Feb 2017||749|
|Canon T8i||131 mm||103 mm||76 mm||515 g||800||n||Feb 2020||749|
|Canon T7||129 mm||101 mm||78 mm||475 g||500||n||Feb 2018||449|
|Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899|
|Canon 5D Mark IV||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499|
|Canon 5DS||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|Canon 5DS R||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|Canon T6i||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749|
|Canon T5i||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649|
|Canon 6D||145 mm||111 mm||71 mm||770 g||1090||Y||Sep 2012||2,099|
|Canon 5D Mark II||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499|
|Canon 5D||152 mm||113 mm||75 mm||895 g||400||Y||Aug 2005||3,299|
|Nikon D610||141 mm||113 mm||82 mm||850 g||900||Y||Oct 2013||1,999|
|Nikon D600||141 mm||113 mm||82 mm||850 g||900||Y||Sep 2012||2,099|
|Nikon D800||146 mm||123 mm||82 mm||1000 g||900||Y||Feb 2012||2,999|
|Nikon D800E||146 mm||123 mm||82 mm||1000 g||900||Y||Feb 2012||3,299|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The T7i was launched at a markedly lower price (by 79 percent) than the 5D Mark III, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

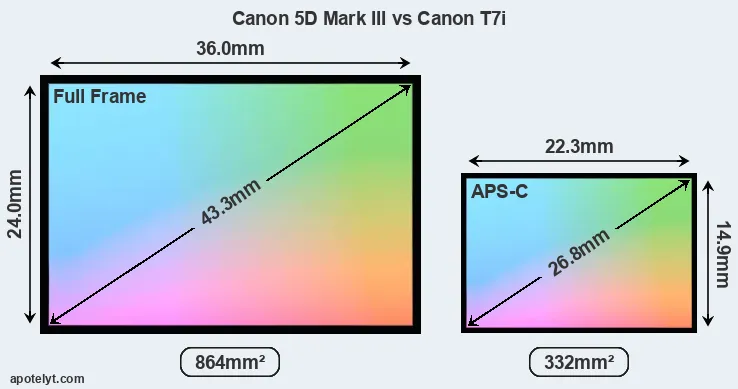

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 5D Mark III features a full frame sensor and the Canon T7i an APS-C sensor. The sensor area in the T7i is 62 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, the T7i uses a more advanced image processing engine (DIGIC 7) than the 5D Mark III (DIGIC 5+), with benefits for noise reduction, color accuracy, and processing speed.

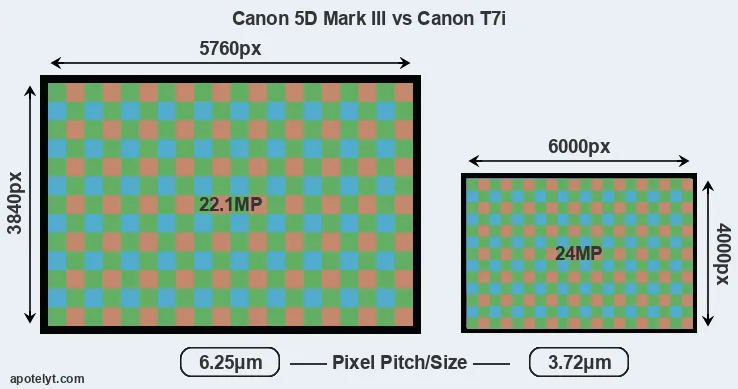

Despite having a smaller sensor, the T7i offers a slightly higher resolution of 24 megapixels, compared with 22.1 MP of the 5D Mark III. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.72μm versus 6.25μm for the 5D Mark III). However, it should be noted that the T7i is much more recent (by 4 years and 11 months) than the 5D Mark III, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The T7i has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 5D Mark III has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 50-102400. The corresponding ISO settings for the Canon EOS Rebel T7i are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71|
|Nikon D610||Full Frame||24.2||6016||4016||1080/30p||25.1||14.4||2925||94|
|Nikon D600||Full Frame||24.2||6016||4016||1080/30p||25.1||14.2||2980||94|
|Nikon D800||Full Frame||36.2||7360||4912||1080/30p||25.3||14.4||2853||95|
|Nikon D800E||Full Frame||36.2||7360||4912||1080/30p||25.6||14.3||2979||96|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the T7i provides a faster frame rate than the 5D Mark III. It can shoot movie footage at 1080/60p, while the 5D Mark III is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. The 5D Mark III and the T7i are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 5D Mark III offers a wider field of view (100%) than the one in the T7i (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the 5D Mark III has a higher magnification (0.71x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 5D Mark III and Canon T7i in connection with corresponding information for a sample of similar cameras.
|Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n|
|Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n|
|Canon 5DS R||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n|
|Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
One feature that is present on the 5D Mark III, but is missing on the T7i is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The T7i has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 5D Mark III does not have a selfie-screen.
The 5D Mark III writes its imaging data to Compact Flash or SDXC cards, while the T7i uses SDXC cards. The 5D Mark III features dual card slots, which can be very useful in case a memory card fails. In contrast, the T7i only has one slot. The T7i supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the 5D Mark III cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D Mark III and Canon EOS Rebel T7i and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-|
|Canon 5DS R||Y||mono||mono||Y||-||mini||3.0||-||-||-|
|Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
It is notable that the 5D Mark III has a headphone jack, which is not present on the T7i This port makes it possible to attach external headphones and monitor the quality of sound during the recording process.
Studio photographers will appreciate that the Canon 5D Mark III (unlike the T7i) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 5D Mark III and the T7i have been discontinued, but can regularly be found used on eBay. The 5D Mark III was replaced by the Canon 5D Mark IV, while the T7i was followed by the Canon T8i. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So how do things add up? Is the Canon 5D Mark III better than the Canon T7i or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Canon EOS 5D Mark III:
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.71x vs 0.51x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Longer lasting: Can take more shots (950 versus 600) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been available for much longer (launched in March 2012).
Advantages of the Canon EOS Rebel T7i:
- Better jpgs: Has a more modern image processing engine (DIGIC 7 vs DIGIC 5+).
- Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- More compact: Is smaller (131x100mm vs 152x116mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 418g or 44 percent) and is thus easier to take along.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More affordable: Was introduced into a lower priced category (79 percent cheaper at launch).
- More modern: Reflects 4 years and 11 months of technical progress since the 5D Mark III launch.
If the number of relative strengths (bullet points above) is taken as a guide, the T7i is the clear winner of the contest (15 : 11 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5D Mark III and the Canon T7i place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 5D Mark III or the T7i. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 5D Mark III||+ +||82/100||4.5/5||5/5||4.5/5||Mar 2012||3,499|
|Canon T7i||..||80/100||4.5/5||4/5||4/5||Feb 2017||749|
|Canon T8i||..||..||..||..||..||Feb 2020||749|
|Canon T7||o||..||3.5/5||..||3.5/5||Feb 2018||449|
|Canon 77D||..||82/100||4.5/5||4.5/5||4/5||Feb 2017||899|
|Canon 5D Mark IV||+ +||87/100||4.5/5||5/5||4.5/5||Aug 2016||3,499|
|Canon 5DS||+||83/100||4.5/5||5/5||4.5/5||Feb 2015||3,699|
|Canon 5DS R||+||83/100||5/5||5/5||4.5/5||Feb 2015||3,699|
|Canon T6i||..||75/100||4.5/5||4.5/5||4.5/5||Feb 2015||749|
|Canon T5i||..||76/100||4.5/5||4.5/5||4.5/5||Mar 2013||649|
|Canon 6D||+ +||83/100||4.5/5||4.5/5||4.5/5||Sep 2012||2,099|
|Canon 5D Mark II||91/100||79/100||4/5||5/5||..||Sep 2008||3,499|
|Canon 5D||88/100||+ +||o||o||..||Aug 2005||3,299|
|Nikon D610||+ +||87/100||4.5/5||4.5/5||4.5/5||Oct 2013||1,999|
|Nikon D600||+ +||87/100||5/5||4.5/5||4.5/5||Sep 2012||2,099|
|Nikon D800||+ +||82/100||5/5||5/5||5/5||Feb 2012||2,999|
|Nikon D800E||..||84/100||5/5||4.5/5||5/5||Feb 2012||3,299|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 450D vs Canon 5D Mark III
- Canon 5D Mark III vs Canon G16
- Canon 5D Mark III vs Canon SL1
- Canon 5D Mark III vs Fujifilm XP130
- Canon 5D Mark III vs Leica V-LUX Typ 114
- Canon 5D Mark III vs Olympus E-P5
- Canon 5D Mark III vs Panasonic GH5
- Canon 5D Mark III vs Panasonic S5
- Canon 5D Mark III vs Pentax K-70
- Canon T7i vs Fujifilm X10
- Canon T7i vs Leica X2
- Canon T7i vs Panasonic G5
Specifications: Canon 5D Mark III vs Canon T7i
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 5D Mark III||Canon T7i|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Canon EF mount lenses|
|Launch Date||March 2012||February 2017|
|Launch Price||USD 3,499||USD 749|
|Sensor Specs||Canon 5D Mark III||Canon T7i|
|Sensor Format||Full Frame Sensor||APS-C Sensor|
|Sensor Size||36.0 x 24.0 mm||22.3 x 14.9 mm|
|Sensor Area||864 mm2||332.27 mm2|
|Sensor Diagonal||43.3 mm||26.8 mm|
|Sensor Resolution||22.1 Megapixels||24 Megapixels|
|Image Resolution||5760 x 3840 pixels||6000 x 4000 pixels|
|Pixel Pitch||6.25 μm||3.72 μm|
|Pixel Density||2.56 MP/cm2||7.22 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||1080/60p Video|
|ISO Setting||100 - 25,600 ISO||100 - 25,600 ISO|
|ISO Boost||50 - 102,400 ISO||100 - 51,200 ISO|
|Image Processor||DIGIC 5+||DIGIC 7|
|DXO Sensor Quality (score)||81||..|
|DXO Color Depth (bits)||24.0||..|
|DXO Dynamic Range (EV)||11.7||..|
|DXO Low Light (ISO)||2293||..|
|Screen Specs||Canon 5D Mark III||Canon T7i|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.0inch|
|LCD Resolution||1040k dots||1040k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 5D Mark III||Canon T7i|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||6 shutter flaps/s||6 shutter flaps/s|
|Shutter Life Expectancy||150 000 actuations||100 000 actuations|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||CF or SDXC cards||SDXC cards|
|Second Storage Option||Dual card slots||Single card slot|
|UHS card support||no||UHS-I|
|Connectivity Specs||Canon 5D Mark III||Canon T7i|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||no Wifi||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Canon 5D Mark III||Canon T7i|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||950 shots per charge||600 shots per charge|
152 x 116 x 76 mm
(6.0 x 4.6 x 3.0 in)
131 x 100 x 76 mm
(5.2 x 3.9 x 3.0 in)
|Camera Weight||950 g (33.5 oz)||532 g (18.8 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
