Canon 5D Mark II vs Nikon D1
The Canon EOS 5D Mark II and the Nikon D1 are two professional cameras that were announced, respectively, in September 2008 and June 1999. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (5D Mark II) and an APS-C (D1) sensor. The Canon has a resolution of 21 megapixels, whereas the Nikon provides 2.6 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 5D Mark II||Nikon D1|
|Digital single lens reflex||Digital single lens reflex|
|Canon EF mount lenses||Nikon F mount lenses|
|21 MP, Full Frame Sensor||2.6 MP, APS-C Sensor|
|1080/30p Video||no Video|
|ISO 100-6400 (50-25600)||ISO 200-1600 (200-6400)|
|Optical viewfinder||Optical viewfinder|
|3.0" LCD, 920k dots||2.0" LCD, 120k dots|
|Fixed screen (not touch-sensitive)||Fixed screen (not touch-sensitive)|
|3.9 shutter flaps per second||1.5 shutter flaps per second|
|Weathersealed body||Weathersealed body|
|152 x 114 x 75 mm, 850 g||157 x 153 x 85 mm, 1100 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D Mark II and the Nikon D1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

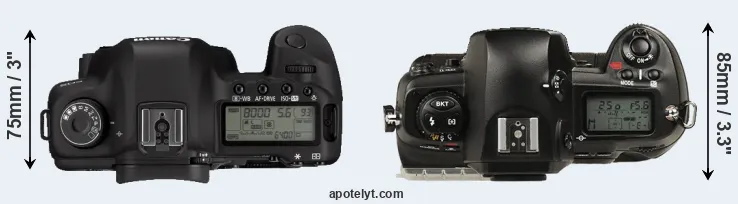

An illustration of the physical size and weight of the Canon 5D Mark II and the Nikon D1 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D1 is notably larger (39 percent) than the Canon 5D Mark II. Moreover, the D1 is markedly heavier (29 percent) than the 5D Mark II. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (5D Mark II) and the Nikon Lens Catalog (D1).
As can be seen in the images above, the D1 has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the 5D Mark II, Canon provides the BG-E6 vertical grip as an optional accessory (see here on eBay).
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Canon 5D Mark II»||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499||Canon 5D Mark II|
|Nikon D1«||157 mm||153 mm||85 mm||1100 g||..||Y||Jun 1999||5,499||Nikon D1|
|Canon 6D Mark II« »||144 mm||111 mm||75 mm||765 g||1200||Y||Jun 2017||1,999||Canon 6D Mark II|
|Canon 5D Mark IV« »||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499||Canon 5D Mark IV|
|Canon 80D« »||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199||Canon 80D|
|Canon 5DS« »||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699||Canon 5DS|
|Canon 5DS R« »||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699||Canon 5DS R|
|Canon 5D Mark III« »||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499||Canon 5D Mark III|
|Canon 6D« »||145 mm||111 mm||71 mm||770 g||1090||Y||Sep 2012||2,099||Canon 6D|
|Canon 7D« »||148 mm||111 mm||74 mm||860 g||800||Y||Sep 2009||1,699||Canon 7D|
|Canon 1Ds Mark III« »||150 mm||160 mm||80 mm||1385 g||1800||Y||Aug 2007||7,999||Canon 1Ds Mark III|
|Canon 5D« »||152 mm||113 mm||75 mm||895 g||400||Y||Aug 2005||3,299||Canon 5D|
|Nikon D4« »||160 mm||157 mm||91 mm||1340 g||2600||Y||Jan 2012||5,999||Nikon D4|
|Nikon D2Xs« »||158 mm||150 mm||86 mm||1252 g||3800||Y||Jun 2006||4,699||Nikon D2Xs|
|Nikon D2X« »||158 mm||150 mm||86 mm||1252 g||3800||Y||Sep 2004||4,999||Nikon D2X|
|Nikon D1H« »||157 mm||153 mm||85 mm||1100 g||1200||Y||Feb 2001||4,499||Nikon D1H|
|Nikon D1X« »||157 mm||153 mm||85 mm||1100 g||1200||Y||Feb 2001||5,999||Nikon D1X|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 5D Mark II was launched at a markedly lower price (by 36 percent) than the D1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 5D Mark II features a full frame sensor and the Nikon D1 an APS-C sensor. The sensor area in the D1 is 57 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
With 21MP, the 5D Mark II offers a higher resolution than the D1 (2.6MP), but the 5D Mark II has smaller individual pixels (pixel pitch of 6.41μm versus 11.93μm for the D1). However, the 5D Mark II is a much more recent model (by 9 years and 3 months) than the D1, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon 5D Mark II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5D Mark II for good quality output (200 dots per inch) amounts to 28.1 x 18.7 inch or 71.3 x 47.5 cm, for very good quality (250 dpi) 22.5 x 15 inch or 57.1 x 38 cm, and for excellent quality (300 dpi) 18.7 x 12.5 inch or 47.5 x 31.7 cm. The corresponding values for the Nikon D1 are 10 x 6.6 inch or 25.4 x 16.7 cm for good quality, 8 x 5.2 inch or 20.3 x 13.3 cm for very good quality, and 6.7 x 4.4 inch or 16.9 x 11.1 cm for excellent quality prints.
The Canon EOS 5D Mark II has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 50-25600. The corresponding ISO settings for the Nikon D1 are ISO 200 to ISO 1600, with the possibility to increase the ISO range to 200-6400.
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79||Canon 5D Mark II|
|Nikon D1||APS-C||2.6||2000||1312||none||..||..||..||..||Nikon D1|
|Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85||Canon 6D Mark II|
|Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91||Canon 5D Mark IV|
|Canon 80D||APS-C||24.0||6000||4000||1080/60p||23.6||13.2||1135||79||Canon 80D|
|Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87||Canon 5DS|
|Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86||Canon 5DS R|
|Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81||Canon 5D Mark III|
|Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82||Canon 6D|
|Canon 7D||APS-C||17.9||5184||3456||1080/30p||22.0||11.7||854||66||Canon 7D|
|Canon 1Ds Mark III||Full Frame||21.0||5616||3744||none||24.0||12.0||1663||80||Canon 1Ds Mark III|
|Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71||Canon 5D|
|Nikon D4||Full Frame||16.2||4928||3280||1080/30p||24.7||13.1||2965||89||Nikon D4|
|Nikon D2Xs||APS-C||12.2||4288||2848||none||22.2||10.9||489||59||Nikon D2Xs|
|Nikon D2X||APS-C||12.2||4288||2848||none||22.1||10.9||476||59||Nikon D2X|
|Nikon D1H||APS-C||2.6||2000||1312||none||..||..||..||..||Nikon D1H|
|Nikon D1X||APS-C||5.9||3008||1960||none||..||..||..||..||Nikon D1X|
Many modern cameras cannot only take still pictures, but also record videos. The 5D Mark II indeed provides movie recording capabilities, while the D1 does not. The highest resolution format that the 5D Mark II can use is 1080/30p.
Beyond body and sensor, cameras can and do differ across a range of features. The 5D Mark II and the D1 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 5D Mark II offers a wider field of view (98%) than the one in the D1 (96%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the 5D Mark II has a higher magnification (0.71x vs 0.53x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 5D Mark II and Nikon D1 in connection with corresponding information for a sample of similar cameras.
|Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n||Canon 5D Mark II|
|Nikon D1||optical||Y||2.0||120||fixed||n||1/16000s||1.5||n||n||Nikon D1|
|Canon 6D Mark II||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n||Canon 6D Mark II|
|Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n||Canon 5D Mark IV|
|Canon 80D||optical||Y||3.0||1040||swivel||Y||1/8000s||7.0||Y||n||Canon 80D|
|Canon 5DS||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n||Canon 5DS|
|Canon 5DS R||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n||Canon 5DS R|
|Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n||Canon 5D Mark III|
|Canon 6D||optical||Y||3.0||1040||fixed||n||1/4000s||4.5||n||n||Canon 6D|
|Canon 7D||optical||Y||3.0||920||fixed||n||1/8000s||8.0||Y||n||Canon 7D|
|Canon 1Ds Mark III||optical||Y||3.0||230||fixed||n||1/8000s||5.0||n||n||Canon 1Ds Mark III|
|Canon 5D||optical||Y||2.5||230||fixed||n||1/8000s||3.0||n||n||Canon 5D|
|Nikon D4||optical||Y||3.2||921||fixed||n||1/8000s||11.0||n||n||Nikon D4|
|Nikon D2Xs||optical||Y||2.5||230||fixed||n||1/8000s||5.0||n||n||Nikon D2Xs|
|Nikon D2X||optical||Y||2.5||235||fixed||n||1/8000s||5.0||n||n||Nikon D2X|
|Nikon D1H||optical||Y||2.0||120||fixed||n||1/16000s||5.0||n||n||Nikon D1H|
|Nikon D1X||optical||Y||2.0||120||fixed||n||1/16000s||3.0||n||n||Nikon D1X|
Concerning the storage of imaging data, both the 5D Mark II and the D1 write their files to Compact Flash cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D Mark II and Nikon D1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon 5D Mark II|
|Nikon D1||Y||none||none||-||-||none||FW||-||-||-||Nikon D1|
|Canon 6D Mark II||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon 6D Mark II|
|Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-||Canon 5D Mark IV|
|Canon 80D||Y||stereo||mono||Y||Y||mini||2.0||Y||Y||-||Canon 80D|
|Canon 5DS||Y||mono||mono||Y||-||mini||3.0||-||-||-||Canon 5DS|
|Canon 5DS R||Y||mono||mono||Y||-||mini||3.0||-||-||-||Canon 5DS R|
|Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-||Canon 5D Mark III|
|Canon 6D||Y||mono||mono||Y||-||mini||2.0||Y||-||-||Canon 6D|
|Canon 7D||Y||mono||none||Y||-||mini||2.0||-||-||-||Canon 7D|
|Canon 1Ds Mark III||Y||none||none||-||-||none||2.0||-||-||-||Canon 1Ds Mark III|
|Canon 5D||Y||none||none||-||-||none||2.0||-||-||-||Canon 5D|
|Nikon D4||Y||mono||mono||Y||Y||micro||2.0||-||-||-||Nikon D4|
|Nikon D2Xs||Y||none||none||-||-||none||2.0||-||-||-||Nikon D2Xs|
|Nikon D2X||Y||none||none||-||-||none||2.0||-||-||-||Nikon D2X|
|Nikon D1H||Y||none||none||-||-||none||FW||-||-||-||Nikon D1H|
|Nikon D1X||Y||none||none||-||-||none||FW||-||-||-||Nikon D1X|
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
Both the 5D Mark II and the D1 have been discontinued, but can regularly be found used on eBay. The D1 was replaced by the Nikon D1X, while the 5D Mark II was followed by the Canon 5D Mark III. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Nikon websites.
So what conclusions can be drawn? Is the Canon 5D Mark II better than the Nikon D1 or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Advantages of the Canon EOS 5D Mark II:
- More detail: Offers more megapixels (21 vs 2.6MP) with a 182% higher linear resolution.
- Better image quality: Features a larger and more technologically advanced imaging sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Broader imaging potential: Can record not only still images but also 1080/30p movies.
- More complete view: Has a viewfinder with a larger field of view (98% vs 96%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.71x vs 0.53x).
- Larger screen: Has a bigger rear LCD (3.0" vs 2.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (920k vs 120k dots).
- Faster burst: Shoots at higher frequency (3.9 vs 1.5 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (152x114mm vs 157x153mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 250g or 23 percent) and hence easier to carry around.
- More affordable: Was introduced into a lower priced category (36 percent cheaper at launch).
- More modern: Reflects 9 years and 3 months of technical progress since the D1 launch.
Reasons to prefer the Nikon D1:
- Faster shutter: Has higher mechanical shutter speed (1/16000s vs 1/8000s) to freeze action.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- More heavily discounted: Has been around for much longer (launched in June 1999).
If the count of relative strengths (bullet points above) is taken as a measure, the 5D Mark II is the clear winner of the match-up (15 : 3 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5D Mark II and the Nikon D1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 5D Mark II or the D1. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 5D Mark II vs Canon 700D
- Canon 5D Mark II vs Canon SX510
- Canon 5D Mark II vs Canon T3
- Canon 5D Mark II vs Fujifilm X-T4
- Canon 5D Mark II vs Nikon D600
- Canon 5D Mark II vs Nikon D70
- Canon 5D Mark II vs Sony A7 III
- Nikon D1 vs Nikon D5200
- Nikon D1 vs Olympus E-M10 II
- Nikon D1 vs Olympus E-P1
- Nikon D1 vs Panasonic G80
- Nikon D1 vs Panasonic GM5
Specifications: Canon 5D Mark II vs Nikon D1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 5D Mark II||Nikon D1|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Nikon F mount lenses|
|Launch Date||September 2008||June 1999|
|Launch Price||USD 3499||USD 5499|
|Sensor Specs||Canon 5D Mark II||Nikon D1|
|Sensor Format||Full Frame Sensor||APS-C Sensor|
|Sensor Size||36.0 x 24.0 mm||23.7 x 15.6 mm|
|Sensor Area||864 mm2||369.72 mm2|
|Sensor Diagonal||43.3 mm||28.4 mm|
|Sensor Resolution||21 Megapixels||2.6 Megapixels|
|Image Resolution||5616 x 3744 pixels||2000 x 1312 pixels|
|Pixel Pitch||6.41 μm||11.93 μm|
|Pixel Density||2.43 MP/cm2||0.71 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||no Video|
|ISO Setting||100-6400 ISO||200-1600 ISO|
|ISO Boost||50-25600 ISO||200-6400 ISO|
|DXO Sensor Quality (score)||79||..|
|DXO Color Depth (bits)||23.7||..|
|DXO Dynamic Range (EV)||11.9||..|
|DXO Low Light (ISO)||1815||..|
|Screen Specs||Canon 5D Mark II||Nikon D1|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||98%||96%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View|
|Rear LCD Size||3.0 inch||2.0 inch|
|LCD Resolution||920k dots||120k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon 5D Mark II||Nikon D1|
|Autofocus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||3.9 shutter flaps/s||1.5 shutter flaps/s|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||CF cards||CF cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon 5D Mark II||Nikon D1|
|Studio Flash||PC Sync socket||PC Sync socket|
|USB Connector||USB 2.0||Firewire|
|HDMI Port||mini HDMI||no HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 5D Mark II||Nikon D1|
|Environmental Sealing||Weathersealed body||Weathersealed body|
152 x 114 x 75 mm
(6.0 x 4.5 x 3.0 in)
157 x 153 x 85 mm
(6.2 x 6.0 x 3.3 in)
|Camera Weight||850 g (30.0 oz)||1100 g (38.8 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
