Canon 5D Mark II vs Leica X-U Typ 113
The Canon EOS 5D Mark II and the Leica X-U (Typ 113) are two digital cameras that were announced, respectively, in September 2008 and January 2016. The 5D Mark II is a DSLR, while the X-U Typ 113 is a fixed lens compact. The cameras are based on a full frame (5D Mark II) and an APS-C (X-U Typ 113) sensor. The Canon has a resolution of 21 megapixels, whereas the Leica provides 16.1 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D Mark II and the Leica X-U (Typ 113)? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

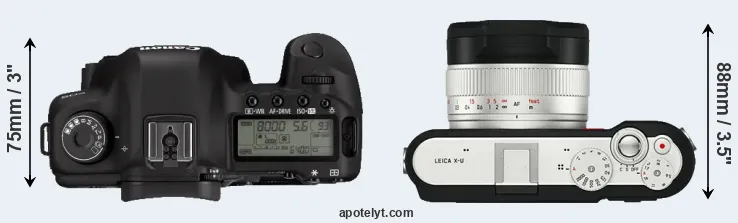

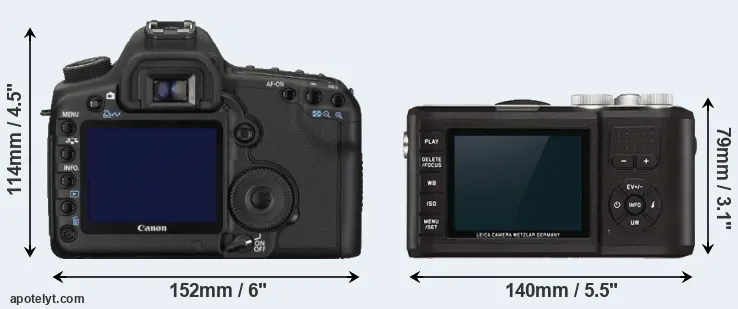

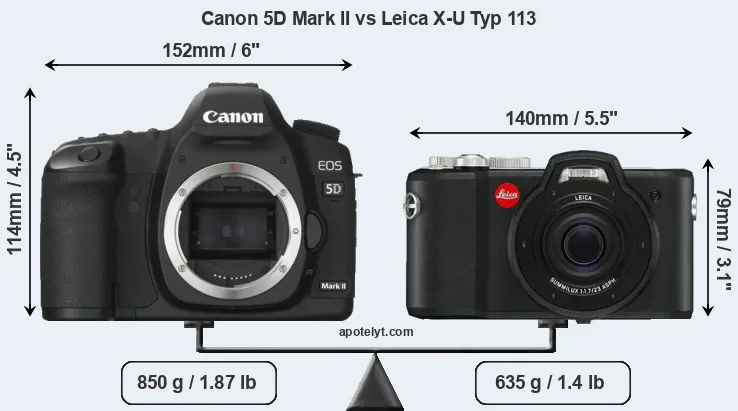

The side-by-side display below illustrates the physical size and weight of the Canon 5D Mark II and the Leica X-U Typ 113. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica X-U Typ 113 is considerably smaller (36 percent) than the Canon 5D Mark II. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments. More than that, the X-U Typ 113 is water-proof up to 3m and can, thus, be used for underwater photography.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the X-U Typ 113 has a lens built in, whereas the 5D Mark II is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 5D Mark II and their specifications in the Canon EF Lens Catalog.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon 5D Mark II||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499|
|2.||Leica X-U Typ 113||140 mm||79 mm||88 mm||635 g||450||Y||Jan 2016||2,950|
|3.||Canon 6D Mark II||144 mm||111 mm||75 mm||765 g||1200||Y||Jun 2017||1,999|
|4.||Canon 5D Mark IV||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499|
|5.||Canon 80D||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199|
|6.||Canon 5DS||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|7.||Canon 5DS R||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|8.||Canon G3 X||123 mm||77 mm||105 mm||733 g||300||Y||Jun 2015||999|
|9.||Canon 5D Mark III||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499|
|10.||Canon 6D||145 mm||111 mm||71 mm||770 g||1090||Y||Sep 2012||2,099|
|11.||Canon 7D||148 mm||111 mm||74 mm||860 g||800||Y||Sep 2009||1,699|
|12.||Canon 1Ds Mark III||150 mm||160 mm||80 mm||1385 g||1800||Y||Aug 2007||7,999|
|13.||Canon 5D||152 mm||113 mm||75 mm||895 g||400||Y||Aug 2005||3,299|
|14.||Leica M Typ 262||139 mm||80 mm||42 mm||680 g||..||Y||Nov 2015||5,195|
|15.||Leica Q Typ 116||130 mm||80 mm||93 mm||640 g||300||n||Jun 2015||4,249|
|16.||Leica X Vario||133 mm||73 mm||95 mm||680 g||450||n||Jun 2013||2,850|
|17.||Nikon Df||144 mm||110 mm||67 mm||760 g||1400||Y||Nov 2013||2,749|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The X-U Typ 113 was launched at a lower price than the 5D Mark II, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

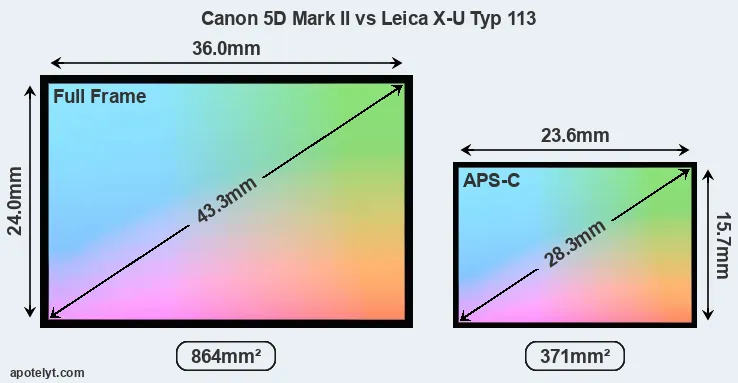

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 5D Mark II features a full frame sensor and the Leica X-U Typ 113 an APS-C sensor. The sensor area in the X-U Typ 113 is 57 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
In terms of underlying technology, both cameras are build around CMOS sensors.

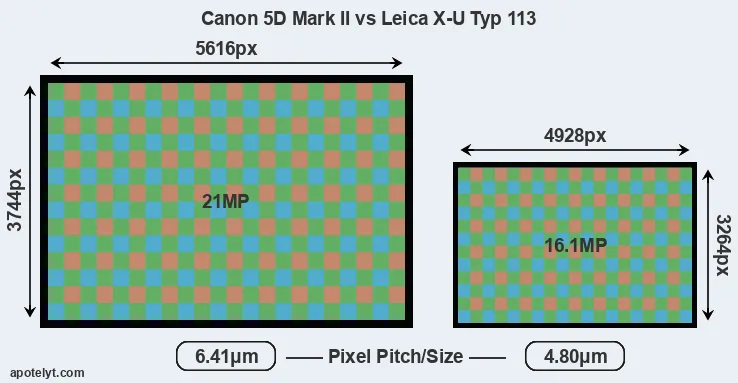

With 21MP, the 5D Mark II offers a higher resolution than the X-U Typ 113 (16.1MP), but the 5D Mark II nevertheless has larger individual pixels (pixel pitch of 6.41μm versus 4.80μm for the X-U Typ 113) due to its larger sensor. However, the X-U Typ 113 is a much more recent model (by 7 years and 4 months) than the 5D Mark II, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon 5D Mark II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5D Mark II for good quality output (200 dots per inch) amounts to 28.1 x 18.7 inches or 71.3 x 47.5 cm, for very good quality (250 dpi) 22.5 x 15 inches or 57.1 x 38 cm, and for excellent quality (300 dpi) 18.7 x 12.5 inches or 47.5 x 31.7 cm. The corresponding values for the Leica X-U Typ 113 are 24.6 x 16.3 inches or 62.6 x 41.5 cm for good quality, 19.7 x 13.1 inches or 50.1 x 33.2 cm for very good quality, and 16.4 x 10.9 inches or 41.7 x 27.6 cm for excellent quality prints.
The Canon EOS 5D Mark II has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 50-25600. The corresponding ISO settings for the Leica X-U (Typ 113) are ISO 100 to ISO 12500 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|1.||Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|2.||Leica X-U Typ 113||APS-C||16.1||4928||3264||1080/30p||..||..||..||..|
|3.||Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|4.||Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|6.||Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|7.||Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|8.||Canon G3 X||1-inch||20.0||5472||3648||1080/60p||21.4||12.3||521||63|
|9.||Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|10.||Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|12.||Canon 1Ds Mark III||Full Frame||21.0||5616||3744||none||24.0||12.0||1663||80|
|13.||Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71|
|14.||Leica M Typ 262||Full Frame||23.7||5952||3976||none||..||..||..||..|
|15.||Leica Q Typ 116||Full Frame||24.0||6000||4000||1080/60p||24.3||12.7||2221||85|
|16.||Leica X Vario||APS-C||16.1||4928||3272||1080/30p||23.4||12.7||1320||78|
|17.||Nikon Df||Full Frame||16.2||4928||3280||none||24.6||13.1||3279||89|
Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (1080/30p).
Apart from body and sensor, cameras can and do differ across a range of features. For example, the 5D Mark II has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the X-U Typ 113 relies on live view and the rear LCD for framing. That said, the X-U Typ 113 can be equipped with an optional viewfinder – the Visoflex (Typ 020). The table below summarizes some of the other core capabilities of the Canon 5D Mark II and Leica X-U Typ 113 in connection with corresponding information for a sample of similar cameras.
|1.||Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
|2.||Leica X-U Typ 113||optional||n||3.0||920||fixed||n||1/2000s||5.0||Y||n|
|3.||Canon 6D Mark II||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n|
|4.||Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n|
|7.||Canon 5DS R||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n|
|8.||Canon G3 X||optional||n||3.2||1620||tilting||Y||1/2000s||5.9||Y||Y|
|9.||Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n|
|12.||Canon 1Ds Mark III||optical||Y||3.0||230||fixed||n||1/8000s||5.0||n||n|
|14.||Leica M Typ 262||optical||n||3.0||921||fixed||n||1/4000s||3.0||n||n|
|15.||Leica Q Typ 116||3680||n||3.0||1040||fixed||Y||1/2000s||10.0||n||Y|
|16.||Leica X Vario||optional||n||3.0||920||fixed||n||1/2000s||5.0||Y||n|
One feature that is present on the 5D Mark II, but is missing on the X-U Typ 113 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The 5D Mark II writes its imaging data to Compact Flash cards, while the X-U Typ 113 uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D Mark II and Leica X-U (Typ 113) and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|1.||Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
|2.||Leica X-U Typ 113||Y||stereo||mono||-||-||-||2.0||-||-||-|
|3.||Canon 6D Mark II||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y|
|4.||Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-|
|7.||Canon 5DS R||Y||mono||mono||Y||-||mini||3.0||-||-||-|
|8.||Canon G3 X||Y||stereo||mono||Y||Y||mini||2.0||Y||Y||-|
|9.||Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|12.||Canon 1Ds Mark III||Y||mono||-||-||-||-||2.0||-||-||-|
|14.||Leica M Typ 262||Y||-||-||-||-||-||2.0||-||-||-|
|15.||Leica Q Typ 116||Y||stereo||mono||-||-||micro||2.0||Y||Y||-|
|16.||Leica X Vario||Y||stereo||mono||-||-||mini||2.0||-||-||-|
It is notable that the 5D Mark II has a microphone port, which is missing on the X-U Typ 113. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Studio photographers will appreciate that the Canon 5D Mark II (unlike the X-U Typ 113) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 5D Mark II and the X-U Typ 113 have been discontinued, but can regularly be found used on eBay. The 5D Mark II was replaced by the Canon 5D Mark III, while the X-U Typ 113 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Leica websites.
So how do things add up? Is there a clear favorite between the Canon 5D Mark II and the Leica X-U Typ 113? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Canon EOS 5D Mark II:
- More detail: Offers more megapixels (21 vs 16.1MP) with a 14% higher linear resolution.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
- More flexible: Can take a variety of interchangeable lenses, including specialty optics.
- Longer lasting: Can take more shots (850 versus 450) on a single battery charge.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in September 2008).
Advantages of the Leica X-U (Typ 113):
- Faster burst: Shoots at higher frequency (5 vs 3.9 flaps/sec) to capture the decisive moment.
- Ready to shoot: Comes with an integrated lens, while the 5D Mark II requires a separate lens.
- More compact: Is smaller (140x79mm vs 152x114mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the 5D Mark II).
- Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 3m).
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Reflects 7 years and 4 months of technical progress since the 5D Mark II launch.
If the count of individual advantages (bullet points above) is taken as a guide, the match-up finishes in a tie (9 points each). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5D Mark II and the Leica X-U Typ 113 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Prime Lens Compact Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 5D Mark II or the X-U Typ 113. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 5D Mark II||4/5||91/100||79/100||4/5||..||Sep 2008||3,499|
|2.||Leica X-U Typ 113||3.5/5||..||..||..||3.5/5||Jan 2016||2,950|
|3.||Canon 6D Mark II||4/5||+||80/100||4.5/5||4/5||Jun 2017||1,999|
|4.||Canon 5D Mark IV||4.5/5||+ +||87/100||4.5/5||4.5/5||Aug 2016||3,499|
|5.||Canon 80D||4/5||+ +||84/100||4.5/5||4.5/5||Feb 2016||1,199|
|6.||Canon 5DS||..||+||83/100||4.5/5||4.5/5||Feb 2015||3,699|
|7.||Canon 5DS R||5/5||+||83/100||5/5||4.5/5||Feb 2015||3,699|
|8.||Canon G3 X||3.5/5||+||..||4.5/5||4/5||Jun 2015||999|
|9.||Canon 5D Mark III||..||+ +||82/100||4.5/5||4.5/5||Mar 2012||3,499|
|10.||Canon 6D||5/5||+ +||83/100||4.5/5||4.5/5||Sep 2012||2,099|
|11.||Canon 7D||5/5||+ +||84/100||4.5/5||4.5/5||Sep 2009||1,699|
|12.||Canon 1Ds Mark III||..||..||+ +||4.5/5||..||Aug 2007||7,999|
|13.||Canon 5D||..||88/100||+ +||o||..||Aug 2005||3,299|
|14.||Leica M Typ 262||..||..||..||..||..||Nov 2015||5,195|
|15.||Leica Q Typ 116||5/5||..||80/100||4.5/5||4.5/5||Jun 2015||4,249|
|16.||Leica X Vario||3/5||..||..||4/5||4/5||Jun 2013||2,850|
|17.||Nikon Df||4/5||..||81/100||4/5||4/5||Nov 2013||2,749|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon 5D Mark II vs Leica X-U Typ 113
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 5D Mark II||Leica X-U Typ 113|
|Camera Type||Digital single lens reflex||Fixed lens compact camera|
|Camera Lens||Canon EF mount lenses||35mm f/1.7|
|Launch Date||September 2008||January 2016|
|Launch Price||USD 3,499||USD 2,950|
|Sensor Specs||Canon 5D Mark II||Leica X-U Typ 113|
|Sensor Format||Full Frame Sensor||APS-C Sensor|
|Sensor Size||36.0 x 24.0 mm||23.6 x 15.7 mm|
|Sensor Area||864 mm2||370.52 mm2|
|Sensor Diagonal||43.3 mm||28.3 mm|
|Sensor Resolution||21 Megapixels||16.1 Megapixels|
|Image Resolution||5616 x 3744 pixels||4928 x 3264 pixels|
|Pixel Pitch||6.41 μm||4.80 μm|
|Pixel Density||2.43 MP/cm2||4.34 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||1080/30p Video|
|ISO Setting||100 - 6,400 ISO||100 - 12,500 ISO|
|ISO Boost||50 - 25,600 ISO||no Enhancement|
|DXO Sensor Quality (score)||79||..|
|DXO Color Depth (bits)||23.7||..|
|DXO Dynamic Range (EV)||11.9||..|
|DXO Low Light (ISO)||1815||..|
|Screen Specs||Canon 5D Mark II||Leica X-U Typ 113|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||98%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||920k dots||920k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon 5D Mark II||Leica X-U Typ 113|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||3.9 shutter flaps/s||5 shutter flaps/s|
|Fill Flash||no On-Board Flash||Built-in Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon 5D Mark II||Leica X-U Typ 113|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||no HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 5D Mark II||Leica X-U Typ 113|
|Environmental Sealing||Weathersealed body||Waterproof body (3m)|
|Battery Life (CIPA)||850 shots per charge||450 shots per charge|
152 x 114 x 75 mm
(6.0 x 4.5 x 3.0 in)
140 x 79 x 88 mm
(5.5 x 3.1 x 3.5 in)
|Camera Weight||850 g (30.0 oz)||635 g (22.4 oz)|
