Canon 5D Mark II vs M3
The Canon EOS 5D Mark II and the Canon EOS M3 are two digital cameras that were revealed to the public, respectively, in September 2008 and February 2015. The 5D Mark II is a DSLR, while the M3 is a mirrorless interchangeable lens camera. The cameras are based on a full frame (5D Mark II) and an APS-C (M3) sensor. The 5D Mark II has a resolution of 21 megapixels, whereas the M3 provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D Mark II and the Canon EOS M3? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

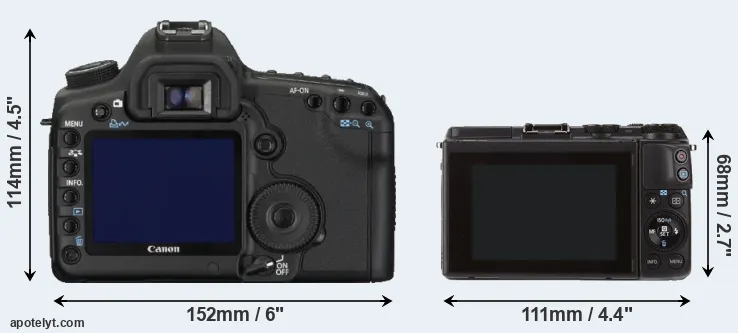

The side-by-side display below illustrates the physical size and weight of the Canon 5D Mark II and the Canon M3. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
The M3 can be obtained in two different colors (black, white), while the 5D Mark II is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon M3 is considerably smaller (56 percent) than the Canon 5D Mark II. Moreover, the M3 is substantially lighter (57 percent) than the 5D Mark II. It is worth mentioning in this context that the 5D Mark II is splash and dust resistant, while the M3 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon 5D Mark II||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499|
|2.||Canon M3||111 mm||68 mm||44 mm||366 g||250||n||Feb 2015||679|
|3.||Canon 6D Mark II||144 mm||111 mm||75 mm||765 g||1200||Y||Jun 2017||1,999|
|4.||Canon M6||112 mm||68 mm||45 mm||390 g||295||n||Feb 2017||779|
|5.||Canon 5D Mark IV||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499|
|6.||Canon 80D||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199|
|7.||Canon M5||116 mm||89 mm||61 mm||427 g||295||n||Sep 2016||979|
|8.||Canon 5DS||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|9.||Canon 5DS R||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|10.||Canon M10||108 mm||67 mm||35 mm||301 g||255||n||Oct 2015||499|
|11.||Canon G7 X||103 mm||60 mm||40 mm||304 g||210||n||Sep 2014||699|
|12.||Canon 5D Mark III||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499|
|13.||Canon 6D||145 mm||111 mm||71 mm||770 g||1090||Y||Sep 2012||2,099|
|14.||Canon M||109 mm||66 mm||32 mm||298 g||230||n||Jul 2012||599|
|15.||Canon 7D||148 mm||111 mm||74 mm||860 g||800||Y||Sep 2009||1,699|
|16.||Canon 1Ds Mark III||150 mm||160 mm||80 mm||1385 g||1800||Y||Aug 2007||7,999|
|17.||Canon 5D||152 mm||113 mm||75 mm||895 g||400||Y||Aug 2005||3,299|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The M3 was launched at a markedly lower price (by 81 percent) than the 5D Mark II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

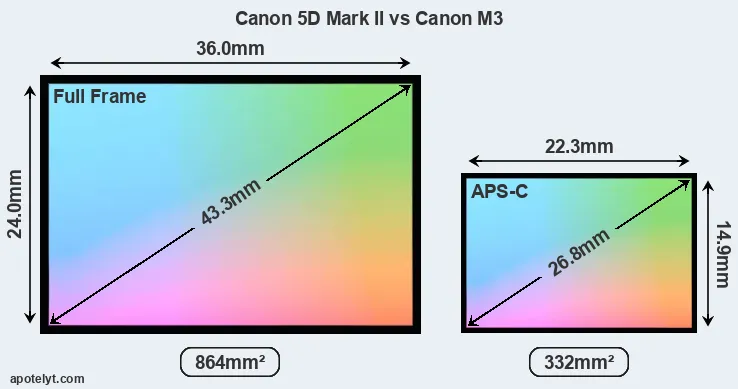

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 5D Mark II features a full frame sensor and the Canon M3 an APS-C sensor. The sensor area in the M3 is 62 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, the M3 uses a more advanced image processing engine (DIGIC 6) than the 5D Mark II (DIGIC 4), with benefits for noise reduction, color accuracy, and processing speed.
Despite having a smaller sensor, the M3 offers a higher resolution of 24 megapixels, compared with 21 MP of the 5D Mark II. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.72μm versus 6.41μm for the 5D Mark II). However, it should be noted that the M3 is much more recent (by 6 years and 4 months) than the 5D Mark II, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Canon M3 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M3 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon 5D Mark II are 28.1 x 18.7 inches or 71.3 x 47.5 cm for good quality, 22.5 x 15 inches or 57.1 x 38 cm for very good quality, and 18.7 x 12.5 inches or 47.5 x 31.7 cm for excellent quality prints.
The M3 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 5D Mark II has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 50-25600. The corresponding ISO settings for the Canon EOS M3 are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 100-25600.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the 5D Mark II has a notably higher overall DXO score than the M3 (overall score 7 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.9 bits higher color depth, 0.1 EV in additional dynamic range, and 0.6 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|1.||Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|3.||Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|5.||Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|8.||Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|9.||Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|11.||Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71|
|12.||Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|13.||Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|16.||Canon 1Ds Mark III||Full Frame||21.0||5616||3744||none||24.0||12.0||1663||80|
|17.||Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (1080/30p).
Apart from body and sensor, cameras can and do differ across a range of features. For example, the 5D Mark II has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the M3 relies on live view and the rear LCD for framing. That said, the M3 can be equipped with an optional viewfinder – the EVF-DC1. The table below summarizes some of the other core capabilities of the Canon 5D Mark II and Canon M3 in connection with corresponding information for a sample of similar cameras.
|1.||Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
|3.||Canon 6D Mark II||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n|
|5.||Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n|
|9.||Canon 5DS R||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n|
|11.||Canon G7 X||none||n||3.0||1040||tilting||Y||1/2000s||6.5||Y||Y|
|12.||Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n|
|16.||Canon 1Ds Mark III||optical||Y||3.0||230||fixed||n||1/8000s||5.0||n||n|
One feature that is present on the 5D Mark II, but is missing on the M3 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The M3 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 5D Mark II does not have a selfie-screen.
The 5D Mark II writes its imaging data to Compact Flash cards, while the M3 uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D Mark II and Canon EOS M3 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|1.||Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
|3.||Canon 6D Mark II||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y|
|5.||Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-|
|9.||Canon 5DS R||Y||mono||mono||Y||-||mini||3.0||-||-||-|
|11.||Canon G7 X||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
|12.||Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|16.||Canon 1Ds Mark III||Y||mono||-||-||-||-||2.0||-||-||-|
It is notable that the M3 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 5D Mark II does not provide wifi capability.
Studio photographers will appreciate that the Canon 5D Mark II (unlike the M3) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 5D Mark II and the M3 have been discontinued, but can regularly be found used on eBay. The 5D Mark II was replaced by the Canon 5D Mark III, while the M3 was followed by the Canon M6. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So what conclusions can be drawn? Which of the two cameras – the Canon 5D Mark II or the Canon M3 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Canon EOS 5D Mark II:
- Better image quality: Scores markedly higher (7 points) in the DXO overall assessment.
- Better low-light sensitivity: Requires less light for good images (0.6 stops ISO advantage).
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Longer lasting: Can take more shots (850 versus 250) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in September 2008).
Reasons to prefer the Canon EOS M3:
- More detail: Has more megapixels (24 vs 21MP), which boosts linear resolution by 7%.
- Better jpgs: Has a more modern image processing engine (DIGIC 6 vs DIGIC 4).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- More compact: Is smaller (111x68mm vs 152x114mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 484g or 57 percent) and is thus easier to take along.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More affordable: Was introduced into a lower priced category (81 percent cheaper at launch).
- More modern: Reflects 6 years and 4 months of technical progress since the 5D Mark II launch.
If the number of relative strengths (bullet points above) is taken as a guide, the M3 is the clear winner of the contest (15 : 9 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5D Mark II and the Canon M3 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the 5D Mark II and the M3 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 5D Mark II||4/5||91/100||79/100||4/5||..||Sep 2008||3,499|
|2.||Canon M3||4/5||o||75/100||4.5/5||4/5||Feb 2015||679|
|3.||Canon 6D Mark II||4/5||+||80/100||4.5/5||4/5||Jun 2017||1,999|
|4.||Canon M6||..||..||80/100||4/5||4/5||Feb 2017||779|
|5.||Canon 5D Mark IV||4.5/5||+ +||87/100||4.5/5||4.5/5||Aug 2016||3,499|
|6.||Canon 80D||4/5||+ +||84/100||4.5/5||4.5/5||Feb 2016||1,199|
|7.||Canon M5||4/5||+||82/100||4/5||4/5||Sep 2016||979|
|8.||Canon 5DS||..||+||83/100||4.5/5||4.5/5||Feb 2015||3,699|
|9.||Canon 5DS R||5/5||+||83/100||5/5||4.5/5||Feb 2015||3,699|
|10.||Canon M10||..||..||..||..||4/5||Oct 2015||499|
|11.||Canon G7 X||4/5||+ +||77/100||4.5/5||4.5/5||Sep 2014||699|
|12.||Canon 5D Mark III||..||+ +||82/100||4.5/5||4.5/5||Mar 2012||3,499|
|13.||Canon 6D||5/5||+ +||83/100||4.5/5||4.5/5||Sep 2012||2,099|
|14.||Canon M||3/5||+||..||4/5||4/5||Jul 2012||599|
|15.||Canon 7D||5/5||+ +||84/100||4.5/5||4.5/5||Sep 2009||1,699|
|16.||Canon 1Ds Mark III||..||..||+ +||4.5/5||..||Aug 2007||7,999|
|17.||Canon 5D||..||88/100||+ +||o||..||Aug 2005||3,299|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Canon 5D Mark II vs Canon M3
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 5D Mark II||Canon M3|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Canon EF-M mount lenses|
|Launch Date||September 2008||February 2015|
|Launch Price||USD 3,499||USD 679|
|Sensor Specs||Canon 5D Mark II||Canon M3|
|Sensor Format||Full Frame Sensor||APS-C Sensor|
|Sensor Size||36.0 x 24.0 mm||22.3 x 14.9 mm|
|Sensor Area||864 mm2||332.27 mm2|
|Sensor Diagonal||43.3 mm||26.8 mm|
|Sensor Resolution||21 Megapixels||24 Megapixels|
|Image Resolution||5616 x 3744 pixels||6000 x 4000 pixels|
|Pixel Pitch||6.41 μm||3.72 μm|
|Pixel Density||2.43 MP/cm2||7.22 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||1080/30p Video|
|ISO Setting||100 - 6,400 ISO||100 - 12,800 ISO|
|ISO Boost||50 - 25,600 ISO||100 - 25,600 ISO|
|Image Processor||DIGIC 4||DIGIC 6|
|DXO Sensor Quality (score)||79||72|
|DXO Color Depth (bits)||23.7||22.8|
|DXO Dynamic Range (EV)||11.9||11.8|
|DXO Low Light (ISO)||1815||1169|
|Screen Specs||Canon 5D Mark II||Canon M3|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||98%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||920k dots||1040k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 5D Mark II||Canon M3|
|Focus System||Phase-detect AF||On-Sensor Phase-detect|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/4000s|
|Continuous Shooting||3.9 shutter flaps/s||4.2 shutter flaps/s|
|Shutter Life Expectancy||150 000 actuations||100 000 actuations|
|Fill Flash||no On-Board Flash||Built-in Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon 5D Mark II||Canon M3|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||External MIC port|
|Wifi Support||no Wifi||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Body Specs||Canon 5D Mark II||Canon M3|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||850 shots per charge||250 shots per charge|
152 x 114 x 75 mm
(6.0 x 4.5 x 3.0 in)
111 x 68 x 44 mm
(4.4 x 2.7 x 1.7 in)
|Camera Weight||850 g (30.0 oz)||366 g (12.9 oz)|
