Canon 550D vs Fujifilm X30
The Canon EOS 550D (called Canon T2i in some regions) and the Fujifilm X30 are two digital cameras that were announced, respectively, in February 2010 and August 2014. The 550D is a DSLR, while the X30 is a fixed lens compact. The cameras are based on an APS-C (550D) and a 2/3 (X30) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Fujifilm provides 12 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 550D and the Fujifilm X30? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

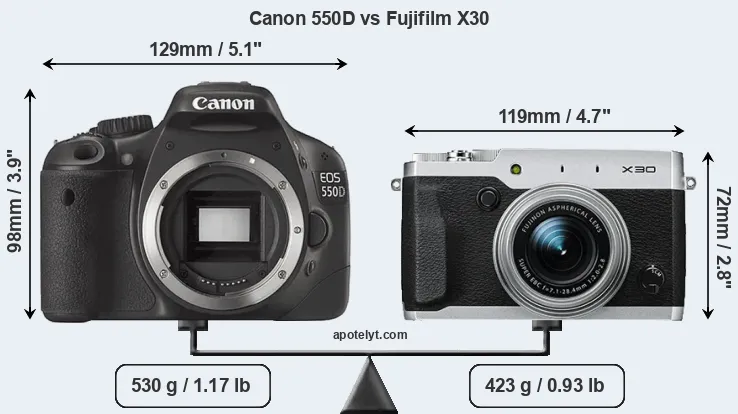

An illustration of the physical size and weight of the Canon 550D and the Fujifilm X30 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
The X30 can be obtained in two different colors (black, silver), while the 550D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X30 is considerably smaller (32 percent) than the Canon 550D. In this context, it is worth noting that neither the 550D nor the X30 are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the X30 has a lens built in, whereas the 550D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 550D and their specifications in the Canon EF Lens Catalog.
Concerning battery life, the 550D gets 440 shots out of its LP-E8 battery, while the X30 can take 470 images on a single charge of its NP-95 power pack. The power pack in the X30 can be charged via the USB port, which can be very convenient when travelling.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon 550D||129 mm||98 mm||62 mm||530 g||440||n||Feb 2010||699||ebay.com|
|2.||Fujifilm X30||119 mm||72 mm||60 mm||423 g||470||n||Aug 2014||599||ebay.com|
|3.||Canon 4000D||129 mm||102 mm||77 mm||436 g||500||n||Feb 2018||399||amazon.com|
|4.||Canon 750D||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749||ebay.com|
|5.||Canon 760D||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649||ebay.com|
|6.||Canon 1200D||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449||ebay.com|
|7.||Canon 700D||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649||ebay.com|
|8.||Canon G16||109 mm||76 mm||40 mm||356 g||360||n||Aug 2013||549||ebay.com|
|9.||Canon 650D||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849||ebay.com|
|10.||Canon 600D||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599||ebay.com|
|11.||Canon 1100D||130 mm||100 mm||78 mm||495 g||700||n||Feb 2011||449||ebay.com|
|12.||Canon 500D||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799||ebay.com|
|13.||Fujifilm X20||117 mm||70 mm||57 mm||353 g||270||n||Jan 2013||599||ebay.com|
|14.||Fujifilm XQ1||100 mm||59 mm||33 mm||206 g||240||n||Oct 2013||499||ebay.com|
|15.||Fujifilm X10||117 mm||70 mm||57 mm||350 g||270||n||Sep 2011||599||ebay.com|
|16.||Nikon P7800||119 mm||78 mm||50 mm||399 g||350||n||Sep 2013||549||ebay.com|
|17.||Nikon D5100||128 mm||97 mm||79 mm||560 g||660||n||Apr 2011||749||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The X30 was launched at a lower price than the 550D, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

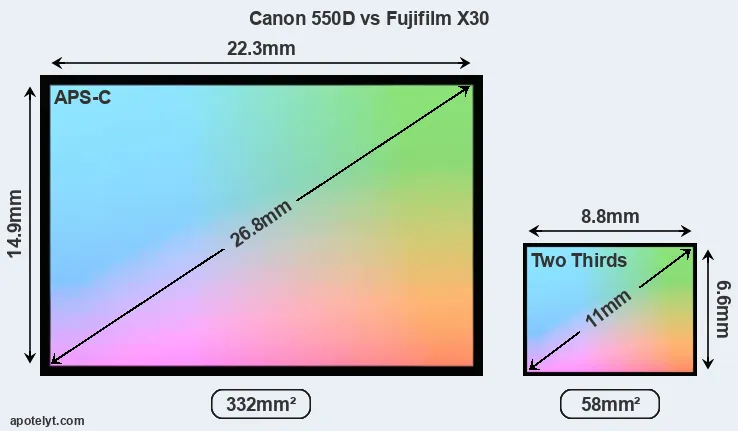

Of the two cameras under consideration, the Canon 550D features an APS-C sensor and the Fujifilm X30 a 2/3 sensor. The sensor area in the X30 is 83 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 3.9. The sensor in the 550D has a native 3:2 aspect ratio, while the one in the X30 offers a 4:3 aspect.
With 17.9MP, the 550D offers a higher resolution than the X30 (12MP), but the 550D nevertheless has larger individual pixels (pixel pitch of 4.31μm versus 2.20μm for the X30) due to its larger sensor. However, the X30 is a much more recent model (by 4 years and 6 months) than the 550D, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the X30 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon 550D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 550D for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Fujifilm X30 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.
The X30 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 550D has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Fujifilm X30 are ISO 100 to ISO 12800 (no boost).
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Like most digital cameras, the 550D uses a Bayer filter for capturing RGB colors on a square grid of photosensors. In contrast, the X30 employs a more randomized X-Trans layout of photosites, which according to Fujifilm helps to minimize moiré.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the X30 provides a faster frame rate than the 550D. It can shoot movie footage at 1080/60p, while the Canon is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the X30 has an electronic viewfinder (2360k dots), while the 550D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the X30 offers a wider field of view (100%) than the one in the 550D (95%), so that a larger proportion of the captured image is visible in the finder. On the other hand, the viewfinder of the 550D has a higher magnification (0.54x vs 0.43x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 550D and Fujifilm X30 in connection with corresponding information for a sample of similar cameras.
|1.||Canon 550D||optical||n||3.0 / 1040||fixed||n||1/4000s||3.7/s||Y||n|
|2.||Fujifilm X30||2360||n||3.0 / 920||tilting||n||1/4000s||12.0/s||Y||Y|
|3.||Canon 4000D||optical||n||2.7 / 230||fixed||n||1/4000s||3.0/s||Y||n|
|4.||Canon 750D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|5.||Canon 760D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|6.||Canon 1200D||optical||n||3.0 / 460||fixed||n||1/4000s||3.0/s||Y||n|
|7.||Canon 700D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|8.||Canon G16||optical||n||3.0 / 922||fixed||n||1/4000s||2.2/s||Y||Y|
|9.||Canon 650D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|10.||Canon 600D||optical||n||3.0 / 1040||swivel||n||1/4000s||3.7/s||Y||n|
|11.||Canon 1100D||optical||n||2.7 / 230||fixed||n||1/4000s||3.0/s||Y||n|
|12.||Canon 500D||optical||n||3.0 / 920||fixed||n||1/4000s||3.4/s||Y||n|
|13.||Fujifilm X20||optical||n||2.8 / 460||fixed||n||1/4000s||12.0/s||Y||Y|
|14.||Fujifilm XQ1||none||n||3.0 / 920||fixed||n||1/4000s||12.0/s||Y||Y|
|15.||Fujifilm X10||optical||n||2.8 / 460||fixed||n||1/4000s||10.0/s||Y||Y|
|16.||Nikon P7800||921||n||3.0 / 921||swivel||n||1/4000s||8.0/s||Y||Y|
|17.||Nikon D5100||optical||n||3.0 / 921||swivel||n||1/4000s||4.0/s||Y||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
Concerning the storage of imaging data, both the 550D and the X30 write their files to SDXC cards. The X30 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the 550D cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 550D and Fujifilm X30 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon 550D||Y||stereo / -||Y||-||mini||2.0||-||-||-|
|2.||Fujifilm X30||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|3.||Canon 4000D||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|4.||Canon 750D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|5.||Canon 760D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|6.||Canon 1200D||Y||mono / mono||-||-||mini||2.0||-||-||-|
|7.||Canon 700D||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|8.||Canon G16||Y||stereo / mono||-||-||mini||2.0||Y||-||-|
|9.||Canon 650D||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|10.||Canon 600D||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|11.||Canon 1100D||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|12.||Canon 500D||Y||mono / mono||-||-||mini||2.0||-||-||-|
|13.||Fujifilm X20||Y||stereo / mono||-||-||micro||2.0||-||-||-|
|14.||Fujifilm XQ1||-||stereo / mono||-||-||micro||2.0||Y||-||-|
|15.||Fujifilm X10||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|16.||Nikon P7800||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|17.||Nikon D5100||Y||mono / mono||Y||-||mini||2.0||-||-||-|
It is notable that the 550D has a microphone port, which is missing on the X30. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Both the 550D and the X30 have been discontinued, but can regularly be found used on ebay. The 550D was replaced by the Canon 600D, while the X30 does not have a direct successor. Further information on the features and operation of the 550D and X30 can be found, respectively, in the Canon 550D Manual (free pdf) or the online Fujifilm X30 Manual.
So how do things add up? Is there a clear favorite between the Canon 550D and the Fujifilm X30? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Canon EOS 550D:
- More detail: Offers more megapixels (17.9 vs 12MP) with a 25% higher linear resolution.
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.54x vs 0.43x).
- More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
- More flexible: Can take a variety of interchangeable lenses, including specialty optics.
- More heavily discounted: Has been available for much longer (launched in February 2010).
Advantages of the Fujifilm X30:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Faster burst: Shoots at higher frequency (12 vs 3.7 flaps/sec) to capture the decisive moment.
- Ready to shoot: Comes with an integrated lens, while the 550D requires a separate lens.
- More compact: Is smaller (119x72mm vs 129x98mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the 550D).
- Easier travel charging: Can be conveniently charged via its USB port.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Reflects 4 years and 6 months of technical progress since the 550D launch.
If the count of individual advantages (bullet points above) is taken as a guide, the X30 is the clear winner of the contest (16 : 12 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 550D and the Fujifilm X30 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 550D or the X30. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 550D||..||+ +||..||77/100||4/5||4.5/5||Feb 2010||699||ebay.com|
|2.||Fujifilm X30||4/5||..||..||76/100||4.5/5||4.5/5||Aug 2014||599||ebay.com|
|3.||Canon 4000D||..||o||3/5||..||3.5/5||3.5/5||Feb 2018||399||amazon.com|
|4.||Canon 750D||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749||ebay.com|
|5.||Canon 760D||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649||ebay.com|
|6.||Canon 1200D||3/5||+||..||..||4/5||4.5/5||Feb 2014||449||ebay.com|
|7.||Canon 700D||..||..||..||76/100||4.5/5||4.5/5||Mar 2013||649||ebay.com|
|8.||Canon G16||4/5||+||..||..||4.5/5||4.5/5||Aug 2013||549||ebay.com|
|9.||Canon 650D||4/5||+ +||..||77/100||4.5/5||4.5/5||Jun 2012||849||ebay.com|
|10.||Canon 600D||3/5||o||..||77/100||4.5/5||4.5/5||Feb 2011||599||ebay.com|
|11.||Canon 1100D||..||80/100||..||69/100||4/5||4.5/5||Feb 2011||449||ebay.com|
|12.||Canon 500D||..||+ +||..||74/100||4.5/5||4.5/5||Mar 2009||799||ebay.com|
|13.||Fujifilm X20||4/5||+ +||..||77/100||4.5/5||5/5||Jan 2013||599||ebay.com|
|14.||Fujifilm XQ1||..||..||..||..||4.5/5||4.5/5||Oct 2013||499||ebay.com|
|15.||Fujifilm X10||..||..||..||76/100||4/5||4.5/5||Sep 2011||599||ebay.com|
|16.||Nikon P7800||3/5||..||..||..||4/5||4.5/5||Sep 2013||549||ebay.com|
|17.||Nikon D5100||5/5||+ +||..||76/100||4.5/5||4.5/5||Apr 2011||749||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 550D vs Canon M5
- Canon 550D vs Fujifilm GFX 50R
- Canon 550D vs Fujifilm X-S10
- Canon 550D vs Nikon D4S
- Canon 550D vs Olympus E-M1X
- Canon 550D vs Sony NEX-6
- Canon G16 vs Fujifilm X30
- Fujifilm X30 vs Nikon D3300
- Fujifilm X30 vs Nikon D3400
- Fujifilm X30 vs Panasonic LX5
- Fujifilm X30 vs Sony A7S II
- Fujifilm X30 vs Sony HX80
Specifications: Canon 550D vs Fujifilm X30
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 550D||Fujifilm X30|
|Camera Type||Digital single lens reflex||Fixed lens compact camera|
|Camera Lens||Canon EF mount lenses||28-112mm f/2.0-2.8|
|Launch Date||February 2010||August 2014|
|Launch Price||USD 699||USD 599|
|Sensor Specs||Canon 550D||Fujifilm X30|
|Sensor Format||APS-C Sensor||Two Thirds Sensor|
|Sensor Size||22.3 x 14.9 mm||8.8 x 6.6 mm|
|Sensor Area||332.27 mm2||58.08 mm2|
|Sensor Diagonal||26.8 mm||11 mm|
|Sensor Resolution||17.9 Megapixels||12 Megapixels|
|Image Resolution||5184 x 3456 pixels||4000 x 3000 pixels|
|Pixel Pitch||4.31 μm||2.20 μm|
|Pixel Density||5.39 MP/cm2||20.66 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/30p Video||1080/60p Video|
|ISO Setting||100 - 6,400 ISO||100 - 12,800 ISO|
|ISO Boost||100 - 12,800 ISO||no Enhancement|
|Image Processor||DIGIC 4||EXR Processor II|
|DXO Sensor Quality (score)||66||..|
|DXO Color Depth (bits)||22.1||..|
|DXO Dynamic Range (EV)||11.5||..|
|DXO Low Light (ISO)||784||..|
|Screen Specs||Canon 550D||Fujifilm X30|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||95%||100%|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||920k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Shooting Specs||Canon 550D||Fujifilm X30|
|Focus System||Phase-detect AF||On-Sensor Phase-detect|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/4000s|
|Continuous Shooting||3.7 shutter flaps/s||12 shutter flaps/s|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Single or Dual Card Slots||Single card slot||Single card slot|
|UHS card support||no||UHS-I|
|Connectivity Specs||Canon 550D||Fujifilm X30|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Canon 550D||Fujifilm X30|
|Battery Life (CIPA)||440 shots per charge||470 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
129 x 98 x 62 mm
(5.1 x 3.9 x 2.4 in)
119 x 72 x 60 mm
(4.7 x 2.8 x 2.4 in)
|Camera Weight||530 g (18.7 oz)||423 g (14.9 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
