Canon 550D vs T7i
The Canon EOS 550D (called Canon T2i in some regions) and the Canon EOS Rebel T7i (labelled Canon 800D in some countries) are two digital cameras that were officially introduced, respectively, in February 2010 and February 2017. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The 550D has a resolution of 17.9 megapixels, whereas the T7i provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 550D||Canon T7i|
|Digital single lens reflex||Digital single lens reflex|
|Canon EF mount lenses||Canon EF mount lenses|
|17.9 MP, APS-C Sensor||24 MP, APS-C Sensor|
|1080/30p Video||1080/60p Video|
|ISO 100-6400 (100-12800)||ISO 100-25600 (100-51200)|
|Optical viewfinder||Optical viewfinder|
|3.0" LCD, 1040k dots||3.0" LCD, 1040k dots|
|Fixed screen (not touch-sensitive)||Swivel touchscreen|
|3.7 shutter flaps per second||6 shutter flaps per second|
|440 shots per battery charge||600 shots per battery charge|
|129 x 98 x 62 mm, 530 g||131 x 100 x 76 mm, 532 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 550D and the Canon EOS Rebel T7i? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
An illustration of the physical size and weight of the Canon 550D and the Canon T7i is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon T7i is somewhat larger (4 percent) than the Canon 550D. Moreover, the T7i is slightly heavier (0 percent) than the 550D. In this context, it is worth noting that neither the 550D nor the T7i are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Canon EF Lens Catalog.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|Canon 550D»||129 mm||98 mm||62 mm||530 g||440||n||Feb 2010||699||Canon 550D|
|Canon T7i«||131 mm||100 mm||76 mm||532 g||600||n||Feb 2017||749||Canon T7i|
|Canon T8i« »||131 mm||103 mm||76 mm||515 g||800||n||Feb 2020||749||Canon T8i|
|Canon 4000D« »||129 mm||102 mm||77 mm||436 g||500||n||Feb 2018||399||Canon 4000D|
|Canon T7« »||129 mm||101 mm||78 mm||475 g||500||n||Feb 2018||449||Canon T7|
|Canon 77D« »||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899||Canon 77D|
|Canon 750D« »||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749||Canon 750D|
|Canon 760D« »||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649||Canon 760D|
|Canon T6i« »||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749||Canon T6i|
|Canon 1200D« »||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449||Canon 1200D|
|Canon 700D« »||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649||Canon 700D|
|Canon T5i« »||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649||Canon T5i|
|Canon 650D« »||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849||Canon 650D|
|Canon 600D« »||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599||Canon 600D|
|Canon 1100D« »||130 mm||100 mm||78 mm||495 g||700||n||Feb 2011||449||Canon 1100D|
|Canon 500D« »||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799||Canon 500D|
|Nikon D5100« »||128 mm||97 mm||79 mm||560 g||660||n||Apr 2011||749||Nikon D5100|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The 550D was somewhat cheaper (by 7 percent) than the T7i at launch, but both cameras fall into the same price category. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Both cameras under consideration feature an APS-C sensor and have a format factor (sometimes also referred to as "crop factor") of 1.6. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, the T7i uses a more advanced image processing engine (DIGIC 7) than the 550D (DIGIC 4), with benefits for noise reduction, color accuracy, and processing speed.

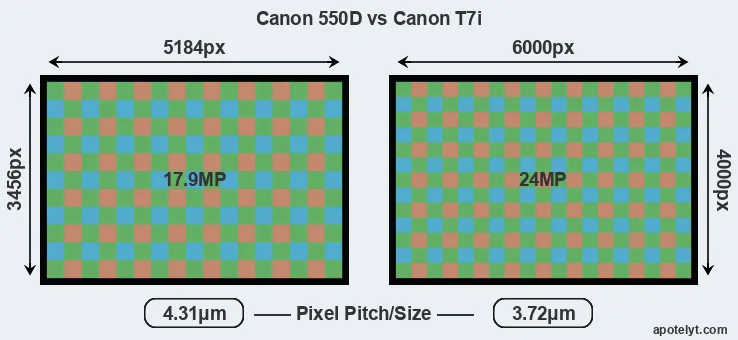

While the two cameras under review share the same sensor size, the T7i offers a higher resolution of 24 megapixels, compared with 17.9 MP of the 550D. This megapixels advantage translates into a 16 percent gain in linear resolution. On the other hand, these sensor specs imply that the T7i has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.72μm versus 4.31μm for the 550D). However, it should be noted that the T7i is much more recent (by 7 years) than the 550D, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size.
The resolution advantage of the Canon T7i implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the T7i for good quality output (200 dots per inch) amounts to 30 x 20 inch or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inch or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inch or 50.8 x 33.9 cm. The corresponding values for the Canon 550D are 25.9 x 17.3 inch or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inch or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inch or 43.9 x 29.3 cm for excellent quality prints.
The T7i has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 550D has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Canon EOS Rebel T7i are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Canon 550D||APS-C||17.9||5184||3456||1080/30p||22.1||11.5||784||66||Canon 550D|
|Canon T7i||APS-C||24.0||6000||4000||1080/60p||..||..||..||..||Canon T7i|
|Canon T8i||APS-C||24.0||6000||4000||4K/24p||..||..||..||..||Canon T8i|
|Canon 4000D||APS-C||17.9||5184||3456||1080/30p||21.9||11.4||695||63||Canon 4000D|
|Canon T7||APS-C||24.0||6000||4000||1080/30p||..||..||..||..||Canon T7|
|Canon 77D||APS-C||24.0||6000||4000||1080/60p||23.6||13.3||971||78||Canon 77D|
|Canon 750D||APS-C||24.0||6000||4000||1080/30p||22.7||12.0||919||71||Canon 750D|
|Canon 760D||APS-C||24.0||6000||4000||1080/30p||22.6||12.0||915||70||Canon 760D|
|Canon T6i||APS-C||24.0||6000||4000||1080/30p||22.7||12.0||919||71||Canon T6i|
|Canon 1200D||APS-C||17.9||5184||3456||1080/30p||21.9||11.3||724||63||Canon 1200D|
|Canon 700D||APS-C||17.9||5184||3456||1080/30p||21.7||11.2||681||61||Canon 700D|
|Canon T5i||APS-C||17.9||5184||3456||1080/30p||21.7||11.2||681||61||Canon T5i|
|Canon 650D||APS-C||17.9||5184||3456||1080/30p||21.7||11.2||722||62||Canon 650D|
|Canon 600D||APS-C||17.9||5184||3456||1080/30p||22.1||11.5||793||65||Canon 600D|
|Canon 1100D||APS-C||12.2||4272||2848||720/30p||21.9||11.0||755||62||Canon 1100D|
|Canon 500D||APS-C||15.1||4752||3168||1080/20p||21.7||11.5||663||63||Canon 500D|
|Nikon D5100||APS-C||16.1||4928||3264||1080/30p||23.5||13.6||1183||80||Nikon D5100|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the T7i provides a faster frame rate than the 550D. It can shoot movie footage at 1080/60p, while the 550D is limited to 1080/30p.
Beyond body and sensor, cameras can and do differ across a range of features. The 550D and the T7i are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (95%), but the viewfinder of the 550D has a higher magnification than the one of the T7i (0.54x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 550D and Canon T7i along with similar information for a selection of comparators.
|Canon 550D||optical||n||3.0||1040||fixed||n||1/4000s||3.7||Y||n||Canon 550D|
|Canon T7i||optical||n||3.0||1040||swivel||Y||1/4000s||6.0||Y||n||Canon T7i|
|Canon T8i||optical||n||3.0||1040||swivel||Y||1/4000s||7.5||Y||n||Canon T8i|
|Canon 4000D||optical||n||2.7||230||fixed||n||1/4000s||3.0||Y||n||Canon 4000D|
|Canon T7||optical||n||3.0||920||fixed||n||1/4000s||3.0||Y||n||Canon T7|
|Canon 77D||optical||Y||3.0||1040||swivel||Y||1/4000s||6.0||Y||n||Canon 77D|
|Canon 750D||optical||n||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon 750D|
|Canon 760D||optical||Y||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon 760D|
|Canon T6i||optical||n||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon T6i|
|Canon 1200D||optical||n||3.0||460||fixed||n||1/4000s||3.0||Y||n||Canon 1200D|
|Canon 700D||optical||n||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon 700D|
|Canon T5i||optical||n||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon T5i|
|Canon 650D||optical||n||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon 650D|
|Canon 600D||optical||n||3.0||1040||swivel||n||1/4000s||3.7||Y||n||Canon 600D|
|Canon 1100D||optical||n||2.7||230||fixed||n||1/4000s||3.0||Y||n||Canon 1100D|
|Canon 500D||optical||n||3.0||920||fixed||n||1/4000s||3.4||Y||n||Canon 500D|
|Nikon D5100||optical||n||3.0||921||swivel||n||1/4000s||4.0||Y||n||Nikon D5100|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The T7i has a touchscreen, while the 550D has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.The T7i has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 550D does not have a selfie-screen.
Concerning the storage of imaging data, both the 550D and the T7i write their files to SDXC cards. The T7i supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the 550D cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 550D and Canon EOS Rebel T7i and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Canon 550D||Y||stereo||none||Y||-||mini||2.0||-||-||-||Canon 550D|
|Canon T7i||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon T7i|
|Canon T8i||Y||stereo||mono||Y||-||mini||2.0||Y||-||Y||Canon T8i|
|Canon 4000D||Y||mono||mono||-||-||mini||2.0||Y||Y||-||Canon 4000D|
|Canon T7||Y||mono||mono||-||-||mini||2.0||Y||Y||-||Canon T7|
|Canon 77D||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon 77D|
|Canon 750D||Y||stereo||mono||Y||-||mini||2.0||Y||Y||-||Canon 750D|
|Canon 760D||Y||stereo||mono||Y||-||mini||2.0||Y||Y||-||Canon 760D|
|Canon T6i||Y||stereo||mono||Y||-||mini||2.0||Y||Y||-||Canon T6i|
|Canon 1200D||Y||mono||mono||-||-||mini||2.0||-||-||-||Canon 1200D|
|Canon 700D||Y||stereo||mono||Y||-||mini||2.0||-||-||-||Canon 700D|
|Canon T5i||Y||stereo||mono||Y||-||mini||2.0||-||-||-||Canon T5i|
|Canon 650D||Y||stereo||mono||Y||-||mini||2.0||-||-||-||Canon 650D|
|Canon 600D||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon 600D|
|Canon 1100D||Y||stereo||mono||-||-||mini||2.0||-||-||-||Canon 1100D|
|Canon 500D||Y||mono||mono||-||-||mini||2.0||-||-||-||Canon 500D|
|Nikon D5100||Y||mono||mono||Y||-||mini||2.0||-||-||-||Nikon D5100|
It is notable that the T7i offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 550D does not offer wifi capability.
Both the 550D and the T7i have been discontinued, but can regularly be found used on eBay. The 550D was replaced by the Canon 600D, while the T7i was followed by the Canon T8i. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So what conclusions can be drawn? Is the Canon 550D better than the Canon T7i or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Advantages of the Canon EOS 550D:
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.54x vs 0.51x).
- More heavily discounted: Has been available for much longer (launched in February 2010).
Arguments in favor of the Canon EOS Rebel T7i:
- More detail: Has more megapixels (24 vs 17.9MP), which boosts linear resolution by 16%.
- Better jpgs: Has a more modern image processing engine (DIGIC 7 vs DIGIC 4).
- Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (6 vs 3.7 flaps/sec) to capture the decisive moment.
- Longer lasting: Gets more shots (600 versus 440) out of a single battery charge.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 7 years of technical progress since the 550D launch.
If the count of individual advantages (bullet points above) is taken as a guide, the T7i is the clear winner of the contest (14 : 2 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 550D and the Canon T7i place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 550D and the T7i in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon 550D vs Canon T7i
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 550D||Canon T7i|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Canon EF mount lenses|
|Launch Date||February 2010||February 2017|
|Launch Price||USD 699||USD 749|
|Sensor Specs||Canon 550D||Canon T7i|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||22.3 x 14.9 mm|
|Sensor Area||332.27 mm2||332.27 mm2|
|Sensor Diagonal||26.8 mm||26.8 mm|
|Sensor Resolution||17.9 Megapixels||24 Megapixels|
|Image Resolution||5184 x 3456 pixels||6000 x 4000 pixels|
|Pixel Pitch||4.31 μm||3.72 μm|
|Pixel Density||5.39 MP/cm2||7.22 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||1080/60p Video|
|ISO Setting||100-6400 ISO||100-25600 ISO|
|ISO Boost||100-12800 ISO||100-51200 ISO|
|Image Processor||DIGIC 4||DIGIC 7|
|DXO Sensor Quality (score)||66||..|
|DXO Color Depth (bits)||22.1||..|
|DXO Dynamic Range (EV)||11.5||..|
|DXO Low Light (ISO)||784||..|
|Screen Specs||Canon 550D||Canon T7i|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||95%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0 inch||3.0 inch|
|LCD Resolution||1040k dots||1040k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 550D||Canon T7i|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||3.7 shutter flaps/s||6 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||100 000 actuations|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||no||UHS-I|
|Connectivity Specs||Canon 550D||Canon T7i|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||External MIC port|
|Wifi Support||no Wifi||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Canon 550D||Canon T7i|
|Battery Life (CIPA)||440 shots per charge||600 shots per charge|
129 x 98 x 62 mm
(5.1 x 3.9 x 2.4 in)
131 x 100 x 76 mm
(5.2 x 3.9 x 3.0 in)
|Camera Weight||530 g (18.7 oz)||532 g (18.8 oz)|
