Canon 50D vs Olympus E-PL6
The Canon EOS 50D and the Olympus PEN E-PL6 are two digital cameras that were announced, respectively, in August 2008 and May 2013. The 50D is a DSLR, while the E-PL6 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (50D) and a Four Thirds (E-PL6) sensor. The Canon has a resolution of 15.1 megapixels, whereas the Olympus provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 50D||Olympus E-PL6|
|Digital single lens reflex||Mirrorless system camera|
|Canon EF mount lenses||Micro Four Thirds lenses|
|15.1 MP, APS-C Sensor||15.9 MP, Four Thirds Sensor|
|no Video||1080/30p Video|
|ISO 100-3200 (100-12800)||ISO 200-25600|
|Optical viewfinder||Viewfinder optional|
|3.0" LCD, 920k dots||3.0" LCD, 460k dots|
|Fixed screen (not touch-sensitive)||Tilting touchscreen|
|6.3 shutter flaps per second||8 shutter flaps per second|
|Lens stabilization only||In-body stabilization|
|Weathersealed body||Not weather sealed|
|800 shots per battery charge||360 shots per battery charge|
|146 x 108 x 74 mm, 822 g||111 x 64 x 38 mm, 325 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 50D and the Olympus PEN E-PL6? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

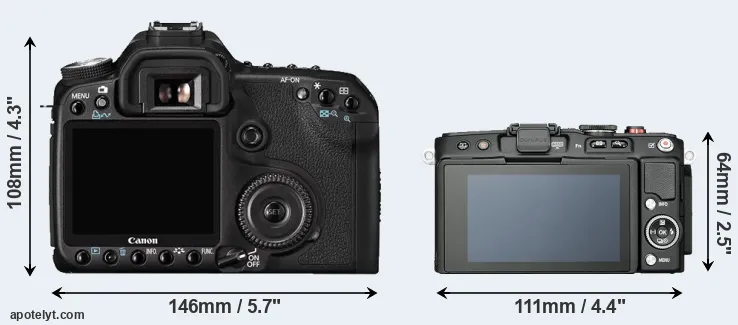

The side-by-side display below illustrates the physical size and weight of the Canon 50D and the Olympus E-PL6. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
The E-PL6 can be obtained in four different colors (black, silver, red, white), while the 50D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL6 is considerably smaller (55 percent) than the Canon 50D. Moreover, the E-PL6 is substantially lighter (60 percent) than the 50D. It is worth mentioning in this context that the 50D is splash and dust resistant, while the E-PL6 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (50D) and the Micro Four Thirds Lens Catalog (E-PL6). Mirrorless cameras, such as the E-PL6, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|Canon 50D»||5.7 in||4.3 in||2.9 in||29.0 oz||800||Y||Aug 2008||1,299||Canon 50D|
|Olympus E-PL6«||4.4 in||2.5 in||1.5 in||11.5 oz||360||n||May 2013||599||Olympus E-PL6|
|Canon 90D« »||5.6 in||4.1 in||3.0 in||24.7 oz||1300||Y||Aug 2019||1,199||Canon 90D|
|Canon 80D« »||5.5 in||4.1 in||3.1 in||25.8 oz||960||Y||Feb 2016||1,199||Canon 80D|
|Canon 7D II« »||5.9 in||4.4 in||3.1 in||32.1 oz||670||Y||Sep 2014||1,799||Canon 7D II|
|Canon 70D« »||5.5 in||4.1 in||3.1 in||26.6 oz||920||Y||Jul 2013||1,199||Canon 70D|
|Canon 60D« »||5.7 in||4.2 in||3.1 in||26.6 oz||1100||Y||Aug 2010||1,399||Canon 60D|
|Canon 7D« »||5.8 in||4.4 in||2.9 in||30.3 oz||800||Y||Sep 2009||1,699||Canon 7D|
|Canon T1i« »||5.1 in||3.9 in||2.4 in||18.3 oz||400||n||Mar 2009||799||Canon T1i|
|Canon 40D« »||5.7 in||4.3 in||2.9 in||29.0 oz||750||n||Aug 2007||1,299||Canon 40D|
|Canon 30D« »||5.7 in||4.2 in||2.9 in||27.7 oz||750||n||Feb 2006||1,399||Canon 30D|
|Canon 20D« »||5.7 in||4.2 in||2.8 in||27.2 oz||700||n||Aug 2004||1,499||Canon 20D|
|Olympus E-M10 II« »||4.7 in||3.3 in||1.9 in||13.8 oz||320||n||Aug 2015||649||Olympus E-M10 II|
|Olympus E-M10« »||4.7 in||3.2 in||1.8 in||14.0 oz||320||n||Jan 2014||699||Olympus E-M10|
|Olympus E-PL7« »||4.5 in||2.6 in||1.5 in||12.6 oz||350||n||Aug 2014||599||Olympus E-PL7|
|Olympus E-PL5« »||4.4 in||2.5 in||1.5 in||11.5 oz||360||n||Sep 2012||599||Olympus E-PL5|
|Olympus E-PM2« »||4.3 in||2.5 in||1.3 in||9.5 oz||360||n||Sep 2012||499||Olympus E-PM2|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-PL6 was launched at a markedly lower price (by 54 percent) than the 50D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 50D features an APS-C sensor and the Olympus E-PL6 a Four Thirds sensor. The sensor area in the E-PL6 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 50D has a native 3:2 aspect ratio, while the one in the E-PL6 offers a 4:3 aspect.
Despite having a smaller sensor, the E-PL6 offers a slightly higher resolution of 15.9 megapixels, compared with 15.1 MP of the 50D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 4.69μm for the 50D). However, it should be noted that the E-PL6 is much more recent (by 4 years and 8 months) than the 50D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The Canon EOS 50D has a native sensitivity range from ISO 100 to ISO 3200, which can be extended to ISO 100-12800. The corresponding ISO settings for the Olympus PEN E-PL6 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Canon 50D||APS-C||15.1||4752||3168||none||21.8||11.4||696||63||Canon 50D|
|Olympus E-PL6||Four Thirds||15.9||4608||3456||1080/30p||..||..||..||..||Olympus E-PL6|
|Canon 90D||APS-C||32.3||6960||4640||4K/30p||..||..||..||..||Canon 90D|
|Canon 80D||APS-C||24.0||6000||4000||1080/60p||23.6||13.2||1135||79||Canon 80D|
|Canon 7D II||APS-C||20.0||5472||3648||1080/60p||22.4||11.8||1082||70||Canon 7D II|
|Canon 70D||APS-C||20.0||5472||3648||1080/30p||22.5||11.6||926||68||Canon 70D|
|Canon 60D||APS-C||17.9||5184||3456||1080/30p||22.2||11.5||813||66||Canon 60D|
|Canon 7D||APS-C||17.9||5184||3456||1080/30p||22.0||11.7||854||66||Canon 7D|
|Canon T1i||APS-C||15.1||4752||3168||1080/20p||21.7||11.5||663||63||Canon T1i|
|Canon 40D||APS-C||10.1||3888||2592||none||22.1||11.3||703||64||Canon 40D|
|Canon 30D||APS-C||8.2||3504||2336||none||21.5||10.8||736||59||Canon 30D|
|Canon 20D||APS-C||8.2||3504||2336||none||21.9||11.0||721||62||Canon 20D|
|Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73||Olympus E-M10 II|
|Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72||Olympus E-M10|
|Olympus E-PL7||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.4||873||72||Olympus E-PL7|
|Olympus E-PL5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||889||72||Olympus E-PL5|
|Olympus E-PM2||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.2||932||72||Olympus E-PM2|
Many modern cameras cannot only take still pictures, but also record videos. The E-PL6 indeed provides for movie recording, while the 50D does not. The highest resolution format that the E-PL6 can use is 1080/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the 50D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-PL6 relies on live view and the rear LCD for framing. That said, the E-PL6 can be equipped with an optional viewfinder – the VF-3. The adjacent table lists some of the other core features of the Canon 50D and Olympus E-PL6 along with similar information for a selection of comparators.
|Canon 50D||optical||Y||3.0||920||fixed||n||1/8000s||6.3||Y||n||Canon 50D|
|Olympus E-PL6||optional||n||3.0||460||tilting||Y||1/4000s||8.0||n||Y||Olympus E-PL6|
|Canon 90D||optical||Y||3.0||1040||swivel||Y||1/8000s||11.0||Y||n||Canon 90D|
|Canon 80D||optical||Y||3.0||1040||swivel||Y||1/8000s||7.0||Y||n||Canon 80D|
|Canon 7D II||optical||Y||3.0||1040||fixed||n||1/8000s||10.0||Y||n||Canon 7D II|
|Canon 70D||optical||Y||3.0||1040||swivel||Y||1/8000s||7.0||Y||n||Canon 70D|
|Canon 60D||optical||Y||3.0||1040||swivel||n||1/8000s||5.3||Y||n||Canon 60D|
|Canon 7D||optical||Y||3.0||920||fixed||n||1/8000s||8.0||Y||n||Canon 7D|
|Canon T1i||optical||n||3.0||920||fixed||n||1/4000s||3.4||Y||n||Canon T1i|
|Canon 40D||optical||Y||3.0||230||fixed||n||1/8000s||6.5||Y||n||Canon 40D|
|Canon 30D||optical||Y||2.5||230||fixed||n||1/8000s||5.0||Y||n||Canon 30D|
|Canon 20D||optical||Y||1.8||118||fixed||n||1/8000s||5.0||Y||n||Canon 20D|
|Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y||Olympus E-M10 II|
|Olympus E-M10||1440||n||3.0||1037||tilting||Y||1/4000s||8.0||Y||Y||Olympus E-M10|
|Olympus E-PL7||optional||n||3.0||1037||tilting||Y||1/4000s||8.0||n||Y||Olympus E-PL7|
|Olympus E-PL5||optional||n||3.0||460||tilting||Y||1/4000s||8.0||n||Y||Olympus E-PL5|
|Olympus E-PM2||optional||n||3.0||460||fixed||Y||1/4000s||8.0||n||Y||Olympus E-PM2|
One difference between the cameras concerns the presence of an on-board flash. The 50D has one, while the E-PL6 does not. While the built-in flash of the 50D is not very powerful, it can at times be useful as a fill-in light.The E-PL6 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 50D does not have a selfie-screen.
The Olympus E-PL6 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 50D writes its imaging data to Compact Flash cards, while the E-PL6 uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 50D and Olympus PEN E-PL6 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Canon 50D||Y||none||none||-||-||mini||2.0||-||-||-||Canon 50D|
|Olympus E-PL6||Y||stereo||mono||-||-||mini||2.0||-||-||-||Olympus E-PL6|
|Canon 90D||Y||stereo||mono||Y||Y||mini||2.0||Y||-||Y||Canon 90D|
|Canon 80D||Y||stereo||mono||Y||Y||mini||2.0||Y||Y||-||Canon 80D|
|Canon 7D II||Y||stereo||mono||Y||Y||mini||3.0||-||-||-||Canon 7D II|
|Canon 70D||Y||stereo||mono||Y||-||mini||2.0||Y||-||-||Canon 70D|
|Canon 60D||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon 60D|
|Canon 7D||Y||mono||none||Y||-||mini||2.0||-||-||-||Canon 7D|
|Canon T1i||Y||mono||mono||-||-||mini||2.0||-||-||-||Canon T1i|
|Canon 40D||Y||none||none||-||-||none||2.0||-||-||-||Canon 40D|
|Canon 30D||Y||none||none||-||-||none||2.0||-||-||-||Canon 30D|
|Canon 20D||Y||none||none||-||-||none||1.1||-||-||-||Canon 20D|
|Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-M10 II|
|Olympus E-M10||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-M10|
|Olympus E-PL7||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-PL7|
|Olympus E-PL5||Y||stereo||mono||-||-||mini||2.0||-||-||-||Olympus E-PL5|
|Olympus E-PM2||Y||stereo||mono||-||-||mini||2.0||-||-||-||Olympus E-PM2|
Studio photographers will appreciate that the Canon 50D (unlike the E-PL6) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 50D and the E-PL6 have been discontinued, but can regularly be found used on eBay. The 50D was replaced by the Canon 60D, while the E-PL6 was followed by the Olympus E-PL7. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So how do things add up? Which of the two cameras – the Canon 50D or the Olympus E-PL6 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Canon EOS 50D:
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- More detailed LCD: Has a higher resolution rear screen (920k vs 460k dots).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Longer lasting: Can take more shots (800 versus 360) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in August 2008).
Advantages of the Olympus PEN E-PL6:
- Broader imaging potential: Can capture not only stills but also 1080/30p video.
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (8 vs 6.3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (111x64mm vs 146x108mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 497g or 60 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- More affordable: Was introduced into a lower priced category (54 percent cheaper at launch).
- More modern: Reflects 4 years and 8 months of technical progress since the 50D launch.
If the count of individual advantages (bullet points above) is taken as a guide, the E-PL6 emerges as the winner of the match-up (12 : 9 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 50D and the Olympus E-PL6 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 50D or the E-PL6. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 50D vs Canon 750D
- Canon 50D vs Canon S120
- Canon 50D vs Fujifilm GFX 100
- Canon 50D vs Hasselblad X1D II
- Canon 50D vs Nikon D5100
- Canon 50D vs Nikon D600
- Canon 50D vs Panasonic S1R
- Canon 50D vs Ricoh GR III
- Canon 50D vs Samsung NX500
- Canon 60D vs Olympus E-PL6
- Fujifilm XP140 vs Olympus E-PL6
- Leica V-LUX 5 vs Olympus E-PL6
Specifications: Canon 50D vs Olympus E-PL6
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 50D||Olympus E-PL6|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Micro Four Thirds lenses|
|Launch Date||August 2008||May 2013|
|Launch Price||USD 1299||USD 599|
|Sensor Specs||Canon 50D||Olympus E-PL6|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.3 x 14.9 mm||17.3 x 13.0 mm|
|Sensor Area||332.27 mm2||224.9 mm2|
|Sensor Diagonal||26.8 mm||21.6 mm|
|Sensor Resolution||15.1 Megapixels||15.9 Megapixels|
|Image Resolution||4752 x 3168 pixels||4608 x 3456 pixels|
|Pixel Pitch||4.69 μm||3.76 μm|
|Pixel Density||4.53 MP/cm2||7.08 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||1080/30p Video|
|ISO Setting||100-3200 ISO||200-25600 ISO|
|ISO Boost||100-12800 ISO||100-25600 ISO|
|Image Processor||DIGIC 4||TruePic VI|
|DXO Sensor Quality (score)||63||..|
|DXO Color Depth (bits)||21.8||..|
|DXO Dynamic Range (EV)||11.4||..|
|DXO Low Light (ISO)||696||..|
|Screen Specs||Canon 50D||Olympus E-PL6|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0 inch||3.0 inch|
|LCD Resolution||920k dots||460k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 50D||Olympus E-PL6|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||6.3 shutter flaps/s||8 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon 50D||Olympus E-PL6|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 50D||Olympus E-PL6|
|Environmental Sealing||Weathersealed body||Not weather sealed|
|Battery Life (CIPA)||800 shots per charge||360 shots per charge|
146 x 108 x 74 mm
(5.7 x 4.3 x 2.9 in)
111 x 64 x 38 mm
(4.4 x 2.5 x 1.5 in)
|Camera Weight||822 g (29.0 oz)||325 g (11.5 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
