Canon 500D vs Epson R-D1

The Canon EOS 500D (called Canon T1i in some regions) and the Epson R-D1 are two digital cameras that were announced, respectively, in March 2009 and March 2004. The 500D is a DSLR, while the R-D1 is a rangefinder-focusing mirrorless camera. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 15.1 megapixels, whereas the Epson provides 6 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon 500D
versus
Epson R-D1
Canon 500D   Epson R-D1
Digital single lens reflex Rangefinder camera
Canon EF mount lenses Leica M mount lenses
15.1 MP – APS-C sensor 6 MP – APS-C sensor
1080/20p Video no Video
ISO 100-6,400 (100 - 12,800) ISO 200-1,600
Optical viewfinder Optical viewfinder
3.0" LCD – 920k dots 2.0" LCD – 235k dots
Fixed screen (not touch-sensitive) Fixed screen (not touch-sensitive)
3.4 shutter flaps per second 1 shutter flaps per second
129 x 98 x 62 mm, 520 g 142 x 89 x 40 mm, 620 g
logo
Check 500D offers at
ebay.com
logo
Check R-D1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 500D and the Epson R-D1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

The side-by-side display below illustrates the physical size and weight of the Canon 500D and the Epson R-D1. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

Size Canon 500D vs Epson R-D1
Compare 500D versus R-D1 top

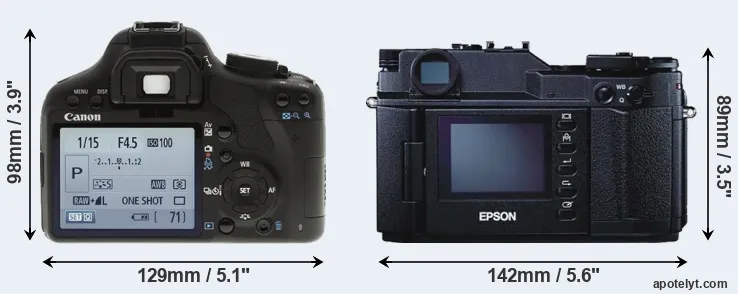

Comparison 500D or R-D1 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 500D and the Epson R-D1 are of equal size. However, the R-D1 is markedly heavier (19 percent) than the 500D. In this context, it is worth noting that neither the 500D nor the R-D1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (500D) and the Leica M Lens Catalog (R-D1).

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

scroll hint
Body Specifications
# image Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon 500D 129 mm 98 mm 62 mm 520 g 400 n Mar 2009 799ebay.com
2.

Epson R-D1 142 mm 89 mm 40 mm 620 g .. n Mar 2004 2,999ebay.com
3.

Canon 750D 132 mm 101 mm 78 mm 555 g 440 n Feb 2015 749ebay.com
4.

Canon 760D 132 mm 101 mm 78 mm 565 g 440 n Feb 2015 649ebay.com
5.

Canon 1200D 130 mm 100 mm 78 mm 480 g 500 n Feb 2014 449ebay.com
6.

Canon G1 X Mark II 116 mm 74 mm 66 mm 553 g 240 n Feb 2014 799ebay.com
7.

Canon 700D 133 mm 100 mm 79 mm 580 g 440 n Mar 2013 649ebay.com
8.

Canon 650D 133 mm 100 mm 79 mm 575 g 440 n Jun 2012 849ebay.com
9.

Canon G1 X 117 mm 81 mm 65 mm 534 g 250 n Jan 2012 799ebay.com
10.

Canon 600D 133 mm 100 mm 80 mm 570 g 440 n Feb 2011 599ebay.com
11.

Canon 550D 129 mm 98 mm 62 mm 530 g 440 n Feb 2010 699ebay.com
12.

Canon 450D 129 mm 98 mm 62 mm 524 g 500 n Jan 2008 799ebay.com
13.

Canon Rebel 142 mm 99 mm 72 mm 649 g 400 n Aug 2003 899ebay.com
14.

Leica X Vario 133 mm 73 mm 95 mm 680 g 450 n Jun 2013 2,850ebay.com
15.

Nikon D50 133 mm 102 mm 76 mm 620 g 400 n Apr 2005 749ebay.com
16.

Nikon D70s 140 mm 111 mm 78 mm 679 g 500 n Apr 2005 899ebay.com
17.

Nikon D70 140 mm 111 mm 78 mm 679 g 400 n Jan 2004 999ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
padding

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The 500D was launched at a markedly lower price (by 73 percent) than the R-D1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the R-D1 is 11 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (500D) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Canon 500D and Epson R-D1 sensor measures

Despite having a smaller sensor, the Canon 500D offers a higher resolution of 15.1 megapixels, compared with 6 MP of the Epson R-D1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.69μm versus 7.85μm for the R-D1). However, it should be noted that the 500D is much more recent (by 5 years) than the R-D1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Canon 500D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 500D for good quality output (200 dots per inch) amounts to 23.8 x 15.8 inches or 60.4 x 40.2 cm, for very good quality (250 dpi) 19 x 12.7 inches or 48.3 x 32.2 cm, and for excellent quality (300 dpi) 15.8 x 10.6 inches or 40.2 x 26.8 cm. The corresponding values for the Epson R-D1 are 15 x 10 inches or 38.2 x 25.4 cm for good quality, 12 x 8 inches or 30.6 x 20.3 cm for very good quality, and 10 x 6.7 inches or 25.5 x 16.9 cm for excellent quality prints.

The Canon EOS 500D has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Epson R-D1 are ISO 200 to ISO 1600 (no boost).

In terms of underlying technology, the 500D is build around a CMOS sensor, while the R-D1 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

500D versus R-D1 MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

scroll hint
Sensor Characteristics
# image Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon 500D APS-C 15.1 4752 31681080/20p21.711.566363
2.

Epson R-D1 APS-C 6.0 3008 2000none21.110.456455
3.

Canon 750D APS-C 24.0 6000 40001080/30p22.712.091971
4.

Canon 760D APS-C 24.0 6000 40001080/30p22.612.091570
5.

Canon 1200D APS-C 17.9 5184 34561080/30p21.911.372463
6.

Canon G1 X Mark II 1.5-inch 13.0 4160 31201080/30p21.510.858158
7.

Canon 700D APS-C 17.9 5184 34561080/30p21.711.268161
8.

Canon 650D APS-C 17.9 5184 34561080/30p21.711.272262
9.

Canon G1 X 1.5-inch 14.2 4352 32641080/24p21.710.864460
10.

Canon 600D APS-C 17.9 5184 34561080/30p22.111.579365
11.

Canon 550D APS-C 17.9 5184 34561080/30p22.111.578466
12.

Canon 450D APS-C 12.2 4272 2848none21.910.869261
13.

Canon Rebel APS-C 6.3 3072 2048none21.010.854455
14.

Leica X Vario APS-C 16.1 4928 32721080/30p23.412.7132078
15.

Nikon D50 APS-C 6.0 3008 2000none20.910.856055
16.

Nikon D70s APS-C 6.0 3008 2000none20.410.352950
17.

Nikon D70 APS-C 6.0 3008 2000none20.410.352950
Note: DXO values in italics represent estimates based on sensor size and age.
padding

Many modern cameras cannot only take still pictures, but also record videos. The 500D indeed provides movie recording capabilities, while the R-D1 does not. The highest resolution format that the 500D can use is 1080/20p.

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The 500D and the R-D1 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The adjacent table lists some of the other core features of the Canon 500D and Epson R-D1 along with similar information for a selection of comparators.

scroll hint
Core Features
# image Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon 500Doptical n3.0 / 920 fixed n 1/4000s 3.4/s Y n
2.

Epson R-D1optical n2.0 / 235 fixed n 1/2000s 1.0/s n n
3.

Canon 750Doptical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
4.

Canon 760Doptical Y3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
5.

Canon 1200Doptical n3.0 / 460 fixed n 1/4000s 3.0/s Y n
6.

Canon G1 X Mark IIoptional n3.0 / 1040 tilting Y 1/4000s 5.2/s Y Y
7.

Canon 700Doptical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
8.

Canon 650Doptical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
9.

Canon G1 Xoptical n3.0 / 922 swivel n 1/4000s 1.9/s Y Y
10.

Canon 600Doptical n3.0 / 1040 swivel n 1/4000s 3.7/s Y n
11.

Canon 550Doptical n3.0 / 1040 fixed n 1/4000s 3.7/s Y n
12.

Canon 450Doptical n3.0 / 230 fixed n 1/4000s 3.5/s Y n
13.

Canon Rebeloptical n1.8 / 118 fixed n 1/4000s 2.5/s Y n
14.

Leica X Variooptional n3.0 / 920 fixed n 1/2000s 5.0/s Y n
15.

Nikon D50optical n2.0 / 130 fixed n 1/4000s 2.5/s Y n
16.

Nikon D70soptical n2.0 / 130 fixed n 1/8000s 3.0/s Y n
17.

Nikon D70optical n1.8 / 130 fixed n 1/8000s 3.0/s Y n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
padding

One difference between the cameras concerns the presence of an on-board flash. The 500D has one, while the R-D1 does not. While the built-in flash of the 500D is not very powerful, it can at times be useful as a fill-in light.

Concerning the storage of imaging data, both the 500D and the R-D1 write their files to SDHC cards.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 500D and Epson R-D1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
# image Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon 500DYmono / mono--mini2.0---
2.

Epson R-D1Y- / --------
3.

Canon 750DYstereo / monoY-mini2.0YY-
4.

Canon 760DYstereo / monoY-mini2.0YY-
5.

Canon 1200DYmono / mono--mini2.0---
6.

Canon G1 X Mark IIYstereo / mono--mini2.0YY-
7.

Canon 700DYstereo / monoY-mini2.0---
8.

Canon 650DYstereo / monoY-mini2.0---
9.

Canon G1 XYstereo / mono--mini2.0---
10.

Canon 600DYmono / monoY-mini2.0---
11.

Canon 550DYstereo / -Y-mini2.0---
12.

Canon 450DY- / ---mini2.0---
13.

Canon RebelY- / ----1.1---
14.

Leica X VarioYstereo / mono--mini2.0---
15.

Nikon D50Y- / ----2.0---
16.

Nikon D70sY- / ----2.0---
17.

Nikon D70Y- / ----1.0---
padding

Studio photographers will appreciate that the Epson R-D1 (unlike the 500D) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the 500D and the R-D1 have been discontinued, but can regularly be found used on ebay. The 500D was replaced by the Canon 550D, while the R-D1 does not have a direct successor. Further information on the features and operation of the 500D and R-D1 can be found, respectively, in the Canon 500D Manual (free pdf) or the online Epson R-D1 Manual.

ad

Review summary

So how do things add up? Which of the two cameras – the Canon 500D or the Epson R-D1 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

ilogo

Arguments in favor of the Canon EOS 500D:

  • More detail: Offers more megapixels (15.1 vs 6MP) with a 58% higher linear resolution.
  • Broader imaging potential: Can record not only still images but also 1080/20p movies.
  • Larger screen: Has a bigger rear LCD (3.0" vs 2.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (920k vs 235k dots).
  • Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
  • Faster burst: Shoots at higher frequency (3.4 vs 1 flaps/sec) to capture the decisive moment.
  • Less heavy: Is lighter (by 100g or 16 percent) and hence easier to carry around.
  • Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
  • More affordable: Was introduced into a lower priced category (73 percent cheaper at launch).
  • More modern: Reflects 5 years of technical progress since the R-D1 launch.

ilogo

Advantages of the Epson R-D1:

  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • More heavily discounted: Has been around for much longer (launched in March 2004).

If the count of individual advantages (bullet points above) is taken as a guide, the 500D is the clear winner of the match-up (10 : 2 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

500D 10:02 R-D1

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 500D and the R-D1 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
# image  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon 500D..+ +..74/1004.5/54.5/5 Mar 2009 799ebay.com
2.

Epson R-D1............ Mar 2004 2,999ebay.com
3.

Canon 750D5/5....75/1004.5/54.5/5 Feb 2015 749ebay.com
4.

Canon 760D5/5+..77/1004.5/54.5/5 Feb 2015 649ebay.com
5.

Canon 1200D3/5+....4/54.5/5 Feb 2014 449ebay.com
6.

Canon G1 X Mark II3/5+..77/1004/54.5/5 Feb 2014 799ebay.com
7.

Canon 700D......76/1004.5/54.5/5 Mar 2013 649ebay.com
8.

Canon 650D4/5+ +..77/1004.5/54.5/5 Jun 2012 849ebay.com
9.

Canon G1 X5/5+..76/1004/54.5/5 Jan 2012 799ebay.com
10.

Canon 600D3/5o..77/1004.5/54.5/5 Feb 2011 599ebay.com
11.

Canon 550D..+ +..77/1004/54.5/5 Feb 2010 699ebay.com
12.

Canon 450D..+ +..+ +4/54.5/5 Jan 2008 799ebay.com
13.

Canon Rebel......+ +.... Aug 2003 899ebay.com
14.

Leica X Vario3/5......4/54/5 Jun 2013 2,850ebay.com
15.

Nikon D50..78/100..+ +4/54.5/5 Apr 2005 749ebay.com
16.

Nikon D70s..........5/5 Apr 2005 899ebay.com
17.

Nikon D70......+ +.... Jan 2004 999ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
padding

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

logo
Check 500D offers at
ebay.com
logo
Check R-D1 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~
    loader
    ad

    Specifications: Canon 500D vs Epson R-D1

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon 500D Epson R-D1
    Camera Type Digital single lens reflex Rangefinder camera
    Camera Lens Canon EF mount lenses Leica M mount lenses
    Launch Date March 2009 March 2004
    Launch Price USD 799 USD 2,999
    Sensor Specs Canon 500D Epson R-D1
    Sensor Technology CMOS CCD
    Sensor Format APS-C Sensor APS-C Sensor
    Sensor Size 22.3 x 14.9 mm 23.7 x 15.6 mm
    Sensor Area 332.27 mm2 369.72 mm2
    Sensor Diagonal 26.8 mm 28.4 mm
    Crop Factor 1.6x 1.5x
    Sensor Resolution 15.1 Megapixels 6 Megapixels
    Image Resolution 4752 x 3168 pixels 3008 x 2000 pixels
    Pixel Pitch 4.69 μm 7.85 μm
    Pixel Density 4.53 MP/cm2 1.63 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 1080/20p Video no Video
    ISO Setting 100 - 6,400 ISO 200 - 1,600 ISO
    ISO Boost 100 - 12,800 ISO no Enhancement
    DXO Sensor Quality (score) 63 ..
    DXO Color Depth (bits) 21.7 ..
    DXO Dynamic Range (EV) 11.5 ..
    DXO Low Light (ISO) 663 ..
    Screen Specs Canon 500D Epson R-D1
    Viewfinder Type Optical viewfinder Optical viewfinder
    Viewfinder Field of View 95% 100%
    Viewfinder Magnification 0.54x
    LCD Framing Live View
    Rear LCD Size 3.0inch 2.0inch
    LCD Resolution 920k dots 235k dots
    LCD Attachment Fixed screen Fixed screen
    Shooting Specs Canon 500D Epson R-D1
    Focus System Phase-detect AF Manual Focus
    Continuous Shooting 3.4 shutter flaps/s 1 shutter flaps/s
    Fill Flash Built-in Flash no On-Board Flash
    Storage Medium SDHC cards SDHC cards
    Single or Dual Card Slots Single card slot Single card slot
    UHS card support no no
    Connectivity Specs Canon 500D Epson R-D1
    External Flash Hotshoe Hotshoe
    Studio Flash no PC Sync PC Sync socket
    USB Connector USB 2.0 no USB
    HDMI Port mini HDMI no HDMI
    Wifi Support no Wifi no Wifi
    Body Specs Canon 500D Epson R-D1
    Battery Type Canon LP-E5 Epson EU-85
    Body Dimensions 129 x 98 x 62 mm
    (5.1 x 3.9 x 2.4 in)
    142 x 89 x 40 mm
    (5.6 x 3.5 x 1.6 in)
    Camera Weight 520 g (18.3 oz) 620 g (21.9 oz)
    logo
    Check 500D offers at
    ebay.com
    logo
    Check R-D1 offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon 500D vs Epson R-D1
