Canon 40D vs Sony A6500
The Canon EOS 40D and the Sony Alpha A6500 are two enthusiast cameras that were announced, respectively, in August 2007 and October 2016. The 40D is a DSLR, while the A6500 is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 10.1 megapixels, whereas the Sony provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 40D and the Sony Alpha A6500? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

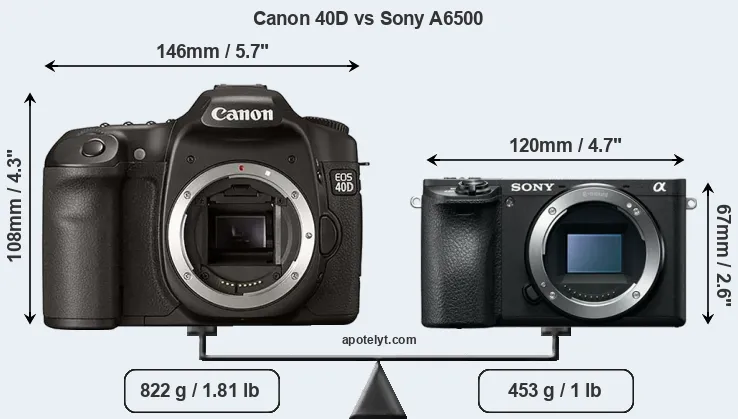

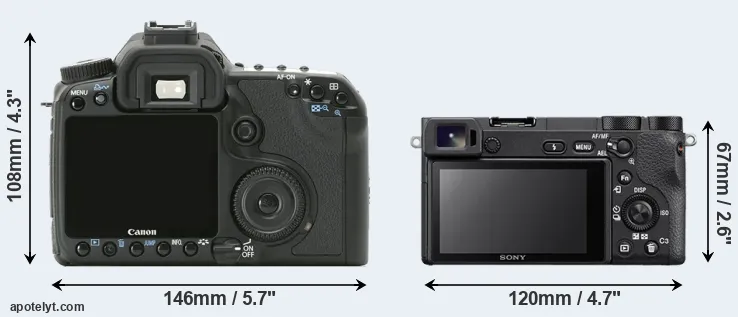

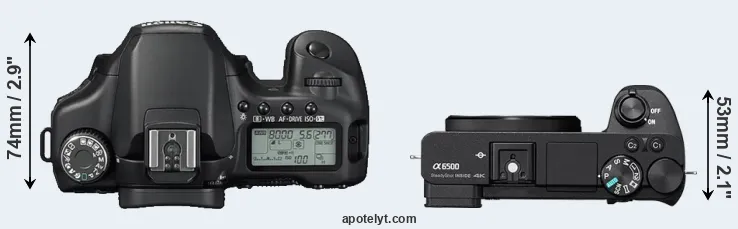

The side-by-side display below illustrates the physical size and weight of the Canon 40D and the Sony A6500. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony A6500 is considerably smaller (49 percent) than the Canon 40D. Moreover, the A6500 is substantially lighter (45 percent) than the 40D. It is noteworthy in this context that the A6500 is splash and dust-proof, while the 40D does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (40D) and the Sony E-Mount Lens Catalog (A6500). Mirrorless cameras, such as the A6500, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
Concerning battery life, the 40D gets 750 shots out of its BP-511A battery, while the A6500 can take 350 images on a single charge of its NP-FW50 power pack. The power pack in the A6500 can be charged via the USB port, which can be very convenient when travelling.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|Canon 40D||5.7 in||4.3 in||2.9 in||29.0 oz||750||n||Aug 2007||1,299|
|Sony A6500||4.7 in||2.6 in||2.1 in||16.0 oz||350||Y||Oct 2016||1,399|
|Canon T3||5.1 in||3.9 in||3.1 in||17.5 oz||700||n||Feb 2011||449|
|Canon 60D||5.7 in||4.2 in||3.1 in||26.6 oz||1100||Y||Aug 2010||1,399|
|Canon 50D||5.7 in||4.3 in||2.9 in||29.0 oz||800||Y||Aug 2008||1,299|
|Canon XS||5.0 in||3.9 in||2.6 in||17.7 oz||500||n||Jun 2008||449|
|Canon XSi||5.1 in||3.9 in||2.4 in||18.5 oz||500||n||Jan 2008||799|
|Canon 30D||5.7 in||4.2 in||2.9 in||27.7 oz||750||n||Feb 2006||1,399|
|Canon XTi||5.0 in||3.3 in||2.6 in||19.6 oz||370||n||Aug 2006||799|
|Canon 20D||5.7 in||4.2 in||2.8 in||27.2 oz||700||n||Aug 2004||1,499|
|Canon 10D||5.9 in||4.2 in||3.0 in||30.0 oz||500||n||Feb 2003||1,999|
|Nikon D90||5.2 in||4.1 in||3.0 in||24.8 oz||850||n||Aug 2008||1,299|
|Panasonic GX8||5.2 in||3.1 in||2.5 in||17.2 oz||330||Y||Jul 2015||1,199|
|Sony A6600||4.7 in||2.6 in||2.7 in||17.7 oz||810||Y||Aug 2019||1,399|
|Sony A6300||4.7 in||2.6 in||1.9 in||14.3 oz||400||Y||Feb 2016||999|
|Sony A77||5.6 in||4.1 in||3.2 in||25.8 oz||470||Y||Aug 2011||1,399|
|Sony NEX-7||4.7 in||2.6 in||1.7 in||14.1 oz||430||n||Aug 2011||1,349|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The 40D was somewhat cheaper (by 7 percent) than the A6500 at launch, but both cameras fall into the same price category. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the A6500 is 11 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (40D) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
In terms of underlying technology, both cameras are build around CMOS sensors.
With 24MP, the A6500 offers a higher resolution than the 40D (10.1MP), but the A6500 has smaller individual pixels (pixel pitch of 3.91μm versus 5.73μm for the 40D). Yet, the A6500 is a much more recent model (by 9 years and 1 month) than the 40D, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.
The resolution advantage of the Sony A6500 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the A6500 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon 40D are 19.4 x 13 inches or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inches or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inches or 32.9 x 21.9 cm for excellent quality prints.
The A6500 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 40D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Sony Alpha A6500 are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the A6500 offers substantially better image quality than the 40D (overall score 21 points higher). The advantage is based on 2.4 bits higher color depth, 2.4 EV in additional dynamic range, and 1 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Panasonic GX8||Four Thirds||20.2||5184||3888||4K/30p||23.5||12.6||806||75|
Many modern cameras cannot only take still pictures, but also record videos. The A6500 indeed provides for movie recording, while the 40D does not. The highest resolution format that the A6500 can use is 4K/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the A6500 has an electronic viewfinder (2359k dots), while the 40D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the A6500 offers a wider field of view (100%) than the one in the 40D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the A6500 has a higher magnification (0.70x vs 0.59x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 40D and Sony A6500 along with similar information for a selection of comparators.
One feature that is present on the 40D, but is missing on the A6500 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the A6500 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The 40D writes its imaging data to Compact Flash cards, while the A6500 uses SDXC or Memory Stick PRO Duo cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 40D and Sony Alpha A6500 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
It is notable that the A6500 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 40D does not provide wifi capability.
Studio photographers will appreciate that the Canon 40D (unlike the A6500) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 40D and the A6500 have been discontinued, but can regularly be found used on eBay. The 40D was replaced by the Canon 50D, while the A6500 was followed by the Sony A6600. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Sony websites.
So how do things add up? Which of the two cameras – the Canon 40D or the Sony A6500 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Canon EOS 40D:
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Longer lasting: Can take more shots (750 versus 350) on a single battery charge.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in August 2007).
Advantages of the Sony Alpha A6500:
- More detail: Has more megapixels (24 vs 10.1MP), which boosts linear resolution by 54%.
- Better image quality: Scores substantially higher (21 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (2.4 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (2.4 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (1 stops ISO advantage).
- Broader imaging potential: Can capture not only stills but also 4K/30p video.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.59x).
- More detailed LCD: Has a higher resolution rear screen (922k vs 230k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster burst: Shoots at higher frequency (11 vs 6.5 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- More compact: Is smaller (120x67mm vs 146x108mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 369g or 45 percent) and is thus easier to take along.
- Easier travel charging: Can be conveniently charged via its USB port.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More modern: Reflects 9 years and 1 month of technical progress since the 40D launch.
If the count of individual advantages (bullet points above) is taken as a guide, the A6500 is the clear winner of the contest (24 : 6 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 40D and the Sony A6500 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 40D or the A6500. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 40D||+ +||+ +||4.5/5||o||4.5/5||Aug 2007||1,299|
|Sony A6500||+ +||85/100||4.5/5||5/5||4.5/5||Oct 2016||1,399|
|Canon T3||80/100||69/100||4/5||4/5||4.5/5||Feb 2011||449|
|Canon 60D||+||79/100||4/5||5/5||4.5/5||Aug 2010||1,399|
|Canon 50D||+ +||+ +||4.5/5||5/5||4.5/5||Aug 2008||1,299|
|Canon XS||82/100||+ +||3.5/5||4/5||4.5/5||Jun 2008||449|
|Canon XSi||+ +||+ +||4/5||5/5||4.5/5||Jan 2008||799|
|Canon 30D||+ +||+ +||o||o||..||Feb 2006||1,399|
|Canon XTi||+ +||+ +||o||4.5/5||4/5||Aug 2006||799|
|Canon 20D||..||+ +||..||o||..||Aug 2004||1,499|
|Canon 10D||..||+ +||..||o||..||Feb 2003||1,999|
|Nikon D90||+ +||+ +||4/5||5/5||4.5/5||Aug 2008||1,299|
|Panasonic GX8||+||82/100||4.5/5||5/5||4.5/5||Jul 2015||1,199|
|Sony A6600||+||83/100||4.5/5||..||4/5||Aug 2019||1,399|
|Sony A6300||+||85/100||5/5||5/5||5/5||Feb 2016||999|
|Sony A77||91/100||81/100||..||4.5/5||5/5||Aug 2011||1,399|
|Sony NEX-7||+ +||81/100||4.5/5||5/5||5/5||Aug 2011||1,349|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon 40D vs Sony A6500
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 40D||Sony A6500|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Sony E mount lenses|
|Launch Date||August 2007||October 2016|
|Launch Price||USD 1,299||USD 1,399|
|Sensor Specs||Canon 40D||Sony A6500|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||23.5 x 15.6 mm|
|Sensor Area||332.27 mm2||366.6 mm2|
|Sensor Diagonal||26.8 mm||28.2 mm|
|Sensor Resolution||10.1 Megapixels||24 Megapixels|
|Image Resolution||3888 x 2592 pixels||6000 x 4000 pixels|
|Pixel Pitch||5.73 μm||3.91 μm|
|Pixel Density||3.03 MP/cm2||6.55 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||4K/30p Video|
|ISO Setting||100 - 1,600 ISO||100 - 25,600 ISO|
|ISO Boost||100 - 3,200 ISO||100 - 51,200 ISO|
|Image Processor||DIGIC 3||BIONZ X|
|DXO Sensor Quality (score)||64||85|
|DXO Color Depth (bits)||22.1||24.5|
|DXO Dynamic Range (EV)||11.3||13.7|
|DXO Low Light (ISO)||703||1405|
|Screen Specs||Canon 40D||Sony A6500|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||95%||100%|
|Viewfinder Resolution||2359k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||230k dots||922k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 40D||Sony A6500|
|Focus System||Phase-detect AF||On-Sensor Phase-detect|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/4000s|
|Continuous Shooting||6.5 shutter flaps/s||11 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||200 000 actuations|
|Electronic Shutter||no E-Shutter||YES|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||CF cards||MS or SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon 40D||Sony A6500|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||micro HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Wifi Support||no Wifi||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Body Specs||Canon 40D||Sony A6500|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||750 shots per charge||350 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
146 x 108 x 74 mm
(5.7 x 4.3 x 2.9 in)
120 x 67 x 53 mm
(4.7 x 2.6 x 2.1 in)
|Camera Weight||822 g (29.0 oz)||453 g (16.0 oz)|
