Canon 40D vs Panasonic ZS80
The Canon EOS 40D and the Panasonic Lumix DC-ZS80 (labelled Panasonic TZ95 in some countries) are two digital cameras that were announced, respectively, in August 2007 and February 2019. The 40D is a DSLR, while the ZS80 is a fixed lens compact. The cameras are based on an APS-C (40D) and a 1/2.3-inch (ZS80) sensor. The Canon has a resolution of 10.1 megapixels, whereas the Panasonic provides 20.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 40D and the Panasonic Lumix DC-ZS80? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The physical size and weight of the Canon 40D and the Panasonic ZS80 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
The ZS80 can be obtained in two different colors (black, silver), while the 40D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic ZS80 is considerably smaller (51 percent) than the Canon 40D. In this context, it is worth noting that neither the 40D nor the ZS80 are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the ZS80 has a lens built in, whereas the 40D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 40D and their specifications in the Canon EF Lens Catalog.
Concerning battery life, the 40D gets 750 shots out of its BP-511A battery, while the ZS80 can take 380 images on a single charge of its DMW-BLG10 power pack. The power pack in the ZS80 can be charged via the USB port, which can be very convenient when travelling.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon 40D||146 mm||108 mm||74 mm||822 g||750||n||Aug 2007||1,299|
|2.||Panasonic ZS80||112 mm||69 mm||42 mm||327 g||380||n||Feb 2019||449|
|3.||Canon SX740||110 mm||64 mm||40 mm||299 g||265||n||Jul 2018||399|
|4.||Canon SX730||110 mm||64 mm||40 mm||300 g||250||n||Apr 2017||399|
|5.||Canon 70D||139 mm||104 mm||79 mm||755 g||920||Y||Jul 2013||1,199|
|6.||Canon 1100D||130 mm||100 mm||78 mm||495 g||700||n||Feb 2011||449|
|7.||Canon 60D||145 mm||106 mm||79 mm||755 g||1100||Y||Aug 2010||1,399|
|8.||Canon 50D||146 mm||108 mm||74 mm||822 g||800||Y||Aug 2008||1,299|
|9.||Canon 450D||129 mm||98 mm||62 mm||524 g||500||n||Jan 2008||799|
|10.||Canon 30D||144 mm||106 mm||74 mm||785 g||750||n||Feb 2006||1,399|
|11.||Canon 400D||127 mm||84 mm||65 mm||556 g||370||n||Aug 2006||799|
|12.||Canon 20D||144 mm||106 mm||72 mm||770 g||700||n||Aug 2004||1,499|
|13.||Fujifilm XF10||113 mm||64 mm||41 mm||279 g||330||n||Jul 2018||499|
|14.||Nikon D90||132 mm||103 mm||77 mm||703 g||850||n||Aug 2008||1,299|
|15.||Olympus E-30||142 mm||108 mm||75 mm||701 g||750||n||Nov 2008||1,299|
|16.||Panasonic TS7||117 mm||76 mm||37 mm||319 g||300||Y||May 2018||449|
|17.||Panasonic ZS70||112 mm||67 mm||41 mm||322 g||380||n||Apr 2017||449|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The ZS80 was launched at a lower price than the 40D, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 40D features an APS-C sensor and the Panasonic ZS80 a 1/2.3-inch sensor. The sensor area in the ZS80 is 92 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 5.6. The sensor in the 40D has a native 3:2 aspect ratio, while the one in the ZS80 offers a 4:3 aspect.

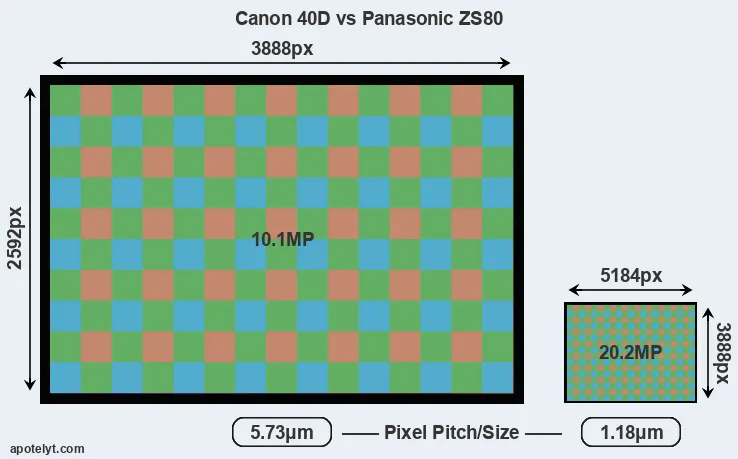

Despite having a smaller sensor, the ZS80 offers a higher resolution of 20.2 megapixels, compared with 10.1 MP of the 40D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.18μm versus 5.73μm for the 40D). However, it should be noted that the ZS80 is much more recent (by 11 years and 6 months) than the 40D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the ZS80 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Panasonic ZS80 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the ZS80 for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Canon 40D are 19.4 x 13 inches or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inches or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inches or 32.9 x 21.9 cm for excellent quality prints.
The Canon EOS 40D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Panasonic Lumix DC-ZS80 are ISO 80 to ISO 3200, with the possibility to increase the ISO range to 80-6400.
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|15.||Olympus E-30||Four Thirds||12.2||4032||3024||none||21.3||10.4||530||55|
Many modern cameras are not only capable of taking still images, but can also record movies. The ZS80 indeed provides for movie recording, while the 40D does not. The highest resolution format that the ZS80 can use is 4K/30p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the ZS80 has an electronic viewfinder (2330k dots), while the 40D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the ZS80 offers a wider field of view (100%) than the one in the 40D (95%), so that a larger proportion of the captured image is visible in the finder. On the other hand, the viewfinder of the 40D has a higher magnification (0.59x vs 0.53x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 40D and Panasonic ZS80 in connection with corresponding information for a sample of similar cameras.
One feature that is present on the 40D, but is missing on the ZS80 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The ZS80 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 40D does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the ZS80 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The 40D writes its imaging data to Compact Flash cards, while the ZS80 uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 40D and Panasonic Lumix DC-ZS80 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
It is notable that the 40D has a hotshoe, while the ZS80 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
Studio photographers will appreciate that the Canon 40D (unlike the ZS80) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The ZS80 is a recent model that features in the current product line-up of Panasonic. In contrast, the 40D has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the 40D was succeeded by the Canon 50D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Panasonic websites.
So what conclusions can be drawn? Which of the two cameras – the Canon 40D or the Panasonic ZS80 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Canon EOS 40D:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.59x vs 0.53x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
- More flexible: Can take a variety of interchangeable lenses, including specialty optics.
- Longer lasting: Can take more shots (750 versus 380) on a single battery charge.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in August 2007).
Reasons to prefer the Panasonic Lumix DC-ZS80:
- More detail: Has more megapixels (20.2 vs 10.1MP), which boosts linear resolution by 39%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Broader imaging potential: Can capture not only stills but also 4K/30p video.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (10 vs 6.5 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Ready to shoot: Comes with an integrated lens, while the 40D requires a separate lens.
- More compact: Is smaller (112x69mm vs 146x108mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the 40D).
- Easier travel charging: Can be conveniently charged via its USB port.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Reflects 11 years and 6 months of technical progress since the 40D launch.
If the number of relative strengths (bullet points above) is taken as a guide, the ZS80 is the clear winner of the contest (20 : 14 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 40D and the Panasonic ZS80 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the 40D and the ZS80 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 40D||..||+ +||+ +||4.5/5||4.5/5||Aug 2007||1,299|
|2.||Panasonic ZS80||..||+ +||..||4.5/5||..||Feb 2019||449|
|3.||Canon SX740||..||+||..||4/5||4/5||Jul 2018||399|
|4.||Canon SX730||..||+||..||4/5||4/5||Apr 2017||399|
|5.||Canon 70D||5/5||+ +||83/100||4.5/5||5/5||Jul 2013||1,199|
|6.||Canon 1100D||..||80/100||69/100||4/5||4.5/5||Feb 2011||449|
|7.||Canon 60D||5/5||+||79/100||4/5||4.5/5||Aug 2010||1,399|
|8.||Canon 50D||..||+ +||+ +||4.5/5||4.5/5||Aug 2008||1,299|
|9.||Canon 450D||..||+ +||+ +||4/5||4.5/5||Jan 2008||799|
|10.||Canon 30D||..||+ +||+ +||o||..||Feb 2006||1,399|
|11.||Canon 400D||..||+ +||+ +||o||4/5||Aug 2006||799|
|12.||Canon 20D||..||..||+ +||..||..||Aug 2004||1,499|
|13.||Fujifilm XF10||..||..||75/100||4/5||4.5/5||Jul 2018||499|
|14.||Nikon D90||..||+ +||+ +||4/5||4.5/5||Aug 2008||1,299|
|15.||Olympus E-30||..||..||71/100||4.5/5||4/5||Nov 2008||1,299|
|16.||Panasonic TS7||..||+||..||..||3.5/5||May 2018||449|
|17.||Panasonic ZS70||..||+ +||..||4/5||4/5||Apr 2017||449|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Canon 40D vs Panasonic ZS80
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 40D||Panasonic ZS80|
|Camera Type||Digital single lens reflex||Fixed lens compact camera|
|Camera Lens||Canon EF mount lenses||24-720mm f/3.3-6.4|
|Launch Date||August 2007||February 2019|
|Launch Price||USD 1,299||USD 449|
|Sensor Specs||Canon 40D||Panasonic ZS80|
|Sensor Format||APS-C Sensor||1/2.3" Sensor|
|Sensor Size||22.3 x 14.9 mm||6.17 x 4.55 mm|
|Sensor Area||332.27 mm2||28.0735 mm2|
|Sensor Diagonal||26.8 mm||7.7 mm|
|Sensor Resolution||10.1 Megapixels||20.2 Megapixels|
|Image Resolution||3888 x 2592 pixels||5184 x 3888 pixels|
|Pixel Pitch||5.73 μm||1.18 μm|
|Pixel Density||3.03 MP/cm2||71.80 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||no Video||4K/30p Video|
|ISO Setting||100 - 1,600 ISO||80 - 3,200 ISO|
|ISO Boost||100 - 3,200 ISO||80 - 6,400 ISO|
|Image Processor||DIGIC 3||Venus|
|DXO Sensor Quality (score)||64||..|
|DXO Color Depth (bits)||22.1||..|
|DXO Dynamic Range (EV)||11.3||..|
|DXO Low Light (ISO)||703||..|
|Screen Specs||Canon 40D||Panasonic ZS80|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||95%||100%|
|Viewfinder Resolution||2330k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||230k dots||1040k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 40D||Panasonic ZS80|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/2000s|
|Continuous Shooting||6.5 shutter flaps/s||10 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon 40D||Panasonic ZS80|
|External Flash||Hotshoe||no Hotshoe|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||micro HDMI|
|Wifi Support||no Wifi||Wifi built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Canon 40D||Panasonic ZS80|
|Battery Life (CIPA)||750 shots per charge||380 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
146 x 108 x 74 mm
(5.7 x 4.3 x 2.9 in)
112 x 69 x 42 mm
(4.4 x 2.7 x 1.7 in)
|Camera Weight||822 g (29.0 oz)||327 g (11.5 oz)|
