Canon 40D vs Olympus E-620
The Canon EOS 40D and the Olympus E-620 are two digital cameras that were officially introduced, respectively, in August 2007 and February 2009. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (40D) and a Four Thirds (E-620) sensor. The Canon has a resolution of 10.1 megapixels, whereas the Olympus provides 12.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 40D and the Olympus E-620? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

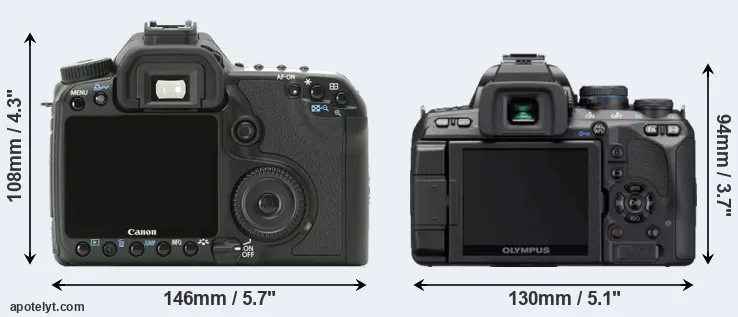

An illustration of the physical size and weight of the Canon 40D and the Olympus E-620 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-620 is notably smaller (23 percent) than the Canon 40D. Moreover, the E-620 is substantially lighter (37 percent) than the 40D. In this context, it is worth noting that neither the 40D nor the E-620 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (40D) and the Four Thirds Lens Catalog (E-620).
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon 40D||146 mm||108 mm||74 mm||822 g||750||n||Aug 2007||1,299|
|2.||Olympus E-620||130 mm||94 mm||60 mm||521 g||500||n||Feb 2009||699|
|3.||Canon T3||130 mm||100 mm||78 mm||495 g||700||n||Feb 2011||449|
|4.||Canon 60D||145 mm||106 mm||79 mm||755 g||1100||Y||Aug 2010||1,399|
|5.||Canon 50D||146 mm||108 mm||74 mm||822 g||800||Y||Aug 2008||1,299|
|6.||Canon XS||126 mm||98 mm||65 mm||502 g||500||n||Jun 2008||449|
|7.||Canon XSi||129 mm||98 mm||62 mm||524 g||500||n||Jan 2008||799|
|8.||Canon 30D||144 mm||106 mm||74 mm||785 g||750||n||Feb 2006||1,399|
|9.||Canon XTi||127 mm||84 mm||65 mm||556 g||370||n||Aug 2006||799|
|10.||Canon 20D||144 mm||106 mm||72 mm||770 g||700||n||Aug 2004||1,499|
|11.||Canon 10D||150 mm||107 mm||75 mm||850 g||500||n||Feb 2003||1,999|
|12.||Nikon D90||132 mm||103 mm||77 mm||703 g||850||n||Aug 2008||1,299|
|13.||Olympus E-600||130 mm||94 mm||60 mm||535 g||500||n||Aug 2009||449|
|14.||Olympus E-420||130 mm||91 mm||53 mm||440 g||500||n||Mar 2008||599|
|15.||Olympus E-520||136 mm||92 mm||68 mm||535 g||750||n||May 2008||699|
|16.||Olympus E-410||130 mm||91 mm||53 mm||435 g||500||n||Mar 2007||699|
|17.||Olympus E-510||136 mm||92 mm||68 mm||538 g||750||n||Mar 2007||799|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-620 was launched at a markedly lower price (by 46 percent) than the 40D, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 40D features an APS-C sensor and the Olympus E-620 a Four Thirds sensor. The sensor area in the E-620 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 40D has a native 3:2 aspect ratio, while the one in the E-620 offers a 4:3 aspect.
Despite having a smaller sensor, the E-620 offers a higher resolution of 12.2 megapixels, compared with 10.1 MP of the 40D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.29μm versus 5.73μm for the 40D). However, it should be noted that the E-620 is a somewhat more recent model (by 1 year and 6 months) than the 40D, and its sensor might have benefitted from technological advances during this time that partly offset its pixel-size disadvantage.
The resolution advantage of the Olympus E-620 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-620 for good quality output (200 dots per inch) amounts to 20.2 x 15.1 inches or 51.2 x 38.4 cm, for very good quality (250 dpi) 16.1 x 12.1 inches or 41 x 30.7 cm, and for excellent quality (300 dpi) 13.4 x 10.1 inches or 34.1 x 25.6 cm. The corresponding values for the Canon 40D are 19.4 x 13 inches or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inches or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inches or 32.9 x 21.9 cm for excellent quality prints.
The Canon EOS 40D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Olympus E-620 are ISO 100 to ISO 3200 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the 40D has a notably higher overall DXO score than the E-620 (overall score 9 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.8 bits higher color depth, 1 EV in additional dynamic range, and 0.4 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|2.||Olympus E-620||Four Thirds||12.2||4032||3024||none||21.3||10.3||536||55|
|13.||Olympus E-600||Four Thirds||12.2||4032||3024||none||21.5||10.3||541||55|
|14.||Olympus E-420||Four Thirds||10.0||3648||2736||none||21.5||10.4||527||56|
|15.||Olympus E-520||Four Thirds||10.0||3648||2736||none||21.4||10.4||548||55|
|16.||Olympus E-410||Four Thirds||10.0||3648||2736||none||21.1||10.0||494||51|
|17.||Olympus E-510||Four Thirds||10.0||3648||2736||none||21.2||10.0||442||52|
Apart from body and sensor, cameras can and do differ across a range of features. The 40D and the E-620 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (95%), but the viewfinder of the 40D has a higher magnification than the one of the E-620 (0.59x vs 0.48x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 40D and Olympus E-620 in connection with corresponding information for a sample of similar cameras.
One feature that is present on the 40D, but is missing on the E-620 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The E-620 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 40D does not have a selfie-screen.
The 40D writes its imaging data to Compact Flash cards, while the E-620 uses Compact Flash or xD Picture cards. The E-620 features dual card slots, which can be very useful in case a memory card fails. In contrast, the 40D only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 40D and Olympus E-620 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
Studio photographers will appreciate that the Canon 40D (unlike the E-620) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 40D and the E-620 have been discontinued, but can regularly be found used on eBay. The 40D was replaced by the Canon 50D, while the E-620 was followed by the Olympus E-600. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what conclusions can be drawn? Which of the two cameras – the Canon 40D or the Olympus E-620 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Canon EOS 40D:
- Better image quality: Scores markedly higher (9 points) in the DXO overall assessment.
- More dynamic range: Captures a larger spectrum of light and dark details (1 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (0.4 stops ISO advantage).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.59x vs 0.48x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (6.5 vs 4 flaps/sec) to capture the decisive moment.
- Longer lasting: Can take more shots (750 versus 500) on a single battery charge.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been on the market for longer (launched in August 2007).
Advantages of the Olympus E-620:
- More detail: Has more megapixels (12.2 vs 10.1MP), which boosts linear resolution by 8%.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- More compact: Is smaller (130x94mm vs 146x108mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 301g or 37 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More affordable: Was introduced into a lower priced category (46 percent cheaper at launch).
- More modern: Was introduced somewhat (1 year and 6 months) more recently.
If the count of relative strengths (bullet points above) is taken as a measure, the 40D emerges as the winner of the contest (11 : 9 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 40D and the Olympus E-620 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 40D or the E-620. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 40D||..||+ +||+ +||4.5/5||4.5/5||Aug 2007||1,299|
|2.||Olympus E-620||3/5||88/100||72/100||4.5/5||5/5||Feb 2009||699|
|3.||Canon T3||..||80/100||69/100||4/5||4.5/5||Feb 2011||449|
|4.||Canon 60D||5/5||+||79/100||4/5||4.5/5||Aug 2010||1,399|
|5.||Canon 50D||..||+ +||+ +||4.5/5||4.5/5||Aug 2008||1,299|
|6.||Canon XS||..||82/100||+ +||3.5/5||4.5/5||Jun 2008||449|
|7.||Canon XSi||..||+ +||+ +||4/5||4.5/5||Jan 2008||799|
|8.||Canon 30D||..||+ +||+ +||o||..||Feb 2006||1,399|
|9.||Canon XTi||..||+ +||+ +||o||4/5||Aug 2006||799|
|10.||Canon 20D||..||..||+ +||..||..||Aug 2004||1,499|
|11.||Canon 10D||..||..||+ +||..||..||Feb 2003||1,999|
|12.||Nikon D90||..||+ +||+ +||4/5||4.5/5||Aug 2008||1,299|
|13.||Olympus E-600||..||..||..||..||4.5/5||Aug 2009||449|
|14.||Olympus E-420||..||85/100||+ +||4/5||4.5/5||Mar 2008||599|
|15.||Olympus E-520||..||87/100||+ +||4.5/5||4.5/5||May 2008||699|
|16.||Olympus E-410||..||86/100||+ +||4/5||4.5/5||Mar 2007||699|
|17.||Olympus E-510||..||89/100||+ +||3.5/5||4.5/5||Mar 2007||799|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Canon 40D vs Olympus E-620
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 40D||Olympus E-620|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Four Thirds lenses|
|Launch Date||August 2007||February 2009|
|Launch Price||USD 1,299||USD 699|
|Sensor Specs||Canon 40D||Olympus E-620|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.3 x 14.9 mm||17.3 x 13.0 mm|
|Sensor Area||332.27 mm2||224.9 mm2|
|Sensor Diagonal||26.8 mm||21.6 mm|
|Sensor Resolution||10.1 Megapixels||12.2 Megapixels|
|Image Resolution||3888 x 2592 pixels||4032 x 3024 pixels|
|Pixel Pitch||5.73 μm||4.29 μm|
|Pixel Density||3.03 MP/cm2||5.42 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||no Video|
|ISO Setting||100 - 1,600 ISO||100 - 3,200 ISO|
|ISO Boost||100 - 3,200 ISO||no Enhancement|
|Image Processor||DIGIC 3||TruePic III+|
|DXO Sensor Quality (score)||64||55|
|DXO Color Depth (bits)||22.1||21.3|
|DXO Dynamic Range (EV)||11.3||10.3|
|DXO Low Light (ISO)||703||536|
|Screen Specs||Canon 40D||Olympus E-620|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||2.7inch|
|LCD Resolution||230k dots||230k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Shooting Specs||Canon 40D||Olympus E-620|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||6.5 shutter flaps/s||4 shutter flaps/s|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||CF cards||CF or XD cards|
|Second Storage Option||Single card slot||Dual card slots|
|Connectivity Specs||Canon 40D||Olympus E-620|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||no HDMI|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 40D||Olympus E-620|
|Battery Life (CIPA)||750 shots per charge||500 shots per charge|
146 x 108 x 74 mm
(5.7 x 4.3 x 2.9 in)
130 x 94 x 60 mm
(5.1 x 3.7 x 2.4 in)
|Camera Weight||822 g (29.0 oz)||521 g (18.4 oz)|
