Canon 40D vs G9X
The Canon EOS 40D and the Canon PowerShot G9 X are two digital cameras that were revealed to the public, respectively, in August 2007 and October 2015. The 40D is a DSLR, while the G9X is a fixed lens compact. The cameras are based on an APS-C (40D) and an one-inch (G9X) sensor. The 40D has a resolution of 10.1 megapixels, whereas the G9X provides 20 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 40D||Canon G9 X|
|Digital single lens reflex||Fixed lens compact camera|
|Canon EF mount lenses||28-84mm f/2.0-4.9|
|10.1 MP, APS-C Sensor||20 MP, 1" Sensor|
|no Video||1080/60p Video|
|ISO 100-1600 (100-3200)||ISO 125-12800|
|Optical viewfinder||No viewfinder, LCD framing|
|3.0" LCD, 230k dots||3.0" LCD, 1040k dots|
|Fixed screen (not touch-sensitive)||Fixed touchscreen|
|6.5 shutter flaps per second||6 shutter flaps per second|
|750 shots per battery charge||220 shots per battery charge|
|146 x 108 x 74 mm, 822 g||98 x 58 x 31 mm, 209 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 40D and the Canon PowerShot G9 X? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

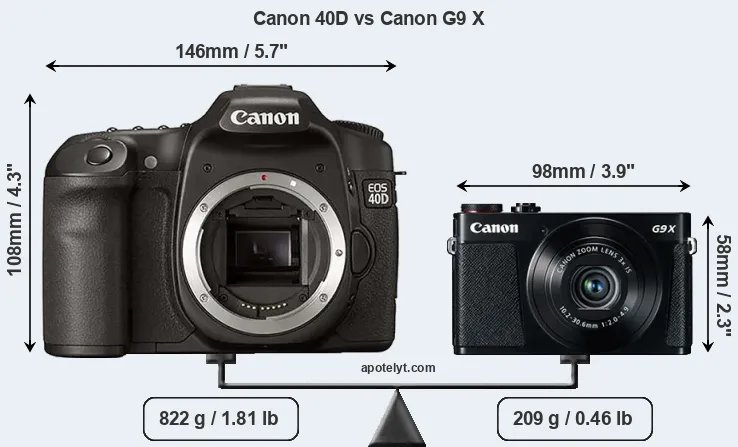

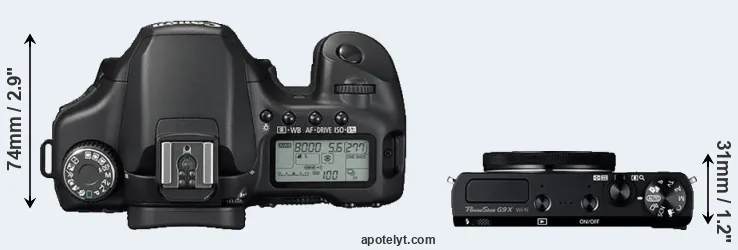

The physical size and weight of the Canon 40D and the Canon G9 X are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
The G9X can be obtained in two different colors (black, silver), while the 40D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon G9 X is considerably smaller (64 percent) than the Canon 40D. In this context, it is worth noting that neither the 40D nor the G9X are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the G9X has a lens built in, whereas the 40D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 40D and their specifications in the Canon EF Lens Catalog.
Concerning battery life, the 40D gets 750 shots out of its BP-511A battery, while the G9X can take 220 images on a single charge of its NB-13L power pack. The power pack in the G9X can be charged via the USB port, which can be very convenient when travelling.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Canon 40D»||5.7 in||4.3 in||2.9 in||29.0 oz||750||n||Aug 2007||1,299||Canon 40D|
|Canon G9 X«||3.9 in||2.3 in||1.2 in||7.4 oz||220||n||Oct 2015||529||Canon G9 X|
|Canon G9 X Mark II« »||3.9 in||2.3 in||1.2 in||7.3 oz||235||n||Jan 2017||529||Canon G9 X Mark II|
|Canon M10« »||4.3 in||2.6 in||1.4 in||10.6 oz||255||n||Oct 2015||499||Canon M10|
|Canon G7 X« »||4.1 in||2.4 in||1.6 in||10.7 oz||210||n||Sep 2014||699||Canon G7 X|
|Canon T3« »||5.1 in||3.9 in||3.1 in||17.5 oz||700||n||Feb 2011||449||Canon T3|
|Canon 60D« »||5.7 in||4.2 in||3.1 in||26.6 oz||1100||Y||Aug 2010||1,399||Canon 60D|
|Canon 50D« »||5.7 in||4.3 in||2.9 in||29.0 oz||800||Y||Aug 2008||1,299||Canon 50D|
|Canon XS« »||5.0 in||3.9 in||2.6 in||17.7 oz||500||n||Jun 2008||449||Canon XS|
|Canon XSi« »||5.1 in||3.9 in||2.4 in||18.5 oz||500||n||Jan 2008||799||Canon XSi|
|Canon 30D« »||5.7 in||4.2 in||2.9 in||27.7 oz||750||n||Feb 2006||1,399||Canon 30D|
|Canon XTi« »||5.0 in||3.3 in||2.6 in||19.6 oz||370||n||Aug 2006||799||Canon XTi|
|Canon 20D« »||5.7 in||4.2 in||2.8 in||27.2 oz||700||n||Aug 2004||1,499||Canon 20D|
|Canon 10D« »||5.9 in||4.2 in||3.0 in||30.0 oz||500||n||Feb 2003||1,999||Canon 10D|
|Nikon 1 J4« »||3.9 in||2.4 in||1.1 in||8.2 oz||300||n||Apr 2014||549||Nikon 1 J4|
|Nikon D90« »||5.2 in||4.1 in||3.0 in||24.8 oz||850||n||Aug 2008||1,299||Nikon D90|
|Sony RX100 IV« »||4.0 in||2.3 in||1.6 in||10.5 oz||280||n||Jun 2015||999||Sony RX100 IV|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The G9X was launched at a lower price than the 40D, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

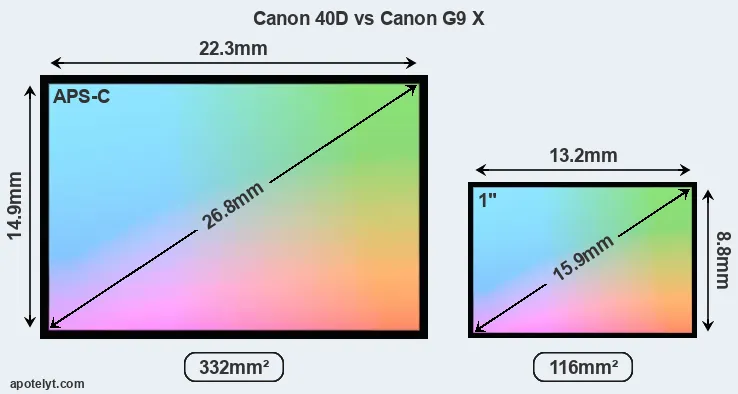

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 40D features an APS-C sensor and the Canon G9 X an one-inch sensor. The sensor area in the G9X is 65 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.7. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, the G9X uses a more advanced image processing engine (DIGIC 6) than the 40D (DIGIC 3), with benefits for noise reduction, color accuracy, and processing speed.
Despite having a smaller sensor, the G9X offers a higher resolution of 20 megapixels, compared with 10.1 MP of the 40D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.41μm versus 5.73μm for the 40D). However, it should be noted that the G9X is much more recent (by 8 years and 1 month) than the 40D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Canon G9 X implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the G9X for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inch or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inch or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inch or 46.3 x 30.9 cm. The corresponding values for the Canon 40D are 19.4 x 13 inch or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inch or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inch or 32.9 x 21.9 cm for excellent quality prints.
The Canon EOS 40D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Canon PowerShot G9 X are ISO 125 to ISO 12800 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Canon 40D||APS-C||10.1||3888||2592||none||22.1||11.3||703||64||Canon 40D|
|Canon G9 X||1-inch||20.0||5472||3648||1080/60p||21.5||12.3||495||63||Canon G9 X|
|Canon G9 X Mark II||1-inch||20.0||5472||3648||1080/60p||21.9||12.5||522||65||Canon G9 X Mark II|
|Canon M10||APS-C||17.9||5184||3456||1080/30p||22.2||11.4||753||65||Canon M10|
|Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71||Canon G7 X|
|Canon T3||APS-C||12.2||4272||2848||720/30p||21.9||11.0||755||62||Canon T3|
|Canon 60D||APS-C||17.9||5184||3456||1080/30p||22.2||11.5||813||66||Canon 60D|
|Canon 50D||APS-C||15.1||4752||3168||none||21.8||11.4||696||63||Canon 50D|
|Canon XS||APS-C||10.1||3888||2592||none||..||..||..||..||Canon XS|
|Canon XSi||APS-C||12.2||4272||2848||none||21.9||10.8||692||61||Canon XSi|
|Canon 30D||APS-C||8.2||3504||2336||none||21.5||10.8||736||59||Canon 30D|
|Canon XTi||APS-C||10.1||3888||2592||none||22.1||11.0||664||62||Canon XTi|
|Canon 20D||APS-C||8.2||3504||2336||none||21.9||11.0||721||62||Canon 20D|
|Canon 10D||APS-C||6.3||3072||2048||none||21.1||10.9||571||57||Canon 10D|
|Nikon 1 J4||1-inch||18.2||5232||3488||1080/60p||20.8||10.7||426||53||Nikon 1 J4|
|Nikon D90||APS-C||12.2||4288||2848||720/24p||22.7||12.5||977||73||Nikon D90|
|Sony RX100 IV||1-inch||20.0||5472||3648||4K/30p||22.8||12.6||591||70||Sony RX100 IV|
Many modern cameras are not only capable of taking still images, but can also record movies. The G9X indeed provides for movie recording, while the 40D does not. The highest resolution format that the G9X can use is 1080/60p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the 40D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the G9X relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon 40D and Canon G9 X in connection with corresponding information for a sample of similar cameras.
|Canon 40D||optical||Y||3.0||230||fixed||n||1/8000s||6.5||Y||n||Canon 40D|
|Canon G9 X||none||n||3.0||1040||fixed||Y||1/2000s||6.0||Y||Y||Canon G9 X|
|Canon G9 X Mark II||none||n||3.0||1040||fixed||Y||1/2000s||8.2||Y||Y||Canon G9 X Mark II|
|Canon M10||none||n||3.0||1040||tilting||Y||1/4000s||4.6||Y||n||Canon M10|
|Canon G7 X||none||n||3.0||1040||tilting||Y||1/2000s||6.5||Y||Y||Canon G7 X|
|Canon T3||optical||n||2.7||230||fixed||n||1/4000s||3.0||Y||n||Canon T3|
|Canon 60D||optical||Y||3.0||1040||swivel||n||1/8000s||5.3||Y||n||Canon 60D|
|Canon 50D||optical||Y||3.0||920||fixed||n||1/8000s||6.3||Y||n||Canon 50D|
|Canon XS||optical||n||2.5||230||fixed||n||1/4000s||3.0||Y||n||Canon XS|
|Canon XSi||optical||n||3.0||230||fixed||n||1/4000s||3.5||Y||n||Canon XSi|
|Canon 30D||optical||Y||2.5||230||fixed||n||1/8000s||5.0||Y||n||Canon 30D|
|Canon XTi||optical||n||2.5||230||fixed||n||1/4000s||3.0||Y||n||Canon XTi|
|Canon 20D||optical||Y||1.8||118||fixed||n||1/8000s||5.0||Y||n||Canon 20D|
|Canon 10D||optical||Y||1.8||118||fixed||n||1/4000s||3.0||Y||n||Canon 10D|
|Nikon 1 J4||none||n||3.0||1037||Fixed||Y||1/4000s||60.0||Y||n||Nikon 1 J4|
|Nikon D90||optical||Y||3.0||920||fixed||n||1/4000s||4.5||Y||n||Nikon D90|
|Sony RX100 IV||2359||n||3.0||1228||tilting||n||1/2000s||16.0||Y||Y||Sony RX100 IV|
One feature that is present on the 40D, but is missing on the G9X is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The Canon G9 X has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 40D writes its imaging data to Compact Flash cards, while the G9X uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 40D and Canon PowerShot G9 X and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Canon 40D||Y||none||none||-||-||none||2.0||-||-||-||Canon 40D|
|Canon G9 X||-||stereo||mono||-||-||micro||2.0||Y||Y||-||Canon G9 X|
|Canon G9 X Mark II||-||stereo||mono||-||-||micro||2.0||Y||Y||Y||Canon G9 X Mark II|
|Canon M10||-||stereo||mono||-||-||mini||2.0||Y||Y||-||Canon M10|
|Canon G7 X||-||stereo||mono||-||-||micro||2.0||Y||Y||-||Canon G7 X|
|Canon T3||Y||stereo||mono||-||-||mini||2.0||-||-||-||Canon T3|
|Canon 60D||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon 60D|
|Canon 50D||Y||none||none||-||-||mini||2.0||-||-||-||Canon 50D|
|Canon XS||Y||none||none||-||-||none||2.0||-||-||-||Canon XS|
|Canon XSi||Y||none||none||-||-||mini||2.0||-||-||-||Canon XSi|
|Canon 30D||Y||none||none||-||-||none||2.0||-||-||-||Canon 30D|
|Canon XTi||Y||none||none||-||-||none||2.0||-||-||-||Canon XTi|
|Canon 20D||Y||none||none||-||-||none||1.1||-||-||-||Canon 20D|
|Canon 10D||Y||none||none||-||-||none||1.1||-||-||-||Canon 10D|
|Nikon 1 J4||-||stereo||mono||-||-||mini||2.0||Y||-||-||Nikon 1 J4|
|Nikon D90||Y||mono||mono||-||-||mini||2.0||-||-||-||Nikon D90|
|Sony RX100 IV||-||stereo||mono||-||-||micro||2.0||Y||Y||-||Sony RX100 IV|
It is notable that the 40D has a hotshoe, while the G9X does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
Studio photographers will appreciate that the Canon 40D (unlike the G9X) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 40D and the G9X have been discontinued, but can regularly be found used on eBay. The 40D was replaced by the Canon 50D, while the G9X was followed by the Canon G9 X Mark II. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So what conclusions can be drawn? Is the Canon 40D better than the Canon G9 X or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Canon EOS 40D:
- Better low-light sensitivity: Requires less light for good images (0.5 stops ISO advantage).
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
- More flexible: Can take a variety of interchangeable lenses, including specialty optics.
- Longer lasting: Can take more shots (750 versus 220) on a single battery charge.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in August 2007).
Advantages of the Canon PowerShot G9 X:
- More detail: Has more megapixels (20 vs 10.1MP), which boosts linear resolution by 41%.
- More dynamic range: Captures a broader range of light and dark details (1 EV of extra DR).
- Better jpgs: Has a more modern image processing engine (DIGIC 6 vs DIGIC 3).
- Broader imaging potential: Can capture not only stills but also 1080/60p video.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Ready to shoot: Comes with an integrated lens, while the 40D requires a separate lens.
- More compact: Is smaller (98x58mm vs 146x108mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the 40D).
- Easier travel charging: Can be conveniently charged via its USB port.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Reflects 8 years and 1 month of technical progress since the 40D launch.
If the number of relative strengths (bullet points above) is taken as a guide, the G9X is the clear winner of the contest (15 : 9 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 40D and the Canon G9 X place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 40D and the G9X in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 40D vs Canon SL1
- Canon 40D vs Nikon 1 V2
- Canon 40D vs Panasonic FZ150
- Canon 700D vs Canon G9 X Mark II
- Canon G9 X Mark II vs Fujifilm X100T
- Canon G9 X Mark II vs Leica M Typ 240
- Canon G9 X Mark II vs Nikon P900
- Canon G9 X Mark II vs Sony HX80
- Canon G9 X vs Nikon D3
- Canon G9 X vs Nikon D500
- Canon G9 X vs Nikon Z6
- Canon G9 X vs Panasonic FZ150
Specifications: Canon 40D vs Canon G9 X
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 40D||Canon G9 X|
|Camera Type||Digital single lens reflex||Fixed lens compact camera|
|Camera Lens||Canon EF mount lenses||28-84mm f/2.0-4.9|
|Launch Date||August 2007||October 2015|
|Launch Price||USD 1299||USD 529|
|Sensor Specs||Canon 40D||Canon G9 X|
|Sensor Format||APS-C Sensor||1" Sensor|
|Sensor Size||22.3 x 14.9 mm||13.2 x 8.8 mm|
|Sensor Area||332.27 mm2||116.16 mm2|
|Sensor Diagonal||26.8 mm||15.9 mm|
|Sensor Resolution||10.1 Megapixels||20 Megapixels|
|Image Resolution||3888 x 2592 pixels||5472 x 3648 pixels|
|Pixel Pitch||5.73 μm||2.41 μm|
|Pixel Density||3.03 MP/cm2||17.18 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||1080/60p Video|
|ISO Setting||100-1600 ISO||125-12800 ISO|
|ISO Boost||100-3200 ISO||no Enhancement|
|Image Processor||DIGIC 3||DIGIC 6|
|DXO Sensor Quality (score)||64||63|
|DXO Color Depth (bits)||22.1||21.5|
|DXO Dynamic Range (EV)||11.3||12.3|
|DXO Low Light (ISO)||703||495|
|Screen Specs||Canon 40D||Canon G9 X|
|Viewfinder Type||Optical viewfinder||No viewfinder|
|Viewfinder Field of View||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0 inch||3.0 inch|
|LCD Resolution||230k dots||1040k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 40D||Canon G9 X|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||No Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000/s||1/2000/s|
|Continuous Shooting||6.5 shutter flaps/s||6 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon 40D||Canon G9 X|
|External Flash||Hotshoe||no Hotshoe|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||micro HDMI|
|Wifi Support||no Wifi||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Body Specs||Canon 40D||Canon G9 X|
|Battery Life (CIPA)||750 shots per charge||220 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
146 x 108 x 74 mm
(5.7 x 4.3 x 2.9 in)
98 x 58 x 31 mm
(3.9 x 2.3 x 1.2 in)
|Camera Weight||822 g (29.0 oz)||209 g (7.4 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
