Canon 40D vs 80D
The Canon EOS 40D and the Canon EOS 80D are two enthusiast cameras that were announced, respectively, in August 2007 and February 2016. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The 40D has a resolution of 10.1 megapixels, whereas the 80D provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 40D and the Canon EOS 80D? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
An illustration of the physical size and weight of the Canon 40D and the Canon 80D is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 80D is notably smaller (7 percent) than the Canon 40D. Moreover, the 80D is markedly lighter (11 percent) than the 40D. It is noteworthy in this context that the 80D is splash and dust-proof, while the 40D does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Canon EF Lens Catalog.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon 40D||146 mm||108 mm||74 mm||822 g||750||n||Aug 2007||1,299||ebay.com|
|2.||Canon 80D||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199||ebay.com|
|3.||Canon 90D||141 mm||105 mm||77 mm||701 g||1300||Y||Aug 2019||1,199||amazon.com|
|4.||Canon 6D Mark II||144 mm||111 mm||75 mm||765 g||1200||Y||Jun 2017||1,999||amazon.com|
|5.||Canon 70D||139 mm||104 mm||79 mm||755 g||920||Y||Jul 2013||1,199||ebay.com|
|6.||Canon T3||130 mm||100 mm||78 mm||495 g||700||n||Feb 2011||449||ebay.com|
|7.||Canon 60D||145 mm||106 mm||79 mm||755 g||1100||Y||Aug 2010||1,399||ebay.com|
|8.||Canon 50D||146 mm||108 mm||74 mm||822 g||800||Y||Aug 2008||1,299||ebay.com|
|9.||Canon XS||126 mm||98 mm||65 mm||502 g||500||n||Jun 2008||449||ebay.com|
|10.||Canon XSi||129 mm||98 mm||62 mm||524 g||500||n||Jan 2008||799||ebay.com|
|11.||Canon 30D||144 mm||106 mm||74 mm||785 g||750||n||Feb 2006||1,399||ebay.com|
|12.||Canon XTi||127 mm||84 mm||65 mm||556 g||370||n||Aug 2006||799||ebay.com|
|13.||Canon 20D||144 mm||106 mm||72 mm||770 g||700||n||Aug 2004||1,499||ebay.com|
|14.||Canon 10D||150 mm||107 mm||75 mm||850 g||500||n||Feb 2003||1,999||ebay.com|
|15.||Nikon D7500||136 mm||104 mm||73 mm||720 g||950||Y||Apr 2017||1,299||amazon.com|
|16.||Nikon D90||132 mm||103 mm||77 mm||703 g||850||n||Aug 2008||1,299||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The 80D was somewhat cheaper (by 8 percent) than the 40D at launch, but both cameras fall into the same price category. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

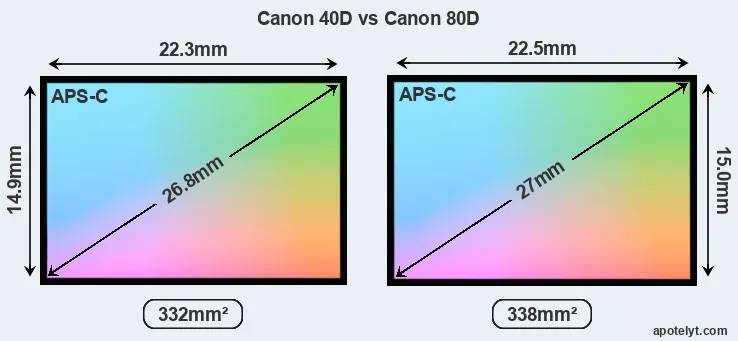

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the 80D is 2 percent bigger. They nevertheless have the same format factor of 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, the 80D uses a more advanced image processing engine (DIGIC 6) than the 40D (DIGIC 3), with benefits for noise reduction, color accuracy, and processing speed.

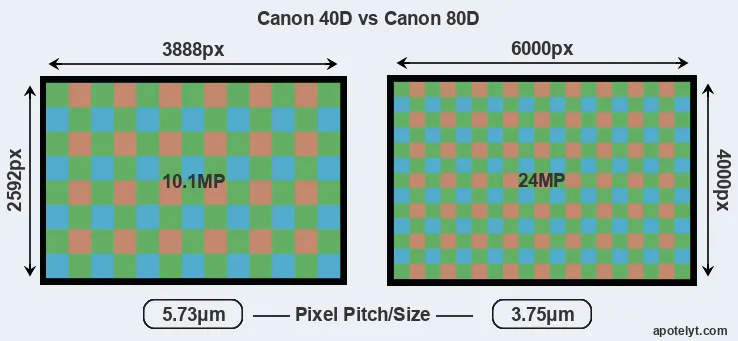

With 24MP, the 80D offers a higher resolution than the 40D (10.1MP), but the 80D has smaller individual pixels (pixel pitch of 3.75μm versus 5.73μm for the 40D). Yet, the 80D is a much more recent model (by 8 years and 6 months) than the 40D, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.
The resolution advantage of the Canon 80D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 80D for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon 40D are 19.4 x 13 inches or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inches or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inches or 32.9 x 21.9 cm for excellent quality prints.
The 80D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 40D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Canon EOS 80D are ISO 100 to ISO 16000, with the possibility to increase the ISO range to 100-25600.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the 80D offers substantially better image quality than the 40D (overall score 15 points higher). The advantage is based on 1.5 bits higher color depth, 1.9 EV in additional dynamic range, and 0.7 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|4.||Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The 80D indeed provides for movie recording, while the 40D does not. The highest resolution format that the 80D can use is 1080/60p.
Apart from body and sensor, cameras can and do differ across a range of features. The 40D and the 80D are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same magnification (0.59x), but the one in the 80D has a wider field of view (100%) than the finder in the 40D (95%), so that a larger proportion of the captured image is visible. The following table reports on some other key feature differences and similarities of the Canon 40D, the Canon 80D, and comparable cameras.
|1.||Canon 40D||optical||Y||3.0 / 230||fixed||n||1/8000s||6.5/s||Y||n|
|2.||Canon 80D||optical||Y||3.0 / 1040||swivel||Y||1/8000s||7.0/s||Y||n|
|3.||Canon 90D||optical||Y||3.0 / 1040||swivel||Y||1/8000s||11.0/s||Y||n|
|4.||Canon 6D Mark II||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.5/s||n||n|
|5.||Canon 70D||optical||Y||3.0 / 1040||swivel||Y||1/8000s||7.0/s||Y||n|
|6.||Canon T3||optical||n||2.7 / 230||fixed||n||1/4000s||3.0/s||Y||n|
|7.||Canon 60D||optical||Y||3.0 / 1040||swivel||n||1/8000s||5.3/s||Y||n|
|8.||Canon 50D||optical||Y||3.0 / 920||fixed||n||1/8000s||6.3/s||Y||n|
|9.||Canon XS||optical||n||2.5 / 230||fixed||n||1/4000s||3.0/s||Y||n|
|10.||Canon XSi||optical||n||3.0 / 230||fixed||n||1/4000s||3.5/s||Y||n|
|11.||Canon 30D||optical||Y||2.5 / 230||fixed||n||1/8000s||5.0/s||Y||n|
|12.||Canon XTi||optical||n||2.5 / 230||fixed||n||1/4000s||3.0/s||Y||n|
|13.||Canon 20D||optical||Y||1.8 / 118||fixed||n||1/8000s||5.0/s||Y||n|
|14.||Canon 10D||optical||Y||1.8 / 118||fixed||n||1/4000s||3.0/s||Y||n|
|15.||Nikon D7500||optical||Y||3.2 / 922||tilting||Y||1/8000s||8.0/s||Y||n|
|16.||Nikon D90||optical||Y||3.0 / 920||fixed||n||1/4000s||4.5/s||Y||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The 80D has a touchscreen, while the 40D has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.The 80D has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 40D does not have a selfie-screen.
The Canon 80D has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 40D writes its imaging data to Compact Flash cards, while the 80D uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 40D and Canon EOS 80D and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon 40D||Y||- / -||-||-||-||2.0||-||-||-|
|2.||Canon 80D||Y||stereo / mono||Y||Y||mini||2.0||Y||Y||-|
|3.||Canon 90D||Y||stereo / mono||Y||Y||mini||2.0||Y||-||Y|
|4.||Canon 6D Mark II||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|5.||Canon 70D||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|6.||Canon T3||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|7.||Canon 60D||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|8.||Canon 50D||Y||- / -||-||-||mini||2.0||-||-||-|
|9.||Canon XS||Y||- / -||-||-||-||2.0||-||-||-|
|10.||Canon XSi||Y||- / -||-||-||mini||2.0||-||-||-|
|11.||Canon 30D||Y||- / -||-||-||-||2.0||-||-||-|
|12.||Canon XTi||Y||- / -||-||-||-||2.0||-||-||-|
|13.||Canon 20D||Y||- / -||-||-||-||1.1||-||-||-|
|14.||Canon 10D||Y||- / -||-||-||-||1.1||-||-||-|
|15.||Nikon D7500||Y||stereo / mono||Y||Y||mini||2.0||Y||-||Y|
|16.||Nikon D90||Y||mono / mono||-||-||mini||2.0||-||-||-|
It is notable that the 80D offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 40D does not provide wifi capability.
Studio photographers will appreciate that the Canon 40D (unlike the 80D) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 40D and the 80D have been discontinued, but can regularly be found used on ebay. The 40D was replaced by the Canon 50D, while the 80D was followed by the Canon 90D. Further information on the features and operation of the 40D and 80D can be found, respectively, in the Canon 40D Manual (free pdf) or the online Canon 80D Manual.
So how do things add up? Which of the two cameras – the Canon 40D or the Canon 80D – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.
Arguments in favor of the Canon EOS 40D:
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in August 2007).
Reasons to prefer the Canon EOS 80D:
- More detail: Has more megapixels (24 vs 10.1MP), which boosts linear resolution by 54%.
- Better image quality: Scores substantially higher (15 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (1.5 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (1.9 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (0.7 stops ISO advantage).
- Better jpgs: Has a more modern image processing engine (DIGIC 6 vs DIGIC 3).
- Broader imaging potential: Can capture not only stills but also 1080/60p video.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Less heavy: Has a lower weight (by 92g or 11 percent) and is thus easier to take along.
- Longer lasting: Gets more shots (960 versus 750) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More modern: Reflects 8 years and 6 months of technical progress since the 40D launch.
If the count of relative strengths (bullet points above) is taken as a measure, the 80D is the clear winner of the contest (21 : 2 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 40D and the Canon 80D place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the 40D or the 80D perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 40D||..||+ +||..||+ +||4.5/5||4.5/5||Aug 2007||1,299||ebay.com|
|2.||Canon 80D||4/5||+ +||4.5/5||84/100||4.5/5||4.5/5||Feb 2016||1,199||ebay.com|
|3.||Canon 90D||4/5||+||4.5/5||85/100||4.5/5||4.5/5||Aug 2019||1,199||amazon.com|
|4.||Canon 6D Mark II||4/5||+||4/5||80/100||4.5/5||4/5||Jun 2017||1,999||amazon.com|
|5.||Canon 70D||5/5||+ +||..||83/100||4.5/5||5/5||Jul 2013||1,199||ebay.com|
|6.||Canon T3||..||80/100||..||69/100||4/5||4.5/5||Feb 2011||449||ebay.com|
|7.||Canon 60D||5/5||+||..||79/100||4/5||4.5/5||Aug 2010||1,399||ebay.com|
|8.||Canon 50D||..||+ +||..||+ +||4.5/5||4.5/5||Aug 2008||1,299||ebay.com|
|9.||Canon XS||..||82/100||..||+ +||3.5/5||4.5/5||Jun 2008||449||ebay.com|
|10.||Canon XSi||..||+ +||..||+ +||4/5||4.5/5||Jan 2008||799||ebay.com|
|11.||Canon 30D||..||+ +||..||+ +||o||..||Feb 2006||1,399||ebay.com|
|12.||Canon XTi||..||+ +||..||+ +||o||4/5||Aug 2006||799||ebay.com|
|13.||Canon 20D||..||..||..||+ +||..||..||Aug 2004||1,499||ebay.com|
|14.||Canon 10D||..||..||..||+ +||..||..||Feb 2003||1,999||ebay.com|
|15.||Nikon D7500||4.5/5||+ +||4.5/5||86/100||5/5||4.5/5||Apr 2017||1,299||amazon.com|
|16.||Nikon D90||..||+ +||..||+ +||4/5||4.5/5||Aug 2008||1,299||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Canon 40D vs Canon 80D
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 40D||Canon 80D|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Canon EF mount lenses|
|Launch Date||August 2007||February 2016|
|Launch Price||USD 1,299||USD 1,199|
|Sensor Specs||Canon 40D||Canon 80D|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||22.5 x 15.0 mm|
|Sensor Area||332.27 mm2||337.5 mm2|
|Sensor Diagonal||26.8 mm||27 mm|
|Sensor Resolution||10.1 Megapixels||24 Megapixels|
|Image Resolution||3888 x 2592 pixels||6000 x 4000 pixels|
|Pixel Pitch||5.73 μm||3.75 μm|
|Pixel Density||3.03 MP/cm2||7.11 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||1080/60p Video|
|ISO Setting||100 - 1,600 ISO||100 - 16,000 ISO|
|ISO Boost||100 - 3,200 ISO||100 - 25,600 ISO|
|Image Processor||DIGIC 3||DIGIC 6|
|DXO Sensor Quality (score)||64||79|
|DXO Color Depth (bits)||22.1||23.6|
|DXO Dynamic Range (EV)||11.3||13.2|
|DXO Low Light (ISO)||703||1135|
|Screen Specs||Canon 40D||Canon 80D|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||100%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||230k dots||1040k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 40D||Canon 80D|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||6.5 shutter flaps/s||7 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||100 000 actuations|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||CF cards||SDXC cards|
|Single or Dual Card Slots||Single card slot||Single card slot|
|Connectivity Specs||Canon 40D||Canon 80D|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Body Specs||Canon 40D||Canon 80D|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||750 shots per charge||960 shots per charge|
146 x 108 x 74 mm
(5.7 x 4.3 x 2.9 in)
139 x 105 x 79 mm
(5.5 x 4.1 x 3.1 in)
|Camera Weight||822 g (29.0 oz)||730 g (25.8 oz)|
