Canon 40D vs 5D Mark IV
The Canon EOS 40D and the Canon EOS 5D Mark IV are two digital cameras that were announced, respectively, in August 2007 and August 2016. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (40D) and a full frame (5D Mark IV) sensor. The 40D has a resolution of 10.1 megapixels, whereas the 5D Mark IV provides 30.1 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 40D||Canon 5D Mark IV|
|Digital single lens reflex||Digital single lens reflex|
|Canon EF mount lenses||Canon EF mount lenses|
|10.1 MP, APS-C Sensor||30.1 MP, Full Frame Sensor|
|no Video||4K/30p Video|
|ISO 100-1600 (100-3200)||ISO 100-32000 (50-102400)|
|Optical viewfinder||Optical viewfinder|
|3.0" LCD, 230k dots||3.2" LCD, 1620k dots|
|Fixed screen (not touch-sensitive)||Fixed touchscreen|
|6.5 shutter flaps per second||7 shutter flaps per second|
|Not weather sealed||Weathersealed body|
|750 shots per battery charge||900 shots per battery charge|
|146 x 108 x 74 mm, 822 g||151 x 116 x 76 mm, 890 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 40D and the Canon EOS 5D Mark IV? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison: Canon 40D vs 5D Mark IV
The physical size and weight of the Canon 40D and the Canon 5D Mark IV are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 5D Mark IV is notably larger (11 percent) than the Canon 40D. Moreover, the 5D Mark IV is markedly heavier (8 percent) than the 40D. It is noteworthy in this context that the 5D Mark IV is splash and dust-proof, while the 40D does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the 5D Mark IV) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (40D). You can compare the optics available in the Canon EF Lens Catalog.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Canon 40D»||5.7 in||4.3 in||2.9 in||29.0 oz||750||n||Aug 2007||1,299||-||Canon 40D|
|Canon 5D Mark IV«||5.9 in||4.6 in||3.0 in||31.4 oz||900||Y||Aug 2016||3,499||Canon 5D Mark IV|
|Canon 6D Mark II« »||5.7 in||4.4 in||3.0 in||27.0 oz||1200||Y||Jun 2017||1,999||Canon 6D Mark II|
|Canon 1D X Mark II« »||6.2 in||6.6 in||3.3 in||54.0 oz||1210||Y||Feb 2016||5,999||Canon 1D X Mark II|
|Canon 5DS« »||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699||Canon 5DS|
|Canon 5DS R« »||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699||Canon 5DS R|
|Canon 5D Mark III« »||6.0 in||4.6 in||3.0 in||33.5 oz||950||Y||Mar 2012||3,499||-||Canon 5D Mark III|
|Canon T3« »||5.1 in||3.9 in||3.1 in||17.5 oz||700||n||Feb 2011||449||-||Canon T3|
|Canon 60D« »||5.7 in||4.2 in||3.1 in||26.6 oz||1100||Y||Aug 2010||1,399||-||Canon 60D|
|Canon 50D« »||5.7 in||4.3 in||2.9 in||29.0 oz||800||Y||Aug 2008||1,299||-||Canon 50D|
|Canon XS« »||5.0 in||3.9 in||2.6 in||17.7 oz||500||n||Jun 2008||449||-||Canon XS|
|Canon XSi« »||5.1 in||3.9 in||2.4 in||18.5 oz||500||n||Jan 2008||799||-||Canon XSi|
|Canon 30D« »||5.7 in||4.2 in||2.9 in||27.7 oz||750||n||Feb 2006||1,399||-||Canon 30D|
|Canon XTi« »||5.0 in||3.3 in||2.6 in||19.6 oz||370||n||Aug 2006||799||-||Canon XTi|
|Canon 20D« »||5.7 in||4.2 in||2.8 in||27.2 oz||700||n||Aug 2004||1,499||-||Canon 20D|
|Canon 10D« »||5.9 in||4.2 in||3.0 in||30.0 oz||500||n||Feb 2003||1,999||-||Canon 10D|
|Nikon D90« »||5.2 in||4.1 in||3.0 in||24.8 oz||850||n||Aug 2008||1,299||-||Nikon D90|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The 40D was launched at a markedly lower price (by 63 percent) than the 5D Mark IV, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
Sensor comparison: Canon 40D vs 5D Mark IV

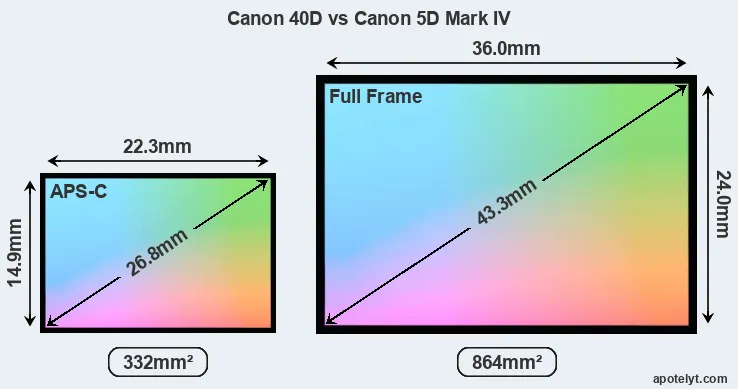

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 40D features an APS-C sensor and the Canon 5D Mark IV a full frame sensor. The sensor area in the 5D Mark IV is 160 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, the 5D Mark IV uses a more advanced image processing engine (DIGIC 6+) than the 40D (DIGIC 3), with benefits for noise reduction, color accuracy, and processing speed.

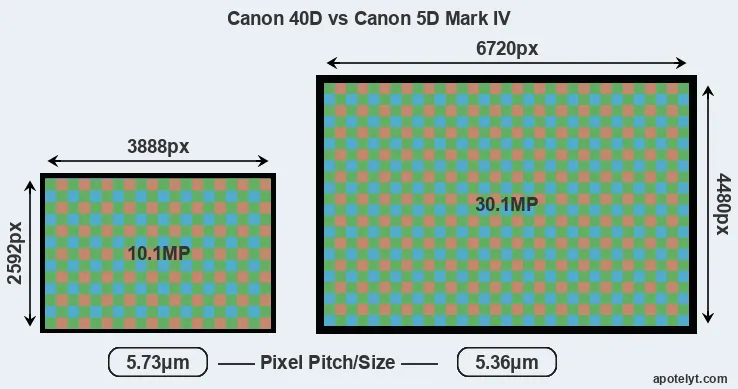

With 30.1MP, the 5D Mark IV offers a higher resolution than the 40D (10.1MP), but the 5D Mark IV has smaller individual pixels (pixel pitch of 5.36μm versus 5.73μm for the 40D). Yet, the 5D Mark IV is a much more recent model (by 9 years) than the 40D, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.
The resolution advantage of the Canon 5D Mark IV implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5D Mark IV for good quality output (200 dots per inch) amounts to 33.6 x 22.4 inch or 85.3 x 56.9 cm, for very good quality (250 dpi) 26.9 x 17.9 inch or 68.3 x 45.5 cm, and for excellent quality (300 dpi) 22.4 x 14.9 inch or 56.9 x 37.9 cm. The corresponding values for the Canon 40D are 19.4 x 13 inch or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inch or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inch or 32.9 x 21.9 cm for excellent quality prints.
The 5D Mark IV has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 40D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Canon EOS 5D Mark IV are ISO 100 to ISO 32000, with the possibility to increase the ISO range to 50-102400.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the 5D Mark IV offers substantially better image quality than the 40D (overall score 27 points higher). The advantage is based on 2.7 bits higher color depth, 2.3 EV in additional dynamic range, and 2.1 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Canon 40D»||APS-C||10.1||3888||2592||-||22.1||11.3||703||64||Canon 40D|
|Canon 5D Mark IV«||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91||Canon 5D Mark IV|
|Canon 6D Mark II« »||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85||Canon 6D Mark II|
|Canon 1D X Mark II« »||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88||Canon 1D X Mark II|
|Canon 5DS« »||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87||Canon 5DS|
|Canon 5DS R« »||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86||Canon 5DS R|
|Canon 5D Mark III« »||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81||Canon 5D Mark III|
|Canon T3« »||APS-C||12.2||4272||2848||720/30p||21.9||11.0||755||62||Canon T3|
|Canon 60D« »||APS-C||17.9||5184||3456||1080/30p||22.2||11.5||813||66||Canon 60D|
|Canon 50D« »||APS-C||15.1||4752||3168||-||21.8||11.4||696||63||Canon 50D|
|Canon XS« »||APS-C||10.1||3888||2592||-||-||-||-||-||Canon XS|
|Canon XSi« »||APS-C||12.2||4272||2848||-||21.9||10.8||692||61||Canon XSi|
|Canon 30D« »||APS-C||8.2||3504||2336||-||21.5||10.8||736||59||Canon 30D|
|Canon XTi« »||APS-C||10.1||3888||2592||-||22.1||11.0||664||62||Canon XTi|
|Canon 20D« »||APS-C||8.2||3504||2336||-||21.9||11.0||721||62||Canon 20D|
|Canon 10D« »||APS-C||6.3||3072||2048||-||21.1||10.9||571||57||Canon 10D|
|Nikon D90« »||APS-C||12.2||4288||2848||720/24p||22.7||12.5||977||73||Nikon D90|
Many modern cameras are not only capable of taking still images, but can also record movies. The 5D Mark IV indeed provides for movie recording, while the 40D does not. The highest resolution format that the 5D Mark IV can use is 4K/30p.
Feature comparison: Canon 40D vs 5D Mark IV
Apart from body and sensor, cameras can and do differ across a variety of features. The 40D and the 5D Mark IV are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 5D Mark IV offers a wider field of view (100%) than the one in the 40D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the 5D Mark IV has a higher magnification (0.71x vs 0.59x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 40D, the Canon 5D Mark IV, and comparable cameras.
|Canon 40D»||optical||Y||3.0||230||fixed||n||1/8000s||6.5||Y||n||Canon 40D|
|Canon 5D Mark IV«||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n||Canon 5D Mark IV|
|Canon 6D Mark II« »||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n||Canon 6D Mark II|
|Canon 1D X Mark II« »||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n||Canon 1D X Mark II|
|Canon 5DS« »||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n||Canon 5DS|
|Canon 5DS R« »||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n||Canon 5DS R|
|Canon 5D Mark III« »||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n||Canon 5D Mark III|
|Canon T3« »||optical||n||2.7||230||fixed||n||1/4000s||3.0||Y||n||Canon T3|
|Canon 60D« »||optical||Y||3.0||1040||swivel||n||1/8000s||5.3||Y||n||Canon 60D|
|Canon 50D« »||optical||Y||3.0||920||fixed||n||1/8000s||6.3||Y||n||Canon 50D|
|Canon XS« »||optical||n||2.5||230||fixed||n||1/4000s||3.0||Y||n||Canon XS|
|Canon XSi« »||optical||n||3.0||230||fixed||n||1/4000s||3.5||Y||n||Canon XSi|
|Canon 30D« »||optical||Y||2.5||230||fixed||n||1/8000s||5.0||Y||n||Canon 30D|
|Canon XTi« »||optical||n||2.5||230||fixed||n||1/4000s||3.0||Y||n||Canon XTi|
|Canon 20D« »||optical||Y||1.8||118||fixed||n||1/8000s||5.0||Y||n||Canon 20D|
|Canon 10D« »||optical||Y||1.8||118||fixed||n||1/4000s||3.0||Y||n||Canon 10D|
|Nikon D90« »||optical||Y||3.0||920||fixed||n||1/4000s||4.5||Y||n||Nikon D90|
One difference between the cameras concerns the presence of an on-board flash. The 40D has one, while the 5D Mark IV does not. While the built-in flash of the 40D is not very powerful, it can at times be useful as a fill-in light.
The Canon 5D Mark IV has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 40D writes its imaging data to Compact Flash cards, while the 5D Mark IV uses Compact Flash or SDXC cards. The 5D Mark IV features dual card slots, which can be very useful in case a memory card fails. In contrast, the 40D only has one slot.
Connectivity comparison: Canon 40D vs 5D Mark IV
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 40D and Canon EOS 5D Mark IV and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Canon 40D»||Y||-||-||-||-||-||2.0||-||-||-||Canon 40D|
|Canon 5D Mark IV«||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-||Canon 5D Mark IV|
|Canon 6D Mark II« »||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon 6D Mark II|
|Canon 1D X Mark II« »||Y||mono||mono||Y||Y||mini||3.0||-||-||-||Canon 1D X Mark II|
|Canon 5DS« »||Y||mono||mono||Y||-||mini||3.0||-||-||-||Canon 5DS|
|Canon 5DS R« »||Y||mono||mono||Y||-||mini||3.0||-||-||-||Canon 5DS R|
|Canon 5D Mark III« »||Y||mono||mono||Y||Y||mini||2.0||-||-||-||Canon 5D Mark III|
|Canon T3« »||Y||stereo||mono||-||-||mini||2.0||-||-||-||Canon T3|
|Canon 60D« »||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon 60D|
|Canon 50D« »||Y||-||-||-||-||mini||2.0||-||-||-||Canon 50D|
|Canon XS« »||Y||-||-||-||-||-||2.0||-||-||-||Canon XS|
|Canon XSi« »||Y||-||-||-||-||mini||2.0||-||-||-||Canon XSi|
|Canon 30D« »||Y||-||-||-||-||-||2.0||-||-||-||Canon 30D|
|Canon XTi« »||Y||-||-||-||-||-||2.0||-||-||-||Canon XTi|
|Canon 20D« »||Y||-||-||-||-||-||1.1||-||-||-||Canon 20D|
|Canon 10D« »||Y||-||-||-||-||-||1.1||-||-||-||Canon 10D|
|Nikon D90« »||Y||mono||mono||-||-||mini||2.0||-||-||-||Nikon D90|
It is notable that the 5D Mark IV offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 40D does not offer wifi capability.
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
The 5D Mark IV is a recent model that features in the current product line-up of Canon. In contrast, the 40D has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the 40D was succeeded by the Canon 50D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
Review summary: Canon 40D vs 5D Mark IV
So what is the bottom line? Is there a clear favorite between the Canon 40D and the Canon 5D Mark IV? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Canon EOS 40D:
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More affordable: Was introduced into a lower priced category (63 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in August 2007).
Arguments in favor of the Canon EOS 5D Mark IV:
- More detail: Has more megapixels (30.1 vs 10.1MP), which boosts linear resolution by 73%.
- Better image quality: Scores substantially higher (27 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (2.7 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (2.3 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (2.1 stops ISO advantage).
- Better jpgs: Has a more modern image processing engine (DIGIC 6+ vs DIGIC 3).
- Broader imaging potential: Can capture not only stills but also 4K/30p video.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.71x vs 0.59x).
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 230k dots).
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Gets more shots (900 versus 750) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More modern: Reflects 9 years of technical progress since the 40D launch.
If the count of individual advantages (bullet points above) is taken as a guide, the 5D Mark IV is the clear winner of the contest (21 : 3 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 40D and the Canon 5D Mark IV place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 40D and the 5D Mark IV in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
Expert reviews: Canon 40D vs 5D Mark IV
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 40D»||+ +||+ +||4.5/5||o||4.5/5||Aug 2007||1,299||-||Canon 40D|
|Canon 5D Mark IV«||+ +||87/100||4.5/5||5/5||4.5/5||Aug 2016||3,499||Canon 5D Mark IV|
|Canon 6D Mark II« »||+||80/100||4.5/5||4/5||4/5||Jun 2017||1,999||Canon 6D Mark II|
|Canon 1D X Mark II« »||-||89/100||4.5/5||5/5||4.5/5||Feb 2016||5,999||Canon 1D X Mark II|
|Canon 5DS« »||+||83/100||4.5/5||5/5||4.5/5||Feb 2015||3,699||Canon 5DS|
|Canon 5DS R« »||+||83/100||5/5||5/5||4.5/5||Feb 2015||3,699||Canon 5DS R|
|Canon 5D Mark III« »||+ +||82/100||4.5/5||5/5||4.5/5||Mar 2012||3,499||-||Canon 5D Mark III|
|Canon T3« »||80/100||69/100||4/5||4/5||4.5/5||Feb 2011||449||-||Canon T3|
|Canon 60D« »||+||79/100||4/5||5/5||4.5/5||Aug 2010||1,399||-||Canon 60D|
|Canon 50D« »||+ +||+ +||4.5/5||5/5||4.5/5||Aug 2008||1,299||-||Canon 50D|
|Canon XS« »||82/100||+ +||3.5/5||4/5||4.5/5||Jun 2008||449||-||Canon XS|
|Canon XSi« »||+ +||+ +||4/5||5/5||4.5/5||Jan 2008||799||-||Canon XSi|
|Canon 30D« »||+ +||+ +||o||o||-||Feb 2006||1,399||-||Canon 30D|
|Canon XTi« »||+ +||+ +||o||4.5/5||4/5||Aug 2006||799||-||Canon XTi|
|Canon 20D« »||-||+ +||-||o||-||Aug 2004||1,499||-||Canon 20D|
|Canon 10D« »||-||+ +||-||o||-||Feb 2003||1,999||-||Canon 10D|
|Nikon D90« »||+ +||+ +||4/5||5/5||4.5/5||Aug 2008||1,299||-||Nikon D90|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 40D vs Fujifilm X-Pro1
- Canon 40D vs Fujifilm XP130
- Canon 40D vs Nikon D50
- Canon 40D vs Panasonic G9
- Canon 40D vs Pentax K-1
- Canon 5D Mark IV vs Leica X Typ 113
- Canon 5D Mark IV vs Nikon D1
- Canon 5D Mark IV vs Olympus E-1
- Canon 5D Mark IV vs Olympus E-M10
- Canon 5D Mark IV vs Olympus E-M5
- Canon 5D Mark IV vs Panasonic LX100
- Canon 5D Mark IV vs Sony A7 II
Specifications: Canon 40D vs Canon 5D Mark IV
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 40D||Canon 5D Mark IV|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Canon EF mount lenses|
|Launch Date||August 2007||August 2016|
|Launch Price||USD 1299||USD 3499|
|Sensor Specs||Canon 40D||Canon 5D Mark IV|
|Sensor Format||APS-C Sensor||Full Frame Sensor|
|Sensor Size||22.3 x 14.9 mm||36.0 x 24.0 mm|
|Sensor Area||332.27 mm2||864 mm2|
|Sensor Diagonal||26.8 mm||43.3 mm|
|Sensor Resolution||10.1 Megapixels||30.1 Megapixels|
|Image Resolution||3888 x 2592 pixels||6720 x 4480 pixels|
|Pixel Pitch||5.73 μm||5.36 μm|
|Pixel Density||3.03 MP/cm2||3.48 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||4K/30p Video|
|ISO Setting||100-1600 ISO||100-32000 ISO|
|ISO Boost||100-3200 ISO||50-102400 ISO|
|Image Processor||DIGIC 3||DIGIC 6+|
|DXO Sensor Quality (score)||64||91|
|DXO Color Depth (bits)||22.1||24.8|
|DXO Dynamic Range (EV)||11.3||13.6|
|DXO Low Light (ISO)||703||2995|
|Screen Specs||Canon 40D||Canon 5D Mark IV|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||100%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0 inch||3.2 inch|
|LCD Resolution||230k dots||1620k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 40D||Canon 5D Mark IV|
|Autofocus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||6.5 shutter flaps/s||7 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||150 000 actuations|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||CF cards||CF or SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|Connectivity Specs||Canon 40D||Canon 5D Mark IV|
|Studio Flash||PC Sync socket||PC Sync socket|
|USB Connector||USB 2.0||USB 3.0|
|HDMI Port||no HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Body Specs||Canon 40D||Canon 5D Mark IV|
|Environmental Sealing||Not weather sealed||Weathersealed body|
|Battery Type||BP-511A power pack||LP-E6N power pack|
|Battery Life (CIPA)||750 shots per charge||900 shots per charge|
146 x 108 x 74 mm
(5.7 x 4.3 x 2.9 in)
151 x 116 x 76 mm
(5.9 x 4.6 x 3.0 in)
|Camera Weight||822 g (29.0 oz)||890 g (31.4 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
