Canon 400D vs Olympus E-M1 II
The Canon EOS 400D (called Canon XTi in some regions) and the Olympus OM-D E-M1 Mark II are two digital cameras that were revealed to the public, respectively, in August 2006 and September 2016. The 400D is a DSLR, while the E-M1 II is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (400D) and a Four Thirds (E-M1 II) sensor. The Canon has a resolution of 10.1 megapixels, whereas the Olympus provides 20.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 400D and the Olympus OM-D E-M1 Mark II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

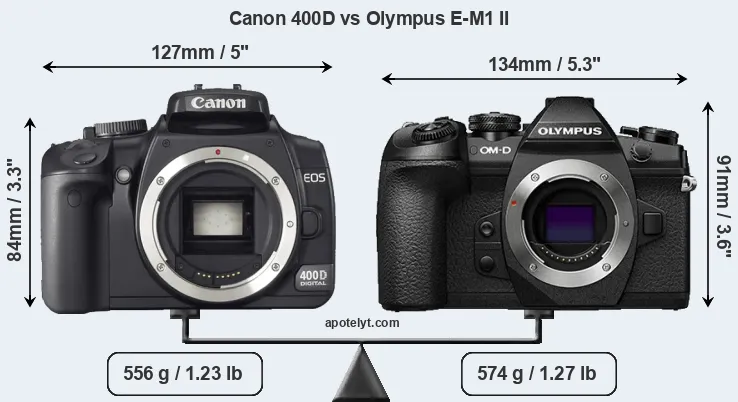

An illustration of the physical size and weight of the Canon 400D and the Olympus E-M1 II is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M1 II is notably larger (14 percent) than the Canon 400D. Moreover, the E-M1 II is slightly heavier (3 percent) than the 400D. It is noteworthy in this context that the E-M1 II is splash and dust-proof, while the 400D does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (400D) and the Micro Four Thirds Lens Catalog (E-M1 II). Mirrorless cameras, such as the E-M1 II, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon 400D||127 mm||84 mm||65 mm||556 g||370||n||Aug 2006||799|
|2.||Olympus E-M1 II||134 mm||91 mm||67 mm||574 g||440||Y||Sep 2016||1,999|
|3.||Canon 750D||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749|
|4.||Canon 760D||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|5.||Canon 650D||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|6.||Canon 1100D||130 mm||100 mm||78 mm||495 g||700||n||Feb 2011||449|
|7.||Canon 550D||129 mm||98 mm||62 mm||530 g||440||n||Feb 2010||699|
|8.||Canon 500D||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799|
|9.||Canon 450D||129 mm||98 mm||62 mm||524 g||500||n||Jan 2008||799|
|10.||Canon 40D||146 mm||108 mm||74 mm||822 g||750||n||Aug 2007||1,299|
|11.||Canon 350D||127 mm||94 mm||64 mm||540 g||400||n||Feb 2005||899|
|12.||Nikon D40X||124 mm||94 mm||64 mm||522 g||520||n||Mar 2007||729|
|13.||Olympus E-M1 III||134 mm||91 mm||69 mm||580 g||420||Y||Feb 2020||1,799|
|14.||Olympus E-M1||130 mm||94 mm||63 mm||497 g||350||Y||Sep 2013||1,399|
|15.||Panasonic G9||137 mm||97 mm||92 mm||658 g||400||Y||Nov 2017||1,699|
|16.||Panasonic GH5||139 mm||98 mm||87 mm||725 g||410||Y||Jan 2017||1,999|
|17.||Panasonic GX8||133 mm||78 mm||63 mm||487 g||330||Y||Jul 2015||1,199|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 400D was launched at a markedly lower price (by 60 percent) than the E-M1 II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 400D features an APS-C sensor and the Olympus E-M1 II a Four Thirds sensor. The sensor area in the E-M1 II is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 400D has a native 3:2 aspect ratio, while the one in the E-M1 II offers a 4:3 aspect.
In terms of underlying technology, both cameras are build around CMOS sensors.
Despite having a smaller sensor, the E-M1 II offers a higher resolution of 20.2 megapixels, compared with 10.1 MP of the 400D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.34μm versus 5.71μm for the 400D). However, it should be noted that the E-M1 II is much more recent (by 10 years) than the 400D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the E-M1 II has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Olympus E-M1 II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-M1 II for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Canon 400D are 19.4 x 13 inches or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inches or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inches or 32.9 x 21.9 cm for excellent quality prints.
The E-M1 II has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
Unlike the 400D, the E-M1 II has the capacity to capture high quality composite images (50MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Canon EOS 400D has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Olympus OM-D E-M1 Mark II are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 64-25600.
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the E-M1 II offers substantially better image quality than the 400D (overall score 18 points higher). The advantage is based on 1.6 bits higher color depth, 1.8 EV in additional dynamic range, and 1 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|2.||Olympus E-M1 II||Four Thirds||20.2||5184||3888||4K/30p||23.7||12.8||1312||80|
|13.||Olympus E-M1 III||Four Thirds||20.2||5184||3888||4K/30p||..||..||..||..|
|14.||Olympus E-M1||Four Thirds||15.9||4608||3456||1080/30p||23.0||12.7||757||73|
|15.||Panasonic G9||Four Thirds||20.2||5184||3888||4K/60p||..||..||..||..|
|16.||Panasonic GH5||Four Thirds||20.2||5184||3888||4K/60p||23.9||13.0||807||77|
|17.||Panasonic GX8||Four Thirds||20.2||5184||3888||4K/30p||23.5||12.6||806||75|
Many modern cameras cannot only take still pictures, but also record videos. The E-M1 II indeed provides for movie recording, while the 400D does not. The highest resolution format that the E-M1 II can use is 4K/30p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the E-M1 II has an electronic viewfinder (2360k dots), while the 400D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the E-M1 II offers a wider field of view (100%) than the one in the 400D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the E-M1 II has a higher magnification (0.74x vs 0.49x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 400D and Olympus E-M1 II in connection with corresponding information for a sample of similar cameras.
|2.||Olympus E-M1 II||2360||n||3.0||1037||swivel||Y||1/8000s||18.0||n||Y|
|13.||Olympus E-M1 III||2360||n||3.0||1037||swivel||Y||1/8000s||18.0||n||Y|
One difference between the cameras concerns the presence of an on-board flash. The 400D has one, while the E-M1 II does not. While the built-in flash of the 400D is not very powerful, it can at times be useful as a fill-in light.The E-M1 II has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 400D does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-M1 II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Olympus E-M1 II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 400D writes its imaging data to Compact Flash cards, while the E-M1 II uses SDXC cards. The E-M1 II features dual card slots, which can be very useful in case a memory card fails. In contrast, the 400D only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 400D and Olympus OM-D E-M1 Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|2.||Olympus E-M1 II||Y||stereo||mono||Y||Y||micro||3.0||Y||-||-|
|13.||Olympus E-M1 III||Y||stereo||mono||Y||Y||micro||3.1||Y||-||Y|
It is notable that the E-M1 II offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 400D does not provide wifi capability.
Studio photographers will appreciate that the Olympus E-M1 II (unlike the 400D) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The E-M1 II is a recent model that features in the current product line-up of Olympus. In contrast, the 400D has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the 400D was succeeded by the Canon 450D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So how do things add up? Is there a clear favorite between the Canon 400D and the Olympus E-M1 II? Which camera is better? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Canon EOS 400D:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- More compact: Is smaller (127x84mm vs 134x91mm) and thus needs less room in the bag.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More affordable: Was introduced into a lower priced category (60 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in August 2006).
Advantages of the Olympus OM-D E-M1 Mark II:
- More detail: Has more megapixels (20.2 vs 10.1MP), which boosts linear resolution by 39%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Better image quality: Scores substantially higher (18 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (1.6 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (1.8 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (1 stops ISO advantage).
- Broader imaging potential: Can capture not only stills but also 4K/30p video.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.74x vs 0.49x).
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1037k vs 230k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (18 vs 3 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Gets more shots (440 versus 370) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More modern: Reflects 10 years of technical progress since the 400D launch.
If the number of relative strengths (bullet points above) is taken as a guide, the E-M1 II is the clear winner of the contest (30 : 6 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 400D and the Olympus E-M1 II place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 400D or the E-M1 II. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 400D||..||+ +||+ +||o||4/5||Aug 2006||799|
|2.||Olympus E-M1 II||5/5||+ +||85/100||4.5/5||4.5/5||Sep 2016||1,999|
|3.||Canon 750D||5/5||..||75/100||4.5/5||4.5/5||Feb 2015||749|
|4.||Canon 760D||5/5||+||77/100||4.5/5||4.5/5||Feb 2015||649|
|5.||Canon 650D||4/5||+ +||77/100||4.5/5||4.5/5||Jun 2012||849|
|6.||Canon 1100D||..||80/100||69/100||4/5||4.5/5||Feb 2011||449|
|7.||Canon 550D||..||+ +||77/100||4/5||4.5/5||Feb 2010||699|
|8.||Canon 500D||..||+ +||74/100||4.5/5||4.5/5||Mar 2009||799|
|9.||Canon 450D||..||+ +||+ +||4/5||4.5/5||Jan 2008||799|
|10.||Canon 40D||..||+ +||+ +||4.5/5||4.5/5||Aug 2007||1,299|
|11.||Canon 350D||..||80/100||+ +||o||..||Feb 2005||899|
|12.||Nikon D40X||..||79/100||+ +||4/5||4/5||Mar 2007||729|
|13.||Olympus E-M1 III||5/5||..||83/100||4.5/5||4/5||Feb 2020||1,799|
|14.||Olympus E-M1||5/5||+ +||84/100||4.5/5||4.5/5||Sep 2013||1,399|
|15.||Panasonic G9||..||+ +||85/100||5/5||5/5||Nov 2017||1,699|
|16.||Panasonic GH5||4.5/5||+ +||85/100||4.5/5||5/5||Jan 2017||1,999|
|17.||Panasonic GX8||5/5||+||82/100||4.5/5||4.5/5||Jul 2015||1,199|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Canon 400D vs Olympus E-M1 II
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 400D||Olympus E-M1 II|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Micro Four Thirds lenses|
|Launch Date||August 2006||September 2016|
|Launch Price||USD 799||USD 1,999|
|Sensor Specs||Canon 400D||Olympus E-M1 II|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.2 x 14.8 mm||17.3 x 13.0 mm|
|Sensor Area||328.56 mm2||224.9 mm2|
|Sensor Diagonal||26.7 mm||21.6 mm|
|Sensor Resolution||10.1 Megapixels||20.2 Megapixels|
|Image Resolution||3888 x 2592 pixels||5184 x 3888 pixels|
|Pixel Pitch||5.71 μm||3.34 μm|
|Pixel Density||3.07 MP/cm2||8.96 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||no Video||4K/30p Video|
|ISO Setting||100 - 1,600 ISO||200 - 25,600 ISO|
|ISO Boost||no Enhancement||64 - 25,600 ISO|
|Image Processor||DIGIC II||TruePic VIII|
|DXO Sensor Quality (score)||62||80|
|DXO Color Depth (bits)||22.1||23.7|
|DXO Dynamic Range (EV)||11.0||12.8|
|DXO Low Light (ISO)||664||1312|
|Screen Specs||Canon 400D||Olympus E-M1 II|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||95%||100%|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View|
|Rear LCD Size||2.5inch||3.0inch|
|LCD Resolution||230k dots||1037k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 400D||Olympus E-M1 II|
|Focus System||Phase-detect AF||On-Sensor Phase-detect|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/8000s|
|Continuous Shooting||3 shutter flaps/s||18 shutter flaps/s|
|Shutter Life Expectancy||50 000 actuations||200 000 actuations|
|Electronic Shutter||no E-Shutter||up to 1/32000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|Connectivity Specs||Canon 400D||Olympus E-M1 II|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 3.0|
|HDMI Port||no HDMI||micro HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Canon 400D||Olympus E-M1 II|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||370 shots per charge||440 shots per charge|
127 x 84 x 65 mm
(5.0 x 3.3 x 2.6 in)
134 x 91 x 67 mm
(5.3 x 3.6 x 2.6 in)
|Camera Weight||556 g (19.6 oz)||574 g (20.2 oz)|
