Canon 400D vs Nikon D500
The Canon EOS 400D (called Canon XTi in some regions) and the Nikon D500 are two digital cameras that were announced, respectively, in August 2006 and January 2016. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The Canon has a resolution of 10.1 megapixels, whereas the Nikon provides 20.7 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 400D and the Nikon D500? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

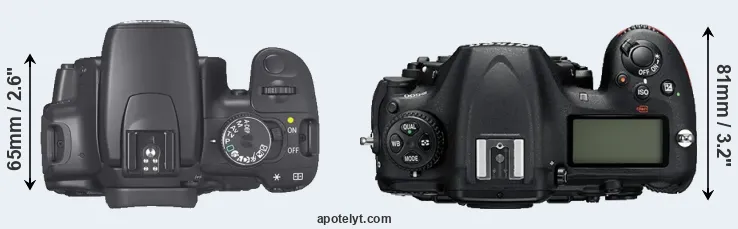

An illustration of the physical size and weight of the Canon 400D and the Nikon D500 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D500 is considerably larger (58 percent) than the Canon 400D. Moreover, the D500 is substantially heavier (55 percent) than the 400D. It is noteworthy in this context that the D500 is splash and dust-proof, while the 400D does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Yet, since both cameras are based around an APS-C sensor, their respective lenses will tend to have similar dimensions and heft. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (400D) and the Nikon Lens Catalog (D500).
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon 400D||127 mm||84 mm||65 mm||556 g||370||n||Aug 2006||799|
|2.||Nikon D500||147 mm||115 mm||81 mm||860 g||1240||Y||Jan 2016||1,999|
|3.||Canon 750D||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749|
|4.||Canon 760D||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|5.||Canon 650D||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|6.||Canon 1100D||130 mm||100 mm||78 mm||495 g||700||n||Feb 2011||449|
|7.||Canon 550D||129 mm||98 mm||62 mm||530 g||440||n||Feb 2010||699|
|8.||Canon 500D||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799|
|9.||Canon 450D||129 mm||98 mm||62 mm||524 g||500||n||Jan 2008||799|
|10.||Canon 40D||146 mm||108 mm||74 mm||822 g||750||n||Aug 2007||1,299|
|11.||Canon 350D||127 mm||94 mm||64 mm||540 g||400||n||Feb 2005||899|
|12.||Nikon D7500||136 mm||104 mm||73 mm||720 g||950||Y||Apr 2017||1,299|
|13.||Nikon D7200||136 mm||107 mm||76 mm||765 g||1110||Y||Mar 2015||1,199|
|14.||Nikon D7100||136 mm||107 mm||76 mm||765 g||950||Y||Feb 2013||1,199|
|15.||Nikon D610||141 mm||113 mm||82 mm||850 g||900||Y||Oct 2013||1,999|
|16.||Nikon D300S||147 mm||115 mm||81 mm||938 g||950||Y||Jul 2009||1,799|
|17.||Nikon D40X||124 mm||94 mm||64 mm||522 g||520||n||Mar 2007||729|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 400D was launched at a markedly lower price (by 60 percent) than the D500, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the D500 is 12 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (400D) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
With 20.7MP, the D500 offers a higher resolution than the 400D (10.1MP), but the D500 has smaller individual pixels (pixel pitch of 4.22μm versus 5.71μm for the 400D). Yet, the D500 is a much more recent model (by 9 years and 4 months) than the 400D, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the D500 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Nikon D500 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D500 for good quality output (200 dots per inch) amounts to 27.8 x 18.6 inches or 70.7 x 47.1 cm, for very good quality (250 dpi) 22.3 x 14.8 inches or 56.6 x 37.7 cm, and for excellent quality (300 dpi) 18.6 x 12.4 inches or 47.1 x 31.4 cm. The corresponding values for the Canon 400D are 19.4 x 13 inches or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inches or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inches or 32.9 x 21.9 cm for excellent quality prints.
The Canon EOS 400D has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Nikon D500 are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-1640000.
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the D500 offers substantially better image quality than the 400D (overall score 21 points higher). The advantage is based on 1.9 bits higher color depth, 3 EV in additional dynamic range, and 1 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|15.||Nikon D610||Full Frame||24.2||6016||4016||1080/30p||25.1||14.4||2925||94|
Many modern cameras are not only capable of taking still images, but can also record movies. The D500 indeed provides for movie recording, while the 400D does not. The highest resolution format that the D500 can use is 4K/30p.
Apart from body and sensor, cameras can and do differ across a range of features. The 400D and the D500 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the D500 offers a wider field of view (100%) than the one in the 400D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the D500 has a higher magnification (0.67x vs 0.49x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 400D and Nikon D500 in connection with corresponding information for a sample of similar cameras.
|1.||Canon 400D||optical||n||2.5 / 230||fixed||n||1/4000s||3.0||Y||n|
|2.||Nikon D500||optical||Y||3.2 / 2359||tilting||Y||1/8000s||10.0||n||n|
|3.||Canon 750D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|4.||Canon 760D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|5.||Canon 650D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|6.||Canon 1100D||optical||n||2.7 / 230||fixed||n||1/4000s||3.0||Y||n|
|7.||Canon 550D||optical||n||3.0 / 1040||fixed||n||1/4000s||3.7||Y||n|
|8.||Canon 500D||optical||n||3.0 / 920||fixed||n||1/4000s||3.4||Y||n|
|9.||Canon 450D||optical||n||3.0 / 230||fixed||n||1/4000s||3.5||Y||n|
|10.||Canon 40D||optical||Y||3.0 / 230||fixed||n||1/8000s||6.5||Y||n|
|11.||Canon 350D||optical||n||1.8 / 115||fixed||n||1/4000s||3.0||Y||n|
|12.||Nikon D7500||optical||Y||3.2 / 922||tilting||Y||1/8000s||8.0||Y||n|
|13.||Nikon D7200||optical||Y||3.2 / 1229||fixed||n||1/8000s||6.0||Y||n|
|14.||Nikon D7100||optical||Y||3.2 / 1229||fixed||n||1/8000s||6.0||Y||n|
|15.||Nikon D610||optical||Y||3.2 / 921||fixed||n||1/4000s||6.0||Y||n|
|16.||Nikon D300S||optical||Y||3.0 / 920||fixed||n||1/8000s||7.0||Y||n|
|17.||Nikon D40X||optical||n||2.5 / 230||fixed||n||1/4000s||3.0||Y||n|
One difference between the cameras concerns the presence of an on-board flash. The 400D has one, while the D500 does not. While the built-in flash of the 400D is not very powerful, it can at times be useful as a fill-in light.
The Nikon D500 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 400D writes its imaging data to Compact Flash cards, while the D500 uses SDXC or XQD cards. The D500 features dual card slots, which can be very useful in case a memory card fails. In contrast, the 400D only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 400D and Nikon D500 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon 400D||Y||- / -||-||-||-||2.0||-||-||-|
|2.||Nikon D500||Y||stereo / mono||Y||Y||mini||3.0||Y||Y||Y|
|3.||Canon 750D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|4.||Canon 760D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|5.||Canon 650D||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|6.||Canon 1100D||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|7.||Canon 550D||Y||stereo / -||Y||-||mini||2.0||-||-||-|
|8.||Canon 500D||Y||mono / mono||-||-||mini||2.0||-||-||-|
|9.||Canon 450D||Y||- / -||-||-||mini||2.0||-||-||-|
|10.||Canon 40D||Y||- / -||-||-||-||2.0||-||-||-|
|11.||Canon 350D||Y||- / -||-||-||-||2.0||-||-||-|
|12.||Nikon D7500||Y||stereo / mono||Y||Y||mini||2.0||Y||-||Y|
|13.||Nikon D7200||Y||stereo / mono||Y||Y||mini||2.0||Y||Y||-|
|14.||Nikon D7100||Y||stereo / mono||Y||Y||mini||2.0||-||-||-|
|15.||Nikon D610||Y||mono / mono||Y||Y||mini||2.0||-||-||-|
|16.||Nikon D300S||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|17.||Nikon D40X||Y||- / -||-||-||-||2.0||-||-||-|
It is notable that the D500 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 400D does not provide wifi capability.
Studio photographers will appreciate that the Nikon D500 (unlike the 400D) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The D500 is a recent model that features in the current product line-up of Nikon. In contrast, the 400D has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the 400D was succeeded by the Canon 450D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Nikon websites.
So what conclusions can be drawn? Is the Canon 400D better than the Nikon D500 or vice versa? The listing below highlights the relative strengths of the two models.
Advantages of the Canon EOS 400D:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- More compact: Is smaller (127x84mm vs 147x115mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 304g or 35 percent) and hence easier to carry around.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More affordable: Was introduced into a lower priced category (60 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in August 2006).
Reasons to prefer the Nikon D500:
- More detail: Has more megapixels (20.7 vs 10.1MP), which boosts linear resolution by 43%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores substantially higher (21 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (1.9 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (3 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (1 stops ISO advantage).
- Broader imaging potential: Can capture not only stills but also 4K/30p video.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.67x vs 0.49x).
- Easier setting verification: Features a control panel on top to check shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (2359k vs 230k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (10 vs 3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Gets more shots (1240 versus 370) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More modern: Reflects 9 years and 4 months of technical progress since the 400D launch.
If the number of relative strengths (bullet points above) is taken as a guide, the D500 is the clear winner of the contest (26 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 400D and the Nikon D500 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the 400D or the D500 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 400D||..||+ +||..||+ +||o||4/5||Aug 2006||799|
|2.||Nikon D500||5/5||+ +||4.7/5||91/100||4.5/5||5/5||Jan 2016||1,999|
|3.||Canon 750D||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749|
|4.||Canon 760D||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649|
|5.||Canon 650D||4/5||+ +||..||77/100||4.5/5||4.5/5||Jun 2012||849|
|6.||Canon 1100D||..||80/100||..||69/100||4/5||4.5/5||Feb 2011||449|
|7.||Canon 550D||..||+ +||..||77/100||4/5||4.5/5||Feb 2010||699|
|8.||Canon 500D||..||+ +||..||74/100||4.5/5||4.5/5||Mar 2009||799|
|9.||Canon 450D||..||+ +||..||+ +||4/5||4.5/5||Jan 2008||799|
|10.||Canon 40D||..||+ +||..||+ +||4.5/5||4.5/5||Aug 2007||1,299|
|11.||Canon 350D||..||80/100||..||+ +||o||..||Feb 2005||899|
|12.||Nikon D7500||4.5/5||+ +||4.5/5||86/100||5/5||4.5/5||Apr 2017||1,299|
|13.||Nikon D7200||4/5||+ +||..||84/100||4.5/5||4.5/5||Mar 2015||1,199|
|14.||Nikon D7100||5/5||+ +||..||85/100||4.5/5||4.5/5||Feb 2013||1,199|
|15.||Nikon D610||4/5||+ +||..||87/100||4.5/5||4.5/5||Oct 2013||1,999|
|16.||Nikon D300S||5/5||+ +||..||82/100||4/5||4.5/5||Jul 2009||1,799|
|17.||Nikon D40X||..||79/100||..||+ +||4/5||4/5||Mar 2007||729|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 400D vs Fujifilm X20
- Canon 400D vs Leica V-LUX 2
- Canon 400D vs Nikon D3000
- Canon 400D vs Olympus E-PL8
- Canon 400D vs Panasonic GF1
- Canon 400D vs Panasonic TZ200
- Canon 6D Mark II vs Nikon D500
- Nikon D200 vs Nikon D500
- Nikon D500 vs Olympus E-PL3
- Nikon D500 vs Panasonic FZ330
- Nikon D500 vs Samsung NX1
- Nikon D500 vs Sony A6100
Specifications: Canon 400D vs Nikon D500
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 400D||Nikon D500|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Nikon F mount lenses|
|Launch Date||August 2006||January 2016|
|Launch Price||USD 799||USD 1,999|
|Sensor Specs||Canon 400D||Nikon D500|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.2 x 14.8 mm||23.5 x 15.7 mm|
|Sensor Area||328.56 mm2||368.95 mm2|
|Sensor Diagonal||26.7 mm||28.3 mm|
|Sensor Resolution||10.1 Megapixels||20.7 Megapixels|
|Image Resolution||3888 x 2592 pixels||5568 x 3712 pixels|
|Pixel Pitch||5.71 μm||4.22 μm|
|Pixel Density||3.07 MP/cm2||5.60 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||no Video||4K/30p Video|
|ISO Setting||100 - 1,600 ISO||100 - 51,200 ISO|
|ISO Boost||no Enhancement||50 - 1,640,000 ISO|
|Image Processor||DIGIC II||EXPEED 5|
|DXO Sensor Quality (score)||62||83|
|DXO Color Depth (bits)||22.1||24.0|
|DXO Dynamic Range (EV)||11.0||14.0|
|DXO Low Light (ISO)||664||1324|
|Screen Specs||Canon 400D||Nikon D500|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||100%|
|Top-Level Screen||no Top Display||Control Panel|
|LCD Framing||Live View|
|Rear LCD Size||2.5inch||3.2inch|
|LCD Resolution||230k dots||2359k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 400D||Nikon D500|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||3 shutter flaps/s||10 shutter flaps/s|
|Shutter Life Expectancy||50 000 actuations||200 000 actuations|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Built-in Flash||no On-Board Flash|
|Storage Medium||CF cards||SDXC or XQD cards|
|Second Storage Option||Single card slot||Dual card slots|
|Connectivity Specs||Canon 400D||Nikon D500|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 3.0|
|HDMI Port||no HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Canon 400D||Nikon D500|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||370 shots per charge||1240 shots per charge|
127 x 84 x 65 mm
(5.0 x 3.3 x 2.6 in)
147 x 115 x 81 mm
(5.8 x 4.5 x 3.2 in)
|Camera Weight||556 g (19.6 oz)||860 g (30.3 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
