Canon 30D vs Olympus E-P2
The Canon EOS 30D and the Olympus PEN E-P2 are two enthusiast cameras that were announced, respectively, in February 2006 and November 2009. The 30D is a DSLR, while the E-P2 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (30D) and a Four Thirds (E-P2) sensor. The Canon has a resolution of 8.2 megapixels, whereas the Olympus provides 12.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 30D and the Olympus PEN E-P2? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison

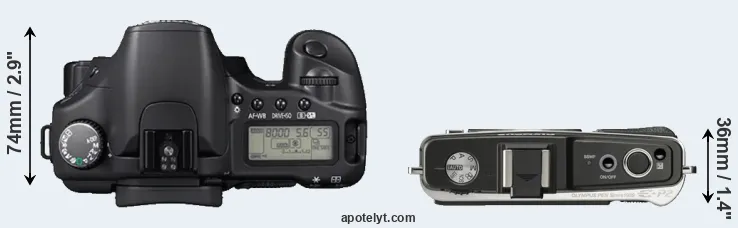

The side-by-side display below illustrates the physical size and weight of the Canon 30D and the Olympus E-P2. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
The E-P2 can be obtained in three different colors (black, silver, white), while the 30D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-P2 is considerably smaller (45 percent) than the Canon 30D. Moreover, the E-P2 is substantially lighter (55 percent) than the 30D. In this context, it is worth noting that neither the 30D nor the E-P2 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (30D) and the Micro Four Thirds Lens Catalog (E-P2). Mirrorless cameras, such as the E-P2, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
Concerning battery life, the 30D gets 750 shots out of its Canon BP-511A battery, while the E-P2 can take 300 images on a single charge of its Olympus BLS-1 power pack.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
Camera Model |
Camera Width |
Camera Height |
Camera Depth |
Camera Weight |
Battery Life |
Weather Sealing |
Camera Launch |
Launch Price (USD) |
Street Price |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon 30D | 144 mm | 106 mm | 74 mm | 785 g | 750 | n | Feb 2006 | 1,399 | ebay.com | |
2. | Olympus E-P2 | 121 mm | 70 mm | 36 mm | 355 g | 300 | n | Nov 2009 | 799 | ebay.com | |
3. | Canon 7D | 148 mm | 111 mm | 74 mm | 860 g | 800 | Y | Sep 2009 | 1,699 | ebay.com | |
4. | Canon 10D | 150 mm | 107 mm | 75 mm | 850 g | 500 | n | Feb 2003 | 1,999 | ebay.com | |
5. | Canon 20D | 144 mm | 106 mm | 72 mm | 770 g | 700 | n | Aug 2004 | 1,499 | ebay.com | |
6. | Canon 40D | 146 mm | 108 mm | 74 mm | 822 g | 750 | n | Aug 2007 | 1,299 | ebay.com | |
7. | Canon 50D | 146 mm | 108 mm | 74 mm | 822 g | 800 | Y | Aug 2008 | 1,299 | ebay.com | |
8. | Canon 60D | 145 mm | 106 mm | 79 mm | 755 g | 1100 | Y | Aug 2010 | 1,399 | ebay.com | |
9. | Canon 70D | 139 mm | 104 mm | 79 mm | 755 g | 920 | Y | Jul 2013 | 1,199 | ebay.com | |
10. | Canon Rebel | 142 mm | 99 mm | 72 mm | 649 g | 400 | n | Aug 2003 | 899 | ebay.com | |
11. | Canon XT | 127 mm | 94 mm | 64 mm | 540 g | 400 | n | Feb 2005 | 899 | ebay.com | |
12. | Canon XTi | 127 mm | 84 mm | 65 mm | 556 g | 370 | n | Aug 2006 | 799 | ebay.com | |
13. | Olympus E-P1 | 121 mm | 70 mm | 36 mm | 355 g | 300 | n | Jun 2009 | 799 | ebay.com | |
14. | Olympus E-P3 | 122 mm | 69 mm | 34 mm | 369 g | 330 | n | Jun 2011 | 799 | ebay.com | |
15. | Olympus E-PL2 | 114 mm | 72 mm | 42 mm | 362 g | 280 | n | Jan 2011 | 599 | ebay.com | |
16. | Olympus E-PL3 | 110 mm | 64 mm | 37 mm | 313 g | 300 | n | Jun 2011 | 599 | ebay.com | |
17. | Panasonic GH1 | 124 mm | 90 mm | 45 mm | 385 g | 300 | n | Mar 2009 | 899 | ebay.com | |
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders. | |||||||||||
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-P2 was launched at a markedly lower price (by 43 percent) than the 30D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
Sensor comparison
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 30D features an APS-C sensor and the Olympus E-P2 a Four Thirds sensor. The sensor area in the E-P2 is 33 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 30D has a native 3:2 aspect ratio, while the one in the E-P2 offers a 4:3 aspect.
Despite having a smaller sensor, the E-P2 offers a higher resolution of 12.2 megapixels, compared with 8.2 MP of the 30D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.29μm versus 6.42μm for the 30D). However, it should be noted that the E-P2 is much more recent (by 3 years and 8 months) than the 30D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Olympus E-P2 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-P2 for good quality output (200 dots per inch) amounts to 20.2 x 15.1 inches or 51.2 x 38.4 cm, for very good quality (250 dpi) 16.1 x 12.1 inches or 41 x 30.7 cm, and for excellent quality (300 dpi) 13.4 x 10.1 inches or 34.1 x 25.6 cm. The corresponding values for the Canon 30D are 17.5 x 11.7 inches or 44.5 x 29.7 cm for good quality, 14 x 9.3 inches or 35.6 x 23.7 cm for very good quality, and 11.7 x 7.8 inches or 29.7 x 19.8 cm for excellent quality prints.
The Canon EOS 30D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Olympus PEN E-P2 are ISO 100 to ISO 6400 (no boost).
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
Camera Model |
Sensor Class |
Resolution (MP) |
Horiz. Pixels |
Vert. Pixels |
Video Format |
DXO Portrait |
DXO Landscape |
DXO Sports |
DXO Overall |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon 30D | APS-C | 8.2 | 3504 | 2336 | none | 21.5 | 10.8 | 736 | 59 | |
2. | Olympus E-P2 | Four Thirds | 12.2 | 4032 | 3024 | 720/30p | 21.5 | 10.4 | 505 | 56 | |
3. | Canon 7D | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 22.0 | 11.7 | 854 | 66 | |
4. | Canon 10D | APS-C | 6.3 | 3072 | 2048 | none | 21.1 | 10.9 | 571 | 57 | |
5. | Canon 20D | APS-C | 8.2 | 3504 | 2336 | none | 21.9 | 11.0 | 721 | 62 | |
6. | Canon 40D | APS-C | 10.1 | 3888 | 2592 | none | 22.1 | 11.3 | 703 | 64 | |
7. | Canon 50D | APS-C | 15.1 | 4752 | 3168 | none | 21.8 | 11.4 | 696 | 63 | |
8. | Canon 60D | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 22.2 | 11.5 | 813 | 66 | |
9. | Canon 70D | APS-C | 20.0 | 5472 | 3648 | 1080/30p | 22.5 | 11.6 | 926 | 68 | |
10. | Canon Rebel | APS-C | 6.3 | 3072 | 2048 | none | 21.0 | 10.8 | 544 | 55 | |
11. | Canon XT | APS-C | 8.0 | 3456 | 2304 | none | 21.8 | 10.8 | 637 | 60 | |
12. | Canon XTi | APS-C | 10.1 | 3888 | 2592 | none | 22.1 | 11.0 | 664 | 62 | |
13. | Olympus E-P1 | Four Thirds | 12.2 | 4032 | 3024 | 720/30p | 21.4 | 10.4 | 536 | 55 | |
14. | Olympus E-P3 | Four Thirds | 12.2 | 4032 | 3024 | 1080/60i | 20.8 | 10.1 | 536 | 51 | |
15. | Olympus E-PL2 | Four Thirds | 12.2 | 4032 | 3024 | 720/30p | 21.4 | 10.2 | 573 | 55 | |
16. | Olympus E-PL3 | Four Thirds | 12.2 | 4032 | 3024 | 1080/60i | 20.9 | 10.3 | 499 | 52 | |
17. | Panasonic GH1 | Four Thirds | 12.0 | 4000 | 3000 | 1080/24p | 21.6 | 11.6 | 772 | 64 |
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The E-P2 indeed provides for movie recording, while the 30D does not. The highest resolution format that the E-P2 can use is 720/30p.
Feature comparison
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the 30D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-P2 relies on live view and the rear LCD for framing. That said, the E-P2 can be equipped with an optional viewfinder – the VF-2. The following table reports on some other key feature differences and similarities of the Canon 30D, the Olympus E-P2, and comparable cameras.
Camera Model |
Viewfinder (Type or 000 dots) |
Control Panel (yes/no) |
LCD Specifications (inch/000 dots) |
LCD Attach- ment |
Touch Screen (yes/no) |
Max Shutter Speed * |
Max Shutter Flaps * |
Built-in Flash (yes/no) |
Built-in Image Stab |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon 30D | optical | Y | 2.5 / 230 | fixed | n | 1/8000s | 5.0/s | Y | n | |
2. | Olympus E-P2 | optional | n | 3.0 / 230 | fixed | n | 1/4000s | 3.0/s | n | Y | |
3. | Canon 7D | optical | Y | 3.0 / 920 | fixed | n | 1/8000s | 8.0/s | Y | n | |
4. | Canon 10D | optical | Y | 1.8 / 118 | fixed | n | 1/4000s | 3.0/s | Y | n | |
5. | Canon 20D | optical | Y | 1.8 / 118 | fixed | n | 1/8000s | 5.0/s | Y | n | |
6. | Canon 40D | optical | Y | 3.0 / 230 | fixed | n | 1/8000s | 6.5/s | Y | n | |
7. | Canon 50D | optical | Y | 3.0 / 920 | fixed | n | 1/8000s | 6.3/s | Y | n | |
8. | Canon 60D | optical | Y | 3.0 / 1040 | swivel | n | 1/8000s | 5.3/s | Y | n | |
9. | Canon 70D | optical | Y | 3.0 / 1040 | swivel | Y | 1/8000s | 7.0/s | Y | n | |
10. | Canon Rebel | optical | n | 1.8 / 118 | fixed | n | 1/4000s | 2.5/s | Y | n | |
11. | Canon XT | optical | n | 1.8 / 115 | fixed | n | 1/4000s | 3.0/s | Y | n | |
12. | Canon XTi | optical | n | 2.5 / 230 | fixed | n | 1/4000s | 3.0/s | Y | n | |
13. | Olympus E-P1 | none | n | 3.0 / 230 | fixed | n | 1/4000s | 3.0/s | n | Y | |
14. | Olympus E-P3 | optional | n | 3.0 / 614 | fixed | Y | 1/4000s | 3.0/s | Y | Y | |
15. | Olympus E-PL2 | optional | n | 3.0 / 460 | fixed | n | 1/4000s | 3.0/s | Y | Y | |
16. | Olympus E-PL3 | optional | n | 3.0 / 460 | tilting | n | 1/4000s | 5.5/s | n | Y | |
17. | Panasonic GH1 | 1440 | n | 3.0 / 460 | swivel | n | 1/4000s | 3.0/s | Y | n | |
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one. |
One difference between the cameras concerns the presence of an on-board flash. The 30D has one, while the E-P2 does not. While the built-in flash of the 30D is not very powerful, it can at times be useful as a fill-in light.
The 30D writes its imaging data to Compact Flash cards, while the E-P2 uses SDHC cards.
Connectivity comparison
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 30D and Olympus PEN E-P2 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Camera Model |
Hotshoe Port |
Internal Mic / Speaker |
Microphone Port |
Headphone Port |
HDMI Port |
USB Port |
WiFi Support |
NFC Support |
Bluetooth Support |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon 30D | Y | - / - | - | - | - | 2.0 | - | - | - | |
2. | Olympus E-P2 | Y | stereo / - | - | - | mini | 2.0 | - | - | - | |
3. | Canon 7D | Y | mono / - | Y | - | mini | 2.0 | - | - | - | |
4. | Canon 10D | Y | - / - | - | - | - | 1.1 | - | - | - | |
5. | Canon 20D | Y | - / - | - | - | - | 1.1 | - | - | - | |
6. | Canon 40D | Y | - / - | - | - | - | 2.0 | - | - | - | |
7. | Canon 50D | Y | - / - | - | - | mini | 2.0 | - | - | - | |
8. | Canon 60D | Y | mono / mono | Y | - | mini | 2.0 | - | - | - | |
9. | Canon 70D | Y | stereo / mono | Y | - | mini | 2.0 | Y | - | - | |
10. | Canon Rebel | Y | - / - | - | - | - | 1.1 | - | - | - | |
11. | Canon XT | Y | - / - | - | - | - | 2.0 | - | - | - | |
12. | Canon XTi | Y | - / - | - | - | - | 2.0 | - | - | - | |
13. | Olympus E-P1 | Y | stereo / - | - | - | mini | 2.0 | - | - | - | |
14. | Olympus E-P3 | Y | stereo / - | - | - | mini | 2.0 | - | - | - | |
15. | Olympus E-PL2 | Y | stereo / - | - | - | mini | 2.0 | - | - | - | |
16. | Olympus E-PL3 | Y | stereo / - | - | - | mini | 2.0 | - | - | - | |
17. | Panasonic GH1 | Y | stereo / - | Y | - | mini | 2.0 | - | - | - |
Studio photographers will appreciate that the Canon 30D (unlike the E-P2) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 30D and the E-P2 have been discontinued, but can regularly be found used on ebay. The 30D was replaced by the Canon 40D, while the E-P2 was followed by the Olympus E-P3. Further information on the features and operation of the 30D and E-P2 can be found, respectively, in the Canon 30D Manual (free pdf) or the online Olympus E-P2 Manual.
Review summary
So how do things add up? Is the Canon 30D better than the Olympus E-P2 or vice versa? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Canon EOS 30D:
- Better low-light sensitivity: Requires less light for good images (0.5 stops ISO advantage).
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (5 vs 3 flaps/sec) to capture the decisive moment.
- Longer lasting: Can take more shots (750 versus 300) on a single battery charge.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in February 2006).
Arguments in favor of the Olympus PEN E-P2:
- More detail: Has more megapixels (12.2 vs 8.2MP), which boosts linear resolution by 20%.
- Broader imaging potential: Can capture not only stills but also 720/30p video.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- More compact: Is smaller (121x70mm vs 144x106mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 430g or 55 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- More affordable: Was introduced into a lower priced category (43 percent cheaper at launch).
- More modern: Reflects 3 years and 8 months of technical progress since the 30D launch.
If the count of relative strengths (bullet points above) is taken as a measure, the match-up finishes in a tie (9 points each). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 30D and the Olympus E-P2 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the 30D or the E-P2 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
Expert reviews
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
Camera Model |
AP score |
CL score |
DCW score |
DPR score |
EPZ score |
PB score |
Camera Launch |
Launch Price (USD) |
Street Price |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon 30D | .. | + + | .. | + + | o | .. | Feb 2006 | 1,399 | ebay.com | |
2. | Olympus E-P2 | 3/5 | + | .. | 69/100 | 4/5 | 4.5/5 | Nov 2009 | 799 | ebay.com | |
3. | Canon 7D | 5/5 | + + | .. | 84/100 | 4.5/5 | 4.5/5 | Sep 2009 | 1,699 | ebay.com | |
4. | Canon 10D | .. | .. | .. | + + | .. | .. | Feb 2003 | 1,999 | ebay.com | |
5. | Canon 20D | .. | .. | .. | + + | .. | .. | Aug 2004 | 1,499 | ebay.com | |
6. | Canon 40D | .. | + + | .. | + + | 4.5/5 | 4.5/5 | Aug 2007 | 1,299 | ebay.com | |
7. | Canon 50D | .. | + + | .. | + + | 4.5/5 | 4.5/5 | Aug 2008 | 1,299 | ebay.com | |
8. | Canon 60D | 5/5 | + | .. | 79/100 | 4/5 | 4.5/5 | Aug 2010 | 1,399 | ebay.com | |
9. | Canon 70D | 5/5 | + + | .. | 83/100 | 4.5/5 | 5/5 | Jul 2013 | 1,199 | ebay.com | |
10. | Canon Rebel | .. | .. | .. | + + | .. | .. | Aug 2003 | 899 | ebay.com | |
11. | Canon XT | .. | 80/100 | .. | + + | o | .. | Feb 2005 | 899 | ebay.com | |
12. | Canon XTi | .. | + + | .. | + + | o | 4/5 | Aug 2006 | 799 | ebay.com | |
13. | Olympus E-P1 | .. | + | .. | 66/100 | 4/5 | 4.5/5 | Jun 2009 | 799 | ebay.com | |
14. | Olympus E-P3 | .. | 83/100 | .. | 74/100 | 4.5/5 | 4.5/5 | Jun 2011 | 799 | ebay.com | |
15. | Olympus E-PL2 | 3/5 | 83/100 | .. | 71/100 | 4.5/5 | 4.5/5 | Jan 2011 | 599 | ebay.com | |
16. | Olympus E-PL3 | 3/5 | + + | .. | 72/100 | 4.5/5 | 4/5 | Jun 2011 | 599 | ebay.com | |
17. | Panasonic GH1 | .. | + + | .. | 72/100 | 4.5/5 | 4.5/5 | Mar 2009 | 899 | ebay.com | |
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available. |
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 10D vs Canon 30D
- Canon 30D vs Canon Rebel
- Canon 30D vs Canon SX730
- Canon 30D vs Leica M Typ 262
- Canon 30D vs Panasonic GX850
- Canon 30D vs Sony RX10 III
- Canon SX720 vs Olympus E-P2
- Fujifilm X-T2 vs Olympus E-P2
- Leica M Typ 262 vs Olympus E-P2
- Nikon D2Xs vs Olympus E-P2
- Nikon D4 vs Olympus E-P2
- Olympus E-P2 vs Sony H400
Specifications: Canon 30D vs Olympus E-P2
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
Camera Model | Canon 30D | Olympus E-P2 |
---|---|---|
Camera Type | Digital single lens reflex | Mirrorless system camera |
Camera Lens | Canon EF mount lenses | Micro Four Thirds lenses |
Launch Date | February 2006 | November 2009 |
Launch Price | USD 1,399 | USD 799 |
Sensor Specs | Canon 30D | Olympus E-P2 |
Sensor Technology | CMOS | CMOS |
Sensor Format | APS-C Sensor | Four Thirds Sensor |
Sensor Size | 22.5 x 15.0 mm | 17.3 x 13.0 mm |
Sensor Area | 337.5 mm2 | 224.9 mm2 |
Sensor Diagonal | 27 mm | 21.6 mm |
Crop Factor | 1.6x | 2.0x |
Sensor Resolution | 8.2 Megapixels | 12.2 Megapixels |
Image Resolution | 3504 x 2336 pixels | 4032 x 3024 pixels |
Pixel Pitch | 6.42 μm | 4.29 μm |
Pixel Density | 2.43 MP/cm2 | 5.42 MP/cm2 |
Moiré control | Anti-Alias filter | Anti-Alias filter |
Movie Capability | no Video | 720/30p Video |
ISO Setting | 100 - 1,600 ISO | 100 - 6,400 ISO |
ISO Boost | 100 - 3,200 ISO | no Enhancement |
Image Processor | DIGIC 2 | TruePic V |
DXO Sensor Quality (score) | 59 | 56 |
DXO Color Depth (bits) | 21.5 | 21.5 |
DXO Dynamic Range (EV) | 10.8 | 10.4 |
DXO Low Light (ISO) | 736 | 505 |
Screen Specs | Canon 30D | Olympus E-P2 |
Viewfinder Type | Optical viewfinder | Viewfinder optional |
Viewfinder Field of View | 95% | |
Viewfinder Magnification | 0.56x | |
Top-Level Screen | Control Panel | no Top Display |
LCD Framing | Live View | |
Rear LCD Size | 2.5inch | 3.0inch |
LCD Resolution | 230k dots | 230k dots |
LCD Attachment | Fixed screen | Fixed screen |
Shooting Specs | Canon 30D | Olympus E-P2 |
Focus System | Phase-detect AF | Contrast-detect AF |
Continuous Shooting | 5 shutter flaps/s | 3 shutter flaps/s |
Image Stabilization | Lens stabilization only | In-body stabilization |
Fill Flash | Built-in Flash | no On-Board Flash |
Storage Medium | CF cards | SDHC cards |
Single or Dual Card Slots | Single card slot | Single card slot |
Connectivity Specs | Canon 30D | Olympus E-P2 |
External Flash | Hotshoe | Hotshoe |
Studio Flash | PC Sync socket | no PC Sync |
USB Connector | USB 2.0 | USB 2.0 |
HDMI Port | no HDMI | mini HDMI |
Wifi Support | no Wifi | no Wifi |
Body Specs | Canon 30D | Olympus E-P2 |
Battery Type | Canon BP-511A | Olympus BLS-1 |
Battery Life (CIPA) | 750 shots per charge | 300 shots per charge |
Body Dimensions |
144 x 106 x 74 mm (5.7 x 4.2 x 2.9 in) |
121 x 70 x 36 mm (4.8 x 2.8 x 1.4 in) |
Camera Weight | 785 g (27.7 oz) | 355 g (12.5 oz) |
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
