Canon 20D versus Sony A7

The Canon EOS 20D and the Sony Alpha A7 are two enthusiast cameras that were announced, respectively, in August 2004 and October 2013. The 20D is a DSLR, while the A7 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (20D) and a full frame (A7) sensor. The Canon has a resolution of 8.2 megapixel, whereas the Sony provides 24 MP. Read on to find out how these two cameras compare with respect to their size, their sensors, their features, and their reception by expert reviewers.

Body comparison: Canon 20D vs Sony A7

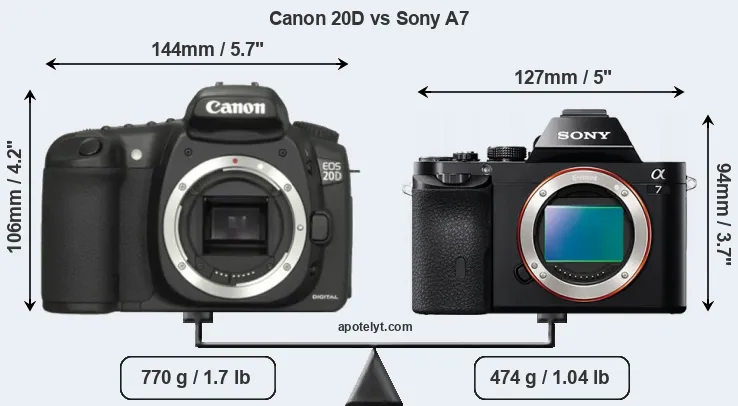

The physical size and weight of the Canon 20D and the Sony A7 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter. You can also toggle the display to switch to a percentage comparison if you prefer that the measures are being expressed in relative terms (in this case, the camera on the left – the 20D – represents 100 percent across all the size and weight measures).

Compare Canon 20D vs Sony A7

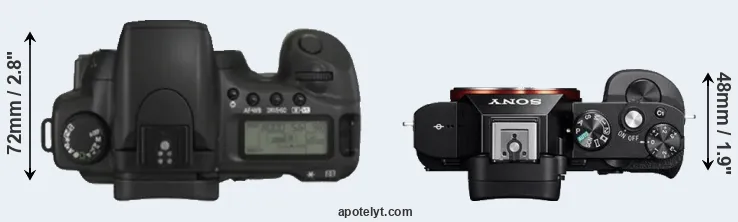

Compare 20D versus A7 top

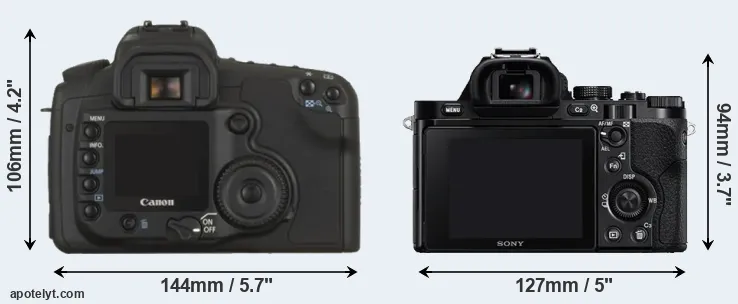

Compare 20D and A7 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony A7 is notably smaller (22 percent) than the Canon 20D. Moreover, the A7 is substantially lighter (38 percent) than the 20D. It is noteworthy in this context that the A7 is splash and dust-proof, while the 20D does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can find an overview of optics for the two cameras in the Canon EF Lens Catalog (20D) and the Sony FE Lens Catalog (A7). Mirrorless cameras, such as the A7, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the 20D gets 700 shots out of its BP-511A battery, while the A7 can take 340 images on a single charge of its NP-FW50 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 20D» 5.7 in 4.2 in 2.8 in 27.2 oz 700 n Aug 2004 1,499- i Canon 20D
Sony A7« 5.0 in 3.7 in 1.9 in 16.7 oz 340 Y Oct 2013 1,699- i Sony A7
Canon 7D II« » 5.9 in 4.4 in 3.1 in 32.1 oz 670 Y Sep 2014 1,799 i i Canon 7D II
Canon 60D« » 5.7 in 4.2 in 3.1 in 26.6 oz 1100 Y Aug 2010 1,399- i Canon 60D
Canon 7D« » 5.8 in 4.4 in 2.9 in 30.3 oz 800 Y Sep 2009 1,699- i Canon 7D
Canon 50D« » 5.7 in 4.3 in 2.9 in 29.0 oz 800 Y Aug 2008 1,299- i Canon 50D
Canon 40D« » 5.7 in 4.3 in 2.9 in 29.0 oz 750 n Aug 2007 1,299- i Canon 40D
Canon 30D« » 5.7 in 4.2 in 2.9 in 27.7 oz 750 n Feb 2006 1,399- i Canon 30D
Canon XT« » 5.0 in 3.7 in 2.5 in 19.0 oz 400 n Feb 2005 899- i Canon XT
Canon 10D« » 5.9 in 4.2 in 3.0 in 30.0 oz 500 n Feb 2003 1,999- i Canon 10D
Canon Rebel« » 5.6 in 3.9 in 2.8 in 22.9 oz 400 n Aug 2003 899- i Canon Rebel
Nikon D610« » 5.6 in 4.4 in 3.2 in 30.0 oz 900 Y Oct 2013 1,999 i i Nikon D610
Nikon D200« » 5.8 in 4.4 in 2.9 in 32.5 oz 400 Y Nov 2005 1,699- i Nikon D200
Panasonic GH4« » 5.2 in 3.7 in 3.3 in 19.8 oz 500 Y Feb 2014 1,499- i Panasonic GH4
Sony A7 II« » 5.0 in 3.8 in 2.4 in 21.1 oz 350 Y Nov 2014 1,999- i Sony A7 II
Sony A7S« » 5.0 in 3.7 in 1.9 in 17.2 oz 380 Y Apr 2014 2,499- i Sony A7S
Sony A7R« » 5.0 in 3.7 in 1.9 in 16.4 oz 340 Y Oct 2013 2,299- i Sony A7R

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The 20D was launched at a somewhat lower price (by 12 percent) than the A7, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.



Sensor comparison: Canon 20D vs Sony A7

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

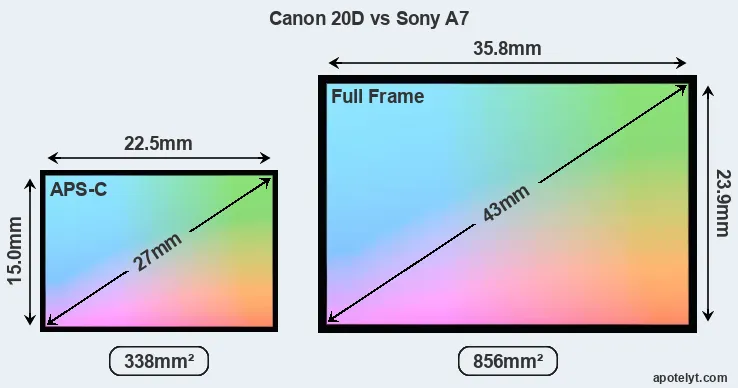

Of the two cameras under consideration, the Canon 20D features an APS-C sensor and the Sony A7 a full frame sensor. The sensor area in the A7 is 153 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Canon 20D and Sony A7 sensor measures

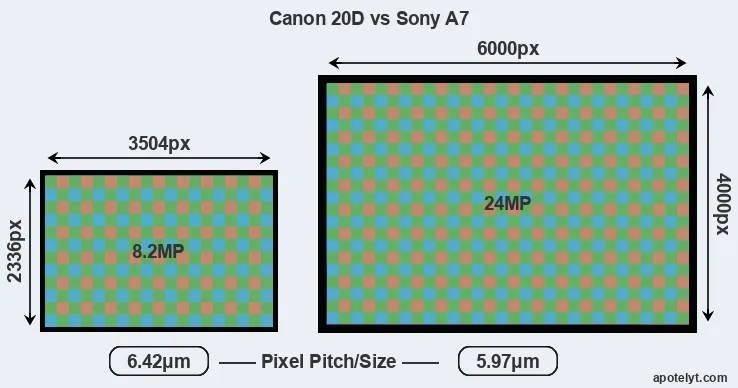

With 24MP, the A7 offers a higher resolution than the 20D (8.2MP), but the A7 has smaller individual pixels (pixel pitch of 5.97μm versus 6.42μm for the 20D). Yet, the A7 is a much more recent model (by 9 years and 1 month) than the 20D, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.

20D versus A7 MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the A7 offers substantially better image quality than the 20D (overall score 28 points higher). The advantage is based on 2.9 bits higher color depth, 3.2 EV in additional dynamic range, and 1.6 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model
Canon 20D» APS-C 8.2 3504 2336-21.911.072162Canon 20D
Sony A7« Full Frame 24.0 6000 40001080/60p24.814.2224890Sony A7
Canon 7D II« » APS-C 20.0 5472 36481080/60p22.411.8108270Canon 7D II
Canon 60D« » APS-C 17.9 5184 34561080/30p22.211.581366Canon 60D
Canon 7D« » APS-C 17.9 5184 34561080/30p22.011.785466Canon 7D
Canon 50D« » APS-C 15.1 4752 3168-21.811.469663Canon 50D
Canon 40D« » APS-C 10.1 3888 2592-22.111.370364Canon 40D
Canon 30D« » APS-C 8.2 3504 2336-21.510.873659Canon 30D
Canon XT« » APS-C 8.0 3456 2304-21.810.863760Canon XT
Canon 10D« » APS-C 6.3 3072 2048-21.110.957157Canon 10D
Canon Rebel« » APS-C 6.3 3072 2048-21.010.854455Canon Rebel
Nikon D610« » Full Frame 24.2 6016 40161080/30p25.114.4292594Nikon D610
Nikon D200« » APS-C 10.0 3872 2592-22.311.558364Nikon D200
Panasonic GH4« » Four Thirds 15.9 4608 34564K/30p23.212.879174Panasonic GH4
Sony A7 II« » Full Frame 24.0 6000 40001080/60p24.913.6244990Sony A7 II
Sony A7S« » Full Frame 12.0 4240 28321080/60p23.913.2370287Sony A7S
Sony A7R« » Full Frame 36.2 7360 49121080/60p25.614.1274695Sony A7R

Many modern cameras cannot only take still pictures, but also record videos. The A7 indeed provides for movie recording, while the 20D does not. The highest resolution format that the A7 can use is 1080/60p.



Feature comparison: Canon 20D vs Sony A7

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the A7 has an electronic viewfinder (2400k dots), while the 20D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The adjacent table lists some of the other core features of the Canon 20D and Sony A7 along with similar information for a selection of comparators. The full specs-sheets can be found in the camera manual or, for example, in the dpreview camera hub.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec))
Build-in
Flash
(yes/no)
Build-in
Stab
Camera
Model
Canon 20D»optical Y 1.8 118 fixed n 8000 5.0 Y n Canon 20D
Sony A7«2400 n 3.0 1230 tilting n 8000 5.0 n n Sony A7
Canon 7D II« »optical Y 3.0 1040 fixed n 8000 10.0 Y n Canon 7D II
Canon 60D« »optical Y 3.0 1040 swivel n 8000 5.3 Y n Canon 60D
Canon 7D« »optical Y 3.0 920 fixed n 8000 8.0 Y n Canon 7D
Canon 50D« »optical Y 3.0 920 fixed n 8000 6.3 Y n Canon 50D
Canon 40D« »optical Y 3.0 230 fixed n 8000 6.5 Y n Canon 40D
Canon 30D« »optical Y 2.5 230 fixed n 8000 5.0 Y n Canon 30D
Canon XT« »optical n 1.8 115 fixed n 4000 3.0 Y n Canon XT
Canon 10D« »optical Y 1.8 118 fixed n 4000 3.0 Y n Canon 10D
Canon Rebel« »optical n 1.8 118 fixed n 4000 2.5 Y n Canon Rebel
Nikon D610« »optical Y 3.2 921 fixed n 4000 6.0 Y n Nikon D610
Nikon D200« »optical Y 2.5 230 fixed n 8000 5.0 Y n Nikon D200
Panasonic GH4« »2359 n 3.0 1036 swivel Y 8000 12.0 Y n Panasonic GH4
Sony A7 II« »2400 n 3.0 1230 tilting n 8000 5.0 n Y Sony A7 II
Sony A7S« »2400 n 3.0 921 tilting n 8000 5.0 n n Sony A7S
Sony A7R« »2400 n 3.0 1230 tilting n 8000 4.0 n n Sony A7R

Both the 20D and the A7 have been discontinued, but can regularly be found used on eBay. The 20D was replaced by the Canon 30D, while the A7 was followed by the Sony A7 II.

Review summary: Canon 20D vs Sony A7

So what conclusions can be drawn? Is there a clear favorite between the Canon 20D and the Sony A7? Below is a summary of the relative strengths of each of the two contestants.

ilogo

Arguments in favor of the Canon EOS 20D:

  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Easier setting verification: Has an LCD display on top to control shooting parameters.
  • Longer lasting: Can take more shots (700 versus 340) on a single battery charge.
  • Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
  • More affordable: Was introduced into a lower priced segment (12 percent cheaper at launch).
  • More heavily discounted: Has been available for much longer (launched in August 2004).

ilogo

Advantages of the Sony Alpha A7:

  • More detail: Has more megapixels (24 vs 8.2MP), which boosts linear resolution by 71%.
  • Better image quality: Scores substantially higher (28 points) in the DXO overall evaluation.
  • Richer colors: Generates noticeably more natural colors (2.9 bits more color depth).
  • More dynamic range: Captures a broader range of light and dark details (3.2 EV of extra DR).
  • Better low-light sensitivity: Can shoot in dim conditions (1.6 stops ISO advantage).
  • Broader imaging potential: Can capture not only stills but also 1080/60p video.
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (1230k vs 118k dots).
  • More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
  • More compact: Is smaller (127x94mm vs 144x106mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 296g or 38 percent) and is thus easier to take along.
  • Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • More modern: Reflects 9 years and 1 month of technical progress since the 20D launch.

If the count of individual advantages (bullet points above) is taken as a guide, the A7 is the clear winner of the contest (15 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera.

20D 06:15 A7

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says nothing about, for example, the handling, responsiveness, and overall imaging quality of the 20D and the A7 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable. This is where reviews by experts come in. The adjacent table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog). The full reviews are available by clicking on the site logo in the table header.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 20D»-HiRec-rev- Aug 2004 1,499- i Canon 20D
Sony A7«HiRec80/1005/54.5/55/5 Oct 2013 1,699- i Sony A7
Canon 7D II« »Rec84/1004/55/54.5/5 Sep 2014 1,799 i i Canon 7D II
Canon 60D« »Rec79/1004/55/54.5/5 Aug 2010 1,399- i Canon 60D
Canon 7D« »HiRec84/1004.5/55/54.5/5 Sep 2009 1,699- i Canon 7D
Canon 50D« »HiRecHiRec4.5/55/54.5/5 Aug 2008 1,299- i Canon 50D
Canon 40D« »HiRecHiRec4.5/5rev4.5/5 Aug 2007 1,299- i Canon 40D
Canon 30D« »HiRecHiRecrevrev- Feb 2006 1,399- i Canon 30D
Canon XT« »80/100HiRecrevrev- Feb 2005 899- i Canon XT
Canon 10D« »-HiRec-rev- Feb 2003 1,999- i Canon 10D
Canon Rebel« »-HiRec-rev- Aug 2003 899- i Canon Rebel
Nikon D610« »HiRec87/1004.5/54.5/54.5/5 Oct 2013 1,999 i i Nikon D610
Nikon D200« »HiRecHiRecrev5/5- Nov 2005 1,699- i Nikon D200
Panasonic GH4« »HiRec85/1005/55/55/5 Feb 2014 1,499- i Panasonic GH4
Sony A7 II« »Rec82/1004.5/55/55/5 Nov 2014 1,999- i Sony A7 II
Sony A7S« »-86/1004.5/54.5/55/5 Apr 2014 2,499- i Sony A7S
Sony A7R« »HiRec82/1004.5/55/55/5 Oct 2013 2,299- i Sony A7R

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
