Canon 20D vs Fujifilm X-T200
The Canon EOS 20D and the Fujifilm X-T200 are two digital cameras that were announced, respectively, in August 2004 and January 2020. The 20D is a DSLR, while the X-T200 is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 8.2 megapixels, whereas the Fujifilm provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 20D and the Fujifilm X-T200? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

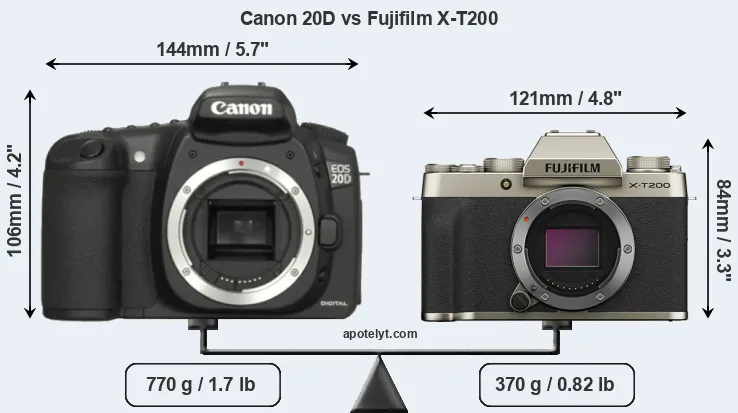

An illustration of the physical size and weight of the Canon 20D and the Fujifilm X-T200 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
The X-T200 can be obtained in three different colors (silver, gold, titanium), while the 20D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X-T200 is considerably smaller (33 percent) than the Canon 20D. Moreover, the X-T200 is substantially lighter (52 percent) than the 20D. In this context, it is worth noting that neither the 20D nor the X-T200 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (20D) and the Fujinon X Lens Catalog (X-T200). Mirrorless cameras, such as the X-T200, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
Concerning battery life, the 20D gets 700 shots out of its BP-511A battery, while the X-T200 can take 270 images on a single charge of its NP-W126S power pack. The power pack in the X-T200 can be charged via the USB port, which can be very convenient when travelling.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon 20D||144 mm||106 mm||72 mm||770 g||700||n||Aug 2004||1,499|
|2.||Fujifilm X-T200||121 mm||84 mm||55 mm||370 g||270||n||Jan 2020||699|
|3.||Canon 7D II||149 mm||112 mm||78 mm||910 g||670||Y||Sep 2014||1,799|
|4.||Canon 60D||145 mm||106 mm||79 mm||755 g||1100||Y||Aug 2010||1,399|
|5.||Canon 7D||148 mm||111 mm||74 mm||860 g||800||Y||Sep 2009||1,699|
|6.||Canon 50D||146 mm||108 mm||74 mm||822 g||800||Y||Aug 2008||1,299|
|7.||Canon 40D||146 mm||108 mm||74 mm||822 g||750||n||Aug 2007||1,299|
|8.||Canon 30D||144 mm||106 mm||74 mm||785 g||750||n||Feb 2006||1,399|
|9.||Canon 350D||127 mm||94 mm||64 mm||540 g||400||n||Feb 2005||899|
|10.||Canon 10D||150 mm||107 mm||75 mm||850 g||500||n||Feb 2003||1,999|
|11.||Canon 300D||142 mm||99 mm||72 mm||649 g||400||n||Aug 2003||899|
|12.||Fujifilm X-E4||121 mm||73 mm||33 mm||364 g||380||n||Jan 2021||849|
|13.||Fujifilm X-T30||118 mm||83 mm||47 mm||383 g||380||n||Feb 2019||899|
|14.||Fujifilm X-A7||119 mm||68 mm||41 mm||320 g||440||n||Sep 2019||499|
|15.||Fujifilm X-T100||121 mm||83 mm||47 mm||448 g||430||n||May 2018||599|
|16.||Fujifilm X-A3||117 mm||67 mm||40 mm||339 g||410||n||Aug 2016||399|
|17.||Nikon D200||147 mm||113 mm||74 mm||920 g||400||Y||Nov 2005||1,699|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The X-T200 was launched at a markedly lower price (by 53 percent) than the 20D, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the X-T200 is 9 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (20D) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.
With 24MP, the X-T200 offers a higher resolution than the 20D (8.2MP), but the X-T200 has smaller individual pixels (pixel pitch of 3.92μm versus 6.42μm for the 20D). Yet, the X-T200 is a much more recent model (by 15 years and 5 months) than the 20D, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.
The resolution advantage of the Fujifilm X-T200 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the X-T200 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon 20D are 17.5 x 11.7 inches or 44.5 x 29.7 cm for good quality, 14 x 9.3 inches or 35.6 x 23.7 cm for very good quality, and 11.7 x 7.8 inches or 29.7 x 19.8 cm for excellent quality prints.
The X-T200 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 20D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Fujifilm X-T200 are ISO 200 to ISO 12800, with the possibility to increase the ISO range to 100-51200.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
|3.||Canon 7D II||APS-C||20.0||5472||3648||1080/60p||22.4||11.8||1082||70|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The X-T200 indeed provides for movie recording, while the 20D does not. The highest resolution format that the X-T200 can use is 4K/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the X-T200 has an electronic viewfinder (2360k dots), while the 20D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the X-T200 offers a wider field of view (100%) than the one in the 20D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the X-T200 has a higher magnification (0.62x vs 0.56x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 20D and Fujifilm X-T200 in connection with corresponding information for a sample of similar cameras.
|3.||Canon 7D II||optical||Y||3.0||1040||fixed||n||1/8000s||10.0||Y||n|
One feature that is present on the 20D, but is missing on the X-T200 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The X-T200 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 20D does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the X-T200 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Fujifilm X-T200 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 20D writes its imaging data to Compact Flash cards, while the X-T200 uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 20D and Fujifilm X-T200 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|3.||Canon 7D II||Y||stereo||mono||Y||Y||mini||3.0||-||-||-|
It is notable that the X-T200 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 20D does not provide wifi capability.
Studio photographers will appreciate that the Canon 20D (unlike the X-T200) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The X-T200 is a recent model that features in the current product line-up of Fujifilm. In contrast, the 20D has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the 20D was succeeded by the Canon 30D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Fujifilm websites.
So how do things add up? Is the Canon 20D better than the Fujifilm X-T200 or vice versa? The listing below highlights the relative strengths of the two models.
Advantages of the Canon EOS 20D:
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Longer lasting: Can take more shots (700 versus 270) on a single battery charge.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in August 2004).
Reasons to prefer the Fujifilm X-T200:
- More detail: Has more megapixels (24 vs 8.2MP), which boosts linear resolution by 71%.
- Broader imaging potential: Can capture not only stills but also 4K/30p video.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.62x vs 0.56x).
- Larger screen: Has a bigger rear LCD (3.5" vs 1.8") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (2780k vs 118k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (8 vs 5 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (121x84mm vs 144x106mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 400g or 52 percent) and is thus easier to take along.
- Easier travel charging: Can be conveniently charged via its USB port.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Faster data transfer: Supports a more advanced USB protocol (3.1 vs 1.1).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More affordable: Was introduced into a lower priced category (53 percent cheaper at launch).
- More modern: Reflects 15 years and 5 months of technical progress since the 20D launch.
If the count of individual advantages (bullet points above) is taken as a guide, the X-T200 is the clear winner of the contest (23 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 20D and the Fujifilm X-T200 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 20D and the X-T200 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 20D||..||..||+ +||..||..||Aug 2004||1,499|
|2.||Fujifilm X-T200||3.5/5||..||82/100||4/5||4.5/5||Jan 2020||699|
|3.||Canon 7D II||4.5/5||+||84/100||4/5||4.5/5||Sep 2014||1,799|
|4.||Canon 60D||5/5||+||79/100||4/5||4.5/5||Aug 2010||1,399|
|5.||Canon 7D||5/5||+ +||84/100||4.5/5||4.5/5||Sep 2009||1,699|
|6.||Canon 50D||..||+ +||+ +||4.5/5||4.5/5||Aug 2008||1,299|
|7.||Canon 40D||..||+ +||+ +||4.5/5||4.5/5||Aug 2007||1,299|
|8.||Canon 30D||..||+ +||+ +||o||..||Feb 2006||1,399|
|9.||Canon 350D||..||80/100||+ +||o||..||Feb 2005||899|
|10.||Canon 10D||..||..||+ +||..||..||Feb 2003||1,999|
|11.||Canon 300D||..||..||+ +||..||..||Aug 2003||899|
|12.||Fujifilm X-E4||..||..||..||..||..||Jan 2021||849|
|13.||Fujifilm X-T30||5/5||+ +||84/100||4.5/5||4.5/5||Feb 2019||899|
|14.||Fujifilm X-A7||3/5||..||81/100||4/5||3.5/5||Sep 2019||499|
|15.||Fujifilm X-T100||4/5||+||79/100||4/5||4.5/5||May 2018||599|
|16.||Fujifilm X-A3||..||..||74/100||4.5/5||4/5||Aug 2016||399|
|17.||Nikon D200||..||+ +||+ +||o||..||Nov 2005||1,699|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon 20D vs Fujifilm X-T200
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 20D||Fujifilm X-T200|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Fujifilm X mount lenses|
|Launch Date||August 2004||January 2020|
|Launch Price||USD 1,499||USD 699|
|Sensor Specs||Canon 20D||Fujifilm X-T200|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.5 x 15.0 mm||23.5 x 15.7 mm|
|Sensor Area||337.5 mm2||368.95 mm2|
|Sensor Diagonal||27 mm||28.3 mm|
|Sensor Resolution||8.2 Megapixels||24 Megapixels|
|Image Resolution||3504 x 2336 pixels||6000 x 4000 pixels|
|Pixel Pitch||6.42 μm||3.92 μm|
|Pixel Density||2.43 MP/cm2||6.50 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||4K/30p Video|
|ISO Setting||100 - 1,600 ISO||200 - 12,800 ISO|
|ISO Boost||100 - 3,200 ISO||100 - 51,200 ISO|
|DXO Sensor Quality (score)||62||..|
|DXO Color Depth (bits)||21.9||..|
|DXO Dynamic Range (EV)||11.0||..|
|DXO Low Light (ISO)||721||..|
|Screen Specs||Canon 20D||Fujifilm X-T200|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||95%||100%|
|Viewfinder Resolution||2360k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View|
|Rear LCD Size||1.8inch||3.5inch|
|LCD Resolution||118k dots||2780k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 20D||Fujifilm X-T200|
|Focus System||Phase-detect AF||On-Sensor Phase-detect|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/4000s|
|Continuous Shooting||5 shutter flaps/s||8 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/32000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon 20D||Fujifilm X-T200|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 1.1||USB 3.1|
|HDMI Port||no HDMI||micro HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||Wifi built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Canon 20D||Fujifilm X-T200|
|Battery Life (CIPA)||700 shots per charge||270 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
144 x 106 x 72 mm
(5.7 x 4.2 x 2.8 in)
121 x 84 x 55 mm
(4.8 x 3.3 x 2.2 in)
|Camera Weight||770 g (27.2 oz)||370 g (13.1 oz)|
