Canon 20D vs M200
The Canon EOS 20D and the Canon EOS M200 are two digital cameras that were announced, respectively, in August 2004 and September 2019. The 20D is a DSLR, while the M200 is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The 20D has a resolution of 8.2 megapixels, whereas the M200 provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 20D and the Canon EOS M200? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison

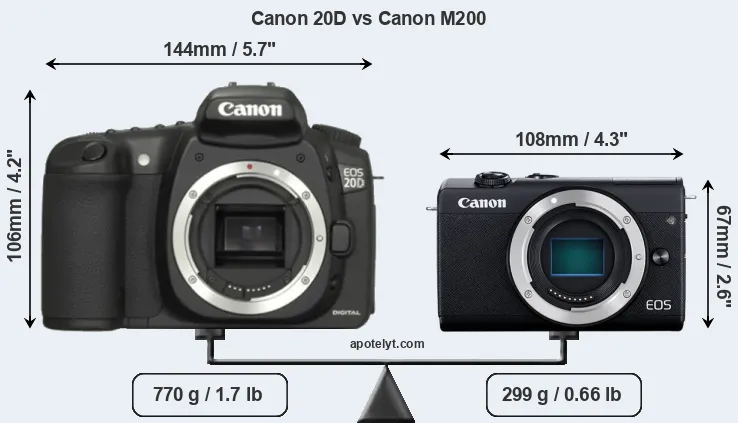

The physical size and weight of the Canon 20D and the Canon M200 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The M200 can be obtained in two different colors (black, white), while the 20D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon M200 is considerably smaller (53 percent) than the Canon 20D. Moreover, the M200 is substantially lighter (61 percent) than the 20D. In this context, it is worth noting that neither the 20D nor the M200 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
Concerning battery life, the 20D gets 700 shots out of its Canon BP-511A battery, while the M200 can take 315 images on a single charge of its Canon LP-E12 power pack.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
# | Camera Model |
Camera Width |
Camera Height |
Camera Depth |
Camera Weight |
Battery Life |
Weather Sealing |
Camera Launch |
Launch Price (USD) |
Street Price |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon 20D | 144 mm | 106 mm | 72 mm | 770 g | 700 | n | Aug 2004 | 1,499 | ebay.com | |
2. | Canon M200 | 108 mm | 67 mm | 35 mm | 299 g | 315 | n | Sep 2019 | 549 | ebay.com | |
3. | Canon M50 Mark II | 116 mm | 88 mm | 59 mm | 387 g | 305 | n | Oct 2020 | 599 | ebay.com | |
4. | Canon M50 | 116 mm | 88 mm | 59 mm | 390 g | 235 | n | Feb 2018 | 779 | ebay.com | |
5. | Canon M100 | 108 mm | 67 mm | 35 mm | 302 g | 295 | n | Aug 2017 | 499 | ebay.com | |
6. | Canon M10 | 108 mm | 67 mm | 35 mm | 301 g | 255 | n | Oct 2015 | 499 | ebay.com | |
7. | Canon 7D II | 149 mm | 112 mm | 78 mm | 910 g | 670 | Y | Sep 2014 | 1,799 | ebay.com | |
8. | Canon M | 109 mm | 66 mm | 32 mm | 298 g | 230 | n | Jul 2012 | 599 | ebay.com | |
9. | Canon 60D | 145 mm | 106 mm | 79 mm | 755 g | 1100 | Y | Aug 2010 | 1,399 | ebay.com | |
10. | Canon 7D | 148 mm | 111 mm | 74 mm | 860 g | 800 | Y | Sep 2009 | 1,699 | ebay.com | |
11. | Canon 50D | 146 mm | 108 mm | 74 mm | 822 g | 800 | Y | Aug 2008 | 1,299 | ebay.com | |
12. | Canon 40D | 146 mm | 108 mm | 74 mm | 822 g | 750 | n | Aug 2007 | 1,299 | ebay.com | |
13. | Canon 30D | 144 mm | 106 mm | 74 mm | 785 g | 750 | n | Feb 2006 | 1,399 | ebay.com | |
14. | Canon XT | 127 mm | 94 mm | 64 mm | 540 g | 400 | n | Feb 2005 | 899 | ebay.com | |
15. | Canon 10D | 150 mm | 107 mm | 75 mm | 850 g | 500 | n | Feb 2003 | 1,999 | ebay.com | |
16. | Canon Rebel | 142 mm | 99 mm | 72 mm | 649 g | 400 | n | Aug 2003 | 899 | ebay.com | |
17. | Nikon D200 | 147 mm | 113 mm | 74 mm | 920 g | 400 | Y | Nov 2005 | 1,699 | ebay.com | |
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders. | |||||||||||
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The M200 was launched at a markedly lower price (by 63 percent) than the 20D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
Sensor comparison
The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the M200 is 2 percent smaller. They nevertheless have the same format factor of 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, the M200 uses a more advanced image processing engine (DIGIC 8) than the 20D (DIGIC 2), with benefits for noise reduction, color accuracy, and processing speed.
Despite having a slightly smaller sensor, the M200 offers a higher resolution of 24 megapixels, compared with 8.2 MP of the 20D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.72μm versus 6.42μm for the 20D). However, it should be noted that the M200 is much more recent (by 15 years and 1 month) than the 20D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Canon M200 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M200 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon 20D are 17.5 x 11.7 inches or 44.5 x 29.7 cm for good quality, 14 x 9.3 inches or 35.6 x 23.7 cm for very good quality, and 11.7 x 7.8 inches or 29.7 x 19.8 cm for excellent quality prints.
The M200 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 20D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Canon EOS M200 are ISO 100 to ISO 25600 (no boost).
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
# | Camera Model |
Sensor Class |
Resolution (MP) |
Horiz. Pixels |
Vert. Pixels |
Video Format |
DXO Portrait |
DXO Landscape |
DXO Sports |
DXO Overall |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon 20D | APS-C | 8.2 | 3504 | 2336 | none | 21.9 | 11.0 | 721 | 62 | |
2. | Canon M200 | APS-C | 24.0 | 6000 | 4000 | 4k/25p | 24.0 | 13.5 | 1836 | 82 | |
3. | Canon M50 Mark II | APS-C | 24.0 | 6000 | 4000 | 4K/24p | 24.0 | 13.6 | 1939 | 83 | |
4. | Canon M50 | APS-C | 24.0 | 6000 | 4000 | 4K/24p | 23.8 | 13.3 | 1684 | 81 | |
5. | Canon M100 | APS-C | 24.0 | 6000 | 4000 | 1080/60p | 23.5 | 12.9 | 1272 | 78 | |
6. | Canon M10 | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 22.2 | 11.4 | 753 | 65 | |
7. | Canon 7D II | APS-C | 20.0 | 5472 | 3648 | 1080/60p | 22.4 | 11.8 | 1082 | 70 | |
8. | Canon M | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 22.1 | 11.2 | 827 | 65 | |
9. | Canon 60D | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 22.2 | 11.5 | 813 | 66 | |
10. | Canon 7D | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 22.0 | 11.7 | 854 | 66 | |
11. | Canon 50D | APS-C | 15.1 | 4752 | 3168 | none | 21.8 | 11.4 | 696 | 63 | |
12. | Canon 40D | APS-C | 10.1 | 3888 | 2592 | none | 22.1 | 11.3 | 703 | 64 | |
13. | Canon 30D | APS-C | 8.2 | 3504 | 2336 | none | 21.5 | 10.8 | 736 | 59 | |
14. | Canon XT | APS-C | 8.0 | 3456 | 2304 | none | 21.8 | 10.8 | 637 | 60 | |
15. | Canon 10D | APS-C | 6.3 | 3072 | 2048 | none | 21.1 | 10.9 | 571 | 57 | |
16. | Canon Rebel | APS-C | 6.3 | 3072 | 2048 | none | 21.0 | 10.8 | 544 | 55 | |
17. | Nikon D200 | APS-C | 10.0 | 3872 | 2592 | none | 22.3 | 11.5 | 583 | 64 | |
Note: DXO values in italics represent estimates based on sensor size and age. |
Many modern cameras cannot only take still pictures, but also record videos. The M200 indeed provides for movie recording, while the 20D does not. The highest resolution format that the M200 can use is 4k/25p.
Feature comparison
Beyond body and sensor, cameras can and do differ across a range of features. For example, the 20D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the M200 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon 20D and Canon M200 along with similar information for a selection of comparators.
# | Camera Model |
Viewfinder (Type or 000 dots) |
Control Panel (yes/no) |
LCD Specifications (inch/000 dots) |
LCD Attach- ment |
Touch Screen (yes/no) |
Max Shutter Speed * |
Max Shutter Flaps * |
Built-in Flash (yes/no) |
Built-in Image Stab |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon 20D | optical | Y | 1.8 / 118 | fixed | n | 1/8000s | 5.0/s | Y | n | |
2. | Canon M200 | none | n | 3.0 / 1040 | tilting | Y | 1/4000s | 6.1/s | Y | n | |
3. | Canon M50 Mark II | 2360 | n | 3.0 / 1040 | swivel | Y | 1/4000s | 10.0/s | Y | n | |
4. | Canon M50 | 2360 | n | 3.0 / 1040 | swivel | Y | 1/4000s | 10.0/s | Y | n | |
5. | Canon M100 | none | n | 3.0 / 1040 | tilting | Y | 1/4000s | 6.1/s | Y | n | |
6. | Canon M10 | none | n | 3.0 / 1040 | tilting | Y | 1/4000s | 4.6/s | Y | n | |
7. | Canon 7D II | optical | Y | 3.0 / 1040 | fixed | n | 1/8000s | 10.0/s | Y | n | |
8. | Canon M | none | n | 3.0 / 1040 | fixed | Y | 1/4000s | 4.3/s | n | n | |
9. | Canon 60D | optical | Y | 3.0 / 1040 | swivel | n | 1/8000s | 5.3/s | Y | n | |
10. | Canon 7D | optical | Y | 3.0 / 920 | fixed | n | 1/8000s | 8.0/s | Y | n | |
11. | Canon 50D | optical | Y | 3.0 / 920 | fixed | n | 1/8000s | 6.3/s | Y | n | |
12. | Canon 40D | optical | Y | 3.0 / 230 | fixed | n | 1/8000s | 6.5/s | Y | n | |
13. | Canon 30D | optical | Y | 2.5 / 230 | fixed | n | 1/8000s | 5.0/s | Y | n | |
14. | Canon XT | optical | n | 1.8 / 115 | fixed | n | 1/4000s | 3.0/s | Y | n | |
15. | Canon 10D | optical | Y | 1.8 / 118 | fixed | n | 1/4000s | 3.0/s | Y | n | |
16. | Canon Rebel | optical | n | 1.8 / 118 | fixed | n | 1/4000s | 2.5/s | Y | n | |
17. | Nikon D200 | optical | Y | 2.5 / 230 | fixed | n | 1/8000s | 5.0/s | Y | n | |
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one. |
One feature that is present on the 20D, but is missing on the M200 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The M200 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 20D does not have a selfie-screen.The 20D writes its imaging data to Compact Flash cards, while the M200 uses SDXC cards.
Connectivity comparison
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 20D and Canon EOS M200 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
# | Camera Model |
Hotshoe Port |
Internal Mic / Speaker |
Microphone Port |
Headphone Port |
HDMI Port |
USB Port |
WiFi Support |
NFC Support |
Bluetooth Support |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon 20D | Y | - / - | - | - | - | 1.1 | - | - | - | |
2. | Canon M200 | - | stereo / mono | - | - | micro | 2.0 | Y | - | Y | |
3. | Canon M50 Mark II | Y | stereo / mono | Y | - | micro | 2.0 | Y | - | Y | |
4. | Canon M50 | Y | stereo / mono | Y | - | micro | 2.0 | Y | - | Y | |
5. | Canon M100 | - | stereo / mono | - | - | micro | 2.0 | Y | Y | Y | |
6. | Canon M10 | - | stereo / mono | - | - | mini | 2.0 | Y | Y | - | |
7. | Canon 7D II | Y | stereo / mono | Y | Y | mini | 3.0 | - | - | - | |
8. | Canon M | Y | stereo / mono | Y | - | mini | 2.0 | - | - | - | |
9. | Canon 60D | Y | mono / mono | Y | - | mini | 2.0 | - | - | - | |
10. | Canon 7D | Y | mono / - | Y | - | mini | 2.0 | - | - | - | |
11. | Canon 50D | Y | - / - | - | - | mini | 2.0 | - | - | - | |
12. | Canon 40D | Y | - / - | - | - | - | 2.0 | - | - | - | |
13. | Canon 30D | Y | - / - | - | - | - | 2.0 | - | - | - | |
14. | Canon XT | Y | - / - | - | - | - | 2.0 | - | - | - | |
15. | Canon 10D | Y | - / - | - | - | - | 1.1 | - | - | - | |
16. | Canon Rebel | Y | - / - | - | - | - | 1.1 | - | - | - | |
17. | Nikon D200 | Y | - / - | - | - | - | 2.0 | - | - | - |
It is notable that the 20D has a hotshoe, while the M200 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
Studio photographers will appreciate that the Canon 20D (unlike the M200) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 20D and the M200 have been discontinued, but can regularly be found used on ebay. The 20D was replaced by the Canon 30D, while the M200 does not have a direct successor. Further information on the features and operation of the 20D and M200 can be found, respectively, in the Canon 20D Manual (free pdf) or the online Canon M200 Manual.
Review summary
So what is the bottom line? Is the Canon 20D better than the Canon M200 or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Advantages of the Canon EOS 20D:
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Longer lasting: Can take more shots (700 versus 315) on a single battery charge.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in August 2004).
Arguments in favor of the Canon EOS M200:
- More detail: Has more megapixels (24 vs 8.2MP), which boosts linear resolution by 71%.
- Better jpgs: Has a more modern image processing engine (DIGIC 8 vs DIGIC 2).
- Broader imaging potential: Can capture not only stills but also 4k/25p video.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 118k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (6.1 vs 5 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (108x67mm vs 144x106mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 471g or 61 percent) and is thus easier to take along.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Faster data transfer: Supports a more advanced USB protocol (2.0 vs 1.1).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More affordable: Was introduced into a lower priced category (63 percent cheaper at launch).
- More modern: Reflects 15 years and 1 month of technical progress since the 20D launch.
If the count of individual advantages (bullet points above) is taken as a guide, the M200 is the clear winner of the contest (18 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 20D and the Canon M200 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 20D and the M200 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
Expert reviews
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
# | Camera Model |
AP score |
CL score |
DCW score |
DPR score |
EPZ score |
PB score |
Camera Launch |
Launch Price (USD) |
Street Price |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon 20D | .. | .. | .. | + + | .. | .. | Aug 2004 | 1,499 | ebay.com | |
2. | Canon M200 | .. | + | 3/5 | 79/100 | 4/5 | 4/5 | Sep 2019 | 549 | ebay.com | |
3. | Canon M50 Mark II | 4/5 | .. | 4/5 | .. | 4.5/5 | 3.5/5 | Oct 2020 | 599 | ebay.com | |
4. | Canon M50 | .. | + | 4/5 | 79/100 | .. | 3.5/5 | Feb 2018 | 779 | ebay.com | |
5. | Canon M100 | 3/5 | + | .. | .. | 4/5 | 3.5/5 | Aug 2017 | 499 | ebay.com | |
6. | Canon M10 | .. | .. | .. | .. | .. | 4/5 | Oct 2015 | 499 | ebay.com | |
7. | Canon 7D II | 4.5/5 | + | 3.5/5 | 84/100 | 4/5 | 4.5/5 | Sep 2014 | 1,799 | ebay.com | |
8. | Canon M | 3/5 | + | .. | .. | 4/5 | 4/5 | Jul 2012 | 599 | ebay.com | |
9. | Canon 60D | 5/5 | + | .. | 79/100 | 4/5 | 4.5/5 | Aug 2010 | 1,399 | ebay.com | |
10. | Canon 7D | 5/5 | + + | .. | 84/100 | 4.5/5 | 4.5/5 | Sep 2009 | 1,699 | ebay.com | |
11. | Canon 50D | .. | + + | .. | + + | 4.5/5 | 4.5/5 | Aug 2008 | 1,299 | ebay.com | |
12. | Canon 40D | .. | + + | .. | + + | 4.5/5 | 4.5/5 | Aug 2007 | 1,299 | ebay.com | |
13. | Canon 30D | .. | + + | .. | + + | o | .. | Feb 2006 | 1,399 | ebay.com | |
14. | Canon XT | .. | 80/100 | .. | + + | o | .. | Feb 2005 | 899 | ebay.com | |
15. | Canon 10D | .. | .. | .. | + + | .. | .. | Feb 2003 | 1,999 | ebay.com | |
16. | Canon Rebel | .. | .. | .. | + + | .. | .. | Aug 2003 | 899 | ebay.com | |
17. | Nikon D200 | .. | + + | .. | + + | o | .. | Nov 2005 | 1,699 | ebay.com | |
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available. |
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 1D Mark IV vs Canon M200
- Canon 1D X Mark III vs Canon M200
- Canon 20D vs Canon 60D
- Canon 20D vs Canon T2i
- Canon 20D vs Leica TL2
- Canon 20D vs Olympus E-PL2
- Canon 20D vs Panasonic FZ200
- Canon 20D vs Zeiss ZX1
- Canon 500D vs Canon M200
- Canon M200 vs Panasonic G90
- Canon M200 vs Panasonic S5 II
- Canon M200 vs Samsung NX30
Specifications: Canon 20D vs Canon M200
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
Camera Model | Canon 20D | Canon M200 |
---|---|---|
Camera Type | Digital single lens reflex | Mirrorless system camera |
Camera Lens | Canon EF mount lenses | Canon EF-M mount lenses |
Launch Date | August 2004 | September 2019 |
Launch Price | USD 1,499 | USD 549 |
Sensor Specs | Canon 20D | Canon M200 |
Sensor Technology | CMOS | CMOS |
Sensor Format | APS-C Sensor | APS-C Sensor |
Sensor Size | 22.5 x 15.0 mm | 22.3 x 14.9 mm |
Sensor Area | 337.5 mm2 | 332.27 mm2 |
Sensor Diagonal | 27 mm | 26.8 mm |
Crop Factor | 1.6x | 1.6x |
Sensor Resolution | 8.2 Megapixels | 24 Megapixels |
Image Resolution | 3504 x 2336 pixels | 6000 x 4000 pixels |
Pixel Pitch | 6.42 μm | 3.72 μm |
Pixel Density | 2.43 MP/cm2 | 7.22 MP/cm2 |
Moiré control | Anti-Alias filter | Anti-Alias filter |
Movie Capability | no Video | 4k/25p Video |
ISO Setting | 100 - 1,600 ISO | 100 - 25,600 ISO |
ISO Boost | 100 - 3,200 ISO | no Enhancement |
Image Processor | DIGIC 2 | DIGIC 8 |
DXO Sensor Quality (score) | 62 | .. |
DXO Color Depth (bits) | 21.9 | .. |
DXO Dynamic Range (EV) | 11.0 | .. |
DXO Low Light (ISO) | 721 | .. |
Screen Specs | Canon 20D | Canon M200 |
Viewfinder Type | Optical viewfinder | no viewfinder |
Viewfinder Field of View | 95% | |
Viewfinder Magnification | 0.56x | |
Top-Level Screen | Control Panel | no Top Display |
LCD Framing | Live View | |
Rear LCD Size | 1.8inch | 3.0inch |
LCD Resolution | 118k dots | 1040k dots |
LCD Attachment | Fixed screen | Tilting screen |
Touch Input | no Touchscreen | Touchscreen |
Shooting Specs | Canon 20D | Canon M200 |
Focus System | Phase-detect AF | On-Sensor Phase-detect |
Manual Focusing Aid | no Peaking Feature | Focus Peaking |
Max Shutter Speed (mechanical) | 1/8000s | 1/4000s |
Continuous Shooting | 5 shutter flaps/s | 6.1 shutter flaps/s |
Shutter Life Expectancy | 50 000 actuations | 100 000 actuations |
Fill Flash | Built-in Flash | Built-in Flash |
Storage Medium | CF cards | SDXC cards |
Single or Dual Card Slots | Single card slot | Single card slot |
Connectivity Specs | Canon 20D | Canon M200 |
External Flash | Hotshoe | no Hotshoe |
Studio Flash | PC Sync socket | no PC Sync |
USB Connector | USB 1.1 | USB 2.0 |
HDMI Port | no HDMI | micro HDMI |
Wifi Support | no Wifi | Wifi built-in |
Bluetooth Support | no Bluetooth | Bluetooth built-in |
Body Specs | Canon 20D | Canon M200 |
Battery Type | Canon BP-511A | Canon LP-E12 |
Battery Life (CIPA) | 700 shots per charge | 315 shots per charge |
Body Dimensions |
144 x 106 x 72 mm (5.7 x 4.2 x 2.8 in) |
108 x 67 x 35 mm (4.3 x 2.6 x 1.4 in) |
Camera Weight | 770 g (27.2 oz) | 299 g (10.5 oz) |
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
