Canon 20D vs G9X

The Canon EOS 20D and the Canon PowerShot G9 X are two digital cameras that were revealed to the public, respectively, in August 2004 and October 2015. The 20D is a DSLR, while the G9X is a fixed lens compact. The cameras are based on an APS-C (20D) and an one-inch (G9X) sensor. The 20D has a resolution of 8.2 megapixels, whereas the G9X provides 20 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 20D		Canon G9 X
Digital single lens reflex		Fixed lens compact camera
Canon EF mount lenses		28-84mm f/2.0-4.9
8.2 MP – APS-C sensor		20 MP – 1" sensor
no Video		1080/60p Video
ISO 100-1,600 (100 - 3,200)		ISO 125-12,800
Optical viewfinder		No viewfinder, LCD framing
1.8" LCD – 118k dots		3.0" LCD – 1040k dots
Fixed screen (not touch-sensitive)		Fixed touchscreen
5 shutter flaps per second		6 shutter flaps per second
700 shots per battery charge		220 shots per battery charge
144 x 106 x 72 mm, 770 g		98 x 58 x 31 mm, 209 g

Check 20D offers at
ebay.com
Check G9X offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 20D and the Canon PowerShot G9 X? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

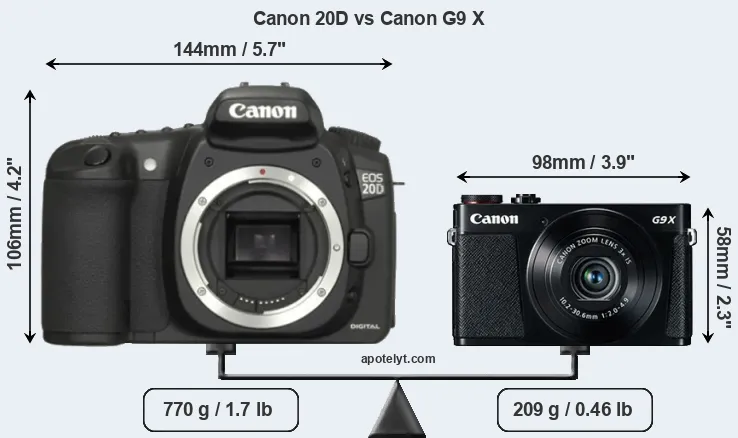

Body comparison

The physical size and weight of the Canon 20D and the Canon G9 X are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

The G9X can be obtained in two different colors (black, silver), while the 20D is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon G9 X is considerably smaller (63 percent) than the Canon 20D. In this context, it is worth noting that neither the 20D nor the G9X are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the G9X has a lens built in, whereas the 20D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 20D and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the 20D gets 700 shots out of its Canon BP-511A battery, while the G9X can take 220 images on a single charge of its Canon NB-13L power pack. The power pack in the G9X can be charged via the USB port, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 20D	144 mm	106 mm	72 mm	770 g	700	n	Aug 2004	1,499	ebay.com
2.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	529	ebay.com
3.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	529	ebay.com
4.		Canon 1300D	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	449	ebay.com
5.		Canon G5 X	112 mm	76 mm	44 mm	353 g	210	n	Oct 2015	799	ebay.com
6.		Canon M10	108 mm	67 mm	35 mm	301 g	255	n	Oct 2015	499	ebay.com
7.		Canon 7D II	149 mm	112 mm	78 mm	910 g	670	Y	Sep 2014	1,799	ebay.com
8.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	699	ebay.com
9.		Canon 60D	145 mm	106 mm	79 mm	755 g	1100	Y	Aug 2010	1,399	ebay.com
10.		Canon 7D	148 mm	111 mm	74 mm	860 g	800	Y	Sep 2009	1,699	ebay.com
11.		Canon 50D	146 mm	108 mm	74 mm	822 g	800	Y	Aug 2008	1,299	ebay.com
12.		Canon 40D	146 mm	108 mm	74 mm	822 g	750	n	Aug 2007	1,299	ebay.com
13.		Canon 30D	144 mm	106 mm	74 mm	785 g	750	n	Feb 2006	1,399	ebay.com
14.		Canon 350D	127 mm	94 mm	64 mm	540 g	400	n	Feb 2005	899	ebay.com
15.		Canon 10D	150 mm	107 mm	75 mm	850 g	500	n	Feb 2003	1,999	ebay.com
16.		Canon 300D	142 mm	99 mm	72 mm	649 g	400	n	Aug 2003	899	ebay.com
17.		Nikon D200	147 mm	113 mm	74 mm	920 g	400	Y	Nov 2005	1,699	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The G9X was launched at a lower price than the 20D, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon 20D features an APS-C sensor and the Canon G9 X an one-inch sensor. The sensor area in the G9X is 66 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.7. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, the G9X uses a more advanced image processing engine (DIGIC 6) than the 20D (DIGIC 2), with benefits for noise reduction, color accuracy, and processing speed.

Despite having a smaller sensor, the G9X offers a higher resolution of 20 megapixels, compared with 8.2 MP of the 20D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.41μm versus 6.42μm for the 20D). However, it should be noted that the G9X is much more recent (by 11 years and 1 month) than the 20D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Canon G9 X implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the G9X for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Canon 20D are 17.5 x 11.7 inches or 44.5 x 29.7 cm for good quality, 14 x 9.3 inches or 35.6 x 23.7 cm for very good quality, and 11.7 x 7.8 inches or 29.7 x 19.8 cm for excellent quality prints.

The Canon EOS 20D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Canon PowerShot G9 X are ISO 125 to ISO 12800 (no boost).

In terms of underlying technology, the 20D is build around a CMOS sensor, while the G9X uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 20D	APS-C	8.2	3504	2336	none	21.9	11.0	721	62
2.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
3.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
4.		Canon 1300D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
5.		Canon G5 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	471	62
6.		Canon M10	APS-C	17.9	5184	3456	1080/30p	22.2	11.4	753	65
7.		Canon 7D II	APS-C	20.0	5472	3648	1080/60p	22.4	11.8	1082	70
8.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
9.		Canon 60D	APS-C	17.9	5184	3456	1080/30p	22.2	11.5	813	66
10.		Canon 7D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	854	66
11.		Canon 50D	APS-C	15.1	4752	3168	none	21.8	11.4	696	63
12.		Canon 40D	APS-C	10.1	3888	2592	none	22.1	11.3	703	64
13.		Canon 30D	APS-C	8.2	3504	2336	none	21.5	10.8	736	59
14.		Canon 350D	APS-C	8.0	3456	2304	none	21.8	10.8	637	60
15.		Canon 10D	APS-C	6.3	3072	2048	none	21.1	10.9	571	57
16.		Canon 300D	APS-C	6.3	3072	2048	none	21.0	10.8	544	55
17.		Nikon D200	APS-C	10.0	3872	2592	none	22.3	11.5	583	64

Many modern cameras cannot only take still pictures, but also record videos. The G9X indeed provides for movie recording, while the 20D does not. The highest resolution format that the G9X can use is 1080/60p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the 20D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the G9X relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon 20D and Canon G9 X in connection with corresponding information for a sample of similar cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 20D	optical	Y	1.8 / 118	fixed	n	1/8000s	5.0/s	Y	n
2.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
3.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
4.		Canon 1300D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
5.		Canon G5 X	2360	n	3.0 / 1040	swivel	Y	1/2000s	5.9/s	Y	Y
6.		Canon M10	none	n	3.0 / 1040	tilting	Y	1/4000s	4.6/s	Y	n
7.		Canon 7D II	optical	Y	3.0 / 1040	fixed	n	1/8000s	10.0/s	Y	n
8.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
9.		Canon 60D	optical	Y	3.0 / 1040	swivel	n	1/8000s	5.3/s	Y	n
10.		Canon 7D	optical	Y	3.0 / 920	fixed	n	1/8000s	8.0/s	Y	n
11.		Canon 50D	optical	Y	3.0 / 920	fixed	n	1/8000s	6.3/s	Y	n
12.		Canon 40D	optical	Y	3.0 / 230	fixed	n	1/8000s	6.5/s	Y	n
13.		Canon 30D	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	Y	n
14.		Canon 350D	optical	n	1.8 / 115	fixed	n	1/4000s	3.0/s	Y	n
15.		Canon 10D	optical	Y	1.8 / 118	fixed	n	1/4000s	3.0/s	Y	n
16.		Canon 300D	optical	n	1.8 / 118	fixed	n	1/4000s	2.5/s	Y	n
17.		Nikon D200	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the 20D, but is missing on the G9X is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The Canon G9 X has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The 20D writes its imaging data to Compact Flash cards, while the G9X uses SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 20D and Canon PowerShot G9 X and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 20D	Y	- / -	-	-	-	1.1	-	-	-
2.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
3.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
4.		Canon 1300D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
5.		Canon G5 X	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
6.		Canon M10	-	stereo / mono	-	-	mini	2.0	Y	Y	-
7.		Canon 7D II	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
8.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
9.		Canon 60D	Y	mono / mono	Y	-	mini	2.0	-	-	-
10.		Canon 7D	Y	mono / -	Y	-	mini	2.0	-	-	-
11.		Canon 50D	Y	- / -	-	-	mini	2.0	-	-	-
12.		Canon 40D	Y	- / -	-	-	-	2.0	-	-	-
13.		Canon 30D	Y	- / -	-	-	-	2.0	-	-	-
14.		Canon 350D	Y	- / -	-	-	-	2.0	-	-	-
15.		Canon 10D	Y	- / -	-	-	-	1.1	-	-	-
16.		Canon 300D	Y	- / -	-	-	-	1.1	-	-	-
17.		Nikon D200	Y	- / -	-	-	-	2.0	-	-	-

It is notable that the 20D has a hotshoe, while the G9X does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Studio photographers will appreciate that the Canon 20D (unlike the G9X) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the 20D and the G9X have been discontinued, but can regularly be found used on ebay. The 20D was replaced by the Canon 30D, while the G9X was followed by the Canon G9 X Mark II. Further information on the features and operation of the 20D and G9X can be found, respectively, in the Canon 20D Manual (free pdf) or the online Canon G9 X Manual.

Review summary

So how do things add up? Is the Canon 20D better than the Canon G9 X or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Canon EOS 20D:

• Better low-light sensitivity: Requires less light for good images (0.5 stops ISO advantage).
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Longer lasting: Can take more shots (700 versus 220) on a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in August 2004).

Advantages of the Canon PowerShot G9 X:

• More detail: Has more megapixels (20 vs 8.2MP), which boosts linear resolution by 56%.
• More dynamic range: Captures a broader range of light and dark details (1.3 EV of extra DR).
• Better jpgs: Has a more modern image processing engine (DIGIC 6 vs DIGIC 2).
• Broader imaging potential: Can capture not only stills but also 1080/60p video.
• Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 118k dots).
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster burst: Shoots at higher frequency (6 vs 5 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Comes with an integrated lens, while the 20D requires a separate lens.
• More compact: Is smaller (98x58mm vs 144x106mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the 20D).
• Easier travel charging: Can be conveniently charged via its USB port.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Faster data transfer: Supports a more advanced USB protocol (2.0 vs 1.1).
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 11 years and 1 month of technical progress since the 20D launch.

If the count of individual advantages (bullet points above) is taken as a guide, the G9X is the clear winner of the contest (19 : 9 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 20D and the Canon G9 X place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the 20D or the G9X perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 20D	..	..	..	+ +	..	..	Aug 2004	1,499	ebay.com
2.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	529	ebay.com
3.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	529	ebay.com
4.		Canon 1300D	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	449	ebay.com
5.		Canon G5 X	5/5	+ +	..	78/100	4.5/5	4.5/5	Oct 2015	799	ebay.com
6.		Canon M10	..	..	..	..	..	4/5	Oct 2015	499	ebay.com
7.		Canon 7D II	4.5/5	+	3.5/5	84/100	4/5	4.5/5	Sep 2014	1,799	ebay.com
8.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	699	ebay.com
9.		Canon 60D	5/5	+	..	79/100	4/5	4.5/5	Aug 2010	1,399	ebay.com
10.		Canon 7D	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2009	1,699	ebay.com
11.		Canon 50D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2008	1,299	ebay.com
12.		Canon 40D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2007	1,299	ebay.com
13.		Canon 30D	..	+ +	..	+ +	o	..	Feb 2006	1,399	ebay.com
14.		Canon 350D	..	80/100	..	+ +	o	..	Feb 2005	899	ebay.com
15.		Canon 10D	..	..	..	+ +	..	..	Feb 2003	1,999	ebay.com
16.		Canon 300D	..	..	..	+ +	..	..	Aug 2003	899	ebay.com
17.		Nikon D200	..	+ +	..	+ +	o	..	Nov 2005	1,699	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
