Canon 200D versus Canon XC10

The Canon EOS 200D (called Canon SL2 in some regions) and the Canon XC10 are two digital cameras that were officially introduced, respectively, in June 2017 and April 2015. The 200D is a DSLR, while the XC10 is a fixed lens compact. The cameras are based on an APS-C (200D) and an one-inch (XC10) sensor. The 200D has a resolution of 24 megapixel, whereas the XC10 provides 12 MP. Read on to find out how these two cameras compare with respect to their size, their sensors, their features, and their reception by expert reviewers.

Body comparison: Canon 200D vs Canon XC10

An illustration of the physical size and weight of the Canon 200D and the Canon XC10 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter. If you prefer, you can also use the toggle button to switch to a comparison in percentage terms (in this case, the camera on the left side – the 200D – represents the basis for the calculations across all the size and weight measures).

Compare Canon 200D vs Canon XC10
Compare 200D versus XC10 top
Compare 200D and XC10 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon XC10 is notably larger (12 percent) than the Canon 200D. In this context, it is worth noting that neither the 200D nor the XC10 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the XC10 has a lens build in, whereas the 200D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can find an overview of optics for the 200D and their specifications in the Canon EF Lens Catalog.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 200D» 4.8 in 3.7 in 2.8 in 16.0 oz 650 n Jun 2017 549 i i Canon 200D
Canon XC10« 4.9 in 4.0 in 4.8 in 36.7 oz .. n Apr 2015 2,499- i Canon XC10
Canon 2000D« » 5.1 in 4.0 in 3.1 in 16.8 oz 500 n Feb 2018 449 i i Canon 2000D
Canon 77D« » 5.2 in 3.9 in 3.0 in 19.0 oz 600 n Feb 2017 899 i i Canon 77D
Canon 800D« » 5.2 in 3.9 in 3.0 in 18.8 oz 600 n Feb 2017 749 i i Canon 800D
Canon G9 X Mark II« » 3.9 in 2.3 in 1.2 in 7.3 oz 235 n Jan 2017 529 i i Canon G9 X Mark II
Canon M6« » 4.4 in 2.7 in 1.8 in 13.8 oz 295 n Feb 2017 779 i i Canon M6
Canon M100« » 4.3 in 2.6 in 1.4 in 10.7 oz 295 n Aug 2017 499 i i Canon M100
Canon G7 X Mark II« » 4.2 in 2.4 in 1.7 in 11.3 oz 265 n Feb 2016 699 i i Canon G7 X Mark II
Canon M5« » 4.6 in 3.5 in 2.4 in 15.1 oz 295 n Sep 2016 979 i i Canon M5
Canon G5 X« » 4.4 in 3.0 in 1.7 in 12.5 oz 210 n Oct 2015 799 i i Canon G5 X
Canon G1 X Mark II« » 4.6 in 2.9 in 2.6 in 19.5 oz 240 n Feb 2014 799 i i Canon G1 X Mark II
Canon G7 X« » 4.1 in 2.4 in 1.6 in 10.7 oz 210 n Sep 2014 699- i Canon G7 X
Canon SX60« » 5.0 in 3.7 in 4.5 in 22.9 oz 340 n Sep 2014 549- i Canon SX60
Canon 100D« » 4.6 in 3.6 in 2.7 in 14.4 oz 380 n Mar 2013 549- i Canon 100D
Nikon D5600« » 4.9 in 3.8 in 2.8 in 16.4 oz 970 n Nov 2016 699 i i Nikon D5600
Nikon D3400« » 4.9 in 3.9 in 3.0 in 15.7 oz 1200 n Aug 2016 499- i Nikon D3400

Any camera purchase will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.



Sensor comparison: Canon 200D vs Canon XC10

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 200D features an APS-C sensor and the Canon XC10 an one-inch sensor. The sensor area in the XC10 is 63 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.75. The sensor in the 200D has a native 3:2 aspect ratio, while the one in the XC10 offers a 4:3 aspect.

In terms of underlying technology, both cameras are build around CMOS sensors.

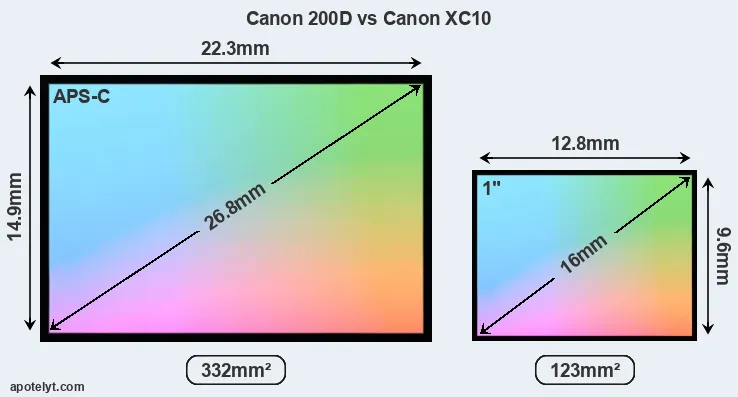

Canon 200D and Canon XC10 sensor measures

With 24MP, the 200D offers a higher resolution than the XC10 (12MP), but the 200D nevertheless has larger individual pixels (pixel pitch of 3.72μm versus 3.20μm for the XC10) due to its larger sensor. Moreover, the 200D is a somewhat more recent model (by 2 years and 2 months) than the XC10, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

200D versus XC10 MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model
Canon 200D» APS-C 24.0 6000 40001080/60p23.613.4104179Canon 200D
Canon XC10« 1-inch 12.0 4000 30004K/30p----Canon XC10
Canon 2000D« » APS-C 24.0 6000 40001080/30p22.611.9100971Canon 2000D
Canon 77D« » APS-C 24.0 6000 40001080/60p23.613.397178Canon 77D
Canon 800D« » APS-C 24.0 6000 40001080/60p----Canon 800D
Canon G9 X Mark II« » 1-inch 20.0 5472 36481080/60p21.912.552265Canon G9 X Mark II
Canon M6« » APS-C 24.0 6000 40001080/60p----Canon M6
Canon M100« » APS-C 24.0 6000 40001080/60p23.512.9127278Canon M100
Canon G7 X Mark II« » 1-inch 20.0 5472 36481080/60p----Canon G7 X Mark II
Canon M5« » APS-C 24.0 6000 40001080/60p23.412.4126277Canon M5
Canon G5 X« » 1-inch 20.0 5472 36481080/60p----Canon G5 X
Canon G1 X Mark II« » 1.5-inch 13.0 4160 31201080/30p21.510.858158Canon G1 X Mark II
Canon G7 X« » 1-inch 20.0 5472 36481080/60p23.012.755671Canon G7 X
Canon SX60« » 1/2.3 14.2 4608 30721080/60p19.210.812739Canon SX60
Canon 100D« » APS-C 17.9 5184 34561080/30p21.811.384363Canon 100D
Nikon D5600« » APS-C 24.0 6000 40001080/60p24.114.0130684Nikon D5600
Nikon D3400« » APS-C 24.0 6000 40001080/60p24.813.9119286Nikon D3400

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the XC10 provides a better video resolution than the 200D. It can shoot movie footage at 4K/30p, while the 200D is limited to 1080/60p.



Feature comparison: Canon 200D vs Canon XC10

Apart from body and sensor, cameras can and do differ across a range of features. For example, the 200D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the XC10 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon 200D and Canon XC10 along with similar information for a selection of comparators. The full specs-sheets can be found in the camera manual or in the dpreview camera hub.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec))
Build-in
Flash
(yes/no)
Build-in
Stab
Camera
Model
Canon 200D»optical n 3.0 1040 swivel Y 4000 5.0 Y n Canon 200D
Canon XC10«- n 3.0 1030 tilting Y 2000 3.8 n Y Canon XC10
Canon 2000D« »optical n 3.0 920 fixed n 4000 3.0 Y n Canon 2000D
Canon 77D« »optical Y 3.0 1040 swivel Y 4000 6.0 Y n Canon 77D
Canon 800D« »optical n 3.0 1040 swivel Y 4000 6.0 Y n Canon 800D
Canon G9 X Mark II« »- n 3.0 1040 fixed Y 2000 8.2 Y Y Canon G9 X Mark II
Canon M6« »- n 3.0 1040 tilting Y 4000 9.0 Y n Canon M6
Canon M100« »- n 3.0 1040 tilting Y 4000 6.1 Y n Canon M100
Canon G7 X Mark II« »- n 3.0 1040 tilting Y 2000 8.0 Y Y Canon G7 X Mark II
Canon M5« »2360 n 3.2 1620 tilting Y 4000 9.0 Y n Canon M5
Canon G5 X« »2360 n 3.0 1040 swivel Y 2000 5.9 Y Y Canon G5 X
Canon G1 X Mark II« »- n 3.0 1040 tilting Y 4000 5.2 Y Y Canon G1 X Mark II
Canon G7 X« »- n 3.0 1040 tilting Y 2000 6.5 Y Y Canon G7 X
Canon SX60« »922 n 3.0 922 swivel n 2000 6.4 Y Y Canon SX60
Canon 100D« »optical n 3.0 1040 fixed Y 4000 4.9 Y n Canon 100D
Nikon D5600« »optical n 3.2 1037 swivel Y 4000 5.0 Y n Nikon D5600
Nikon D3400« »optical n 3.0 921 fixed n 4000 5.0 Y n Nikon D3400

One difference between the cameras concerns the presence of an on-board flash. The 200D has one, while the XC10 does not. While the build-in flash of the 200D is not very powerful, it can at times be useful as a fill-in light.

The 200D is a current model that online retailers, such as amazon, will have in stock. In contrast, the XC10 has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the XC10 was succeeded by the Canon XC20.

Review summary: Canon 200D vs Canon XC10

So what is the bottom line? Is the Canon 200D better than the Canon XC10 or vice versa? Below is a summary of the relative strengths of each of the two contestants.


Arguments in favor of the Canon EOS 200D:

  • More detail: Offers more megapixels (24 vs 12MP) with a 44% higher linear resolution.
  • Better image quality: Features a larger and more technologically advanced imaging sensor.
  • Easier framing: Has an optical viewfinder for image framing and settings control.
  • More flexible LCD: Has swivel screen for odd-angle shots in portrait or landscape orientation.
  • Faster shutter: Has higher mechanical shutter speed (4000/sec vs 2000/sec) to freeze action.
  • Faster burst: Shoots at higher frequency (5 vs 3.8 flaps/sec) to capture the decisive moment.
  • More flexible: Can take a variety of interchangeable lenses, including specialty optics.
  • More compact: Is smaller (122x93mm vs 125x102mm) and thus needs less room in the bag.
  • Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
  • More modern: Reflects 2 years and 2 months of technical progress since the XC10 launch.


Advantages of the Canon XC10:

  • Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
  • Ready to shoot: Comes with an integrated lens, while the 200D requires a separate lens.
  • Sharper images: Has stabilization technology build-in to reduce the impact of hand-shake.
  • More heavily discounted: Has been around for much longer (launched in April 2015).

If the number of relative strengths (bullet points above) is taken as a guide, the 200D is the clear winner of the match-up (10 : 4 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera.

200D 10:04 XC10

In any case, while the specs-based evaluation of cameras is instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the 200D or the XC10 handle or perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate. This is why expert reviews are important. The adjacent table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog). You can find the full text of the reviews by clicking on the site logo in the table header.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 200D»HiRec78/1004.5/54.5/54.5/5 Jun 2017 549 i i Canon 200D
Canon XC10«-80/100--- Apr 2015 2,499- i Canon XC10
Canon 2000D« »rev-3.5/5-3.5/5 Feb 2018 449 i i Canon 2000D
Canon 77D« »-82/1004.5/54.5/54/5 Feb 2017 899 i i Canon 77D
Canon 800D« »-80/1004.5/54/54/5 Feb 2017 749 i i Canon 800D
Canon G9 X Mark II« »-75/1004.5/54.5/54.5/5 Jan 2017 529 i i Canon G9 X Mark II
Canon M6« »-80/1004/54.5/54/5 Feb 2017 779 i i Canon M6
Canon M100« »Rec-4/5-3.5/5 Aug 2017 499 i i Canon M100
Canon G7 X Mark II« »HiRec81/1004.5/54/54.5/5 Feb 2016 699 i i Canon G7 X Mark II
Canon M5« »Rec82/1004/54.5/54/5 Sep 2016 979 i i Canon M5
Canon G5 X« »HiRec78/1004.5/54/54.5/5 Oct 2015 799 i i Canon G5 X
Canon G1 X Mark II« »Rec77/1004/54/54.5/5 Feb 2014 799 i i Canon G1 X Mark II
Canon G7 X« »HiRec77/1004.5/53.5/54.5/5 Sep 2014 699- i Canon G7 X
Canon SX60« »HiRec75/1004/5-4.5/5 Sep 2014 549- i Canon SX60
Canon 100D« »Rec78/1004/54/54/5 Mar 2013 549- i Canon 100D
Nikon D5600« »-79/1004.5/54.5/54/5 Nov 2016 699 i i Nikon D5600
Nikon D3400« »Rec76/1004/54.5/54.5/5 Aug 2016 499- i Nikon D3400

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
