Canon 200D versus Canon 550D

The Canon EOS 200D (called Canon SL2 in some regions) and the Canon EOS 550D (labelled Canon XS in some countries) are two digital cameras that were officially introduced, respectively, in June 2017 and February 2010. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The 200D has a resolution of 24 megapixel, whereas the 550D provides 17.9 MP. Read on to find out how these two cameras compare with respect to their size, their sensors, their features, and their reception by expert reviewers.

Body comparison: Canon 200D vs Canon 550D

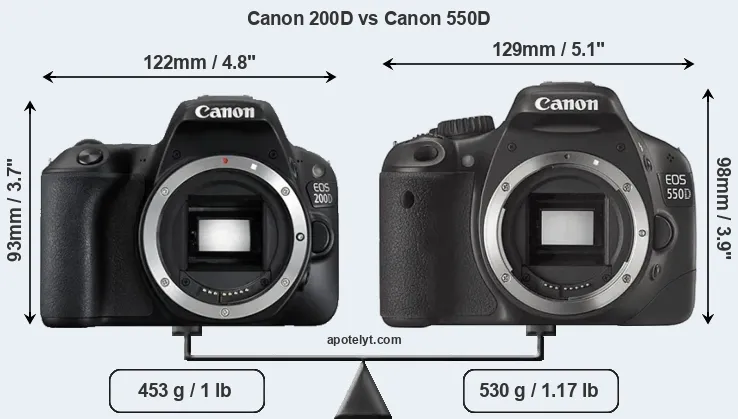

The physical size and weight of the Canon 200D and the Canon 550D are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter. If you prefer, you can also use the toggle button to switch to a comparison in percentage terms (in this case, the camera on the left – the 200D – represents the basis or 100 percent across all the size and weight measures).

Compare Canon 200D vs Canon 550D

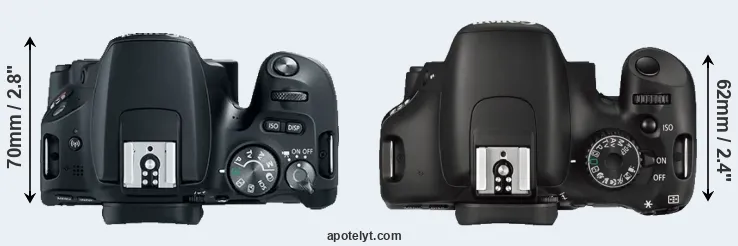

Compare 200D versus 550D top

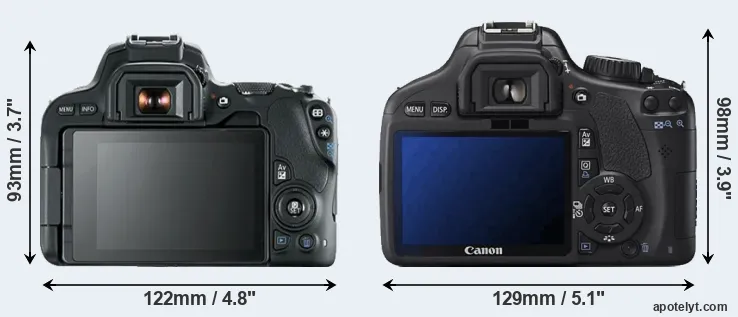

Compare 200D and 550D rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 550D is notably larger (11 percent) than the Canon 200D. Moreover, the 550D is markedly heavier (17 percent) than the 200D. In this context, it is worth noting that neither the 200D nor the 550D are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can find an overview of suitable optics in the Canon EF Lens Catalog.

Concerning battery life, the 200D gets 650 shots out of its LP-E17 battery, while the 550D can take 440 images on a single charge of its LP-E8 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 200D» 122 mm 93 mm 70 mm 453 g 650 n Jun 2017 549 i i Canon 200D
Canon 550D« 129 mm 98 mm 62 mm 530 g 440 n Feb 2010 699- i Canon 550D
Canon 2000D« » 129 mm 101 mm 78 mm 475 g 500 n Feb 2018 449 i i Canon 2000D
Canon G9 X Mark II« » 98 mm 58 mm 31 mm 206 g 235 n Jan 2017 529 i i Canon G9 X Mark II
Canon 800D« » 131 mm 100 mm 76 mm 532 g 600 n Feb 2017 749 i i Canon 800D
Canon 77D« » 131 mm 100 mm 76 mm 540 g 600 n Feb 2017 899 i i Canon 77D
Canon M100« » 108 mm 67 mm 35 mm 302 g 295 n Aug 2017 499 i i Canon M100
Canon 80D« » 139 mm 105 mm 79 mm 730 g 960 Y Feb 2016 1,199 i i Canon 80D
Canon M5« » 116 mm 89 mm 61 mm 427 g 295 n Sep 2016 979 i i Canon M5
Canon 750D« » 132 mm 101 mm 78 mm 555 g 440 n Feb 2015 749- i Canon 750D
Canon 100D« » 117 mm 91 mm 69 mm 407 g 380 n Mar 2013 549- i Canon 100D
Canon 700D« » 133 mm 100 mm 79 mm 580 g 440 n Mar 2013 649- i Canon 700D
Canon 650D« » 133 mm 100 mm 79 mm 575 g 440 n Jun 2012 849- i Canon 650D
Canon 600D« » 133 mm 100 mm 80 mm 570 g 440 n Feb 2011 599- i Canon 600D
Canon 500D« » 129 mm 98 mm 62 mm 520 g 400 n Mar 2009 799- i Canon 500D
Nikon D3400« » 124 mm 98 mm 76 mm 445 g 1200 n Aug 2016 499 i i Nikon D3400

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 200D was launched at a somewhat lower price (by 21 percent) than the 550D, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.



Sensor comparison: Canon 200D vs Canon 550D

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor and have a format factor (sometimes also referred to as "crop factor") of 1.6. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.

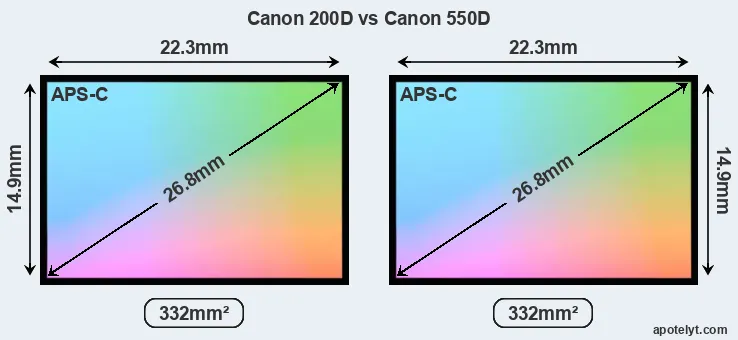

Canon 200D and Canon 550D sensor measures

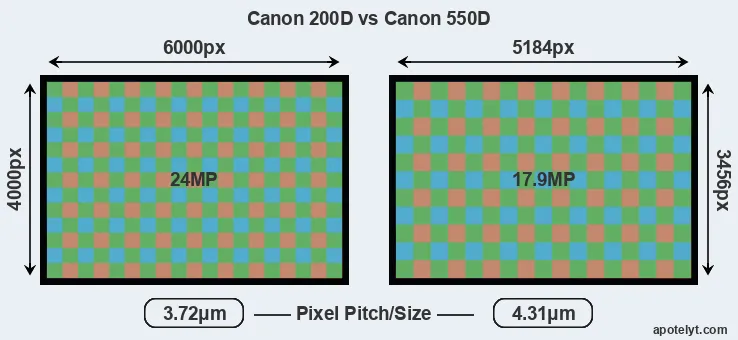

While the two cameras under review share the same sensor size, the 200D offers a higher resolution of 24 megapixel, compared with 17.9 MP of the 550D. This megapixel advantage translates into a 16 percent gain in linear resolution. On the other hand, these sensor specs imply that the 200D has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.72μm versus 4.31μm for the 550D). In this context, it should be noted, however, that the 200D is much more recent (by 7 years and 4 months) than the 550D, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size.

200D versus 550D MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the 200D provides substantially higher image quality than the 550D, with an overall score that is 13 points higher. This advantage is based on 1.5 bits higher color depth, 1.9 EV in additional dynamic range, and 0.4 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model
Canon 200D» APS-C 24.0 6000 40001080/60p23.613.4104179Canon 200D
Canon 550D« APS-C 17.9 5184 34561080/30p22.111.578466Canon 550D
Canon 2000D« » APS-C 24.0 6000 40001080/30p22.611.9100971Canon 2000D
Canon G9 X Mark II« » 1-inch 20.0 5472 36481080/60p21.912.552265Canon G9 X Mark II
Canon 800D« » APS-C 24.0 6000 40001080/60p----Canon 800D
Canon 77D« » APS-C 24.0 6000 40001080/60p23.613.397178Canon 77D
Canon M100« » APS-C 24.0 6000 40001080/60p23.512.9127278Canon M100
Canon 80D« » APS-C 24.0 6000 40001080/60p23.613.2113579Canon 80D
Canon M5« » APS-C 24.0 6000 40001080/60p23.412.4126277Canon M5
Canon 750D« » APS-C 24.0 6000 40001080/60p22.712.091971Canon 750D
Canon 100D« » APS-C 17.9 5184 34561080/30p21.811.384363Canon 100D
Canon 700D« » APS-C 17.9 5184 34561080/30p21.711.268161Canon 700D
Canon 650D« » APS-C 17.9 5184 34561080/30p21.711.272262Canon 650D
Canon 600D« » APS-C 17.9 5184 34561080/30p22.111.579365Canon 600D
Canon 500D« » APS-C 15.1 4752 31681080/20p21.711.566363Canon 500D
Nikon D3400« » APS-C 24.0 6000 40001080/60p24.813.9119286Nikon D3400

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the 200D provides a higher frame rate than the 550D. It can shoot video footage at 1080/60p, while the 550D is limited to 1080/30p.



Feature comparison: Canon 200D vs Canon 550D

Apart from body and sensor, cameras can and do differ across a variety of features. The 200D and the 550D are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The table below summarizes some of the other core capabilities of the Canon 200D and Canon 550D in connection with corresponding information for a sample of similar cameras. If needed, the dpreview camera hub, for example, contains further detail on the cameras' specs.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec))
Build-in
Flash
(yes/no)
Build-in
Stab
Camera
Model
Canon 200D»optical n 3.0 1040 swivel Y 4000 5.0 Y n Canon 200D
Canon 550D«optical n 3.0 1040 fixed n 4000 3.7 Y n Canon 550D
Canon 2000D« »optical n 3.0 920 fixed n 4000 3.0 Y n Canon 2000D
Canon G9 X Mark II« »- n 3.0 1040 fixed Y 2000 8.2 Y Y Canon G9 X Mark II
Canon 800D« »optical n 3.0 1040 swivel Y 4000 6.0 Y n Canon 800D
Canon 77D« »optical Y 3.0 1040 swivel Y 4000 6.0 Y n Canon 77D
Canon M100« »- n 3.0 1040 tilting Y 4000 6.1 Y n Canon M100
Canon 80D« »optical Y 3.0 1040 swivel Y 8000 7.0 Y n Canon 80D
Canon M5« »2360 n 3.2 1620 tilting Y 4000 9.0 Y n Canon M5
Canon 750D« »optical n 3.0 1040 swivel Y 4000 5.0 Y n Canon 750D
Canon 100D« »optical n 3.0 1040 fixed Y 4000 4.9 Y n Canon 100D
Canon 700D« »optical n 3.0 1040 swivel Y 4000 5.0 Y n Canon 700D
Canon 650D« »optical n 3.0 1040 swivel Y 4000 5.0 Y n Canon 650D
Canon 600D« »optical n 3.0 1040 swivel n 4000 3.7 Y n Canon 600D
Canon 500D« »optical n 3.0 920 fixed n 4000 3.4 Y n Canon 500D
Nikon D3400« »optical n 3.0 921 fixed n 4000 5.0 Y n Nikon D3400

The 200D is a current model that online retailers, such as amazon, will have in stock. In contrast, the 550D has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the 550D was succeeded by the Canon 600D.

Review summary: Canon 200D vs Canon 550D

So how do things add up? Is the Canon 200D better than the Canon 550D or vice versa? A synthesis of the relative strong points of each of the models is listed below.


Reasons to prefer the Canon EOS 200D:

  • More detail: Offers more megapixels (24 vs 17.9MP) with a 16% higher linear resolution.
  • Better image quality: Scores substantially higher (13 points) in the DXO overall assessment.
  • Richer colors: Generates images with noticeably better colors (1.5 bits more color depth).
  • More dynamic range: Captures a larger spectrum of light and dark details (1.9 EV of extra DR).
  • Better low-light sensitivity: Requires less light for good images (0.4 stops ISO advantage).
  • Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
  • More flexible LCD: Has swivel screen for odd-angle shots in portrait or landscape orientation.
  • Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
  • Faster burst: Shoots at higher frequency (5 vs 3.7 flaps/sec) to capture the decisive moment.
  • Less heavy: Is lighter (by 77g or 15 percent) and hence easier to carry around.
  • Longer lasting: Can take more shots (650 versus 440) on a single battery charge.
  • More affordable: Was introduced into a lower priced segment (21 percent cheaper at launch).
  • More modern: Reflects 7 years and 4 months of technical progress since the 550D launch.


Arguments in favor of the Canon EOS 550D:

  • More heavily discounted: Has been around for much longer (launched in February 2010).

If the number of relative strengths (bullet points above) is taken as a guide, the 200D is the clear winner of the match-up (13 : 1 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera.

200D 13:01 550D

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the handling experience and imaging performance when actually working with the 200D or the 550D. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate. This is why expert reviews are important. The following table reports the overall rankings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog). You can find the full text of the reviews by clicking on the site logo in the table header.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 200D»HiRec78/1004.5/54.5/54.5/5 Jun 2017 549 i i Canon 200D
Canon 550D«HiRec77/1004/55/54.5/5 Feb 2010 699- i Canon 550D
Canon 2000D« »rev-3.5/5-3.5/5 Feb 2018 449 i i Canon 2000D
Canon G9 X Mark II« »-75/1004.5/54.5/54.5/5 Jan 2017 529 i i Canon G9 X Mark II
Canon 800D« »-80/1004.5/54/54/5 Feb 2017 749 i i Canon 800D
Canon 77D« »-82/1004.5/54.5/54/5 Feb 2017 899 i i Canon 77D
Canon M100« »Rec-4/5-3.5/5 Aug 2017 499 i i Canon M100
Canon 80D« »HiRec84/1004.5/54.5/54.5/5 Feb 2016 1,199 i i Canon 80D
Canon M5« »Rec82/1004/54.5/54/5 Sep 2016 979 i i Canon M5
Canon 750D« »-75/1004.5/54.5/54.5/5 Feb 2015 749- i Canon 750D
Canon 100D« »Rec78/1004/54/54/5 Mar 2013 549- i Canon 100D
Canon 700D« »-76/1004.5/54.5/54.5/5 Mar 2013 649- i Canon 700D
Canon 650D« »HiRec77/1004.5/54.5/54.5/5 Jun 2012 849- i Canon 650D
Canon 600D« »rev77/1004.5/55/54.5/5 Feb 2011 599- i Canon 600D
Canon 500D« »HiRec74/1004.5/55/54.5/5 Mar 2009 799- i Canon 500D
Nikon D3400« »Rec76/1004/54.5/54.5/5 Aug 2016 499 i i Nikon D3400

Care should be taken when interpreting the review scores above, though. The ratings are only valid when refering to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
