Canon 2000D vs Pentax MX-1

The Canon EOS 2000D (called Canon T7 in some regions) and the Pentax MX-1 are two digital cameras that were announced, respectively, in February 2018 and January 2013. The 2000D is a DSLR, while the MX-1 is a fixed lens compact. The cameras are based on an APS-C (2000D) and a 1/1.7-inch (MX-1) sensor. The Canon has a resolution of 24 megapixels, whereas the Pentax provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon 2000D versus Pentax MX-1
Canon 2000D Pentax MX-1
Digital single lens reflex Fixed lens compact camera
Canon EF mount lenses 28-112mm f/1.8-2.5
24 MP, APS-C Sensor 12 MP, 1/1.7" Sensor
1080/30p Video 1080/30p Video
ISO 100-6,400 (100 - 12,800) ISO 100-12,800
Optical viewfinder No viewfinder, LCD framing
3.0 LCD, 920k dots 3.0 LCD, 920k dots
Fixed screen (not touch-sensitive) Tilting screen (not touch-sensitive)
3 shutter flaps per second 1 shutter flaps per second
Lens stabilization onlyIn-body stabilization
500 shots per battery charge290 shots per battery charge
129 x 101 x 78 mm, 475 g 122 x 61 x 51 mm, 391 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 2000D and the Pentax MX-1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Canon 2000D and the Pentax MX-1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

Size Canon 2000D vs Pentax MX-1
Compare 2000D versus MX-1 top
Comparison 2000D or MX-1 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax MX-1 is considerably smaller (43 percent) than the Canon 2000D. In this context, it is worth noting that neither the 2000D nor the MX-1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the MX-1 has a lens built in, whereas the 2000D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 2000D and their specifications in the Canon EF Lens Catalog.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

scroll hint
Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life 1
Weather
Sealing
Camera
Launch 2
Launch
Price (USD)
Street
Price

Canon 2000D 129 mm 101 mm 78 mm 475 g 500 n Feb 2018 449 i

Pentax MX-1 122 mm 61 mm 51 mm 391 g 290 n Jan 2013 499i

Canon 4000D 129 mm 102 mm 77 mm 436 g 500 n Feb 2018 399 i

Canon 77D 131 mm 100 mm 76 mm 540 g 600 n Feb 2017 899 i

Canon 200D 122 mm 93 mm 70 mm 453 g 650 n Jun 2017 549i

Canon 800D 131 mm 100 mm 76 mm 532 g 600 n Feb 2017 749i

Canon G9 X Mark II 98 mm 58 mm 31 mm 206 g 235 n Jan 2017 529 i

Canon M100 108 mm 67 mm 35 mm 302 g 295 n Aug 2017 499i

Canon 1300D 129 mm 101 mm 78 mm 485 g 500 n Mar 2016 449i

Canon 750D 132 mm 101 mm 78 mm 555 g 440 n Feb 2015 749i

Canon 760D 132 mm 101 mm 78 mm 565 g 440 n Feb 2015 649i

Canon 1200D 130 mm 100 mm 78 mm 480 g 500 n Feb 2014 449i

Canon G16 109 mm 76 mm 40 mm 356 g 360 n Aug 2013 549 i

Canon G15 107 mm 76 mm 40 mm 352 g 350 n Sep 2012 499i

Fujifilm X20 117 mm 70 mm 57 mm 353 g 270 n Jan 2013 599i

Nikon P7800 119 mm 78 mm 50 mm 399 g 350 n Sep 2013 549i

Olympus XZ-2 113 mm 65 mm 48 mm 346 g 340 n Sep 2012 599i
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 2000D features an APS-C sensor and the Pentax MX-1 a 1/1.7-inch sensor. The sensor area in the MX-1 is 87 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 4.5. The sensor in the 2000D has a native 3:2 aspect ratio, while the one in the MX-1 offers a 4:3 aspect.

In terms of underlying technology, both cameras are build around CMOS sensors.

Canon 2000D and Pentax MX-1 sensor measures

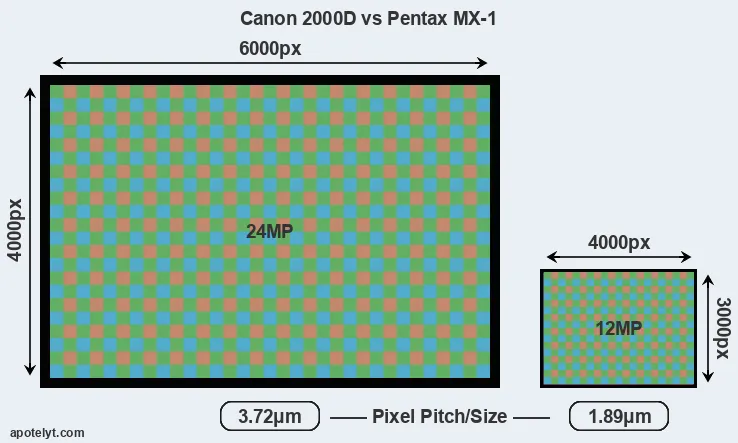

With 24MP, the 2000D offers a higher resolution than the MX-1 (12MP), but the 2000D nevertheless has larger individual pixels (pixel pitch of 3.72μm versus 1.89μm for the MX-1) due to its larger sensor. Moreover, the 2000D is a much more recent model (by 5 years and 1 month) than the MX-1, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon 2000D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 2000D for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Pentax MX-1 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The Canon EOS 2000D has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Pentax MX-1 are ISO 100 to ISO 12800 (no boost).

2000D versus MX-1 MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the 2000D provides substantially higher image quality than the MX-1, with an overall score that is 22 points higher. This advantage is based on 2.2 bits higher color depth, 0.6 EV in additional dynamic range, and 2.3 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

scroll hint
Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall

Canon 2000D APS-C 24.0 6000 40001080/30p22.611.9100971

Pentax MX-1 1/1.7 12.0 4000 30001080/30p20.411.320849

Canon 4000D APS-C 17.9 5184 34561080/30p21.911.469563

Canon 77D APS-C 24.0 6000 40001080/60p23.613.397178

Canon 200D APS-C 24.0 6000 40001080/60p23.613.4104179

Canon 800D APS-C 24.0 6000 40001080/60p........

Canon G9 X Mark II 1-inch 20.0 5472 36481080/60p21.912.552265

Canon M100 APS-C 24.0 6000 40001080/60p23.512.9127278

Canon 1300D APS-C 17.9 5184 34561080/30p........

Canon 750D APS-C 24.0 6000 40001080/30p22.712.091971

Canon 760D APS-C 24.0 6000 40001080/30p22.612.091570

Canon 1200D APS-C 17.9 5184 34561080/30p21.911.372463

Canon G16 1/1.7 12.0 4000 30001080/60p21.011.723054

Canon G15 1/1.7 12.0 4000 30001080/24p19.911.516546

Fujifilm X20 2/3 12.0 4000 30001080/60p........

Nikon P7800 1/1.7 12.0 4000 30001080/30p21.211.720054

Olympus XZ-2 1/1.7 11.8 3968 29761080/30p20.411.321649

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (1080/30p).

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the 2000D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the MX-1 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon 2000D and Pentax MX-1 in connection with corresponding information for a sample of similar cameras.

scroll hint
Core Features
  Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
(000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab

Canon 2000Doptical n 3.0 920 fixed n 1/4000s 3.0 Y n

Pentax MX-1none n 3.0 920 tilting n 1/8000s 1.0 Y Y

Canon 4000Doptical n 2.7 230 fixed n 1/4000s 3.0 Y n

Canon 77Doptical Y 3.0 1040 swivel Y 1/4000s 6.0 Y n

Canon 200Doptical n 3.0 1040 swivel Y 1/4000s 5.0 Y n

Canon 800Doptical n 3.0 1040 swivel Y 1/4000s 6.0 Y n

Canon G9 X Mark IInone n 3.0 1040 fixed Y 1/2000s 8.2 Y Y

Canon M100none n 3.0 1040 tilting Y 1/4000s 6.1 Y n

Canon 1300Doptical n 3.0 920 fixed n 1/4000s 3.0 Y n

Canon 750Doptical n 3.0 1040 swivel Y 1/4000s 5.0 Y n

Canon 760Doptical Y 3.0 1040 swivel Y 1/4000s 5.0 Y n

Canon 1200Doptical n 3.0 460 fixed n 1/4000s 3.0 Y n

Canon G16optical n 3.0 922 fixed n 1/4000s 2.2 Y Y

Canon G15optical n 3.0 922 fixed n 1/4000s 2.1 Y Y

Fujifilm X20optical n 2.8 460 fixed n 1/4000s 12.0 Y Y

Nikon P7800921 n 3.0 921 swivel n 1/4000s 8.0 Y Y

Olympus XZ-2optional n 3.0 920 tilting Y 1/2000s 5.0 Y Y

Concerning the storage of imaging data, both the 2000D and the MX-1 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 2000D and Pentax MX-1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support

Canon 2000DYmonomono--mini2.0YY-

Pentax MX-1-stereomono--mini2.0---

Canon 4000DYmonomono--mini2.0YY-

Canon 77DYstereomonoY-mini2.0YYY

Canon 200DYstereomonoY-mini2.0YYY

Canon 800DYstereomonoY-mini2.0YYY

Canon G9 X Mark II-stereomono--micro2.0YYY

Canon M100-stereomono--micro2.0YYY

Canon 1300DYmonomono--mini2.0YY-

Canon 750DYstereomonoY-mini2.0YY-

Canon 760DYstereomonoY-mini2.0YY-

Canon 1200DYmonomono--mini2.0---

Canon G16Ystereomono--mini2.0Y--

Canon G15Ystereomono--mini2.0---

Fujifilm X20Ystereomono--micro2.0---

Nikon P7800YstereomonoY-mini2.0---

Olympus XZ-2Ystereomono--mini2.0---

It is notable that the 2000D has a hotshoe, while the MX-1 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

The 2000D is a recent model that features in the current product line-up of Canon. In contrast, the MX-1 has been discontinued (but can be found pre-owned on eBay). There has not been a direct replacement model for the MX-1 from Pentax. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Pentax websites.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Canon 2000D or the Pentax MX-1 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

ilogo

Advantages of the Canon EOS 2000D:

  • More detail: Offers more megapixels (24 vs 12MP) with a 44% higher linear resolution.
  • Better image quality: Scores substantially higher (22 points) in the DXO overall assessment.
  • Richer colors: Generates images with noticeably better colors (2.2 bits more color depth).
  • More dynamic range: Captures a larger spectrum of light and dark details (0.6 EV of extra DR).
  • Better low-light sensitivity: Requires less light for good images (2.3 stops ISO advantage).
  • Easier framing: Has an optical viewfinder for image composition and settings control.
  • Faster burst: Shoots at higher frequency (3 vs 1 flaps/sec) to capture the decisive moment.
  • More flexible: Can take a variety of interchangeable lenses, including specialty optics.
  • Longer lasting: Can take more shots (500 versus 290) on a single battery charge.
  • Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • More modern: Reflects 5 years and 1 month of technical progress since the MX-1 launch.

ilogo

Reasons to prefer the Pentax MX-1:

  • More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
  • Ready to shoot: Comes with an integrated lens, while the 2000D requires a separate lens.
  • More compact: Is smaller (122x61mm vs 129x101mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight even though it has a lens built in (unlike the 2000D).
  • Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
  • More heavily discounted: Has been around for much longer (launched in January 2013).

If the number of relative strengths (bullet points above) is taken as a guide, the 2000D is the clear winner of the match-up (13 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

2000D 13:07 MX-1

How about other alternatives? Do the specifications of the Canon 2000D and the Pentax MX-1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the 2000D and the MX-1 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Review Scores
  Camera
Model
camera
  labs
dp
review
ephoto
  zine
imaging
resource
photography
  blog
Camera
Launch
Launch
Price (USD)
Street
Price

Canon 2000Do..3.5/5..3.5/5 Feb 2018 449 i

Pentax MX-1..74/1004/53.5/54/5 Jan 2013 499i

Canon 4000Do..3.5/5..3.5/5 Feb 2018 399 i

Canon 77D..82/1004.5/54.5/54/5 Feb 2017 899 i

Canon 200D+ +78/1004.5/54.5/54.5/5 Jun 2017 549i

Canon 800D..80/1004.5/54/54/5 Feb 2017 749i

Canon G9 X Mark II..75/1004.5/54.5/54.5/5 Jan 2017 529 i

Canon M100+..4/5..3.5/5 Aug 2017 499i

Canon 1300Do73/1004/53.5/54/5 Mar 2016 449i

Canon 750D..75/1004.5/54.5/54.5/5 Feb 2015 749i

Canon 760D+77/1004.5/54.5/54.5/5 Feb 2015 649i

Canon 1200D+..4/54/54.5/5 Feb 2014 449i

Canon G16+..4.5/54.5/54.5/5 Aug 2013 549 i

Canon G15+76/1004.5/54.5/54.5/5 Sep 2012 499i

Fujifilm X20+ +77/1004.5/5..5/5 Jan 2013 599i

Nikon P7800....4/53.5/54.5/5 Sep 2013 549i

Olympus XZ-2+..4.5/54/54.5/5 Sep 2012 599i
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Canon 2000D:
Check Amazon price
Pentax MX-1:
Check Ebay offers

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

    Specifications: Canon 2000D vs Pentax MX-1

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon 2000D Pentax MX-1
    Camera Type Digital single lens reflex Fixed lens compact camera
    Camera Lens Canon EF mount lenses 28-112mm f/1.8-2.5
    Launch Date February 2018 January 2013
    Launch Price USD 449 USD 499
    Sensor Specs Canon 2000D Pentax MX-1
    Sensor Technology CMOS CMOS
    Sensor Format APS-C Sensor 1/1.7" Sensor
    Sensor Size 22.3 x 14.9 mm 7.6 x 5.7 mm
    Sensor Area 332.27 mm2 43.32 mm2
    Sensor Diagonal 26.8 mm 9.5 mm
    Crop Factor 1.6x 4.5x
    Sensor Resolution 24 Megapixels 12 Megapixels
    Image Resolution 6000 x 4000 pixels 4000 x 3000 pixels
    Pixel Pitch 3.72 μm 1.89 μm
    Pixel Density 7.22 MP/cm2 27.70 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 1080/30p Video 1080/30p Video
    ISO Setting 100 - 6,400 ISO 100 - 12,800 ISO
    ISO Boost 100 - 12,800 ISO no Enhancement
    DXO Sensor Quality (score) 71 49
    DXO Color Depth (bits) 22.6 20.4
    DXO Dynamic Range (EV) 11.9 11.3
    DXO Low Light (ISO) 1009 208
    Screen Specs Canon 2000D Pentax MX-1
    Viewfinder Type Optical viewfinder no viewfinder
    Viewfinder Field of View 95%
    Viewfinder Magnification 0.50x
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.0inch
    LCD Resolution 920k dots 920k dots
    LCD Attachment Fixed screen Tilting screen
    Shooting Specs Canon 2000D Pentax MX-1
    Focus System Phase-detect AF Contrast-detect AF
    Continuous Shooting 3 shutter flaps/s 1 shutter flaps/s
    Image StabilizationLens stabilization onlyIn-body stabilization
    Fill Flash Build-in Flash Build-in Flash
    Storage Medium SDXC cards SDXC cards
    Second Storage Option Single card slot Single card slot
    UHS card support no no
    Connectivity Specs Canon 2000D Pentax MX-1
    External Flash Hotshoe no Hotshoe
    USB Connector USB 2.0 USB 2.0
    HDMI Port mini HDMI mini HDMI
    Wifi Support Wifi built-in no Wifi
    Near-Field Communication NFC built-in no NFC
    Body Specs Canon 2000D Pentax MX-1
    Battery Type LP-E10 D-LI106
    Battery Life (CIPA)500 shots per charge290 shots per charge
    Body Dimensions 129 x 101 x 78 mm
    (5.1 x 4.0 x 3.1 in)
    122 x 61 x 51 mm
    (4.8 x 2.4 x 2.0 in)
    Camera Weight 475 g (16.8 oz) 391 g (13.8 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon 2000D vs Pentax MX-1

    Thanks for your vote!

    You rated this page 4 out of 5.


    Rating

    Any additional comment or suggestion for improvement would be welcome.



    If you like it, make sure you share it.

    • Mention this page to your Facebook friends and Twitter followers.
    • Bookmark it in your browser for future reference by pressing "Crtl" + "D".
    • Create a hyperlink by copying the text below into your web-project or discussion forum entry.

    Once again, thanks for taking the time to provide feedback.
