Canon 2000D vs 77D

The Canon EOS 2000D (called Canon T7 in some regions) and the Canon EOS 77D are two digital cameras that were announced, respectively, in February 2018 and February 2017. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. Both cameras offer a resolution of 24 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon 2000D   Canon 77D
Canon 2000D Canon 77D
Digital single lens reflex Digital single lens reflex
Canon EF mount lenses Canon EF mount lenses
24 MP, APS-C Sensor 24 MP, APS-C Sensor
1080/30p Video 1080/60p Video
ISO 100-6400 (100-12800) ISO 100-25600 (100-51200)
Optical viewfinder Optical viewfinder
3.0" LCD, 920k dots 3.0" LCD, 1040k dots
Fixed screen (not touch-sensitive) Swivel touchscreen
3 shutter flaps per second 6 shutter flaps per second
500 shots per battery charge600 shots per battery charge
129 x 101 x 78 mm, 475 g 131 x 100 x 76 mm, 540 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 2000D and the Canon EOS 77D? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison: Canon 2000D vs 77D

The side-by-side display below illustrates the physical size and weight of the Canon 2000D and the Canon 77D. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

Size Canon 2000D vs Canon 77D
Compare 2000D versus 77D top

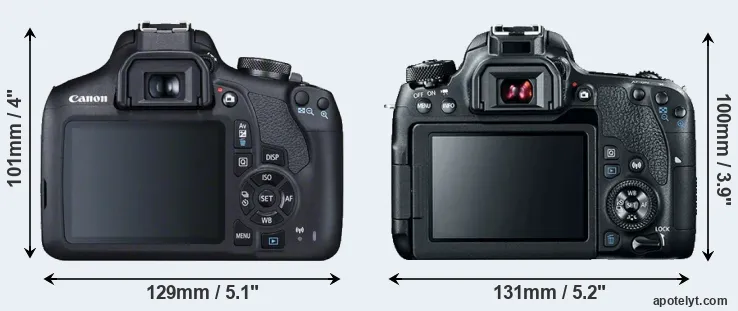

Comparison 2000D or 77D rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 2000D and the Canon 77D are of equal size. However, the 77D is markedly heavier (14 percent) than the 2000D. In this context, it is worth noting that neither the 2000D nor the 77D are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Canon EF Lens Catalog.

Concerning battery life, the 2000D gets 500 shots out of its LP-E10 battery, while the 77D can take 600 images on a single charge of its LP-E17 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Canon 2000D» 129 mm 101 mm 78 mm 475 g 500 n Feb 2018 449 i i Canon 2000D

Canon 77D« 131 mm 100 mm 76 mm 540 g 600 n Feb 2017 899 i i Canon 77D

Canon 4000D« » 129 mm 102 mm 77 mm 436 g 500 n Feb 2018 399 i i Canon 4000D

Canon 200D« » 122 mm 93 mm 70 mm 453 g 650 n Jun 2017 549- i Canon 200D

Canon 800D« » 131 mm 100 mm 76 mm 532 g 600 n Feb 2017 749 i i Canon 800D

Canon G9 X Mark II« » 98 mm 58 mm 31 mm 206 g 235 n Jan 2017 529 i i Canon G9 X Mark II

Canon M100« » 108 mm 67 mm 35 mm 302 g 295 n Aug 2017 499 i i Canon M100

Canon 1300D« » 129 mm 101 mm 78 mm 485 g 500 n Mar 2016 449- i Canon 1300D

Canon 750D« » 132 mm 101 mm 78 mm 555 g 440 n Feb 2015 749- i Canon 750D

Canon 760D« » 132 mm 101 mm 78 mm 565 g 440 n Feb 2015 649- i Canon 760D

Canon 1200D« » 130 mm 100 mm 78 mm 480 g 500 n Feb 2014 449- i Canon 1200D
Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 2000D was launched at a markedly lower price (by 50 percent) than the 77D, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.



Sensor comparison: Canon 2000D vs 77D

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor and have a format factor (sometimes also referred to as "crop factor") of 1.6. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, the 77D uses a more advanced image processing engine (DIGIC 7) than the 2000D (DIGIC 4+), with benefits for noise reduction, color accuracy, and processing speed.

Canon 2000D and Canon 77D sensor measures

The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 24 megapixels. This similarity in sensor specs implies that both the 2000D and the 77D have the same pixel density, as well as the same pixel size. It should, however, be noted that the 2000D is a somewhat more recent model (by 1 year) than the 77D, and its sensor might have benefitted from technological advances during this time.

The 77D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS 2000D has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Canon EOS 77D are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.

2000D versus 77D MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the 77D has a markedly higher DXO score than the 2000D (overall score 7 points higher), which will translate into better image quality. The advantage is based on 1 bits higher color depth, 1.4 EV in additional dynamic range, and 0.1 stops of reduced low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model

Canon 2000D» APS-C 24.0 6000 40001080/30p22.611.9100971Canon 2000D

Canon 77D« APS-C 24.0 6000 40001080/60p23.613.397178Canon 77D

Canon 4000D« » APS-C 17.9 5184 34561080/30p21.911.469563Canon 4000D

Canon 200D« » APS-C 24.0 6000 40001080/60p23.613.4104179Canon 200D

Canon 800D« » APS-C 24.0 6000 40001080/60p----Canon 800D

Canon G9 X Mark II« » 1-inch 20.0 5472 36481080/60p21.912.552265Canon G9 X Mark II

Canon M100« » APS-C 24.0 6000 40001080/60p23.512.9127278Canon M100

Canon 1300D« » APS-C 17.9 5184 34561080/30p----Canon 1300D

Canon 750D« » APS-C 24.0 6000 40001080/60p22.712.091971Canon 750D

Canon 760D« » APS-C 24.0 6000 40001080/30p22.612.091570Canon 760D

Canon 1200D« » APS-C 17.9 5184 34561080/30p21.911.372463Canon 1200D

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the 77D provides a faster frame rate than the 2000D. It can shoot movie footage at 1080/60p, while the 2000D is limited to 1080/30p.



Feature comparison: Canon 2000D vs 77D

Apart from body and sensor, cameras can and do differ across a range of features. The 2000D and the 77D are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (95%), but the viewfinder of the 77D has a higher magnification than the one of the 2000D (0.51x vs 0.50x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 2000D, the Canon 77D, and comparable cameras.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
Camera
Model

Canon 2000D»optical n 3.0 920 fixed n 1/4000s 3.0 Y n Canon 2000D

Canon 77D«optical Y 3.0 1040 swivel Y 1/4000s 6.0 Y n Canon 77D

Canon 4000D« »optical n 2.7 230 fixed n 1/4000s 3.0 Y n Canon 4000D

Canon 200D« »optical n 3.0 1040 swivel Y 1/4000s 5.0 Y n Canon 200D

Canon 800D« »optical n 3.0 1040 swivel Y 1/4000s 6.0 Y n Canon 800D

Canon G9 X Mark II« »- n 3.0 1040 fixed Y 1/2000s 8.2 Y Y Canon G9 X Mark II

Canon M100« »- n 3.0 1040 tilting Y 1/4000s 6.1 Y n Canon M100

Canon 1300D« »optical n 3.0 920 fixed n 1/4000s 3.0 Y n Canon 1300D

Canon 750D« »optical n 3.0 1040 swivel Y 1/4000s 5.0 Y n Canon 750D

Canon 760D« »optical Y 3.0 1040 swivel Y 1/4000s 5.0 Y n Canon 760D

Canon 1200D« »optical n 3.0 460 fixed n 1/4000s 3.0 Y n Canon 1200D

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The 77D has a touchscreen, while the 2000D has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The 77D has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 2000D does not have a selfie-screen.

The Canon 77D has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the 2000D and the 77D write their files to SDXC cards. The 77D supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the 2000D cannot take advantage of Ultra High Speed SD cards.



Connectivity comparison: Canon 2000D vs 77D

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 2000D and Canon EOS 77D and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model

Canon 2000D»Ymonomono--mini2.0YY-Canon 2000D

Canon 77D«YstereomonoY-mini2.0YYYCanon 77D

Canon 4000D« »Ymonomono--mini2.0YY-Canon 4000D

Canon 200D« »YstereomonoY-mini2.0YYYCanon 200D

Canon 800D« »YstereomonoY-mini2.0YYYCanon 800D

Canon G9 X Mark II« »-stereomono--micro2.0YYYCanon G9 X Mark II

Canon M100« »-stereomono--mini2.0YYYCanon M100

Canon 1300D« »Ymonomono--mini2.0YY-Canon 1300D

Canon 750D« »YstereomonoY-mini2.0YY-Canon 750D

Canon 760D« »YstereomonoY-mini2.0YY-Canon 760D

Canon 1200D« »Ymonomono--mini2.0---Canon 1200D

It is notable that the 77D has a microphone port, which can help to improve the quality of audio recordings by attaching an external microphone. The 2000D does not feature such a mic input.

Both the 2000D and the 77D are recent models that are part of the current product line-up. The 77D replaced the earlier Canon T6s, while the 2000D followed on from the Canon 1300D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.


Review summary: Canon 2000D vs 77D

So how do things add up? Which of the two cameras – the Canon 2000D or the Canon 77D – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.


Reasons to prefer the Canon EOS 2000D:

  • Less heavy: Is lighter (by 65g or 12 percent) and hence easier to carry around.
  • More affordable: Was introduced into a lower priced category (50 percent cheaper at launch).
  • More modern: Is somewhat more recent (announced 1 year after the 77D).


Arguments in favor of the Canon EOS 77D:

  • Better image quality: Scores markedly higher (7 points) in the DXO overall evaluation.
  • More dynamic range: Captures a broader range of light and dark details (1.4 EV of extra DR).
  • Better jpgs: Has a more modern image processing engine (DIGIC 7 vs DIGIC 4+).
  • Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
  • Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
  • Better sound: Can connect to an external microphone for higher quality sound recording.
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.51x vs 0.50x).
  • Easier setting verification: Features a control panel on top to check shooting parameters.
  • More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
  • More flexible LCD: Has swivel screen for odd-angle shots in portrait or landscape orientation.
  • Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
  • More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
  • Faster burst: Shoots at higher frequency (6 vs 3 flaps/sec) to capture the decisive moment.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • Longer lasting: Gets more shots (600 versus 500) out of a single battery charge.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
  • More heavily discounted: Has been on the market for longer (launched in February 2017).

If the number of relative strengths (bullet points above) is taken as a guide, the 77D is the clear winner of the contest (18 : 3 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

2000D 03:18 77D

How about other alternatives? Do the specifications of the Canon 2000D and the Canon 77D place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the 2000D or the 77D perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews: Canon 2000D vs 77D

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Canon 2000D»o-3.5/5-3.5/5 Feb 2018 449 i i Canon 2000D

Canon 77D«-82/1004.5/54.5/54/5 Feb 2017 899 i i Canon 77D

Canon 4000D« »o-3.5/5-3.5/5 Feb 2018 399 i i Canon 4000D

Canon 200D« »+ +78/1004.5/54.5/54.5/5 Jun 2017 549- i Canon 200D

Canon 800D« »-80/1004.5/54/54/5 Feb 2017 749 i i Canon 800D

Canon G9 X Mark II« »-75/1004.5/54.5/54.5/5 Jan 2017 529 i i Canon G9 X Mark II

Canon M100« »+-4/5-3.5/5 Aug 2017 499 i i Canon M100

Canon 1300D« »o73/1004/53.5/54/5 Mar 2016 449- i Canon 1300D

Canon 750D« »-75/1004.5/54.5/54.5/5 Feb 2015 749- i Canon 750D

Canon 760D« »+77/1004.5/54.5/54.5/5 Feb 2015 649- i Canon 760D

Canon 1200D« »+-4/54/54.5/5 Feb 2014 449- i Canon 1200D
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Canon 2000D:
Check Amazon price
Canon 77D:
Check Amazon price

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

    Specifications: Canon 2000D vs Canon 77D

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon 2000D Canon 77D
    Camera Type Digital single lens reflex Digital single lens reflex
    Camera Lens Canon EF mount lenses Canon EF mount lenses
    Launch Date February 2018 February 2017
    Launch Price USD 449 USD 899
    Sensor Specs Canon 2000D Canon 77D
    Sensor Technology CMOS CMOS
    Sensor Format APS-C Sensor APS-C Sensor
    Sensor Size 22.3 x 14.9 mm 22.3 x 14.9 mm
    Sensor Area 332.27 mm2 332.27 mm2
    Sensor Diagonal 26.8 mm 26.8 mm
    Crop Factor 1.6x 1.6x
    Sensor Resolution 24 Megapixels 24 Megapixels
    Image Resolution 6000 x 4000 pixels 6000 x 4000 pixels
    Pixel Pitch 3.72 μm 3.72 μm
    Pixel Density 7.22 MP/cm2 7.22 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 1080/30p Video 1080/60p Video
    ISO Setting 100-6400 ISO 100-25600 ISO
    ISO Boost 100-12800 ISO 100-51200 ISO
    Image Processor DIGIC 4+ DIGIC 7
    DXO Sensor Quality (score) 71 78
    DXO Color Depth (bits) 22.6 23.6
    DXO Dynamic Range (EV) 11.9 13.3
    DXO Low Light (ISO) 1009 971
    Screen Specs Canon 2000D Canon 77D
    Viewfinder Type Optical viewfinder Optical viewfinder
    Viewfinder Field of View 95% 95%
    Viewfinder Magnification 0.50x 0.51x
    Top-Level Screen no Top Display Control Panel
    LCD Framing Live View Live View
    Rear LCD Size 3.0 inch 3.0 inch
    LCD Resolution 920k dots 1040k dots
    LCD Attachment Fixed screen Swivel screen
    Touch Input no Touchscreen Touchscreen
    Shooting Specs Canon 2000D Canon 77D
    Autofocus System Phase-detect AF Phase-detect AF
    Continuous Shooting 3 shutter flaps/s 6 shutter flaps/s
    Shutter Life Expectancy100 000 actuations100 000 actuations
    Time-Lapse Photographyno IntervalometerIntervalometer built-in
    Fill Flash Build-in Flash Build-in Flash
    Storage Medium SDXC cards SDXC cards
    Second Storage Option Single card slot Single card slot
    UHS card support no UHS-I
    Connectivity Specs Canon 2000D Canon 77D
    External Flash Hotshoe Hotshoe
    USB Connector USB 2.0 USB 2.0
    HDMI Port mini HDMI mini HDMI
    Microphone Port no MIC socket External MIC port
    Wifi Support Wifi built-in Wifi built-in
    Near-Field Communication NFC built-in NFC built-in
    Bluetooth Support no Bluetooth Bluetooth built-in
    Body Specs Canon 2000D Canon 77D
    Battery Type LP-E10 power pack LP-E17 power pack
    Battery Life (CIPA)500 shots per charge600 shots per charge
    Body Dimensions 129 x 101 x 78 mm
    (5.1 x 4.0 x 3.1 in)
    131 x 100 x 76 mm
    (5.2 x 3.9 x 3.0 in)
    Camera Weight 475 g (16.8 oz) 540 g (19.0 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here  »   »
