Canon 1Ds vs 77D
The Canon EOS-1Ds and the Canon EOS 77D are two digital cameras that were announced, respectively, in September 2002 and February 2017. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (1Ds) and an APS-C (77D) sensor. The 1Ds has a resolution of 11 megapixels, whereas the 77D provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-1Ds and the Canon EOS 77D? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

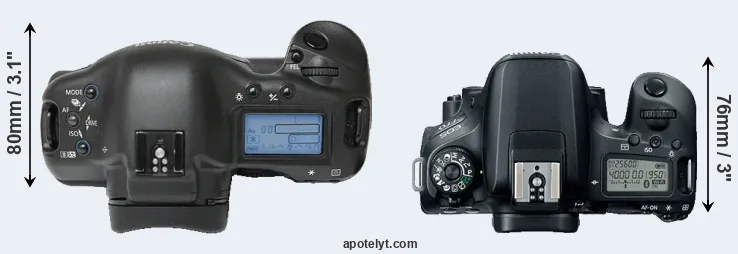

The physical size and weight of the Canon 1Ds and the Canon 77D are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 77D is considerably smaller (47 percent) than the Canon 1Ds. Moreover, the 77D is substantially lighter (57 percent) than the 1Ds. It is worth mentioning in this context that the 1Ds is splash and dust resistant, while the 77D does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the 1Ds) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (77D). You can compare the optics available in the Canon EF Lens Catalog.
As can be seen in the images above, the 1Ds has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the 77D, there are third party battery grips available as optional accessories (see here on eBay).
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon 1Ds||156 mm||158 mm||80 mm||1265 g||600||Y||Sep 2002||8,999|
|2.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899|
|3.||Canon 1D X Mark III||158 mm||168 mm||83 mm||1440 g||2850||Y||Jan 2020||6,499|
|4.||Canon T7||129 mm||101 mm||78 mm||475 g||500||n||Feb 2018||449|
|5.||Canon SL2||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549|
|6.||Canon T7i||131 mm||100 mm||76 mm||532 g||600||n||Feb 2017||749|
|7.||Canon 1D X Mark II||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999|
|8.||Canon T6i||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749|
|9.||Canon T6s||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|10.||Canon 1D C||158 mm||164 mm||83 mm||1545 g||1120||Y||Apr 2012||14,999|
|11.||Canon 1D Mark IV||156 mm||157 mm||80 mm||1230 g||1500||Y||Oct 2009||4,999|
|12.||Canon 1D Mark III||156 mm||157 mm||80 mm||1155 g||2200||Y||Feb 2007||4,499|
|13.||Canon 1Ds Mark III||150 mm||160 mm||80 mm||1385 g||1800||Y||Aug 2007||7,999|
|14.||Canon 1D Mark II N||156 mm||158 mm||80 mm||1565 g||1200||Y||Aug 2005||3,999|
|15.||Canon 5D||152 mm||113 mm||75 mm||895 g||400||Y||Aug 2005||3,299|
|16.||Canon 1D Mark II||156 mm||158 mm||80 mm||1535 g||1200||Y||Jan 2004||4,499|
|17.||Canon 1Ds Mark II||156 mm||158 mm||80 mm||1215 g||1200||Y||Sep 2004||7,999|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 77D was launched at a markedly lower price (by 90 percent) than the 1Ds, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 1Ds features a full frame sensor and the Canon 77D an APS-C sensor. The sensor area in the 77D is 61 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, the 77D uses a more advanced image processing engine (DIGIC 7) than the 1Ds (DIGIC), with benefits for noise reduction, color accuracy, and processing speed.
Despite having a smaller sensor, the 77D offers a higher resolution of 24 megapixels, compared with 11 MP of the 1Ds. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.72μm versus 8.83μm for the 1Ds). However, it should be noted that the 77D is much more recent (by 14 years and 4 months) than the 1Ds, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Canon 77D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 77D for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon 1Ds are 20.3 x 13.5 inches or 51.6 x 34.3 cm for good quality, 16.3 x 10.8 inches or 41.3 x 27.5 cm for very good quality, and 13.5 x 9 inches or 34.4 x 22.9 cm for excellent quality prints.
The 77D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS-1Ds has a native sensitivity range from ISO 100 to ISO 1250, which can be extended to ISO 50-1250. The corresponding ISO settings for the Canon EOS 77D are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the 77D offers substantially better image quality than the 1Ds (overall score 15 points higher). The advantage is based on 1.8 bits higher color depth, 2.3 EV in additional dynamic range, and -0 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|1.||Canon 1Ds||Full Frame||11.0||4064||2704||none||21.8||11.0||954||63|
|3.||Canon 1D X Mark III||Full Frame||20.0||5472||3648||4K/60p||24.2||14.5||3248||91|
|7.||Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|10.||Canon 1D C||Full Frame||17.9||5184||3456||4K/24p||..||..||..||..|
|11.||Canon 1D Mark IV||APS-H||16.0||4896||3264||1080/30p||22.8||12.0||1320||74|
|12.||Canon 1D Mark III||APS-H||10.1||3888||2592||none||22.7||11.7||1078||71|
|13.||Canon 1Ds Mark III||Full Frame||21.0||5616||3744||none||24.0||12.0||1663||80|
|14.||Canon 1D Mark II N||APS-H||8.2||3504||2336||none||22.3||11.2||975||66|
|15.||Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71|
|16.||Canon 1D Mark II||APS-H||8.2||3504||2336||none||22.3||11.1||1003||66|
|17.||Canon 1Ds Mark II||Full Frame||16.6||4992||3328||none||23.3||11.3||1480||74|
Many modern cameras cannot only take still pictures, but also record videos. The 77D indeed provides for movie recording, while the 1Ds does not. The highest resolution format that the 77D can use is 1080/60p.
Apart from body and sensor, cameras can and do differ across a variety of features. The 1Ds and the 77D are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 1Ds offers a wider field of view (100%) than the one in the 77D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the 1Ds has a higher magnification (0.70x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 1Ds, the Canon 77D, and comparable cameras.
|3.||Canon 1D X Mark III||optical||Y||3.2||2100||fixed||Y||1/8000s||20.0||n||n|
|7.||Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|10.||Canon 1D C||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n|
|11.||Canon 1D Mark IV||optical||Y||3.0||920||fixed||n||1/8000s||10.0||n||n|
|12.||Canon 1D Mark III||optical||Y||3.0||230||fixed||n||1/8000s||10.0||n||n|
|13.||Canon 1Ds Mark III||optical||Y||3.0||230||fixed||n||1/8000s||5.0||n||n|
|14.||Canon 1D Mark II N||optical||Y||2.5||230||fixed||n||1/8000s||8.5||n||n|
|16.||Canon 1D Mark II||optical||Y||2.0||230||fixed||n||1/8000s||8.3||n||n|
|17.||Canon 1Ds Mark II||optical||Y||2.0||230||fixed||n||1/8000s||4.0||n||n|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The 77D has a touchscreen, while the 1Ds has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.The 77D has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 1Ds does not have a selfie-screen.
The Canon 77D has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 1Ds writes its imaging data to Compact Flash cards, while the 77D uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1Ds and Canon EOS 77D and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|3.||Canon 1D X Mark III||Y||mono||mono||Y||Y||mini||3.1||Y||-||Y|
|7.||Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|10.||Canon 1D C||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|11.||Canon 1D Mark IV||Y||stereo||-||Y||-||mini||2.0||-||-||-|
|12.||Canon 1D Mark III||Y||-||-||-||-||-||2.0||-||-||-|
|13.||Canon 1Ds Mark III||Y||mono||-||-||-||-||2.0||-||-||-|
|14.||Canon 1D Mark II N||Y||-||-||-||-||-||1.1||-||-||-|
|16.||Canon 1D Mark II||Y||-||-||-||-||-||1.1||-||-||-|
|17.||Canon 1Ds Mark II||Y||-||-||-||-||-||2.0||-||-||-|
It is notable that the 77D offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 1Ds does not provide wifi capability.
Studio photographers will appreciate that the Canon 1Ds (unlike the 77D) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The 77D is a recent model that features in the current product line-up of Canon. In contrast, the 1Ds has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the 1Ds was succeeded by the Canon 1Ds Mark II. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So what conclusions can be drawn? Which of the two cameras – the Canon 1Ds or the Canon 77D – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Canon EOS-1Ds:
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.51x).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in September 2002).
Reasons to prefer the Canon EOS 77D:
- More detail: Has more megapixels (24 vs 11MP), which boosts linear resolution by 48%.
- Better image quality: Scores substantially higher (15 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (1.8 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (2.3 EV of extra DR).
- Better jpgs: Has a more modern image processing engine (DIGIC 7 vs DIGIC).
- Broader imaging potential: Can capture not only stills but also 1080/60p video.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 120k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (6 vs 3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (131x100mm vs 156x158mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 725g or 57 percent) and is thus easier to take along.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More affordable: Was introduced into a lower priced category (90 percent cheaper at launch).
- More modern: Reflects 14 years and 4 months of technical progress since the 1Ds launch.
If the count of relative strengths (bullet points above) is taken as a measure, the 77D is the clear winner of the contest (22 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 1Ds and the Canon 77D place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the 1Ds or the 77D perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 1Ds||..||..||+ +||..||..||Sep 2002||8,999|
|2.||Canon 77D||4.5/5||..||82/100||4.5/5||4/5||Feb 2017||899|
|3.||Canon 1D X Mark III||..||+ +||..||4.5/5||4/5||Jan 2020||6,499|
|4.||Canon T7||..||o||..||3.5/5||3.5/5||Feb 2018||449|
|5.||Canon SL2||4/5||+ +||78/100||4.5/5||4.5/5||Jun 2017||549|
|6.||Canon T7i||4.5/5||..||80/100||4.5/5||4/5||Feb 2017||749|
|7.||Canon 1D X Mark II||..||..||89/100||4.5/5||4.5/5||Feb 2016||5,999|
|8.||Canon T6i||5/5||..||75/100||4.5/5||4.5/5||Feb 2015||749|
|9.||Canon T6s||5/5||+||77/100||4.5/5||4.5/5||Feb 2015||649|
|10.||Canon 1D C||..||..||..||..||..||Apr 2012||14,999|
|11.||Canon 1D Mark IV||5/5||..||89/100||..||..||Oct 2009||4,999|
|12.||Canon 1D Mark III||..||..||..||..||..||Feb 2007||4,499|
|13.||Canon 1Ds Mark III||..||..||+ +||4.5/5||..||Aug 2007||7,999|
|14.||Canon 1D Mark II N||..||..||..||..||..||Aug 2005||3,999|
|15.||Canon 5D||..||88/100||+ +||o||..||Aug 2005||3,299|
|16.||Canon 1D Mark II||..||..||+ +||..||..||Jan 2004||4,499|
|17.||Canon 1Ds Mark II||..||..||+ +||..||..||Sep 2004||7,999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Canon 1Ds vs Canon 77D
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 1Ds||Canon 77D|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Canon EF mount lenses|
|Launch Date||September 2002||February 2017|
|Launch Price||USD 8,999||USD 899|
|Sensor Specs||Canon 1Ds||Canon 77D|
|Sensor Format||Full Frame Sensor||APS-C Sensor|
|Sensor Size||36.0 x 23.8 mm||22.3 x 14.9 mm|
|Sensor Area||856.8 mm2||332.27 mm2|
|Sensor Diagonal||43.2 mm||26.8 mm|
|Sensor Resolution||11 Megapixels||24 Megapixels|
|Image Resolution||4064 x 2704 pixels||6000 x 4000 pixels|
|Pixel Pitch||8.83 μm||3.72 μm|
|Pixel Density||1.28 MP/cm2||7.22 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||1080/60p Video|
|ISO Setting||100 - 1,250 ISO||100 - 25,600 ISO|
|ISO Boost||50 - 1,250 ISO||100 - 51,200 ISO|
|Image Processor||DIGIC||DIGIC 7|
|DXO Sensor Quality (score)||63||78|
|DXO Color Depth (bits)||21.8||23.6|
|DXO Dynamic Range (EV)||11.0||13.3|
|DXO Low Light (ISO)||954||971|
|Screen Specs||Canon 1Ds||Canon 77D|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||95%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View|
|Rear LCD Size||2.0inch||3.0inch|
|LCD Resolution||120k dots||1040k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 1Ds||Canon 77D|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||3 shutter flaps/s||6 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon 1Ds||Canon 77D|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||Firewire||USB 2.0|
|HDMI Port||no HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Wifi Support||no Wifi||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Canon 1Ds||Canon 77D|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||600 shots per charge||600 shots per charge|
156 x 158 x 80 mm
(6.1 x 6.2 x 3.1 in)
131 x 100 x 76 mm
(5.2 x 3.9 x 3.0 in)
|Camera Weight||1265 g (44.6 oz)||540 g (19.0 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
