Canon 1Ds Mark II vs Nikon D80
The Canon EOS-1Ds Mark II and the Nikon D80 are two digital cameras that were revealed to the public, respectively, in September 2004 and August 2006. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (1Ds Mark II) and an APS-C (D80) sensor. The Canon has a resolution of 16.6 megapixels, whereas the Nikon provides 10 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 1Ds Mark II||Nikon D80|
|Digital single lens reflex||Digital single lens reflex|
|Canon EF mount lenses||Nikon F mount lenses|
|16.6 MP, Full Frame Sensor||10 MP, APS-C Sensor|
|no Video||no Video|
|ISO 100-1,600 (50 - 3,200)||ISO 100-1,600 (100 - 3,200)|
|Optical viewfinder||Optical viewfinder|
|2.0 LCD, 230k dots||2.5 LCD, 230k dots|
|Fixed screen (not touch-sensitive)||Fixed screen (not touch-sensitive)|
|4 shutter flaps per second||3 shutter flaps per second|
|Weathersealed body||not weather sealed|
|1200 shots per battery charge||600 shots per battery charge|
|156 x 158 x 80 mm, 1215 g||132 x 103 x 77 mm, 668 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-1Ds Mark II and the Nikon D80? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

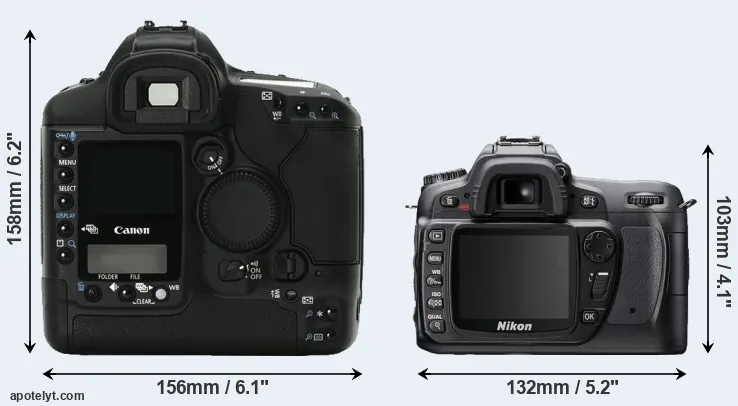

An illustration of the physical size and weight of the Canon 1Ds Mark II and the Nikon D80 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D80 is considerably smaller (45 percent) than the Canon 1Ds Mark II. Moreover, the D80 is substantially lighter (45 percent) than the 1Ds Mark II. It is worth mentioning in this context that the 1Ds Mark II is splash and dust resistant, while the D80 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (1Ds Mark II) and the Nikon Lens Catalog (D80).
Concerning battery life, the 1Ds Mark II gets 1200 shots out of its NP-E3 battery, while the D80 can take 600 images on a single charge of its EN-EL3e power pack. As can be seen in the images above, the 1Ds Mark II has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the D80, Nikon provides the MB-D80 vertical grip as an optional accessory (see here on eBay).
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Canon 1Ds Mark II||6.1 in||6.2 in||3.1 in||42.9 oz||1200||Y||Sep 2004||7,999|
|Nikon D80||5.2 in||4.1 in||3.0 in||23.6 oz||600||n||Aug 2006||999|
|Canon 1D X Mark III||6.2 in||6.6 in||3.3 in||50.8 oz||2850||Y||Jan 2020||6,499|
|Canon 1D X Mark II||6.2 in||6.6 in||3.3 in||54.0 oz||1210||Y||Feb 2016||5,999|
|Canon 6D||5.7 in||4.4 in||2.8 in||27.2 oz||1090||Y||Sep 2012||2,099|
|Canon 1D X||6.2 in||6.6 in||3.3 in||54.7 oz||1120||Y||Oct 2011||6,799|
|Canon 1D Mark IV||6.1 in||6.2 in||3.1 in||43.4 oz||1500||Y||Oct 2009||4,999|
|Canon 1D Mark III||6.1 in||6.2 in||3.1 in||40.7 oz||2200||Y||Feb 2007||4,499|
|Canon 1Ds Mark III||5.9 in||6.3 in||3.1 in||48.9 oz||1800||Y||Aug 2007||7,999|
|Canon 1D Mark II N||6.1 in||6.2 in||3.1 in||55.2 oz||1200||Y||Aug 2005||3,999|
|Canon 5D||6.0 in||4.4 in||3.0 in||31.6 oz||400||Y||Aug 2005||3,299|
|Canon 1Ds||6.1 in||6.2 in||3.1 in||44.6 oz||600||Y||Sep 2002||8,999|
|Nikon D3000||5.0 in||3.8 in||2.5 in||18.9 oz||500||n||Jul 2009||599|
|Nikon D90||5.2 in||4.1 in||3.0 in||24.8 oz||850||n||Aug 2008||1,299|
|Nikon D300||5.8 in||4.5 in||2.9 in||32.6 oz||1000||Y||Aug 2007||1,799|
|Nikon D2Xs||6.2 in||5.9 in||3.4 in||44.2 oz||3800||Y||Jun 2006||4,699|
|Nikon D70s||5.5 in||4.4 in||3.1 in||24.0 oz||500||n||Apr 2005||899|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The D80 was launched at a markedly lower price (by 88 percent) than the 1Ds Mark II, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 1Ds Mark II features a full frame sensor and the Nikon D80 an APS-C sensor. The sensor area in the D80 is 57 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
With 16.6MP, the 1Ds Mark II offers a higher resolution than the D80 (10MP), but the 1Ds Mark II nevertheless has larger individual pixels (pixel pitch of 7.21μm versus 6.11μm for the D80) due to its larger sensor. However, the D80 is a somewhat more recent model (by 1 year and 10 months) than the 1Ds Mark II, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon 1Ds Mark II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 1Ds Mark II for good quality output (200 dots per inch) amounts to 25 x 16.6 inches or 63.4 x 42.3 cm, for very good quality (250 dpi) 20 x 13.3 inches or 50.7 x 33.8 cm, and for excellent quality (300 dpi) 16.6 x 11.1 inches or 42.3 x 28.2 cm. The corresponding values for the Nikon D80 are 19.4 x 13 inches or 49.2 x 32.9 cm for good quality, 15.5 x 10.4 inches or 39.3 x 26.3 cm for very good quality, and 12.9 x 8.6 inches or 32.8 x 21.9 cm for excellent quality prints.
The Canon EOS-1Ds Mark II has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 50-3200. The corresponding ISO settings for the Nikon D80 are ISO 100 to ISO 1600, with the possibility to increase the ISO range to 100-3200.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the 1Ds Mark II provides substantially higher image quality than the D80, with an overall score that is 13 points higher. This advantage is based on 1.2 bits higher color depth, 0.1 EV in additional dynamic range, and 1.5 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Canon 1Ds Mark II||Full Frame||16.6||4992||3328||none||23.3||11.3||1480||74|
|Canon 1D X Mark III||Full Frame||20.0||5472||3648||4K/60p||24.2||14.5||3248||91|
|Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|Canon 1D X||Full Frame||17.9||5184||3456||1080/30p||23.8||11.8||2786||82|
|Canon 1D Mark IV||APS-H||16.0||4896||3264||1080/30p||22.8||12.0||1320||74|
|Canon 1D Mark III||APS-H||10.1||3888||2592||none||22.7||11.7||1078||71|
|Canon 1Ds Mark III||Full Frame||21.0||5616||3744||none||24.0||12.0||1663||80|
|Canon 1D Mark II N||APS-H||8.2||3504||2336||none||22.3||11.2||975||66|
|Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71|
|Canon 1Ds||Full Frame||11.0||4064||2704||none||21.8||11.0||954||63|
Beyond body and sensor, cameras can and do differ across a range of features. The 1Ds Mark II and the D80 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 1Ds Mark II offers a wider field of view (100%) than the one in the D80 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the 1Ds Mark II has a higher magnification (0.70x vs 0.62x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 1Ds Mark II and Nikon D80 along with similar information for a selection of comparators.
|Canon 1Ds Mark II||optical||Y||2.0||230||fixed||n||1/8000s||4.0||n||n|
|Canon 1D X Mark III||optical||Y||3.2||2100||fixed||Y||1/8000s||20.0||n||n|
|Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|Canon 1D X||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n|
|Canon 1D Mark IV||optical||Y||3.0||920||fixed||n||1/8000s||10.0||n||n|
|Canon 1D Mark III||optical||Y||3.0||230||fixed||n||1/8000s||10.0||n||n|
|Canon 1Ds Mark III||optical||Y||3.0||230||fixed||n||1/8000s||5.0||n||n|
|Canon 1D Mark II N||optical||Y||2.5||230||fixed||n||1/8000s||8.5||n||n|
One feature that is present on the 1Ds Mark II, but is missing on the D80 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The 1Ds Mark II writes its imaging data to Compact Flash or SDHC cards, while the D80 uses SDHC cards. The 1Ds Mark II features dual card slots, which can be very useful in case a memory card fails. In contrast, the D80 only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1Ds Mark II and Nikon D80 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Canon 1Ds Mark II||Y||-||-||-||-||-||2.0||-||-||-|
|Canon 1D X Mark III||Y||mono||mono||Y||Y||mini||3.1||Y||-||Y|
|Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|Canon 1D X||Y||mono||-||Y||-||mini||2.0||-||-||-|
|Canon 1D Mark IV||Y||stereo||-||Y||-||mini||2.0||-||-||-|
|Canon 1D Mark III||Y||-||-||-||-||-||2.0||-||-||-|
|Canon 1Ds Mark III||Y||-||-||-||-||-||2.0||-||-||-|
|Canon 1D Mark II N||Y||-||-||-||-||-||1.1||-||-||-|
Studio photographers will appreciate that the Canon 1Ds Mark II (unlike the D80) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 1Ds Mark II and the D80 have been discontinued, but can regularly be found used on eBay. The 1Ds Mark II was replaced by the Canon 1Ds Mark III, while the D80 was followed by the Nikon D90. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Nikon websites.
So what is the bottom line? Which of the two cameras – the Canon 1Ds Mark II or the Nikon D80 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Advantages of the Canon EOS-1Ds Mark II:
- More detail: Offers more megapixels (16.6 vs 10MP) with a 29% higher linear resolution.
- Better image quality: Scores substantially higher (13 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (1.2 bits more color depth).
- Better low-light sensitivity: Requires less light for good images (1.5 stops ISO advantage).
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.62x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (4 vs 3 flaps/sec) to capture the decisive moment.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Can take more shots (1200 versus 600) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been on the market for longer (launched in September 2004).
Arguments in favor of the Nikon D80:
- Larger screen: Has a bigger rear LCD (2.5" vs 2.0") for image review and settings control.
- More compact: Is smaller (132x103mm vs 156x158mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 547g or 45 percent) and is thus easier to take along.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More affordable: Was introduced into a lower priced category (88 percent cheaper at launch).
- More modern: Was introduced somewhat (1 year and 10 months) more recently.
If the count of individual advantages (bullet points above) is taken as a guide, the 1Ds Mark II is the clear winner of the match-up (15 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 1Ds Mark II and the Nikon D80 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 1Ds Mark II or the D80. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 1Ds Mark II||..||+ +||..||..||..||Sep 2004||7,999|
|Nikon D80||+||+ +||o||4.5/5||4.5/5||Aug 2006||999|
|Canon 1D X Mark III||+ +||..||..||..||..||Jan 2020||6,499|
|Canon 1D X Mark II||..||89/100||4.5/5||5/5||4.5/5||Feb 2016||5,999|
|Canon 6D||+ +||83/100||4.5/5||4.5/5||4.5/5||Sep 2012||2,099|
|Canon 1D X||..||..||4.5/5||4.5/5||4.5/5||Oct 2011||6,799|
|Canon 1D Mark IV||..||89/100||..||5/5||..||Oct 2009||4,999|
|Canon 1D Mark III||..||..||..||o||..||Feb 2007||4,499|
|Canon 1Ds Mark III||..||+ +||4.5/5||..||..||Aug 2007||7,999|
|Canon 1D Mark II N||..||..||..||..||..||Aug 2005||3,999|
|Canon 5D||88/100||+ +||o||o||..||Aug 2005||3,299|
|Canon 1Ds||..||+ +||..||..||..||Sep 2002||8,999|
|Nikon D3000||+||72/100||4/5||3.5/5||4.5/5||Jul 2009||599|
|Nikon D90||+ +||+ +||4/5||5/5||4.5/5||Aug 2008||1,299|
|Nikon D300||+ +||+ +||5/5||o||4.5/5||Aug 2007||1,799|
|Nikon D2Xs||..||..||..||o||..||Jun 2006||4,699|
|Nikon D70s||..||..||..||o||5/5||Apr 2005||899|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 1Ds Mark II vs Canon XT
- Canon 1Ds Mark II vs Panasonic GF1
- Canon 1Ds Mark II vs Panasonic GF6
- Canon 1Ds Mark II vs Panasonic GH1
- Canon 5D vs Nikon D80
- Canon G9 X vs Nikon D80
- Fujifilm X-A7 vs Nikon D80
- Leica X1 vs Nikon D80
- Nikon D80 vs Panasonic GF1
- Nikon D80 vs Ricoh GR
- Nikon D80 vs Sony NEX-F3
- Nikon D80 vs Sony RX10 III
Specifications: Canon 1Ds Mark II vs Nikon D80
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 1Ds Mark II||Nikon D80|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Nikon F mount lenses|
|Launch Date||September 2004||August 2006|
|Launch Price||USD 7,999||USD 999|
|Sensor Specs||Canon 1Ds Mark II||Nikon D80|
|Sensor Format||Full Frame Sensor||APS-C Sensor|
|Sensor Size||36.0 x 24.0 mm||23.6 x 15.8 mm|
|Sensor Area||864 mm2||372.88 mm2|
|Sensor Diagonal||43.3 mm||28.4 mm|
|Sensor Resolution||16.6 Megapixels||10 Megapixels|
|Image Resolution||4992 x 3328 pixels||3872 x 2592 pixels|
|Pixel Pitch||7.21 μm||6.11 μm|
|Pixel Density||1.92 MP/cm2||2.69 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||no Video|
|ISO Setting||100 - 1,600 ISO||100 - 1,600 ISO|
|ISO Boost||50 - 3,200 ISO||100 - 3,200 ISO|
|DXO Sensor Quality (score)||74||61|
|DXO Color Depth (bits)||23.3||22.1|
|DXO Dynamic Range (EV)||11.3||11.2|
|DXO Low Light (ISO)||1480||524|
|Screen Specs||Canon 1Ds Mark II||Nikon D80|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||95%|
|Top-Level Screen||Control Panel||no Top Display|
|Rear LCD Size||2.0inch||2.5inch|
|LCD Resolution||230k dots||230k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon 1Ds Mark II||Nikon D80|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||4 shutter flaps/s||3 shutter flaps/s|
|Shutter Life Expectancy||200 000 actuations||100 000 actuations|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||CF or SDHC cards||SDHC cards|
|Second Storage Option||Dual card slots||Single card slot|
|UHS card support||no||no|
|Connectivity Specs||Canon 1Ds Mark II||Nikon D80|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||no HDMI|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 1Ds Mark II||Nikon D80|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||1200 shots per charge||600 shots per charge|
156 x 158 x 80 mm
(6.1 x 6.2 x 3.1 in)
132 x 103 x 77 mm
(5.2 x 4.1 x 3.0 in)
|Camera Weight||1215 g (42.9 oz)||668 g (23.6 oz)|
