Canon 1D X vs Leica S Typ 006
The Canon EOS-1D X and the Leica S (Typ 006) are two professional cameras that were announced, respectively, in October 2011 and September 2012. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (1DX) and a medium format (S Typ 006) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Leica provides 37.5 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-1D X and the Leica S (Typ 006)? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The physical size and weight of the Canon 1D X and the Leica S Typ 006 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica S Typ 006 is notably smaller (28 percent) than the Canon 1D X. Moreover, the S Typ 006 is markedly lighter (19 percent) than the 1DX. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

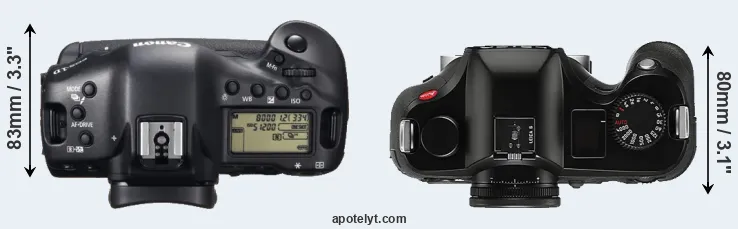

As can be seen in the images above, the 1DX has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the S Typ 006, Leica provides the Multi-Function Handgrip S vertical grip as an optional accessory (see here on eBay).
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|Canon 1D X||6.2 in||6.6 in||3.3 in||54.7 oz||1120||Y||Oct 2011||6,799|
|Leica S Typ 006||6.3 in||4.7 in||3.1 in||44.4 oz||..||Y||Sep 2012||21,950|
|Canon 1D X Mark III||6.2 in||6.6 in||3.3 in||50.8 oz||2850||Y||Jan 2020||6,499|
|Canon 1D X Mark II||6.2 in||6.6 in||3.3 in||54.0 oz||1210||Y||Feb 2016||5,999|
|Canon 1D C||6.2 in||6.5 in||3.3 in||54.5 oz||1120||Y||Apr 2012||14,999|
|Canon 5D Mark III||6.0 in||4.6 in||3.0 in||33.5 oz||950||Y||Mar 2012||3,499|
|Canon 6D||5.7 in||4.4 in||2.8 in||27.2 oz||1090||Y||Sep 2012||2,099|
|Canon 5D Mark II||6.0 in||4.5 in||3.0 in||30.0 oz||850||Y||Sep 2008||3,499|
|Canon 1Ds Mark III||5.9 in||6.3 in||3.1 in||48.9 oz||1800||Y||Aug 2007||7,999|
|Canon 1Ds Mark II||6.1 in||6.2 in||3.1 in||42.9 oz||1200||Y||Sep 2004||7,999|
|Leica S3||6.3 in||4.7 in||3.1 in||44.4 oz||..||Y||Sep 2018||18,995|
|Leica S-E Typ 006||6.3 in||4.7 in||3.1 in||44.4 oz||..||Y||Sep 2014||16,900|
|Leica S Typ 007||6.3 in||4.7 in||3.1 in||44.4 oz||..||Y||Sep 2014||24,490|
|Leica M Typ 240||5.5 in||3.1 in||1.7 in||24.0 oz||..||Y||Sep 2012||6,950|
|Leica S2||6.3 in||4.7 in||3.1 in||49.7 oz||..||Y||Sep 2008||22,995|
|Nikon D4S||6.3 in||6.2 in||3.6 in||47.6 oz||3020||Y||Feb 2014||6,499|
|Nikon D4||6.3 in||6.2 in||3.6 in||47.3 oz||2600||Y||Jan 2012||5,999|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 1DX was launched at a markedly lower price (by 69 percent) than the S Typ 006, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 1D X features a full frame sensor and the Leica S Typ 006 a medium format sensor. The sensor area in the S Typ 006 is 56 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 0.8. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
With 37.5MP, the S Typ 006 offers a higher resolution than the 1DX (17.9MP), but the S Typ 006 has smaller individual pixels (pixel pitch of 6.00μm versus 6.95μm for the 1DX). Yet, the S Typ 006 is a somewhat more recent model (by 11 months) than the 1DX, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the S Typ 006 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Leica S Typ 006 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the S Typ 006 for good quality output (200 dots per inch) amounts to 37.5 x 25 inches or 95.3 x 63.5 cm, for very good quality (250 dpi) 30 x 20 inches or 76.2 x 50.8 cm, and for excellent quality (300 dpi) 25 x 16.7 inches or 63.5 x 42.3 cm. The corresponding values for the Canon 1D X are 25.9 x 17.3 inches or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inches or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inches or 43.9 x 29.3 cm for excellent quality prints.
The Canon EOS-1D X has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-204800. The corresponding ISO settings for the Leica S (Typ 006) are ISO 100 to ISO 1600 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the 1DX has a notably higher overall DXO score than the S Typ 006 (overall score 6 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.099999999999998 bits lower color depth, 0.4 EV of lower dynamic range, and 1.8 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Canon 1D X||Full Frame||17.9||5184||3456||1080/30p||23.8||11.8||2786||82|
|Leica S Typ 006||Medium Format||37.5||7500||5000||none||23.9||12.2||824||76|
|Canon 1D X Mark III||Full Frame||20.0||5472||3648||4K/60p||24.2||14.5||3248||91|
|Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|Canon 1D C||Full Frame||17.9||5184||3456||4K/24p||..||..||..||..|
|Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|Canon 1Ds Mark III||Full Frame||21.0||5616||3744||none||24.0||12.0||1663||80|
|Canon 1Ds Mark II||Full Frame||16.6||4992||3328||none||23.3||11.3||1480||74|
|Leica S3||Medium Format||64.0||9800||6533||4K/24p||..||..||..||..|
|Leica S-E Typ 006||Medium Format||37.5||7500||5000||none||..||..||..||..|
|Leica S Typ 007||Medium Format||37.5||7500||5000||4K/24p||..||..||..||..|
|Leica M Typ 240||Full Frame||23.7||5952||3976||1080/25p||24.0||13.3||1860||84|
|Leica S2||Medium Format||37.5||7500||5000||none||..||..||..||..|
|Nikon D4S||Full Frame||16.2||4928||3280||1080/60p||24.4||13.3||3074||89|
|Nikon D4||Full Frame||16.2||4928||3280||1080/30p||24.7||13.1||2965||89|
Many modern cameras cannot only take still pictures, but also record videos. The 1DX indeed provides movie recording capabilities, while the S Typ 006 does not. The highest resolution format that the 1DX can use is 1080/30p.
Beyond body and sensor, cameras can and do differ across a range of features. The 1DX and the S Typ 006 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 1DX offers a wider field of view (100%) than the one in the S Typ 006 (98%), so that a larger proportion of the captured image is visible in the finder. On the other hand, the viewfinder of the S Typ 006 has a higher magnification (0.87x vs 0.76x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 1D X and Leica S Typ 006 along with similar information for a selection of comparators.
|Canon 1D X||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n|
|Leica S Typ 006||optical||Y||3.0||922||fixed||n||1/4000s||1.5||n||n|
|Canon 1D X Mark III||optical||Y||3.2||2100||fixed||Y||1/8000s||20.0||n||n|
|Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|Canon 1D C||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n|
|Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n|
|Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
|Canon 1Ds Mark III||optical||Y||3.0||230||fixed||n||1/8000s||5.0||n||n|
|Canon 1Ds Mark II||optical||Y||2.0||230||fixed||n||1/8000s||4.0||n||n|
|Leica S-E Typ 006||optical||Y||3.0||922||fixed||n||1/4000s||1.5||n||n|
|Leica S Typ 007||optical||Y||3.0||922||fixed||n||1/4000s||3.5||n||n|
|Leica M Typ 240||optical||n||3.0||920||fixed||n||1/4000s||3.0||n||n|
The 1DX writes its imaging data to Compact Flash cards, while the S Typ 006 uses Compact Flash or SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D X and Leica S (Typ 006) and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Canon 1D X||Y||mono||-||Y||-||mini||2.0||-||-||-|
|Leica S Typ 006||Y||-||-||-||-||mini||2.0||-||-||-|
|Canon 1D X Mark III||Y||mono||mono||Y||Y||mini||3.1||Y||-||Y|
|Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|Canon 1D C||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
|Canon 1Ds Mark III||Y||-||-||-||-||-||2.0||-||-||-|
|Canon 1Ds Mark II||Y||-||-||-||-||-||2.0||-||-||-|
|Leica S-E Typ 006||Y||-||-||-||-||mini||2.0||-||-||-|
|Leica S Typ 007||Y||stereo||mono||Y||Y||mini||3.0||Y||-||-|
|Leica M Typ 240||Y||stereo||mono||-||-||-||2.0||-||-||-|
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
Both the 1DX and the S Typ 006 have been discontinued, but can regularly be found used on eBay. The 1DX was replaced by the Canon 1DX Mark II, while the S Typ 006 was followed by the Leica S Typ 007. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Leica websites.
So what is the bottom line? Is the Canon 1D X better than the Leica S Typ 006 or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Canon EOS-1D X:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Scores markedly higher (6 points) in the DXO overall assessment.
- Better low-light sensitivity: Requires less light for good images (1.8 stops ISO advantage).
- Broader imaging potential: Can record not only still images but also 1080/30p movies.
- More complete view: Has a viewfinder with a larger field of view (100% vs 98%).
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 922k dots).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (14 vs 1.5 flaps/sec) to capture the decisive moment.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- More affordable: Was introduced into a lower priced category (69 percent cheaper at launch).
- More heavily discounted: Has been on the market for longer (launched in October 2011).
Arguments in favor of the Leica S (Typ 006):
- More detail: Has more megapixels (37.5 vs 17.9MP), which boosts linear resolution by 45%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.87x vs 0.76x).
- More compact: Is smaller (160x120mm vs 158x168mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 291g or 19 percent) and is thus easier to take along.
- More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
- More modern: Was introduced somewhat (11 months) more recently.
If the count of individual advantages (bullet points above) is taken as a guide, the 1DX is the clear winner of the match-up (12 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 1D X and the Leica S Typ 006 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the 1DX and the S Typ 006 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 1D X||..||..||4.5/5||4.5/5||4.5/5||Oct 2011||6,799|
|Leica S Typ 006||..||..||..||..||..||Sep 2012||21,950|
|Canon 1D X Mark III||+ +||..||4.5/5||..||4/5||Jan 2020||6,499|
|Canon 1D X Mark II||..||89/100||4.5/5||5/5||4.5/5||Feb 2016||5,999|
|Canon 1D C||..||..||..||..||..||Apr 2012||14,999|
|Canon 5D Mark III||+ +||82/100||4.5/5||5/5||4.5/5||Mar 2012||3,499|
|Canon 6D||+ +||83/100||4.5/5||4.5/5||4.5/5||Sep 2012||2,099|
|Canon 5D Mark II||91/100||79/100||4/5||5/5||..||Sep 2008||3,499|
|Canon 1Ds Mark III||..||+ +||4.5/5||..||..||Aug 2007||7,999|
|Canon 1Ds Mark II||..||+ +||..||..||..||Sep 2004||7,999|
|Leica S3||..||..||..||..||..||Sep 2018||18,995|
|Leica S-E Typ 006||..||..||..||..||..||Sep 2014||16,900|
|Leica S Typ 007||..||..||..||..||..||Sep 2014||24,490|
|Leica M Typ 240||..||..||4/5||..||..||Sep 2012||6,950|
|Leica S2||..||..||..||..||..||Sep 2008||22,995|
|Nikon D4S||..||..||4.5/5||5/5||4.5/5||Feb 2014||6,499|
|Nikon D4||..||..||4.5/5||..||4.5/5||Jan 2012||5,999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 1D X vs Canon 6D Mark II
- Canon 1D X vs Canon R5
- Canon 1D X vs Fujifilm XP140
- Canon 1D X vs Kodak S-1
- Canon 1D X vs Ricoh WG-6
- Canon 1D X vs Sony A7
- Canon 4000D vs Leica S Typ 006
- Canon 400D vs Leica S Typ 006
- Canon G1 X Mark III vs Leica S Typ 006
- Fujifilm X-E3 vs Leica S Typ 006
- Leica S Typ 006 vs Nikon D800E
- Leica S Typ 006 vs Panasonic GX7
Specifications: Canon 1D X vs Leica S Typ 006
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 1D X||Leica S Typ 006|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Leica S mount lenses|
|Launch Date||October 2011||September 2012|
|Launch Price||USD 6,799||USD 21,950|
|Sensor Specs||Canon 1D X||Leica S Typ 006|
|Sensor Format||Full Frame Sensor||Medium Format Sensor|
|Sensor Size||36.0 x 24.0 mm||45.0 x 30.0 mm|
|Sensor Area||864 mm2||1350 mm2|
|Sensor Diagonal||43.3 mm||54.1 mm|
|Sensor Resolution||17.9 Megapixels||37.5 Megapixels|
|Image Resolution||5184 x 3456 pixels||7500 x 5000 pixels|
|Pixel Pitch||6.95 μm||6.00 μm|
|Pixel Density||2.07 MP/cm2||2.78 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/30p Video||no Video|
|ISO Setting||100 - 51,200 ISO||100 - 1,600 ISO|
|ISO Boost||50 - 204,800 ISO||no Enhancement|
|DXO Sensor Quality (score)||82||76|
|DXO Color Depth (bits)||23.8||23.9|
|DXO Dynamic Range (EV)||11.8||12.2|
|DXO Low Light (ISO)||2786||824|
|Screen Specs||Canon 1D X||Leica S Typ 006|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||98%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View|
|Rear LCD Size||3.2inch||3.0inch|
|LCD Resolution||1040k dots||922k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon 1D X||Leica S Typ 006|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||14 shutter flaps/s||1.5 shutter flaps/s|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||CF cards||CF or SDXC cards|
|Second Storage Option||Dual card slots||Dual card slots|
|Connectivity Specs||Canon 1D X||Leica S Typ 006|
|Studio Flash||PC Sync socket||PC Sync socket|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 1D X||Leica S Typ 006|
|Environmental Sealing||Weathersealed body||Weathersealed body|
158 x 168 x 83 mm
(6.2 x 6.6 x 3.3 in)
160 x 120 x 80 mm
(6.3 x 4.7 x 3.1 in)
|Camera Weight||1551 g (54.7 oz)||1260 g (44.4 oz)|
