Canon 1D X Mark III vs SX430
The Canon EOS-1D X Mark III and the Canon PowerShot SX430 IS are two digital cameras that were revealed to the public, respectively, in January 2020 and January 2017. The 1DX Mark III is a DSLR, while the SX430 is a fixed lens compact. The cameras are based on a full frame (1DX Mark III) and a 1/2.3-inch (SX430) sensor. The 1DX Mark III has a resolution of 20 megapixels, whereas the SX430 provides 19.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-1D X Mark III and the Canon PowerShot SX430 IS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

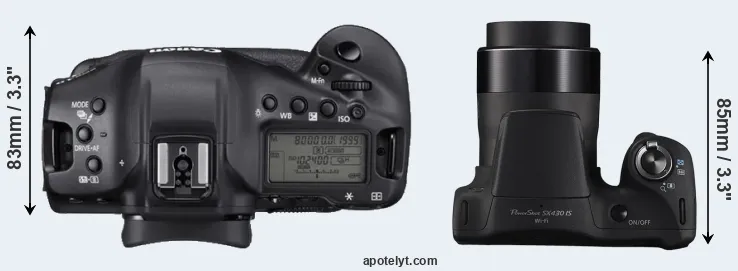

The side-by-side display below illustrates the physical size and weight of the Canon 1D X Mark III and the Canon SX430. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SX430 is considerably smaller (73 percent) than the Canon 1D X Mark III. It is worth mentioning in this context that the 1DX Mark III is splash and dust resistant, while the SX430 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX430 has a lens built in, whereas the 1DX Mark III is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 1DX Mark III and their specifications in the Canon EF Lens Catalog.
Concerning battery life, the 1DX Mark III gets 2850 shots out of its LP-E19 battery, while the SX430 can take 195 images on a single charge of its NB-11LH power pack. As can be seen in the images above, the 1DX Mark III has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon 1D X Mark III||158 mm||168 mm||83 mm||1440 g||2850||Y||Jan 2020||6,499|
|2.||Canon SX430||104 mm||69 mm||85 mm||323 g||195||n||Jan 2017||299|
|3.||Canon SX740||110 mm||64 mm||40 mm||299 g||265||n||Jul 2018||399|
|4.||Canon SX730||110 mm||64 mm||40 mm||300 g||250||n||Apr 2017||399|
|5.||Canon 1D X Mark II||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999|
|6.||Canon SX420||104 mm||69 mm||85 mm||325 g||195||n||Jan 2016||299|
|7.||Canon SX620||97 mm||57 mm||28 mm||182 g||295||n||May 2016||279|
|8.||Canon SX410||104 mm||69 mm||85 mm||325 g||185||n||Feb 2015||279|
|9.||Canon 1D C||158 mm||164 mm||83 mm||1545 g||1120||Y||Apr 2012||14,999|
|10.||Canon 5D Mark III||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499|
|11.||Canon 6D||145 mm||111 mm||71 mm||770 g||1090||Y||Sep 2012||2,099|
|12.||Canon 1D X||158 mm||168 mm||83 mm||1551 g||1120||Y||Oct 2011||6,799|
|13.||Canon 5D Mark II||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499|
|14.||Canon 1Ds Mark III||150 mm||160 mm||80 mm||1385 g||1800||Y||Aug 2007||7,999|
|15.||Canon 1Ds Mark II||156 mm||158 mm||80 mm||1215 g||1200||Y||Sep 2004||7,999|
|16.||Nikon D6||160 mm||163 mm||92 mm||1270 g||3580||Y||Feb 2020||6,499|
|17.||Nikon D5||160 mm||159 mm||92 mm||1415 g||3780||Y||Jan 2016||6,499|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX430 was launched at a lower price than the 1DX Mark III, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 1D X Mark III features a full frame sensor and the Canon SX430 a 1/2.3-inch sensor. The sensor area in the SX430 is 97 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 5.6. The sensor in the 1DX Mark III has a native 3:2 aspect ratio, while the one in the SX430 offers a 4:3 aspect.
In terms of chip-set technology, the 1DX Mark III uses a more advanced image processing engine (DIGIC X) than the SX430 (DIGIC 4+), with benefits for noise reduction, color accuracy, and processing speed.

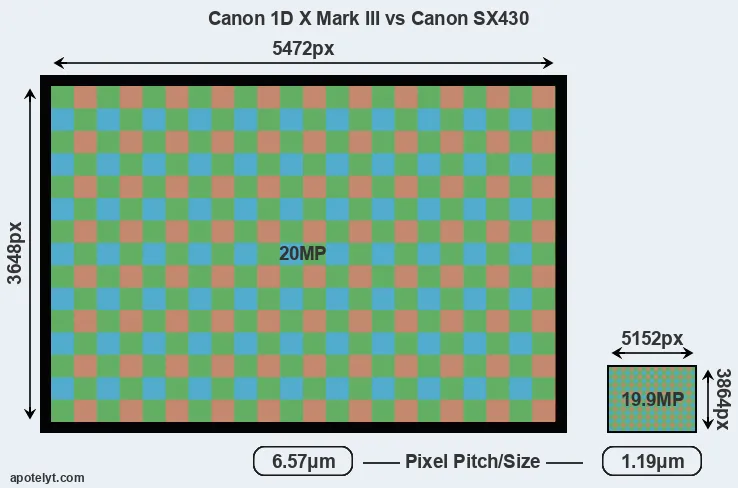

With 20MP, the 1DX Mark III offers a slightly higher resolution than the SX430 (19.9MP), but the 1DX Mark III nevertheless has larger individual pixels (pixel pitch of 6.57μm versus 1.19μm for the SX430) due to its larger sensor. Moreover, the 1DX Mark III is a much more recent model (by 3 years) than the SX430, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the SX430 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The 1DX Mark III has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS-1D X Mark III has a native sensitivity range from ISO 100 to ISO 102400, which can be extended to ISO 50-819200. The corresponding ISO settings for the Canon PowerShot SX430 IS are ISO 100 to ISO 1600 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|1.||Canon 1D X Mark III||Full Frame||20.0||5472||3648||4K/60p||24.2||14.5||3248||91|
|5.||Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|9.||Canon 1D C||Full Frame||17.9||5184||3456||4K/24p||..||..||..||..|
|10.||Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|11.||Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|12.||Canon 1D X||Full Frame||17.9||5184||3456||1080/30p||23.8||11.8||2786||82|
|13.||Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|14.||Canon 1Ds Mark III||Full Frame||21.0||5616||3744||none||24.0||12.0||1663||80|
|15.||Canon 1Ds Mark II||Full Frame||16.6||4992||3328||none||23.3||11.3||1480||74|
|16.||Nikon D6||Full Frame||20.7||5568||3712||4K/30p||..||..||..||..|
|17.||Nikon D5||Full Frame||20.7||5588||3712||4K/30p||25.1||12.3||2343||88|
Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the 1DX Mark III provides a higher video resolution than the SX430. It can shoot video footage at 4K/60p, while the SX430 is limited to 720/25p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the 1DX Mark III has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the SX430 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon 1D X Mark III, the Canon SX430, and comparable cameras.
|1.||Canon 1D X Mark III||optical||Y||3.2||2100||fixed||Y||1/8000s||20.0||n||n|
|5.||Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|9.||Canon 1D C||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n|
|10.||Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n|
|12.||Canon 1D X||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n|
|13.||Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
|14.||Canon 1Ds Mark III||optical||Y||3.0||230||fixed||n||1/8000s||5.0||n||n|
|15.||Canon 1Ds Mark II||optical||Y||2.0||230||fixed||n||1/8000s||4.0||n||n|
One feature that is present on the 1DX Mark III, but is missing on the SX430 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The Canon 1D X Mark III has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 1DX Mark III writes its imaging data to CFexpress cards, while the SX430 uses SDXC cards. The 1DX Mark III features dual card slots, which can be very useful in case a memory card fails. In contrast, the SX430 only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D X Mark III and Canon PowerShot SX430 IS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|1.||Canon 1D X Mark III||Y||mono||mono||Y||Y||mini||3.1||Y||-||Y|
|5.||Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|9.||Canon 1D C||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|10.||Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|12.||Canon 1D X||Y||mono||-||Y||-||mini||2.0||-||-||-|
|13.||Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
|14.||Canon 1Ds Mark III||Y||mono||-||-||-||-||2.0||-||-||-|
|15.||Canon 1Ds Mark II||Y||-||-||-||-||-||2.0||-||-||-|
It is notable that the 1DX Mark III has a hotshoe, while the SX430 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
Studio photographers will appreciate that the Canon 1D X Mark III (unlike the SX430) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Travel and landscape photographers will find it useful that the 1DX Mark III has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
Both the 1DX Mark III and the SX430 are recent models that are part of the current product line-up. The SX430 replaced the earlier Canon SX420, while the 1DX Mark III followed on from the Canon 1DX Mark II. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So what is the bottom line? Is the Canon 1D X Mark III better than the Canon SX430 or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Canon EOS-1D X Mark III:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Features a larger and more technologically advanced imaging sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Better jpgs: Has a more modern image processing engine (DIGIC X vs DIGIC 4+).
- Better video: Provides higher definition movie capture (4K/60p vs 720/25p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (2100k vs 230k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (20 vs 0.5 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More flexible: Can take a variety of interchangeable lenses, including specialty optics.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Can take more shots (2850 versus 195) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More modern: Reflects 3 years of technical progress since the SX430 launch.
Arguments in favor of the Canon PowerShot SX430 IS:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Ready to shoot: Comes with an integrated lens, while the 1DX Mark III requires a separate lens.
- More compact: Is smaller (104x69mm vs 158x168mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the 1DX Mark III).
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More heavily discounted: Has been around for much longer (launched in January 2017).
If the count of individual advantages (bullet points above) is taken as a guide, the 1DX Mark III is the clear winner of the match-up (29 : 9 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 1D X Mark III and the Canon SX430 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 1DX Mark III or the SX430. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 1D X Mark III||..||+ +||..||4.5/5||4/5||Jan 2020||6,499|
|2.||Canon SX430||..||..||..||3.5/5||3.5/5||Jan 2017||299|
|3.||Canon SX740||..||+||..||4/5||4/5||Jul 2018||399|
|4.||Canon SX730||..||+||..||4/5||4/5||Apr 2017||399|
|5.||Canon 1D X Mark II||..||..||89/100||4.5/5||4.5/5||Feb 2016||5,999|
|6.||Canon SX420||..||..||..||..||3/5||Jan 2016||299|
|7.||Canon SX620||..||..||..||..||4/5||May 2016||279|
|8.||Canon SX410||..||o||..||..||..||Feb 2015||279|
|9.||Canon 1D C||..||..||..||..||..||Apr 2012||14,999|
|10.||Canon 5D Mark III||..||+ +||82/100||4.5/5||4.5/5||Mar 2012||3,499|
|11.||Canon 6D||5/5||+ +||83/100||4.5/5||4.5/5||Sep 2012||2,099|
|12.||Canon 1D X||5/5||..||..||4.5/5||4.5/5||Oct 2011||6,799|
|13.||Canon 5D Mark II||4/5||91/100||79/100||4/5||..||Sep 2008||3,499|
|14.||Canon 1Ds Mark III||..||..||+ +||4.5/5||..||Aug 2007||7,999|
|15.||Canon 1Ds Mark II||..||..||+ +||..||..||Sep 2004||7,999|
|16.||Nikon D6||..||..||..||4.5/5||4.5/5||Feb 2020||6,499|
|17.||Nikon D5||..||..||89/100||4.5/5||5/5||Jan 2016||6,499|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon 1D X Mark III vs Canon SX430
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 1D X Mark III||Canon SX430|
|Camera Type||Digital single lens reflex||Fixed lens compact camera|
|Camera Lens||Canon EF mount lenses||24-1080mm f/3.5-6.6|
|Launch Date||January 2020||January 2017|
|Launch Price||USD 6,499||USD 299|
|Sensor Specs||Canon 1D X Mark III||Canon SX430|
|Sensor Format||Full Frame Sensor||1/2.3" Sensor|
|Sensor Size||36.0 x 24.0 mm||6.17 x 4.55 mm|
|Sensor Area||864 mm2||28.0735 mm2|
|Sensor Diagonal||43.3 mm||7.7 mm|
|Sensor Resolution||20 Megapixels||19.9 Megapixels|
|Image Resolution||5472 x 3648 pixels||5152 x 3864 pixels|
|Pixel Pitch||6.57 μm||1.19 μm|
|Pixel Density||2.31 MP/cm2||70.91 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||4K/60p Video||720/25p Video|
|ISO Setting||100 - 102,400 ISO||100 - 1,600 ISO|
|ISO Boost||50 - 819,200 ISO||no Enhancement|
|Image Processor||DIGIC X||DIGIC 4+|
|DXO Sensor Quality (score)||91||..|
|DXO Color Depth (bits)||24.2||..|
|DXO Dynamic Range (EV)||14.5||..|
|DXO Low Light (ISO)||3248||..|
|Screen Specs||Canon 1D X Mark III||Canon SX430|
|Viewfinder Type||Optical viewfinder||no viewfinder|
|Viewfinder Field of View||100%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.0inch|
|LCD Resolution||2100k dots||230k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon 1D X Mark III||Canon SX430|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||20 shutter flaps/s||0.5 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Fill Flash||no On-Board Flash||Built-in Flash|
|Storage Medium||CFexpress cards||SDXC cards|
|Second Storage Option||Dual card slots||Single card slot|
|Connectivity Specs||Canon 1D X Mark III||Canon SX430|
|External Flash||Hotshoe||no Hotshoe|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 3.1||USB 2.0|
|HDMI Port||mini HDMI||no HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Geotagging||GPS built-in||no internal GPS|
|Body Specs||Canon 1D X Mark III||Canon SX430|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||2850 shots per charge||195 shots per charge|
158 x 168 x 83 mm
(6.2 x 6.6 x 3.3 in)
104 x 69 x 85 mm
(4.1 x 2.7 x 3.3 in)
|Camera Weight||1440 g (50.8 oz)||323 g (11.4 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
