Canon 1D X Mark II versus Panasonic GX9

The Canon EOS-1D X Mark II and the Panasonic Lumix DC-GX9 are two digital cameras that were announced, respectively, in February 2016 and February 2018. The 1DX Mark II is a DSLR, while the GX9 is a mirrorless interchangeable lens camera. The cameras are based on a full frame (1DX Mark II) and a Four Thirds (GX9) sensor. The Canon has a resolution of 20 megapixel, whereas the Panasonic provides 20.2 MP. Read on to find out how these two cameras compare with respect to their size, their sensors, their features, and their reception by expert reviewers.

Body comparison: Canon 1D X Mark II vs Panasonic GX9

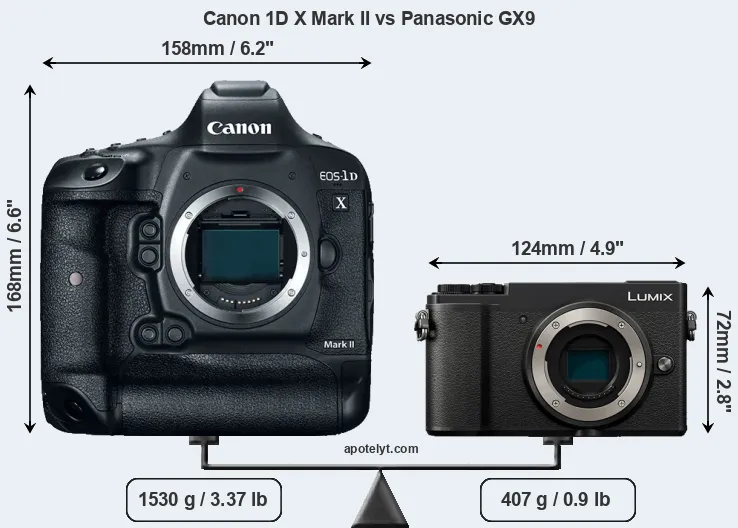

An illustration of the physical size and weight of the Canon 1D X Mark II and the Panasonic GX9 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter. You can also toggle the display to switch to a percentage comparison if you prefer that the measures are being expressed in relative terms (in this case, the camera on the left – the 1DX Mark II – represents the basis or 100 percent across all the size and weight measures).

Compare Canon 1D X Mark II vs Panasonic GX9

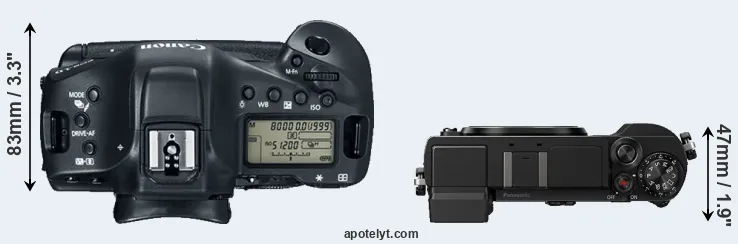

Compare 1DX Mark II versus GX9 top

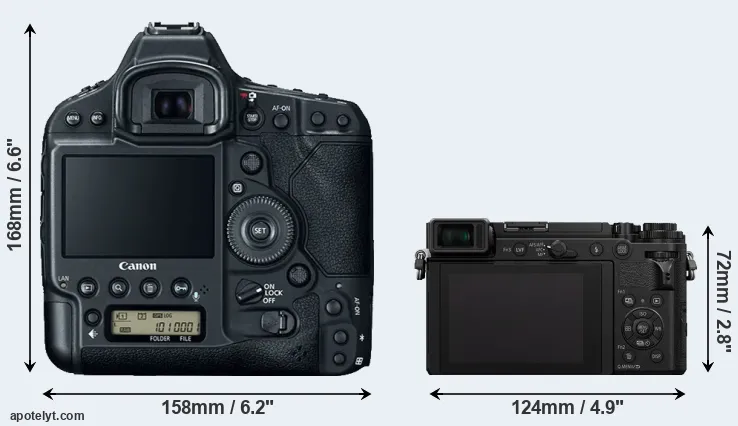

Compare 1DX Mark II and GX9 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GX9 is considerably smaller (66 percent) than the Canon 1D X Mark II. Moreover, the GX9 is substantially lighter (73 percent) than the 1DX Mark II. It is worth mentioning in this context that the 1DX Mark II is splash and dust resistant, while the GX9 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can find an overview of optics for the two cameras in the Canon EF Lens Catalog (1DX Mark II) and the Micro Four Thirds Lens Catalog (GX9). Mirrorless cameras, such as the GX9, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the 1DX Mark II gets 1210 shots out of its LP-E19 battery, while the GX9 can take 260 images on a single charge of its DMW-BLG10 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 1D X Mark II» 6.2 in 6.6 in 3.3 in 54.0 oz 1210 Y Feb 2016 5,999 i i Canon 1D X Mark II
Panasonic GX9« 4.9 in 2.8 in 1.9 in 14.4 oz 260 n Feb 2018 849 i i Panasonic GX9
Canon 6D Mark II« » 5.7 in 4.4 in 3.0 in 27.0 oz 1200 Y Jun 2017 1,999 i i Canon 6D Mark II
Canon 5D Mark IV« » 5.9 in 4.6 in 3.0 in 31.4 oz 900 Y Aug 2016 3,499 i i Canon 5D Mark IV
Canon 80D« » 5.5 in 4.1 in 3.1 in 25.8 oz 960 Y Feb 2016 1,199 i i Canon 80D
Canon 5DS R« » 6.0 in 4.6 in 3.0 in 32.8 oz 700 Y Feb 2015 3,699 i i Canon 5DS R
Canon 5DS« » 6.0 in 4.6 in 3.0 in 32.8 oz 700 Y Feb 2015 3,699 i i Canon 5DS
Canon 6D« » 5.7 in 4.4 in 2.8 in 27.2 oz 1090 Y Sep 2012 2,099- i Canon 6D
Canon 1D X« » 6.2 in 6.6 in 3.3 in 54.7 oz 1120 Y Oct 2011 6,799- i Canon 1D X
Canon 5D Mark II« » 6.0 in 4.5 in 3.0 in 30.0 oz 850 Y Sep 2008 3,499- i Canon 5D Mark II
Canon 1Ds Mark III« » 5.9 in 6.3 in 3.1 in 48.9 oz 1800 Y Aug 2007 7,999- i Canon 1Ds Mark III
Nikon D5« » 6.3 in 6.3 in 3.6 in 49.9 oz 3780 Y Jan 2016 6,499 i i Nikon D5
Panasonic ZS200« » 4.4 in 2.6 in 1.8 in 12.0 oz 370 n Feb 2018 799 i i Panasonic ZS200
Panasonic GH5« » 5.5 in 3.9 in 3.4 in 25.6 oz 410 Y Jan 2017 1,999 i i Panasonic GH5
Panasonic GX85« » 4.8 in 2.8 in 1.7 in 15.0 oz 290 n Apr 2016 799 i i Panasonic GX85
Panasonic GX8« » 5.2 in 3.1 in 2.5 in 17.2 oz 330 Y Jul 2015 1,199- i Panasonic GX8
Panasonic GX7« » 4.8 in 2.8 in 2.2 in 14.2 oz 350 n Aug 2013 999- i Panasonic GX7

Any camera purchase will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The GX9 was launched at a markedly lower price (by 86 percent) than the 1DX Mark II, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.



Sensor comparison: Canon 1D X Mark II vs Panasonic GX9

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon 1D X Mark II features a full frame sensor and the Panasonic GX9 a Four Thirds sensor. The sensor area in the GX9 is 74 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 2.0. The sensor in the 1DX Mark II has a native 3:2 aspect ratio, while the one in the GX9 offers a 4:3 aspect.

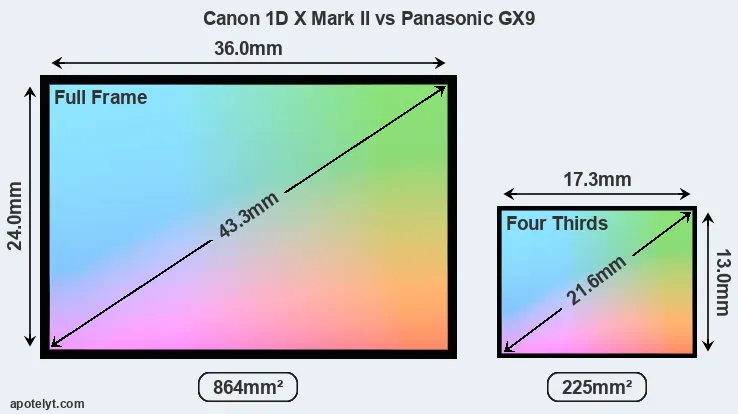

Canon 1D X Mark II and Panasonic GX9 sensor measures

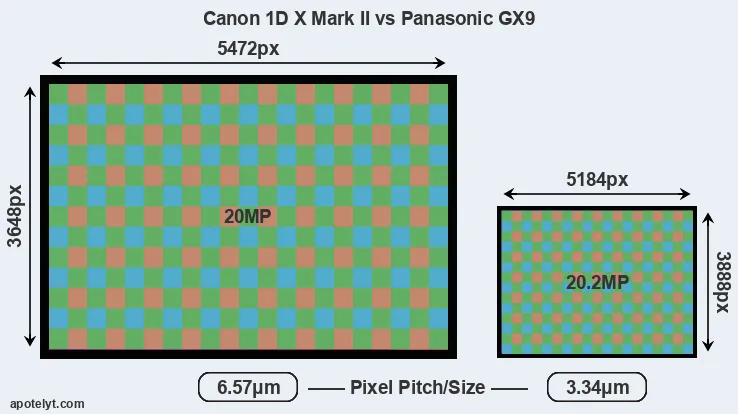

Despite having a smaller sensor, the GX9 offers a slightly higher resolution of 20.2 megapixel, compared with 20 MP of the 1DX Mark II. This megapixel advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.34μm versus 6.57μm for the 1DX Mark II). However, it should be noted that the GX9 is much more recent (by 2 years) than the 1DX Mark II, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the GX9 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

1DX Mark II versus GX9 MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model
Canon 1D X Mark II» Full Frame 20.0 5472 36484K/60p24.113.5320788Canon 1D X Mark II
Panasonic GX9« Four Thirds 20.2 5184 38884K/30p----Panasonic GX9
Canon 6D Mark II« » Full Frame 26.0 6240 41601080/60p24.411.9286285Canon 6D Mark II
Canon 5D Mark IV« » Full Frame 30.1 6720 44804K/30p24.813.6299591Canon 5D Mark IV
Canon 80D« » APS-C 24.0 6000 40001080/60p23.613.2113579Canon 80D
Canon 5DS R« » Full Frame 50.3 8688 57921080/60p24.612.4230886Canon 5DS R
Canon 5DS« » Full Frame 50.3 8688 57921080/60p24.712.4238187Canon 5DS
Canon 6D« » Full Frame 20.0 5472 36481080/30p23.812.1234082Canon 6D
Canon 1D X« » Full Frame 17.9 5184 34561080/30p23.811.8278682Canon 1D X
Canon 5D Mark II« » Full Frame 21.0 5616 37441080/30p23.711.9181579Canon 5D Mark II
Canon 1Ds Mark III« » Full Frame 21.0 5616 3744-24.012.0166380Canon 1Ds Mark III
Nikon D5« » Full Frame 20.7 5588 37124K/30p25.112.3234388Nikon D5
Panasonic ZS200« » 1-inch 20.0 5472 36484K/30p----Panasonic ZS200
Panasonic GH5« » Four Thirds 20.2 5184 38884K/60p23.913.080777Panasonic GH5
Panasonic GX85« » Four Thirds 15.8 4592 34484K/30p22.912.666271Panasonic GX85
Panasonic GX8« » Four Thirds 20.2 5184 38884K/30p23.512.680675Panasonic GX8
Panasonic GX7« » Four Thirds 15.8 4592 34481080/60p22.612.271870Panasonic GX7

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the 1DX Mark II provides a higher frame rate than the GX9. It can shoot video footage at 4K/60p, while the Panasonic is limited to 4K/30p.



Feature comparison: Canon 1D X Mark II vs Panasonic GX9

Beyond body and sensor, cameras can and do differ across a range of features. For example, the GX9 has an electronic viewfinder (2760k dots), while the 1DX Mark II has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The following table reports on some other key feature differences and similarities of the Canon 1D X Mark II, the Panasonic GX9, and comparable cameras. If needed, the dpreview camera hub, for example, contains further detail on the cameras' specs.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec))
Build-in
Flash
(yes/no)
Build-in
Stab
Camera
Model
Canon 1D X Mark II»optical Y 3.2 1620 fixed Y 8000 16.0 n n Canon 1D X Mark II
Panasonic GX9«2760 n 3.0 1240 tilting Y 4000 9.0 Y Y Panasonic GX9
Canon 6D Mark II« »optical Y 3.0 1040 swivel Y 4000 6.5 n n Canon 6D Mark II
Canon 5D Mark IV« »optical Y 3.2 1620 fixed Y 8000 7.0 n n Canon 5D Mark IV
Canon 80D« »optical Y 3.0 1040 swivel Y 8000 7.0 Y n Canon 80D
Canon 5DS R« »optical Y 3.2 1040 fixed n 8000 5.0 n n Canon 5DS R
Canon 5DS« »optical Y 3.2 1040 fixed n 8000 5.0 n n Canon 5DS
Canon 6D« »optical Y 3.0 1040 fixed n 4000 4.5 n n Canon 6D
Canon 1D X« »optical Y 3.2 1040 fixed n 8000 14.0 n n Canon 1D X
Canon 5D Mark II« »optical Y 3.0 920 fixed n 8000 3.9 n n Canon 5D Mark II
Canon 1Ds Mark III« »optical Y 3.0 230 fixed n 8000 5.0 n n Canon 1Ds Mark III
Nikon D5« »optical Y 3.2 2359 fixed Y 8000 14.0 n n Nikon D5
Panasonic ZS200« »2330 n 3.0 1240 fixed Y 2000 10.0 Y Y Panasonic ZS200
Panasonic GH5« »3680 n 3.2 1620 swivel Y 8000 12.0 n Y Panasonic GH5
Panasonic GX85« »2765 n 3.0 1040 tilting Y 4000 8.0 Y Y Panasonic GX85
Panasonic GX8« »2360 n 3.0 1040 swivel Y 8000 10.0 n Y Panasonic GX8
Panasonic GX7« »2760 n 3.0 1040 tilting Y 8000 5.0 Y Y Panasonic GX7

The reported shutter speed and shutter burst refer to the use of the mechanical shutter. In addition, the GX9 features an electronic shutter, which makes silent shooting and higher burst speeds possible. However, this mode is less suitable for photographing moving objects (rolling shutter) or shooting under artificial light sources (flickering).

Both the 1DX Mark II and the GX9 are current models that good online retailers will have in stock. You can check the latest prices, for example, at amazon. The 1DX Mark II replaced the earlier Canon 1DX, while the GX9 followed on from the Panasonic GX8.

Review summary: Canon 1D X Mark II vs Panasonic GX9

So what conclusions can be drawn? Is there a clear favorite between the Canon 1D X Mark II and the Panasonic GX9? Below is a summary of the relative strengths of each of the two contestants.

ilogo

Reasons to prefer the Canon EOS-1D X Mark II:

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Better low-light imaging: Features bigger pixels on a larger sensor for better high-ISO images.
  • Better video: Provides higher movie framerates (4K/60p versus 4K/30p).
  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Easier setting verification: Has an LCD display on top to control shooting parameters.
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (1620k vs 1240k dots).
  • Faster shutter: Has higher mechanical shutter speed (8000/sec vs 4000/sec) to freeze action.
  • Faster burst: Shoots at higher frequency (16 vs 9 flaps/sec) to capture the decisive moment.
  • Longer lasting: Can take more shots (1210 versus 260) on a single battery charge.
  • Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
  • More heavily discounted: Has been available for much longer (launched in February 2016).

ilogo

Arguments in favor of the Panasonic Lumix DC-GX9:

  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • More compact: Is smaller (124x72mm vs 158x168mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 1123g or 73 percent) and is thus easier to take along.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
  • Sharper images: Has stabilization technology build-in to reduce the impact of hand-shake.
  • More affordable: Was introduced into a lower priced category (86 percent cheaper at launch).
  • More modern: Reflects 2 years of technical progress since the 1DX Mark II launch.

If the number of relative strengths (bullet points above) is taken as a guide, the 1DX Mark II comes out slightly ahead of the GX9 (12 : 11 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera.

1DX Mark II 12:11 GX9

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the 1DX Mark II or the GX9 handle or perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable. This is where reviews by experts come in. The adjacent table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog). You can find the full text of the reviews by clicking on the site logo in the table header.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 1D X Mark II»-89/1004.5/55/54.5/5 Feb 2016 5,999 i i Canon 1D X Mark II
Panasonic GX9«Rec-4.5/5-4.5/5 Feb 2018 849 i i Panasonic GX9
Canon 6D Mark II« »Rec80/1004.5/54/54/5 Jun 2017 1,999 i i Canon 6D Mark II
Canon 5D Mark IV« »HiRec87/1004.5/55/54.5/5 Aug 2016 3,499 i i Canon 5D Mark IV
Canon 80D« »HiRec84/1004.5/54.5/54.5/5 Feb 2016 1,199 i i Canon 80D
Canon 5DS R« »Rec83/1005/55/54.5/5 Feb 2015 3,699 i i Canon 5DS R
Canon 5DS« »Rec83/1004.5/55/54.5/5 Feb 2015 3,699 i i Canon 5DS
Canon 6D« »HiRec83/1004.5/54.5/54.5/5 Sep 2012 2,099- i Canon 6D
Canon 1D X« »--4.5/54.5/54.5/5 Oct 2011 6,799- i Canon 1D X
Canon 5D Mark II« »91/10079/1004/55/5- Sep 2008 3,499- i Canon 5D Mark II
Canon 1Ds Mark III« »-HiRec4.5/5-- Aug 2007 7,999- i Canon 1Ds Mark III
Nikon D5« »-89/1004.5/55/55/5 Jan 2016 6,499 i i Nikon D5
Panasonic ZS200« »HiRec81/1004.5/5-4.5/5 Feb 2018 799 i i Panasonic ZS200
Panasonic GH5« »HiRec85/1004.5/55/55/5 Jan 2017 1,999 i i Panasonic GH5
Panasonic GX85« »HiRec82/1005/54.5/55/5 Apr 2016 799 i i Panasonic GX85
Panasonic GX8« »Rec82/1004.5/55/54.5/5 Jul 2015 1,199- i Panasonic GX8
Panasonic GX7« »Rec79/1005/54.5/55/5 Aug 2013 999- i Panasonic GX7

The above review scores should be interpreted with care, though. The ratings are only valid when refering to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
