Canon 1D X Mark II versus Panasonic FZ300

The Canon EOS-1D X Mark II and the Panasonic Lumix DMC-FZ300 (labelled Panasonic FZ330 in some countries) are two digital cameras that were revealed to the public, respectively, in February 2016 and July 2015. The 1DX Mark II is a DSLR, while the FZ300 is a fixed lens compact. The cameras are based on a full frame (1DX Mark II) and a 1/2.3-inch (FZ300) sensor. The Canon has a resolution of 20 megapixel, whereas the Panasonic provides 12 MP. Read on to find out how these two cameras compare with respect to their size, their sensors, their features, and their reception by expert reviewers.

Body comparison: Canon 1D X Mark II vs Panasonic FZ300

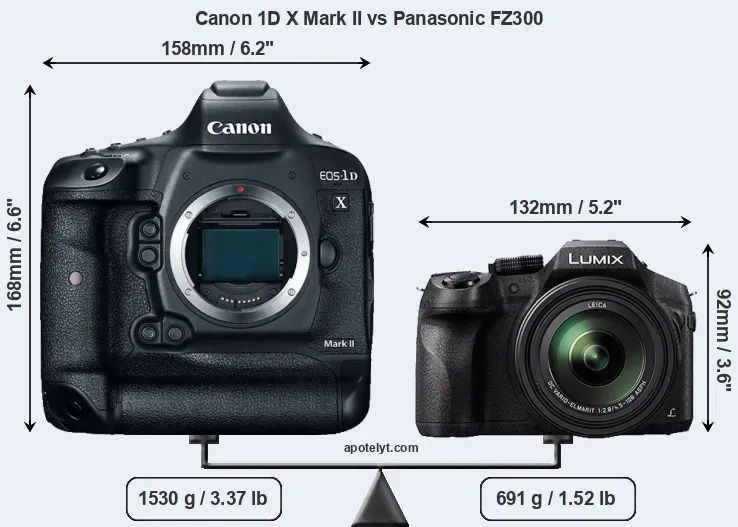

The physical size and weight of the Canon 1D X Mark II and the Panasonic FZ300 are illustrated in the side-by-side display below. Three consecutive perspectives from the front, the top, and the back are presented. All width, height and depth dimensions are rounded to the nearest millimeter. You can also use the toggle button to switch to a percentage comparison if you prefer that the measures are being expressed in relative terms (in this case, the camera on the left side – the 1DX Mark II – represents the basis for the calculations across all the size and weight measures).

Compare Canon 1D X Mark II vs Panasonic FZ300

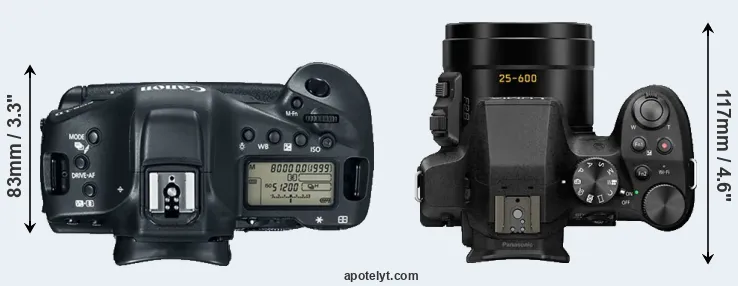

1DX Mark II versus FZ300 top view

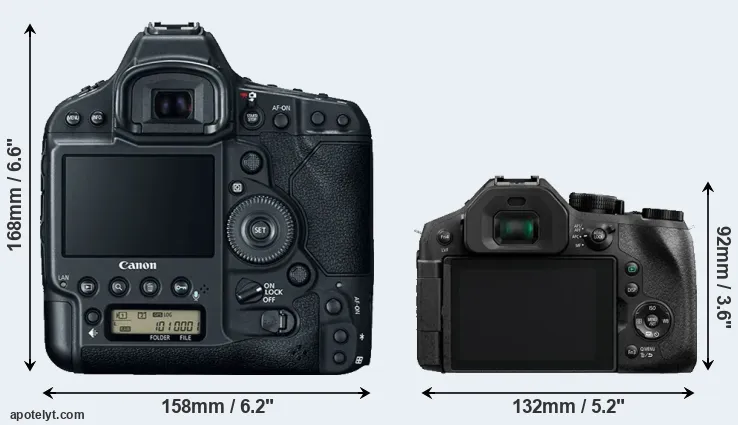

1DX Mark II and FZ300 rear side
Body view (1DX Mark II on the left)

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic FZ300 is considerably smaller (54 percent) than the Canon 1D X Mark II. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the FZ300 has a lens build in, whereas the 1DX Mark II is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can find an overview of optics for the 1DX Mark II and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the 1DX Mark II gets 1210 shots out of its LP-E19 battery, while the FZ300 can take 380 images on a single charge of its DMW-BLC12 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Camera Body Specifications
Camera Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(y/n)
Camera
Launch
(year)
Launch
Price
(USD)
Street
Price
(amazon)
Used
Price
(ebay)
Canon 1D X Mark II (⇒ rgt) 158 mm 168 mm 83 mm 1530 g 1210 YES 2016 5,999 latest check
Panasonic FZ300 (⇒ lft) 132 mm 92 mm 117 mm 691 g 380 YES 2015 599 latest check
Canon 6D Mark II (⇒ lft | rgt) 144 mm 111 mm 75 mm 765 g 1200 YES 2017 1,999 latest check
Canon 5D Mark IV (⇒ lft | rgt) 151 mm 116 mm 76 mm 890 g 900 YES 2016 3,499 latest check
Canon 80D (⇒ lft | rgt) 139 mm 105 mm 79 mm 730 g 960 YES 2016 1,199 latest check
Canon 5DS R (⇒ lft | rgt) 152 mm 116 mm 76 mm 930 g 700 YES 2015 3,699 latest check
Canon 5DS (⇒ lft | rgt) 152 mm 116 mm 76 mm 930 g 700 YES 2015 3,699 latest check
Canon G3 X (⇒ lft | rgt) 123 mm 77 mm 105 mm 733 g 300 YES 2015 999 latest check
Canon SX60 (⇒ lft | rgt) 128 mm 93 mm 114 mm 650 g 340 no 2014 549 latest check
Canon 6D (⇒ lft | rgt) 145 mm 111 mm 71 mm 770 g 1090 YES 2012 2,099discont. check
Canon 1D X (⇒ lft | rgt) 158 mm 168 mm 83 mm 1551 g 1120 YES 2011 6,799discont. check
Canon 5D Mark II (⇒ lft | rgt) 152 mm 114 mm 75 mm 850 g 850 YES 2008 3,499discont. check
Canon 1Ds Mark III (⇒ lft | rgt) 150 mm 160 mm 80 mm 1385 g 1800 YES 2007 7,999discont. check
Nikon D5 (⇒ lft | rgt) 160 mm 159 mm 92 mm 1415 g 3780 YES 2016 6,499 latest check
Panasonic FZ200 (⇒ lft | rgt) 125 mm 87 mm 110 mm 588 g 540 no 2012 599discont. check
Panasonic FZ150 (⇒ lft | rgt) 124 mm 82 mm 92 mm 528 g 410 no 2011 499discont. check
Panasonic LX5 (⇒ lft | rgt) 110 mm 65 mm 43 mm 271 g 400 no 2010 499discont. check

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The FZ300 was launched at a lower price than the 1DX Mark II, despite having a lens build in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.


Sensor comparison: Canon 1D X Mark II vs Panasonic FZ300

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon 1D X Mark II features a full frame sensor and the Panasonic FZ300 a 1/2.3-inch sensor. The sensor area in the FZ300 is 97 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 5.6. The sensor in the 1DX Mark II has a native 3:2 aspect ratio, while the one in the FZ300 offers a 4:3 aspect.

Canon 1D X Mark II and Panasonic FZ300 sensor measures
Sensor size

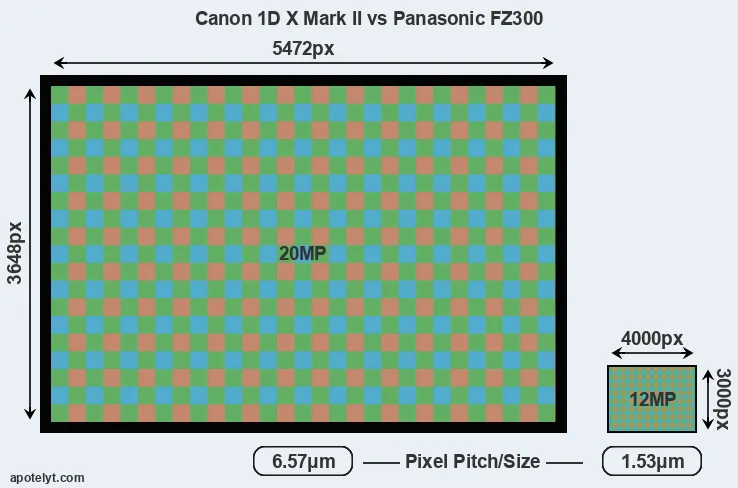

With 20MP, the 1DX Mark II offers a higher resolution than the FZ300 (12MP), but the 1DX Mark II nevertheless has larger individual pixels (pixel pitch of 6.57μm versus 1.53μm for the FZ300) due to its larger sensor. Moreover, the 1DX Mark II is a somewhat more recent model (by 6 months) than the FZ300, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the FZ300 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

1DX Mark II versus FZ300 MP
Sensor resolution

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the 1DX Mark II provides substantially higher image quality than the FZ300, with an overall score that is 50 points higher. This advantage is based on 4.8 bits higher color depth, 2.5 EV in additional dynamic range, and 5 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics
Camera Sensor
Class
Resolution
(Megapixel)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Canon 1D X Mark II (⇒ rgt) Full Frame 20.0 5472 3648 4K/60p 24.1 13.5 3207 88
Panasonic FZ300 (⇒ lft) 1/2.3 12.0 4000 3000 4K/30p 19.3 11.0 97 38
Canon 6D Mark II (⇒ lft | rgt) Full Frame 26.0 6240 4160 1080/60p 24.4 11.9 2862 85
Canon 5D Mark IV (⇒ lft | rgt) Full Frame 30.1 6720 4480 4K/30p 24.8 13.6 2995 91
Canon 80D (⇒ lft | rgt) APS-C 24.0 6000 4000 1080/60p 23.6 13.2 1135 79
Canon 5DS R (⇒ lft | rgt) Full Frame 50.3 8688 5792 1080/60p 24.6 12.4 2308 86
Canon 5DS (⇒ lft | rgt) Full Frame 50.3 8688 5792 1080/60p 24.7 12.4 2381 87
Canon G3 X (⇒ lft | rgt) 1-inch 20.0 5472 3648 1080/60p 21.4 12.3 521 63
Canon SX60 (⇒ lft | rgt) 1/2.3 14.2 4608 3072 1080/60p 19.2 10.8 127 39
Canon 6D (⇒ lft | rgt) Full Frame 20.0 5472 3648 1080/30p 23.8 12.1 2340 82
Canon 1D X (⇒ lft | rgt) Full Frame 17.9 5184 3456 1080/30p 23.8 11.8 2786 82
Canon 5D Mark II (⇒ lft | rgt) Full Frame 21.0 5616 3744 1080/30p 23.7 11.9 1815 79
Canon 1Ds Mark III (⇒ lft | rgt) Full Frame 21.0 5616 3744 no 24.0 12.0 1663 80
Nikon D5 (⇒ lft | rgt) Full Frame 20.7 5588 3712 4K/30p 25.1 12.3 2343 88
Panasonic FZ200 (⇒ lft | rgt) 1/2.3 12.0 4000 3000 1080/60p 19.1 10.8 114 37
Panasonic FZ150 (⇒ lft | rgt) 1/2.3 12.0 4000 3000 1080/60p 19.4 10.9 132 40
Panasonic LX5 (⇒ lft | rgt) 1/1.7 10.0 3648 2736 720/60p 19.6 10.8 132 41

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the 1DX Mark II provides a higher frame rate than the FZ300. It can shoot video footage at 4K/60p, while the Panasonic is limited to 4K/30p.

Feature comparison: Canon 1D X Mark II vs Panasonic FZ300

Beyond body and sensor, cameras can and do differ across a range of features. For example, the FZ300 has an electronic viewfinder (1440k dots), while the 1DX Mark II has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The following table reports on some other key feature differences and similarities of the Canon 1D X Mark II, the Panasonic FZ300, and comparable cameras. The full specs-sheets can be found in the camera manual or, for example, in the dpreview camera hub.

Core Features
Camera Viewfinder
(Type or
'000 dots)
Control
Panel
(Y/n)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(Y/n)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec))
Build-in
Flash
(GN)
Build-in
Stab
Canon 1D X Mark II (⇒ rgt) optical YES 3.2 1620 fixed YES 8000 16.0 no no
Panasonic FZ300 (⇒ lft) 1440 no 3.0 1040 swivel YES 4000 12.0 8.8 YES
Canon 6D Mark II (⇒ lft | rgt) optical YES 3.0 1040 swivel YES 4000 6.5 no no
Canon 5D Mark IV (⇒ lft | rgt) optical YES 3.2 1620 fixed YES 8000 7.0 no no
Canon 80D (⇒ lft | rgt) optical YES 3.0 1040 swivel YES 8000 7.0 12 no
Canon 5DS R (⇒ lft | rgt) optical YES 3.2 1040 fixed no 8000 5.0 no no
Canon 5DS (⇒ lft | rgt) optical YES 3.2 1040 fixed no 8000 5.0 no no
Canon G3 X (⇒ lft | rgt) no no 3.2 1620 tilting YES 2000 5.9 6.8 YES
Canon SX60 (⇒ lft | rgt) 922 no 3.0 922 swivel no 2000 6.4 5.5 YES
Canon 6D (⇒ lft | rgt) optical YES 3.0 1040 fixed no 4000 4.5 no no
Canon 1D X (⇒ lft | rgt) optical YES 3.2 1040 fixed no 8000 14.0 no no
Canon 5D Mark II (⇒ lft | rgt) optical YES 3.0 920 fixed no 8000 3.9 no no
Canon 1Ds Mark III (⇒ lft | rgt) optical YES 3.0 230 fixed no 8000 5.0 no no
Nikon D5 (⇒ lft | rgt) optical YES 3.2 2359 fixed YES 8000 14.0 no no
Panasonic FZ200 (⇒ lft | rgt) 1312 no 3.0 460 swivel no 4000 12.0 13.5 YES
Panasonic FZ150 (⇒ lft | rgt) 202 no 3.0 460 swivel no 2000 12.0 9.5 YES
Panasonic LX5 (⇒ lft | rgt) no no 3.0 460 fixed no 4000 2.5 7.2 YES

Both the 1DX Mark II and the FZ300 are current models that good online retailers will have in stock. You can check the latest prices, for example, at amazon. The FZ300 replaced the earlier Panasonic FZ200, while the 1DX Mark II followed on from the Canon 1DX.

Review summary: Canon 1D X Mark II vs Panasonic FZ300

So how do things add up? Which of the two cameras – the Canon 1D X Mark II or the Panasonic FZ300 – has the upper hand? A synthesis of the relative strong points of each of the models is listed below.


logo checkmark

Arguments in favor of the Canon EOS-1D X Mark II:

  • More detail: Offers more megapixels (20 vs 12MP) with a 32% higher linear resolution.
  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Better image quality: Scores substantially higher (50 points) in the DXO overall assessment.
  • Richer colors: Generates images with noticeably better colors (4.8 bits more color depth).
  • More dynamic range: Captures a larger spectrum of light and dark details (2.5 EV of extra DR).
  • Better low-light sensitivity: Requires less light for good images (5 stops ISO advantage).
  • Better video: Provides higher movie framerates (4K/60p versus 4K/30p).
  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Easier setting verification: Has an LCD display on top to control shooting parameters.
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (1620k vs 1040k dots).
  • Faster shutter: Has higher mechanical shutter speed (8000/sec vs 4000/sec) to freeze action.
  • Faster burst: Shoots at higher frequency (16 vs 12 flaps/sec) to capture the decisive moment.
  • More flexible: Can take a variety of interchangeable lenses, including specialty optics.
  • Longer lasting: Can take more shots (1210 versus 380) on a single battery charge.
  • More modern: Is somewhat more recent (announced 6 months after the FZ300).

logo checkmark

Reasons to prefer the Panasonic Lumix DMC-FZ300:

  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • More flexible LCD: Has swivel screen for odd-angle shots in portrait or landscape orientation.
  • Ready to shoot: Comes with an integrated lens, while the 1DX Mark II requires a separate lens.
  • More compact: Is smaller (132x92mm vs 158x168mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight even though it has a lens build in (unlike the 1DX Mark II).
  • Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
  • Sharper images: Has stabilization technology build-in to reduce the impact of hand-shake.
  • More affordable: Was introduced at a lower price, despite coming with a build-in lens.
  • More heavily discounted: Has been on the market for longer (launched in July 2015).

If the count of individual advantages (bullet points above) is taken as a guide, the 1DX Mark II is the clear winner of the match-up (16 : 10 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision.

1DX Mark II 16:10 FZ300

In any case, while the specs-based evaluation of cameras is instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the handling experience and imaging performance when actually working with the 1DX Mark II or the FZ300. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable. This is where reviews by experts come in. The adjacent table relays the overall verdicts of several of the most popular camera review sites. You can find the full text of the reviews, respectively, at cameralabs.com, dpreview.com, ephotozine.com, imaging-resource.com, and photographyblog.com.

Review scores
Camera camera
labs
.com
dp
review
.com
ephoto
zine
.com
imaging
resource
.com
photography
blog
.com
Camera
Launch
(year)
Launch
Price
(USD)
Street
Price
(amazon)
Used
Price
(ebay)
Canon 1D X Mark II (⇒ rgt) - 89/100 Gold 4.5/5 5/5 4.5/5 2016 5,999 latest check
Panasonic FZ300 (⇒ lft) HiRec - 4.5/5 4.5/5 4.5/5 2015 599 latest check
Canon 6D Mark II (⇒ lft | rgt) Rec 80/100 4.5/5 4/5 4/5 2017 1,999 latest check
Canon 5D Mark IV (⇒ lft | rgt) HiRec 87/100 Gold 4.5/5 5/5 4.5/5 2016 3,499 latest check
Canon 80D (⇒ lft | rgt) HiRec 84/100 Silver 4.5/5 4.5/5 4.5/5 2016 1,199 latest check
Canon 5DS R (⇒ lft | rgt) Rec 83/100 Silver 5/5 5/5 4.5/5 2015 3,699 latest check
Canon 5DS (⇒ lft | rgt) Rec 83/100 Silver 4.5/5 5/5 4.5/5 2015 3,699 latest check
Canon G3 X (⇒ lft | rgt) Rec - 4.5/5 3.5/5 4/5 2015 999 latest check
Canon SX60 (⇒ lft | rgt) HiRec 75/100 4/5 - 4.5/5 2014 549 latest check
Canon 6D (⇒ lft | rgt) HiRec 83/100 Silver 4.5/5 4.5/5 4.5/5 2012 2,099discont. check
Canon 1D X (⇒ lft | rgt) - - 4.5/5 4.5/5 4.5/5 2011 6,799discont. check
Canon 5D Mark II (⇒ lft | rgt) 91/100 79/100 HiRec 4/5 5/5 - 2008 3,499discont. check
Canon 1Ds Mark III (⇒ lft | rgt) - HiRec 4.5/5 - - 2007 7,999discont. check
Nikon D5 (⇒ lft | rgt) - 89/100 Gold 4.5/5 5/5 5/5 2016 6,499 latest check
Panasonic FZ200 (⇒ lft | rgt) HiRec 80/100 Gold 4.5/5 4.5/5 4.5/5 2012 599discont. check
Panasonic FZ150 (⇒ lft | rgt) HiRec 76/100 Silver 4/5 5/5 4.5/5 2011 499discont. check
Panasonic LX5 (⇒ lft | rgt) Rec 73/100 Silver 4.5/5 5/5 4.5/5 2010 499discont. check

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
