Canon 1D X Mark II vs Olympus E-30

The Canon EOS-1D X Mark II and the Olympus E-30 are two digital cameras that were revealed to the public, respectively, in February 2016 and November 2008. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (1DX Mark II) and a Four Thirds (E-30) sensor. The Canon has a resolution of 20 megapixels, whereas the Olympus provides 12.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon 1D X Mark II
versus
Olympus E-30
Canon 1D X Mark II   Olympus E-30
Digital single lens reflex Digital single lens reflex
Canon EF mount lenses Four Thirds lenses
20 MP – Full Frame sensor 12.2 MP – Four Thirds sensor
4K/60p Video no Video
ISO 100-51,200 (50 - 409,600) ISO 100-3,200
Optical viewfinder Optical viewfinder
3.2" LCD – 1620k dots 2.7" LCD – 230k dots
Fixed touchscreen Swivel screen (not touch-sensitive)
16 shutter flaps per second 5 shutter flaps per second
Lens stabilization onlyIn-body stabilization
Weathersealed bodynot weather sealed
1210 shots per battery charge750 shots per battery charge
158 x 168 x 83 mm, 1530 g 142 x 108 x 75 mm, 701 g
logo
Check 1DX Mark II offers at
ebay.com
logo
Check E-30 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-1D X Mark II and the Olympus E-30? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

The physical size and weight of the Canon 1D X Mark II and the Olympus E-30 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

Size Canon 1D X Mark II vs Olympus E-30

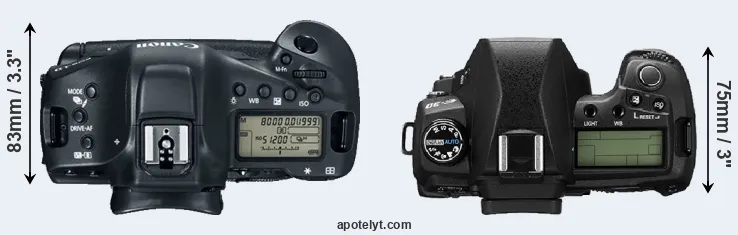

Compare 1DX Mark II versus E-30 top
Comparison 1DX Mark II or E-30 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-30 is considerably smaller (42 percent) than the Canon 1D X Mark II. Moreover, the E-30 is substantially lighter (54 percent) than the 1DX Mark II. It is worth mentioning in this context that the 1DX Mark II is splash and dust resistant, while the E-30 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (1DX Mark II) and the Four Thirds Lens Catalog (E-30).

Concerning battery life, the 1DX Mark II gets 1210 shots out of its Canon LP-E19 battery, while the E-30 can take 750 images on a single charge of its Olympus BLM-1 power pack. As can be seen in the images above, the 1DX Mark II has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the E-30, Olympus provides the HLD-4 vertical grip as an optional accessory (see here on ebay).

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

scroll hint
Body Specifications
# image Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon 1D X Mark II 158 mm 168 mm 83 mm 1530 g 1210 Y Feb 2016 5,999ebay.com
2.

Olympus E-30 142 mm 108 mm 75 mm 701 g 750 n Nov 2008 1,299ebay.com
3.

Canon 1D X Mark III 158 mm 168 mm 83 mm 1440 g 2850 Y Jan 2020 6,499 amazon.com
4.

Canon 6D Mark II 144 mm 111 mm 75 mm 765 g 1200 Y Jun 2017 1,999 amazon.com
5.

Canon 5DS 152 mm 116 mm 76 mm 930 g 700 Y Feb 2015 3,699ebay.com
6.

Canon 1D C 158 mm 164 mm 83 mm 1545 g 1120 Y Apr 2012 14,999ebay.com
7.

Canon 5D Mark III 152 mm 116 mm 76 mm 950 g 950 Y Mar 2012 3,499ebay.com
8.

Canon 6D 145 mm 111 mm 71 mm 770 g 1090 Y Sep 2012 2,099ebay.com
9.

Canon 1D X 158 mm 168 mm 83 mm 1551 g 1120 Y Oct 2011 6,799ebay.com
10.

Canon 5D Mark II 152 mm 114 mm 75 mm 850 g 850 Y Sep 2008 3,499ebay.com
11.

Canon 1Ds Mark III 150 mm 160 mm 80 mm 1385 g 1800 Y Aug 2007 7,999ebay.com
12.

Nikon D5 160 mm 159 mm 92 mm 1415 g 3780 Y Jan 2016 6,499ebay.com
13.

Olympus E-600 130 mm 94 mm 60 mm 535 g 500 n Aug 2009 449ebay.com
14.

Olympus E-620 130 mm 94 mm 60 mm 521 g 500 n Feb 2009 699ebay.com
15.

Olympus E-520 136 mm 92 mm 68 mm 535 g 750 n May 2008 699ebay.com
16.

Olympus E-410 130 mm 91 mm 53 mm 435 g 500 n Mar 2007 699ebay.com
17.

Olympus E-510 136 mm 92 mm 68 mm 538 g 750 n Mar 2007 799ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
padding

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-30 was launched at a markedly lower price (by 78 percent) than the 1DX Mark II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 1D X Mark II features a full frame sensor and the Olympus E-30 a Four Thirds sensor. The sensor area in the E-30 is 74 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 2.0. The sensor in the 1DX Mark II has a native 3:2 aspect ratio, while the one in the E-30 offers a 4:3 aspect.

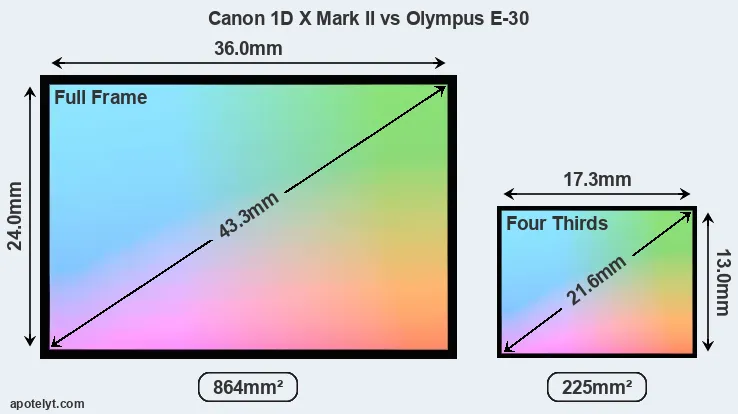

Canon 1D X Mark II and Olympus E-30 sensor measures

With 20MP, the 1DX Mark II offers a higher resolution than the E-30 (12.2MP), but the 1DX Mark II nevertheless has larger individual pixels (pixel pitch of 6.57μm versus 4.29μm for the E-30) due to its larger sensor. Moreover, the 1DX Mark II is a much more recent model (by 7 years and 2 months) than the E-30, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon 1D X Mark II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 1DX Mark II for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Olympus E-30 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.

The 1DX Mark II has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS-1D X Mark II has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-409600. The corresponding ISO settings for the Olympus E-30 are ISO 100 to ISO 3200 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

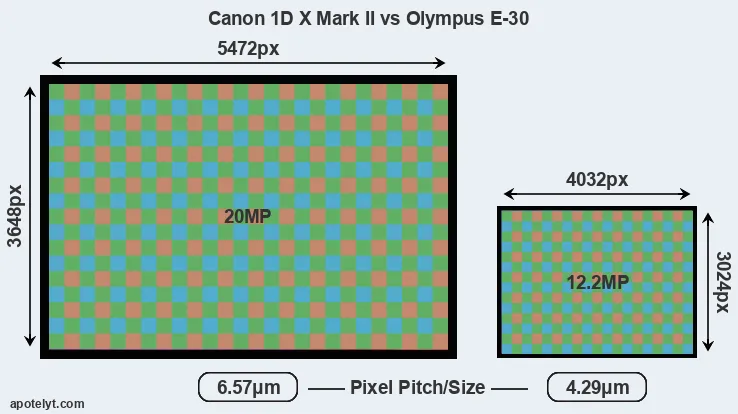

1DX Mark II versus E-30 MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the 1DX Mark II provides substantially higher image quality than the E-30, with an overall score that is 33 points higher. This advantage is based on 2.8 bits higher color depth, 3.1 EV in additional dynamic range, and 2.6 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

scroll hint
Sensor Characteristics
# image Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon 1D X Mark II Full Frame 20.0 5472 36484K/60p24.113.5320788
2.

Olympus E-30 Four Thirds 12.2 4032 3024none21.310.453055
3.

Canon 1D X Mark III Full Frame 20.0 5472 36484K/60p24.214.5324891
4.

Canon 6D Mark II Full Frame 26.0 6240 41601080/60p24.411.9286285
5.

Canon 5DS Full Frame 50.3 8688 57921080/30p24.712.4238187
6.

Canon 1D C Full Frame 17.9 5184 34564K/24p24.313.0215585
7.

Canon 5D Mark III Full Frame 22.1 5760 38401080/30p24.011.7229381
8.

Canon 6D Full Frame 20.0 5472 36481080/30p23.812.1234082
9.

Canon 1D X Full Frame 17.9 5184 34561080/30p23.811.8278682
10.

Canon 5D Mark II Full Frame 21.0 5616 37441080/30p23.711.9181579
11.

Canon 1Ds Mark III Full Frame 21.0 5616 3744none24.012.0166380
12.

Nikon D5 Full Frame 20.7 5588 37124K/30p25.112.3234388
13.

Olympus E-600 Four Thirds 12.2 4032 3024none21.510.354155
14.

Olympus E-620 Four Thirds 12.2 4032 3024none21.310.353655
15.

Olympus E-520 Four Thirds 10.0 3648 2736none21.410.454855
16.

Olympus E-410 Four Thirds 10.0 3648 2736none21.110.049451
17.

Olympus E-510 Four Thirds 10.0 3648 2736none21.210.044252
Note: DXO values in italics represent estimates based on sensor size and age.
padding

Many modern cameras cannot only take still pictures, but also record videos. The 1DX Mark II indeed provides movie recording capabilities, while the E-30 does not. The highest resolution format that the 1DX Mark II can use is 4K/60p.

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The 1DX Mark II and the E-30 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 1DX Mark II offers a wider field of view (100%) than the one in the E-30 (98%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the 1DX Mark II has a higher magnification (0.76x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 1D X Mark II and Olympus E-30 along with similar information for a selection of comparators.

scroll hint
Core Features
# image Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon 1D X Mark IIoptical Y3.2 / 1620 fixed Y 1/8000s 16.0/s n n
2.

Olympus E-30optical Y2.7 / 230 swivel n 1/8000s 5.0/s Y Y
3.

Canon 1D X Mark IIIoptical Y3.2 / 2100 fixed Y 1/8000s 20.0/s n n
4.

Canon 6D Mark IIoptical Y3.0 / 1040 swivel Y 1/4000s 6.5/s n n
5.

Canon 5DSoptical Y3.2 / 1040 fixed n 1/8000s 5.0/s n n
6.

Canon 1D Coptical Y3.2 / 1040 fixed n 1/8000s 14.0/s n n
7.

Canon 5D Mark IIIoptical Y3.2 / 1040 fixed n 1/8000s 6.0/s n n
8.

Canon 6Doptical Y3.0 / 1040 fixed n 1/4000s 4.5/s n n
9.

Canon 1D Xoptical Y3.2 / 1040 fixed n 1/8000s 14.0/s n n
10.

Canon 5D Mark IIoptical Y3.0 / 920 fixed n 1/8000s 3.9/s n n
11.

Canon 1Ds Mark IIIoptical Y3.0 / 230 fixed n 1/8000s 5.0/s n n
12.

Nikon D5optical Y3.2 / 2359 fixed Y 1/8000s 14.0/s n n
13.

Olympus E-600optical n2.7 / 230 swivel n 1/4000s 4.0/s Y Y
14.

Olympus E-620optical n2.7 / 230 swivel n 1/4000s 4.0/s Y Y
15.

Olympus E-520optical n2.7 / 215 fixed n 1/4000s 3.5/s Y Y
16.

Olympus E-410optical n2.5 / 215 fixed n 1/4000s 3.0/s Y n
17.

Olympus E-510optical n2.5 / 215 fixed n 1/4000s 3.0/s Y Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
padding

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The 1DX Mark II has a touchscreen, while the E-30 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The E-30 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 1DX Mark II does not have a selfie-screen.

The 1DX Mark II writes its imaging data to Compact Flash or CFast cards, while the E-30 uses Compact Flash or xD Picture cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D X Mark II and Olympus E-30 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
# image Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon 1D X Mark IIYmono / monoYYmini3.0---
2.

Olympus E-30Y- / ----2.0---
3.

Canon 1D X Mark IIIYmono / monoYYmini3.1Y-Y
4.

Canon 6D Mark IIYstereo / monoY-mini2.0YYY
5.

Canon 5DSYmono / monoY-mini3.0---
6.

Canon 1D CYmono / monoYYmini2.0---
7.

Canon 5D Mark IIIYmono / monoYYmini2.0---
8.

Canon 6DYmono / monoY-mini2.0Y--
9.

Canon 1D XYmono / -Y-mini2.0---
10.

Canon 5D Mark IIYmono / monoY-mini2.0---
11.

Canon 1Ds Mark IIIYmono / ----2.0---
12.

Nikon D5Ystereo / monoYYmini3.0---
13.

Olympus E-600Y- / ----2.0---
14.

Olympus E-620Y- / ----2.0---
15.

Olympus E-520Y- / ----2.0---
16.

Olympus E-410Y- / ----2.0---
17.

Olympus E-510Y- / ----2.0---
padding

Studio photographers will appreciate that the Canon 1D X Mark II (unlike the E-30) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Travel and landscape photographers will find it useful that the 1DX Mark II has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

Both the 1DX Mark II and the E-30 have been discontinued, but can regularly be found used on ebay. The 1DX Mark II was replaced by the Canon 1DX Mark III, while the E-30 does not have a direct successor. Further information on the features and operation of the 1DX Mark II and E-30 can be found, respectively, in the Canon 1D X Mark II Manual (free pdf) or the online Olympus E-30 Manual.

ad

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Canon 1D X Mark II and the Olympus E-30? Which camera is better? The listing below highlights the relative strengths of the two models.

ilogo

Advantages of the Canon EOS-1D X Mark II:

  • More detail: Offers more megapixels (20 vs 12.2MP) with a 30% higher linear resolution.
  • Better image quality: Scores substantially higher (33 points) in the DXO overall assessment.
  • Richer colors: Generates images with noticeably better colors (2.8 bits more color depth).
  • More dynamic range: Captures a larger spectrum of light and dark details (3.1 EV of extra DR).
  • Better low-light sensitivity: Requires less light for good images (2.6 stops ISO advantage).
  • Broader imaging potential: Can record not only still images but also 4K/60p movies.
  • Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
  • More complete view: Has a viewfinder with a larger field of view (100% vs 98%).
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.76x vs 0.51x).
  • Larger screen: Has a bigger rear LCD (3.2" vs 2.7") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (1620k vs 230k dots).
  • Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
  • Faster burst: Shoots at higher frequency (16 vs 5 flaps/sec) to capture the decisive moment.
  • More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
  • Longer lasting: Can take more shots (1210 versus 750) on a single battery charge.
  • Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
  • Easier geotagging: Features an internal GPS sensor to log localization data.
  • Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • More modern: Reflects 7 years and 2 months of technical progress since the E-30 launch.

ilogo

Arguments in favor of the Olympus E-30:

  • More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
  • More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
  • More compact: Is smaller (142x108mm vs 158x168mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 829g or 54 percent) and is thus easier to take along.
  • Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
  • Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
  • More affordable: Was introduced into a lower priced category (78 percent cheaper at launch).
  • More heavily discounted: Has been around for much longer (launched in November 2008).

If the number of relative strengths (bullet points above) is taken as a guide, the 1DX Mark II is the clear winner of the match-up (20 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

1DX Mark II 20:08 E-30

How about other alternatives? Do the specifications of the Canon 1D X Mark II and the Olympus E-30 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 1DX Mark II or the E-30. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
# image  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon 1D X Mark II....4.5/589/1004.5/54.5/5 Feb 2016 5,999ebay.com
2.

Olympus E-30......71/1004.5/54/5 Nov 2008 1,299ebay.com
3.

Canon 1D X Mark III..+ +5/5..4.5/54/5 Jan 2020 6,499 amazon.com
4.

Canon 6D Mark II4/5+4/580/1004.5/54/5 Jun 2017 1,999 amazon.com
5.

Canon 5DS..+..83/1004.5/54.5/5 Feb 2015 3,699ebay.com
6.

Canon 1D C............ Apr 2012 14,999ebay.com
7.

Canon 5D Mark III..+ +..82/1004.5/54.5/5 Mar 2012 3,499ebay.com
8.

Canon 6D5/5+ +..83/1004.5/54.5/5 Sep 2012 2,099ebay.com
9.

Canon 1D X5/5......4.5/54.5/5 Oct 2011 6,799ebay.com
10.

Canon 5D Mark II4/591/100..79/1004/5.. Sep 2008 3,499ebay.com
11.

Canon 1Ds Mark III......+ +4.5/5.. Aug 2007 7,999ebay.com
12.

Nikon D5....4/589/1004.5/55/5 Jan 2016 6,499ebay.com
13.

Olympus E-600..........4.5/5 Aug 2009 449ebay.com
14.

Olympus E-6203/588/100..72/1004.5/55/5 Feb 2009 699ebay.com
15.

Olympus E-520..87/100..+ +4.5/54.5/5 May 2008 699ebay.com
16.

Olympus E-410..86/100..+ +4/54.5/5 Mar 2007 699ebay.com
17.

Olympus E-510..89/100..+ +3.5/54.5/5 Mar 2007 799ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
padding

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

logo
Check 1DX Mark II offers at
ebay.com
logo
Check E-30 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~
    loader
    ad

    Specifications: Canon 1D X Mark II vs Olympus E-30

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon 1D X Mark II Olympus E-30
    Camera Type Digital single lens reflex Digital single lens reflex
    Camera Lens Canon EF mount lenses Four Thirds lenses
    Launch Date February 2016 November 2008
    Launch Price USD 5,999 USD 1,299
    Sensor Specs Canon 1D X Mark II Olympus E-30
    Sensor Technology CMOS CMOS
    Sensor Format Full Frame Sensor Four Thirds Sensor
    Sensor Size 36.0 x 24.0 mm 17.3 x 13.0 mm
    Sensor Area 864 mm2 224.9 mm2
    Sensor Diagonal 43.3 mm 21.6 mm
    Crop Factor 1.0x 2.0x
    Sensor Resolution 20 Megapixels 12.2 Megapixels
    Image Resolution 5472 x 3648 pixels 4032 x 3024 pixels
    Pixel Pitch 6.57 μm 4.29 μm
    Pixel Density 2.31 MP/cm2 5.42 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 4K/60p Video no Video
    ISO Setting 100 - 51,200 ISO 100 - 3,200 ISO
    ISO Boost 50 - 409,600 ISO no Enhancement
    Image Processor DIGIC 6+ (Dual) TruePic III+
    DXO Sensor Quality (score) 88 55
    DXO Color Depth (bits) 24.1 21.3
    DXO Dynamic Range (EV) 13.5 10.4
    DXO Low Light (ISO) 3207 530
    Screen Specs Canon 1D X Mark II Olympus E-30
    Viewfinder Type Optical viewfinder Optical viewfinder
    Viewfinder Field of View 100% 98%
    Viewfinder Magnification 0.76x 0.51x
    Top-Level Screen Control Panel Control Panel
    LCD Framing Live View Live View
    Rear LCD Size 3.2inch 2.7inch
    LCD Resolution 1620k dots 230k dots
    LCD Attachment Fixed screen Swivel screen
    Touch Input Touchscreen no Touchscreen
    Shooting Specs Canon 1D X Mark II Olympus E-30
    Focus System Phase-detect AF Phase-detect AF
    Continuous Shooting 16 shutter flaps/s 5 shutter flaps/s
    Image StabilizationLens stabilization onlyIn-body stabilization
    Fill Flash no On-Board Flash Built-in Flash
    Storage Medium CF or CFAST cards CF or XD cards
    Single or Dual Card Slots Dual card slots Dual card slots
    Connectivity Specs Canon 1D X Mark II Olympus E-30
    External Flash Hotshoe Hotshoe
    Studio Flash PC Sync socket no PC Sync
    USB Connector USB 3.0 USB 2.0
    HDMI Port mini HDMI no HDMI
    Microphone Port External MIC port no MIC socket
    Headphone Socket Headphone port no Headphone port
    Wifi Support no Wifi no Wifi
    Geotagging GPS built-in no internal GPS
    Body Specs Canon 1D X Mark II Olympus E-30
    Environmental SealingWeathersealed bodynot weather sealed
    Battery Type Canon LP-E19 Olympus BLM-1
    Battery Life (CIPA)1210 shots per charge750 shots per charge
    Body Dimensions 158 x 168 x 83 mm
    (6.2 x 6.6 x 3.3 in)
    142 x 108 x 75 mm
    (5.6 x 4.3 x 3.0 in)
    Camera Weight 1530 g (54.0 oz) 701 g (24.7 oz)
    logo
    Check 1DX Mark II offers at
    ebay.com
    logo
    Check E-30 offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon 1D X Mark II vs Olympus E-30
