Canon 1D X Mark II versus Nikon D5600

The Canon EOS-1D X Mark II and the Nikon D5600 are two digital cameras that were revealed to the public, respectively, in February 2016 and November 2016. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (1DX Mark II) and an APS-C (D5600) sensor. The Canon has a resolution of 20 megapixel, whereas the Nikon provides 24 MP. Read on to find out how these two cameras compare with respect to their size, their sensors, their features, and their reception by expert reviewers.

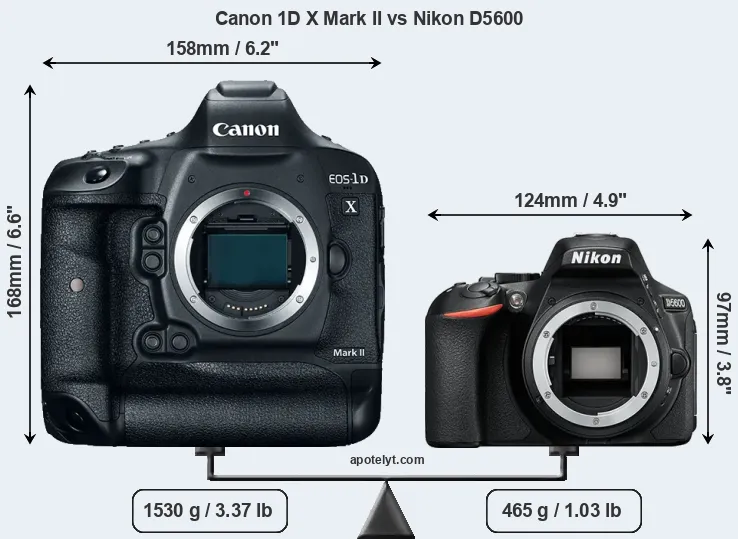

Body comparison: Canon 1D X Mark II vs Nikon D5600

The physical size and weight of the Canon 1D X Mark II and the Nikon D5600 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter. You can also use the toggle button to switch to a percentage comparison if you prefer that the measures are being expressed in relative terms (in this case, the camera on the left – the 1DX Mark II – represents 100 percent across all the size and weight measures).

Compare Canon 1D X Mark II vs Nikon D5600
Compare 1DX Mark II versus D5600 top
Compare 1DX Mark II and D5600 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D5600 is considerably smaller (55 percent) than the Canon 1D X Mark II. Moreover, the D5600 is substantially lighter (70 percent) than the 1DX Mark II. It is worth mentioning in this context that the 1DX Mark II is splash and dust resistant, while the D5600 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can find an overview of optics for the two cameras in the Canon EF Lens Catalog (1DX Mark II) and the Nikon Lens Catalog (D5600).

Concerning battery life, the 1DX Mark II gets 1210 shots out of its LP-E19 battery, while the D5600 can take 970 images on a single charge of its EN-EL14a power pack. As can be seen in the images above, the 1DX Mark II has a battery grip build in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the D5600, there are third party battery grips available as optional accessories (see here on eBay).

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 1D X Mark II» 6.2 in 6.6 in 3.3 in 54.0 oz 1210 Y Feb 2016 5,999 i i Canon 1D X Mark II
Nikon D5600« 4.9 in 3.8 in 2.8 in 16.4 oz 970 n Nov 2016 699 i i Nikon D5600
Canon 5D Mark IV« » 5.9 in 4.6 in 3.0 in 31.4 oz 900 Y Aug 2016 3,499 i i Canon 5D Mark IV
Canon 80D« » 5.5 in 4.1 in 3.1 in 25.8 oz 960 Y Feb 2016 1,199 i i Canon 80D
Canon 1D C« » 6.2 in 6.5 in 3.3 in 54.5 oz 1120 Y Apr 2012 14,999- i Canon 1D C
Canon 5D Mark III« » 6.0 in 4.6 in 3.0 in 33.5 oz 950 Y Mar 2012 3,499- i Canon 5D Mark III
Canon 6D« » 5.7 in 4.4 in 2.8 in 27.2 oz 1090 Y Sep 2012 2,099- i Canon 6D
Canon 1D X« » 6.2 in 6.6 in 3.3 in 54.7 oz 1120 Y Oct 2011 6,799- i Canon 1D X
Canon 5D Mark II« » 6.0 in 4.5 in 3.0 in 30.0 oz 850 Y Sep 2008 3,499- i Canon 5D Mark II
Canon 1Ds Mark III« » 5.9 in 6.3 in 3.1 in 48.9 oz 1800 Y Aug 2007 7,999- i Canon 1Ds Mark III
Canon 1Ds Mark II« » 6.1 in 6.2 in 3.1 in 42.9 oz 1200 Y Sep 2004 7,999- i Canon 1Ds Mark II
Nikon D5« » 6.3 in 6.3 in 3.6 in 49.9 oz 3780 Y Jan 2016 6,499 i i Nikon D5
Nikon D3400« » 4.9 in 3.9 in 3.0 in 15.7 oz 1200 n Aug 2016 499- i Nikon D3400
Nikon D5500« » 4.9 in 3.8 in 2.8 in 14.8 oz 820 n Jan 2015 899- i Nikon D5500
Nikon D5300« » 4.9 in 3.9 in 3.0 in 16.9 oz 600 n Oct 2013 799- i Nikon D5300
Nikon D3200« » 4.9 in 3.8 in 3.0 in 17.8 oz 540 n Apr 2012 599- i Nikon D3200
Nikon D5200« » 5.1 in 3.9 in 3.1 in 19.6 oz 500 n Nov 2012 749- i Nikon D5200

The camera’s price is obviously a critical decision-making factor. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The D5600 was launched at a markedly lower price (by 88 percent) than the 1DX Mark II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.



Sensor comparison: Canon 1D X Mark II vs Nikon D5600

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 1D X Mark II features a full frame sensor and the Nikon D5600 an APS-C sensor. The sensor area in the D5600 is 58 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.

Canon 1D X Mark II and Nikon D5600 sensor measures

Despite having a smaller sensor, the D5600 offers a higher resolution of 24 megapixel, compared with 20 MP of the 1DX Mark II. This megapixel advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.91μm versus 6.57μm for the 1DX Mark II). However, it should be noted that the D5600 is a somewhat more recent model (by 9 months) than the 1DX Mark II, and its sensor might have benefitted from technological advances during this time that partly offset its pixel-size disadvantage. Coming back to sensor resolution, it should be mentioned that the D5600 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

1DX Mark II versus D5600 MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the 1DX Mark II has a notably higher overall DXO score than the D5600 (overall score 4 points higher), which gives it an advantage in terms of imaging quality. 0.5 EV of lower dynamic range, and 1.3 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model
Canon 1D X Mark II» Full Frame 20.0 5472 36484K/60p24.113.5320788Canon 1D X Mark II
Nikon D5600« APS-C 24.0 6000 40001080/60p24.114.0130684Nikon D5600
Canon 5D Mark IV« » Full Frame 30.1 6720 44804K/30p24.813.6299591Canon 5D Mark IV
Canon 80D« » APS-C 24.0 6000 40001080/60p23.613.2113579Canon 80D
Canon 1D C« » Full Frame 17.9 5184 34564K/24p----Canon 1D C
Canon 5D Mark III« » Full Frame 22.1 5760 38401080/30p24.011.7229381Canon 5D Mark III
Canon 6D« » Full Frame 20.0 5472 36481080/30p23.812.1234082Canon 6D
Canon 1D X« » Full Frame 17.9 5184 34561080/30p23.811.8278682Canon 1D X
Canon 5D Mark II« » Full Frame 21.0 5616 37441080/30p23.711.9181579Canon 5D Mark II
Canon 1Ds Mark III« » Full Frame 21.0 5616 3744-24.012.0166380Canon 1Ds Mark III
Canon 1Ds Mark II« » Full Frame 16.6 4992 3328-23.311.3148074Canon 1Ds Mark II
Nikon D5« » Full Frame 20.7 5588 37124K/30p25.112.3234388Nikon D5
Nikon D3400« » APS-C 24.0 6000 40001080/60p24.813.9119286Nikon D3400
Nikon D5500« » APS-C 24.0 6000 40001080/60p24.114.0143884Nikon D5500
Nikon D5300« » APS-C 24.0 6000 40001080/60p24.013.9133883Nikon D5300
Nikon D3200« » APS-C 24.1 6016 40001080/30p24.113.2113181Nikon D3200
Nikon D5200« » APS-C 24.0 6000 40001080/60i24.213.9128484Nikon D5200

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the 1DX Mark II provides a higher video resolution than the D5600. It can shoot video footage at 4K/60p, while the Nikon is limited to 1080/60p.



Feature comparison: Canon 1D X Mark II vs Nikon D5600

Apart from body and sensor, cameras can and do differ across a variety of features. The 1DX Mark II and the D5600 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The following table reports on some other key feature differences and similarities of the Canon 1D X Mark II, the Nikon D5600, and comparable cameras. If you need more detail on the specs, you can find comprehensive listings, for example, in the dpreview camera hub.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec)
Build-in
Flash
(yes/no)
Build-in
Stab
Camera
Model
Canon 1D X Mark II»optical Y 3.2 1620 fixed Y 8000 16.0 n n Canon 1D X Mark II
Nikon D5600«optical n 3.2 1037 swivel Y 4000 5.0 Y n Nikon D5600
Canon 5D Mark IV« »optical Y 3.2 1620 fixed Y 8000 7.0 n n Canon 5D Mark IV
Canon 80D« »optical Y 3.0 1040 swivel Y 8000 7.0 Y n Canon 80D
Canon 1D C« »optical Y 3.2 1040 fixed n 8000 14.0 n n Canon 1D C
Canon 5D Mark III« »optical Y 3.2 1040 fixed n 8000 6.0 n n Canon 5D Mark III
Canon 6D« »optical Y 3.0 1040 fixed n 4000 4.5 n n Canon 6D
Canon 1D X« »optical Y 3.2 1040 fixed n 8000 14.0 n n Canon 1D X
Canon 5D Mark II« »optical Y 3.0 920 fixed n 8000 3.9 n n Canon 5D Mark II
Canon 1Ds Mark III« »optical Y 3.0 230 fixed n 8000 5.0 n n Canon 1Ds Mark III
Canon 1Ds Mark II« »optical Y 2.0 230 fixed n 8000 4.0 n n Canon 1Ds Mark II
Nikon D5« »optical Y 3.2 2359 fixed Y 8000 14.0 n n Nikon D5
Nikon D3400« »optical n 3.0 921 fixed n 4000 5.0 Y n Nikon D3400
Nikon D5500« »optical n 3.2 1037 swivel Y 4000 5.0 Y n Nikon D5500
Nikon D5300« »optical n 3.2 1037 swivel n 4000 5.0 Y n Nikon D5300
Nikon D3200« »optical n 3.0 921 fixed n 4000 4.0 Y n Nikon D3200
Nikon D5200« »optical n 3.0 921 swivel n 4000 5.0 Y n Nikon D5200

One feature that is present on the 1DX Mark II, but is missing on the D5600 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The 1DX Mark II writes its imaging data to Compact Flash or CFast cards, while the D5600 uses SDXC cards. The 1DX Mark II features dual card slots, which can be very useful in case a memory card fails. In contrast, the D5600 only has one slot.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model
Canon 1D X Mark II»YmonomonoYYmini3.0---Canon 1D X Mark II
Nikon D5600«YstereomonoY-mini2.0YYYNikon D5600
Canon 5D Mark IV« »YmonomonoYYmini3.0YY-Canon 5D Mark IV
Canon 80D« »YstereomonoYYmini2.0YY-Canon 80D
Canon 1D C« »YmonomonoYYmini2.0---Canon 1D C
Canon 5D Mark III« »YmonomonoYYmini2.0---Canon 5D Mark III
Canon 6D« »YmonomonoY-mini2.0Y--Canon 6D
Canon 1D X« »Ymono-Y-mini2.0---Canon 1D X
Canon 5D Mark II« »YmonomonoY-mini2.0---Canon 5D Mark II
Canon 1Ds Mark III« »Y-----2.0---Canon 1Ds Mark III
Canon 1Ds Mark II« »Y-----2.0---Canon 1Ds Mark II
Nikon D5« »YstereomonoYYmini3.0---Nikon D5
Nikon D3400« »Ymonomono--mini2.0Y-YNikon D3400
Nikon D5500« »YstereomonoY-mini2.0Y--Nikon D5500
Nikon D5300« »YstereomonoY-mini2.0Y--Nikon D5300
Nikon D3200« »YmonomonoY-mini2.0---Nikon D3200
Nikon D5200« »YstereomonoY-mini2.0---Nikon D5200

Both the 1DX Mark II and the D5600 are current models that good online retailers will have in stock. You can check the latest prices, for example, at amazon. The 1DX Mark II replaced the earlier Canon 1DX, while the D5600 followed on from the Nikon D5500.

Review summary: Canon 1D X Mark II vs Nikon D5600

So how do things add up? Is the Canon 1D X Mark II better than the Nikon D5600 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

ilogo

Arguments in favor of the Canon EOS-1D X Mark II:

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Better image quality: Scores markedly higher (4 points) in the DXO overall assessment.
  • Better low-light sensitivity: Requires less light for good images (1.3 stops ISO advantage).
  • Better video: Provides higher definition movie capture (4K/60p vs 1080/60p).
  • Better sound control: Has a headphone port that enables audio monitoring while recording.
  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • More detailed LCD: Has a higher resolution rear screen (1620k vs 1037k dots).
  • Faster shutter: Has higher mechanical shutter speed (8000/sec vs 4000/sec) to freeze action.
  • Faster burst: Shoots at higher frequency (16 vs 5 flaps/sec) to capture the decisive moment.
  • More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
  • Longer lasting: Can take more shots (1210 versus 970) on a single battery charge.
  • Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
  • Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • More heavily discounted: Has been on the market for longer (launched in February 2016).

ilogo

Reasons to prefer the Nikon D5600:

  • More detail: Has more megapixels (24 vs 20MP), which boosts linear resolution by 10%.
  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • More flexible LCD: Has swivel screen for odd-angle shots in portrait or landscape orientation.
  • More compact: Is smaller (124x97mm vs 158x168mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 1065g or 70 percent) and is thus easier to take along.
  • Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
  • Easier file upload: Has wifi build in for automatic backup or image transfer to the web.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • More affordable: Was introduced into a lower priced category (88 percent cheaper at launch).
  • More modern: Was introduced somewhat (9 months) more recently.

If the number of relative strengths (bullet points above) is taken as a guide, the 1DX Mark II is the clear winner of the match-up (15 : 11 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera.

1DX Mark II 15:11 D5600

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says nothing about, for example, the handling, responsiveness, and overall imaging quality of the 1DX Mark II and the D5600 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable. This is why hands-on reviews by experts are important. The table below summarizes the assessments of some of the best known camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog). You can find the full text of the reviews by clicking on the site logo in the table header.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 1D X Mark II»-89/1004.5/55/54.5/5 Feb 2016 5,999 i i Canon 1D X Mark II
Nikon D5600«-79/1004.5/54.5/54/5 Nov 2016 699 i i Nikon D5600
Canon 5D Mark IV« »HiRec87/1004.5/55/54.5/5 Aug 2016 3,499 i i Canon 5D Mark IV
Canon 80D« »HiRec84/1004.5/54.5/54.5/5 Feb 2016 1,199 i i Canon 80D
Canon 1D C« »----- Apr 2012 14,999- i Canon 1D C
Canon 5D Mark III« »HiRec82/1004.5/55/54.5/5 Mar 2012 3,499- i Canon 5D Mark III
Canon 6D« »HiRec83/1004.5/54.5/54.5/5 Sep 2012 2,099- i Canon 6D
Canon 1D X« »--4.5/54.5/54.5/5 Oct 2011 6,799- i Canon 1D X
Canon 5D Mark II« »91/10079/1004/55/5- Sep 2008 3,499- i Canon 5D Mark II
Canon 1Ds Mark III« »-HiRec4.5/5-- Aug 2007 7,999- i Canon 1Ds Mark III
Canon 1Ds Mark II« »-HiRec--- Sep 2004 7,999- i Canon 1Ds Mark II
Nikon D5« »-89/1004.5/55/55/5 Jan 2016 6,499 i i Nikon D5
Nikon D3400« »Rec76/1004/54.5/54.5/5 Aug 2016 499- i Nikon D3400
Nikon D5500« »Rec79/1004.5/55/54.5/5 Jan 2015 899- i Nikon D5500
Nikon D5300« »HiRec79/1004.5/54.5/54.5/5 Oct 2013 799- i Nikon D5300
Nikon D3200« »HiRec73/1004.5/54.5/54.5/5 Apr 2012 599- i Nikon D3200
Nikon D5200« »HiRec79/1004.5/54.5/54.5/5 Nov 2012 749- i Nikon D5200

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.



Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored. If you cannot find the camera you are interested in, kindly get in touch, and I will try to update the database with the necessary infos.

~
