Canon 1D X Mark II vs Leica TL
The Canon EOS-1D X Mark II and the Leica TL are two digital cameras that were announced, respectively, in February 2016 and November 2016. The 1DX Mark II is a DSLR, while the TL is a mirrorless interchangeable lens camera. The cameras are based on a full frame (1DX Mark II) and an APS-C (TL) sensor. The Canon has a resolution of 20 megapixels, whereas the Leica provides 16.1 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-1D X Mark II and the Leica TL? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

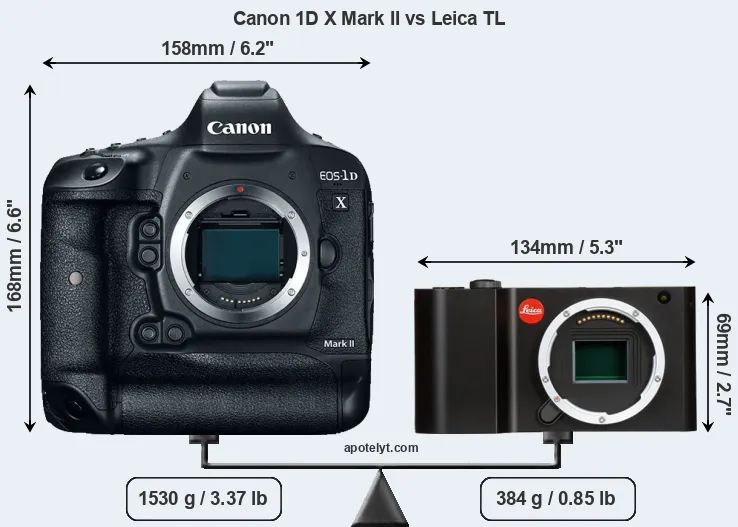

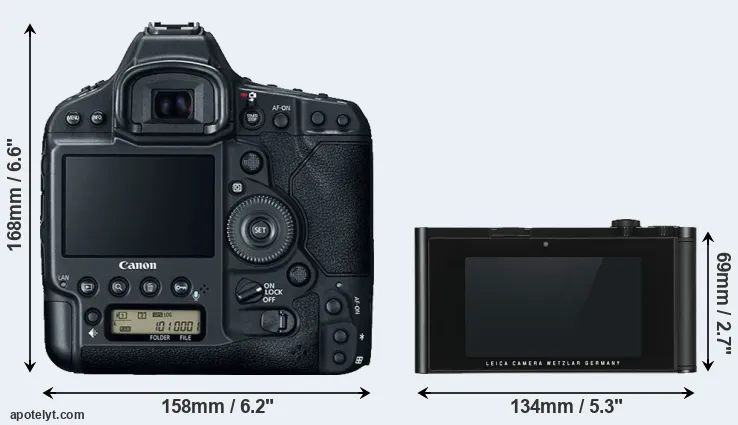

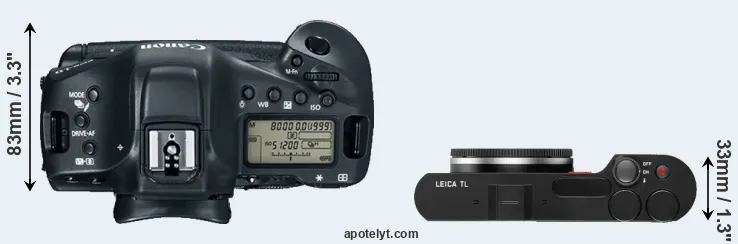

The side-by-side display below illustrates the physical size and weight of the Canon 1D X Mark II and the Leica TL. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
The TL can be obtained in three different colors (black, silver, titanium), while the 1DX Mark II is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica TL is considerably smaller (65 percent) than the Canon 1D X Mark II. Moreover, the TL is substantially lighter (75 percent) than the 1DX Mark II. It is worth mentioning in this context that the 1DX Mark II is splash and dust resistant, while the TL does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
As can be seen in the images above, the 1DX Mark II has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. The power pack in the TL can be charged via the USB port, which can be very convenient when travelling.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon 1D X Mark II||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999|
|2.||Leica TL||134 mm||69 mm||33 mm||384 g||400||n||Nov 2016||1,695|
|3.||Canon 1D X Mark III||158 mm||168 mm||83 mm||1440 g||2850||Y||Jan 2020||6,499|
|4.||Canon 6D Mark II||144 mm||111 mm||75 mm||765 g||1200||Y||Jun 2017||1,999|
|5.||Canon 5D Mark IV||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499|
|6.||Canon 80D||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199|
|7.||Canon 5DS||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|8.||Canon 5DS R||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|9.||Canon 6D||145 mm||111 mm||71 mm||770 g||1090||Y||Sep 2012||2,099|
|10.||Canon 1D X||158 mm||168 mm||83 mm||1551 g||1120||Y||Oct 2011||6,799|
|11.||Canon 1Ds Mark III||150 mm||160 mm||80 mm||1385 g||1800||Y||Aug 2007||7,999|
|12.||Fujifilm X70||113 mm||64 mm||44 mm||340 g||330||n||Jan 2016||799|
|13.||Leica CL||131 mm||78 mm||45 mm||403 g||220||n||Nov 2017||2,795|
|14.||Leica TL2||134 mm||69 mm||33 mm||399 g||250||n||Jul 2017||1,950|
|15.||Leica T||134 mm||69 mm||33 mm||384 g||400||n||Apr 2014||1,850|
|16.||Leica X2||124 mm||69 mm||52 mm||345 g||450||n||May 2012||1,995|
|17.||Nikon D5||160 mm||159 mm||92 mm||1415 g||3780||Y||Jan 2016||6,499|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The TL was launched at a markedly lower price (by 72 percent) than the 1DX Mark II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

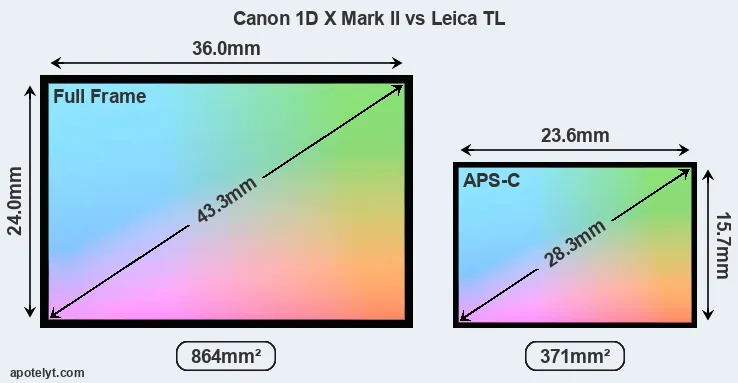

Of the two cameras under consideration, the Canon 1D X Mark II features a full frame sensor and the Leica TL an APS-C sensor. The sensor area in the TL is 57 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
In terms of underlying technology, both cameras are build around CMOS sensors.

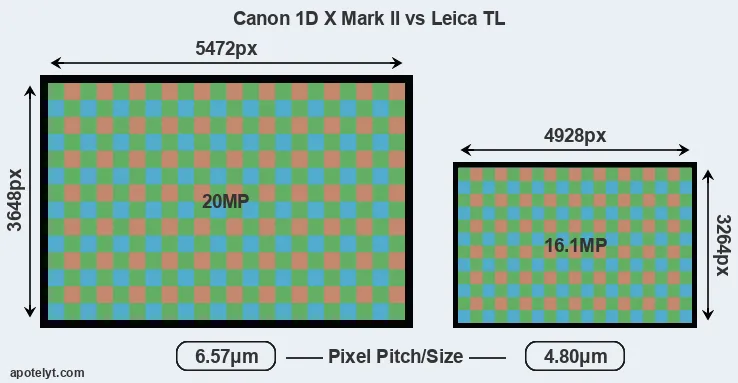

With 20MP, the 1DX Mark II offers a higher resolution than the TL (16.1MP), but the 1DX Mark II nevertheless has larger individual pixels (pixel pitch of 6.57μm versus 4.80μm for the TL) due to its larger sensor. However, the TL is a somewhat more recent model (by 9 months) than the 1DX Mark II, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the TL has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon 1D X Mark II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 1DX Mark II for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Leica TL are 24.6 x 16.3 inches or 62.6 x 41.5 cm for good quality, 19.7 x 13.1 inches or 50.1 x 33.2 cm for very good quality, and 16.4 x 10.9 inches or 41.7 x 27.6 cm for excellent quality prints.
The 1DX Mark II has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS-1D X Mark II has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-409600. The corresponding ISO settings for the Leica TL are ISO 100 to ISO 12500 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|1.||Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|3.||Canon 1D X Mark III||Full Frame||20.0||5472||3648||4K/60p||24.2||14.5||3248||91|
|4.||Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|5.||Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|7.||Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|8.||Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|9.||Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|10.||Canon 1D X||Full Frame||17.9||5184||3456||1080/30p||23.8||11.8||2786||82|
|11.||Canon 1Ds Mark III||Full Frame||21.0||5616||3744||none||24.0||12.0||1663||80|
|17.||Nikon D5||Full Frame||20.7||5588||3712||4K/30p||25.1||12.3||2343||88|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the 1DX Mark II provides a higher video resolution than the TL. It can shoot video footage at 4K/60p, while the Leica is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the 1DX Mark II has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the TL relies on live view and the rear LCD for framing. That said, the TL can be equipped with an optional viewfinder – the Visoflex (Typ 020). The table below summarizes some of the other core capabilities of the Canon 1D X Mark II and Leica TL in connection with corresponding information for a sample of similar cameras.
|1.||Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|3.||Canon 1D X Mark III||optical||Y||3.2||2100||fixed||Y||1/8000s||20.0||n||n|
|4.||Canon 6D Mark II||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n|
|5.||Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n|
|8.||Canon 5DS R||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n|
|10.||Canon 1D X||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n|
|11.||Canon 1Ds Mark III||optical||Y||3.0||230||fixed||n||1/8000s||5.0||n||n|
One feature that is present on the 1DX Mark II, but is missing on the TL is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The 1DX Mark II writes its imaging data to Compact Flash or CFast cards, while the TL uses SDXC cards. The 1DX Mark II features dual card slots, which can be very useful in case a memory card fails. In contrast, the TL only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D X Mark II and Leica TL and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|1.||Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|3.||Canon 1D X Mark III||Y||mono||mono||Y||Y||mini||3.1||Y||-||Y|
|4.||Canon 6D Mark II||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y|
|5.||Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-|
|8.||Canon 5DS R||Y||mono||mono||Y||-||mini||3.0||-||-||-|
|10.||Canon 1D X||Y||mono||-||Y||-||mini||2.0||-||-||-|
|11.||Canon 1Ds Mark III||Y||mono||-||-||-||-||2.0||-||-||-|
It is notable that the 1DX Mark II has a microphone port, which is missing on the TL. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Studio photographers will appreciate that the Canon 1D X Mark II (unlike the TL) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Travel and landscape photographers will find it useful that the 1DX Mark II has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
Both the 1DX Mark II and the TL have been discontinued, but can regularly be found used on eBay. The 1DX Mark II was replaced by the Canon 1DX Mark III, while the TL was followed by the Leica TL2. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Leica websites.
So how do things add up? Is the Canon 1D X Mark II better than the Leica TL or vice versa? The listing below highlights the relative strengths of the two models.
Advantages of the Canon EOS-1D X Mark II:
- More detail: Offers more megapixels (20 vs 16.1MP) with a 11% higher linear resolution.
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Better video: Provides higher definition movie capture (4K/60p vs 1080/30p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 1230k dots).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (16 vs 5 flaps/sec) to capture the decisive moment.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Can take more shots (1210 versus 400) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been on the market for longer (launched in February 2016).
Reasons to prefer the Leica TL:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Larger screen: Has a bigger rear LCD (3.7" vs 3.2") for image review and settings control.
- More compact: Is smaller (134x69mm vs 158x168mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 1146g or 75 percent) and is thus easier to take along.
- Easier travel charging: Can be conveniently charged via its USB port.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
- More affordable: Was introduced into a lower priced category (72 percent cheaper at launch).
- More modern: Was introduced somewhat (9 months) more recently.
If the count of individual advantages (bullet points above) is taken as a guide, the 1DX Mark II is the clear winner of the match-up (23 : 11 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 1D X Mark II and the Leica TL place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 1DX Mark II and the TL in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 1D X Mark II||..||..||89/100||4.5/5||4.5/5||Feb 2016||5,999|
|2.||Leica TL||..||..||..||..||4/5||Nov 2016||1,695|
|3.||Canon 1D X Mark III||..||+ +||..||4.5/5||4/5||Jan 2020||6,499|
|4.||Canon 6D Mark II||4/5||+||80/100||4.5/5||4/5||Jun 2017||1,999|
|5.||Canon 5D Mark IV||4.5/5||+ +||87/100||4.5/5||4.5/5||Aug 2016||3,499|
|6.||Canon 80D||4/5||+ +||84/100||4.5/5||4.5/5||Feb 2016||1,199|
|7.||Canon 5DS||..||+||83/100||4.5/5||4.5/5||Feb 2015||3,699|
|8.||Canon 5DS R||5/5||+||83/100||5/5||4.5/5||Feb 2015||3,699|
|9.||Canon 6D||5/5||+ +||83/100||4.5/5||4.5/5||Sep 2012||2,099|
|10.||Canon 1D X||5/5||..||..||4.5/5||4.5/5||Oct 2011||6,799|
|11.||Canon 1Ds Mark III||..||..||+ +||4.5/5||..||Aug 2007||7,999|
|12.||Fujifilm X70||4.5/5||..||76/100||4.5/5||4.5/5||Jan 2016||799|
|13.||Leica CL||..||..||..||..||4/5||Nov 2017||2,795|
|14.||Leica TL2||3.5/5||..||..||4/5||4/5||Jul 2017||1,950|
|15.||Leica T||3/5||..||..||4/5||4/5||Apr 2014||1,850|
|16.||Leica X2||3/5||..||..||3/5||4/5||May 2012||1,995|
|17.||Nikon D5||..||..||89/100||4.5/5||5/5||Jan 2016||6,499|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon 1D X Mark II vs Leica TL
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 1D X Mark II||Leica TL|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Leica T mount lenses|
|Launch Date||February 2016||November 2016|
|Launch Price||USD 5,999||USD 1,695|
|Sensor Specs||Canon 1D X Mark II||Leica TL|
|Sensor Format||Full Frame Sensor||APS-C Sensor|
|Sensor Size||36.0 x 24.0 mm||23.6 x 15.7 mm|
|Sensor Area||864 mm2||370.52 mm2|
|Sensor Diagonal||43.3 mm||28.3 mm|
|Sensor Resolution||20 Megapixels||16.1 Megapixels|
|Image Resolution||5472 x 3648 pixels||4928 x 3264 pixels|
|Pixel Pitch||6.57 μm||4.80 μm|
|Pixel Density||2.31 MP/cm2||4.34 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||4K/60p Video||1080/30p Video|
|ISO Setting||100 - 51,200 ISO||100 - 12,500 ISO|
|ISO Boost||50 - 409,600 ISO||no Enhancement|
|DXO Sensor Quality (score)||88||..|
|DXO Color Depth (bits)||24.1||..|
|DXO Dynamic Range (EV)||13.5||..|
|DXO Low Light (ISO)||3207||..|
|Screen Specs||Canon 1D X Mark II||Leica TL|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||100%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.7inch|
|LCD Resolution||1620k dots||1230k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon 1D X Mark II||Leica TL|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||16 shutter flaps/s||5 shutter flaps/s|
|Fill Flash||no On-Board Flash||Built-in Flash|
|Storage Medium||CF or CFAST cards||SDXC cards|
|Second Storage Option||Dual card slots||Single card slot|
|Connectivity Specs||Canon 1D X Mark II||Leica TL|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 3.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||no Wifi||Wifi built-in|
|Geotagging||GPS built-in||no internal GPS|
|Body Specs||Canon 1D X Mark II||Leica TL|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||1210 shots per charge||400 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
158 x 168 x 83 mm
(6.2 x 6.6 x 3.3 in)
134 x 69 x 33 mm
(5.3 x 2.7 x 1.3 in)
|Camera Weight||1530 g (54.0 oz)||384 g (13.5 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
