Canon 1D X Mark II vs Leica S-E Typ 006
The Canon EOS-1D X Mark II and the Leica S-E (Typ 006) are two professional cameras that were announced, respectively, in February 2016 and September 2014. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (1DX Mark II) and a medium format (S-E Typ 006) sensor. The Canon has a resolution of 20 megapixels, whereas the Leica provides 37.5 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-1D X Mark II and the Leica S-E (Typ 006)? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

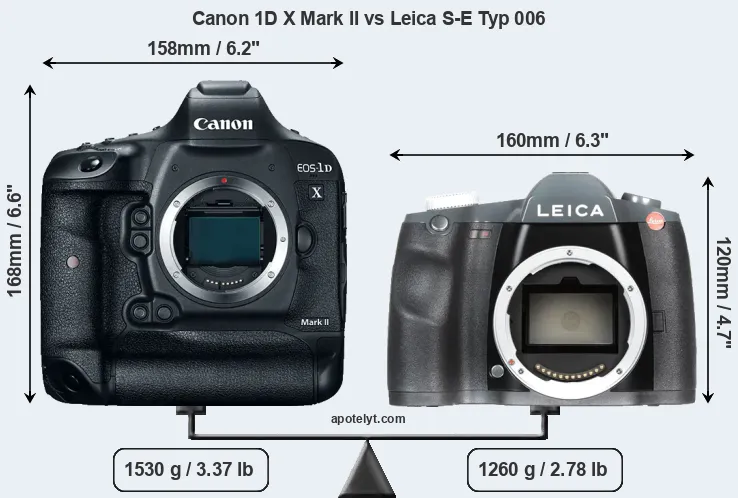

An illustration of the physical size and weight of the Canon 1D X Mark II and the Leica S-E Typ 006 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica S-E Typ 006 is notably smaller (28 percent) than the Canon 1D X Mark II. Moreover, the S-E Typ 006 is markedly lighter (18 percent) than the 1DX Mark II. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

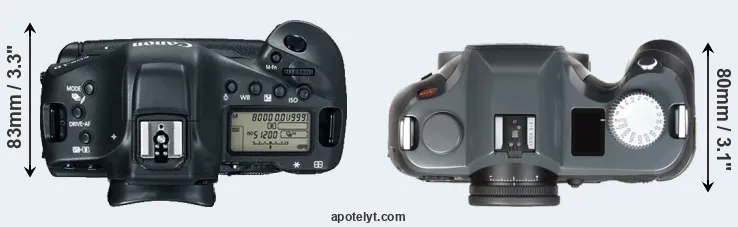

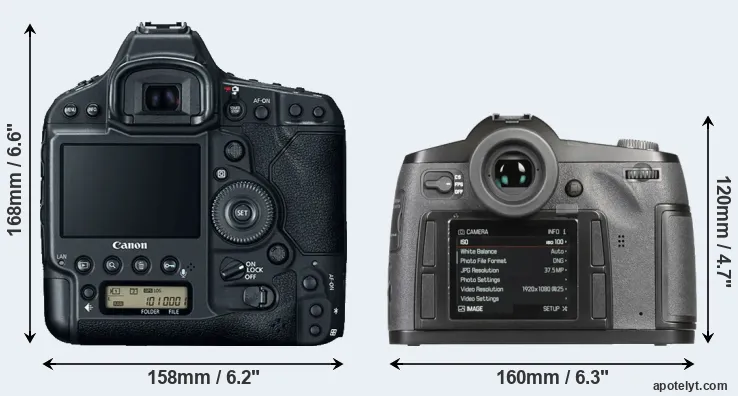

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
As can be seen in the images above, the 1DX Mark II has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the S-E Typ 006, Leica provides the Multi-Function Handgrip S vertical grip as an optional accessory (see here on eBay).
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon 1D X Mark II||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999|
|2.||Leica S-E Typ 006||160 mm||120 mm||80 mm||1260 g||..||Y||Sep 2014||16,900|
|3.||Canon 1D X Mark III||158 mm||168 mm||83 mm||1440 g||2850||Y||Jan 2020||6,499|
|4.||Canon 6D Mark II||144 mm||111 mm||75 mm||765 g||1200||Y||Jun 2017||1,999|
|5.||Canon 5DS||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|6.||Canon 1D C||158 mm||164 mm||83 mm||1545 g||1120||Y||Apr 2012||14,999|
|7.||Canon 5D Mark III||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499|
|8.||Canon 6D||145 mm||111 mm||71 mm||770 g||1090||Y||Sep 2012||2,099|
|9.||Canon 1D X||158 mm||168 mm||83 mm||1551 g||1120||Y||Oct 2011||6,799|
|10.||Canon 5D Mark II||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499|
|11.||Canon 1Ds Mark III||150 mm||160 mm||80 mm||1385 g||1800||Y||Aug 2007||7,999|
|12.||Leica S3||160 mm||120 mm||80 mm||1260 g||..||Y||Sep 2018||18,995|
|13.||Leica SL||147 mm||104 mm||39 mm||847 g||400||Y||Oct 2015||7,450|
|14.||Leica S Typ 007||160 mm||120 mm||80 mm||1260 g||..||Y||Sep 2014||24,490|
|15.||Leica S Typ 006||160 mm||120 mm||80 mm||1260 g||..||Y||Sep 2012||21,950|
|16.||Leica S2||160 mm||120 mm||80 mm||1410 g||..||Y||Sep 2008||22,995|
|17.||Nikon D5||160 mm||159 mm||92 mm||1415 g||3780||Y||Jan 2016||6,499|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 1DX Mark II was launched at a markedly lower price (by 65 percent) than the S-E Typ 006, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

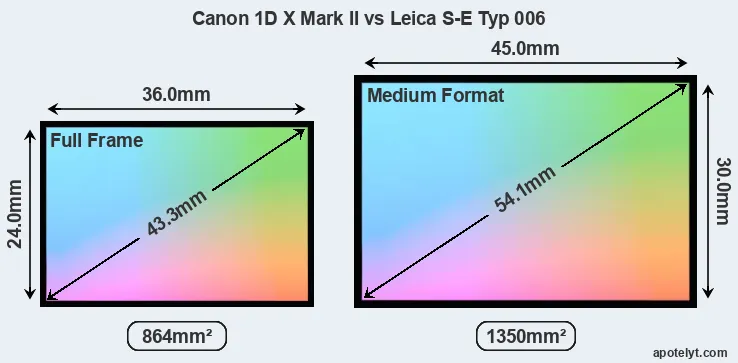

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 1D X Mark II features a full frame sensor and the Leica S-E Typ 006 a medium format sensor. The sensor area in the S-E Typ 006 is 56 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 0.8. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

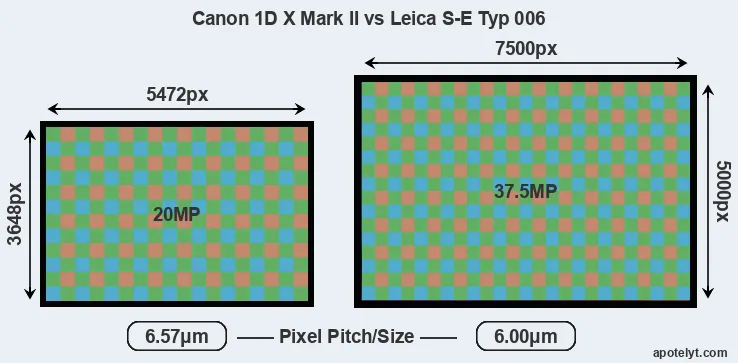

With 37.5MP, the S-E Typ 006 offers a higher resolution than the 1DX Mark II (20MP), but the S-E Typ 006 has smaller individual pixels (pixel pitch of 6.00μm versus 6.57μm for the 1DX Mark II). It is noteworthy in this context that the 1DX Mark II is a somewhat more recent model (by 1 year and 4 months) than the S-E Typ 006, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the S-E Typ 006 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Leica S-E Typ 006 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the S-E Typ 006 for good quality output (200 dots per inch) amounts to 37.5 x 25 inches or 95.3 x 63.5 cm, for very good quality (250 dpi) 30 x 20 inches or 76.2 x 50.8 cm, and for excellent quality (300 dpi) 25 x 16.7 inches or 63.5 x 42.3 cm. The corresponding values for the Canon 1D X Mark II are 27.4 x 18.2 inches or 69.5 x 46.3 cm for good quality, 21.9 x 14.6 inches or 55.6 x 37.1 cm for very good quality, and 18.2 x 12.2 inches or 46.3 x 30.9 cm for excellent quality prints.
The 1DX Mark II has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS-1D X Mark II has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-409600. The corresponding ISO settings for the Leica S-E (Typ 006) are ISO 100 to ISO 1600 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|1.||Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|2.||Leica S-E Typ 006||Medium Format||37.5||7500||5000||none||..||..||..||..|
|3.||Canon 1D X Mark III||Full Frame||20.0||5472||3648||4K/60p||24.2||14.5||3248||91|
|4.||Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|5.||Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|6.||Canon 1D C||Full Frame||17.9||5184||3456||4K/24p||..||..||..||..|
|7.||Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|8.||Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|9.||Canon 1D X||Full Frame||17.9||5184||3456||1080/30p||23.8||11.8||2786||82|
|10.||Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|11.||Canon 1Ds Mark III||Full Frame||21.0||5616||3744||none||24.0||12.0||1663||80|
|12.||Leica S3||Medium Format||64.0||9800||6533||4K/24p||..||..||..||..|
|13.||Leica SL||Full Frame||24.0||6000||4000||4K/30p||25.0||13.4||1821||88|
|14.||Leica S Typ 007||Medium Format||37.5||7500||5000||4K/24p||..||..||..||..|
|15.||Leica S Typ 006||Medium Format||37.5||7500||5000||none||23.9||12.2||824||76|
|16.||Leica S2||Medium Format||37.5||7500||5000||none||..||..||..||..|
|17.||Nikon D5||Full Frame||20.7||5588||3712||4K/30p||25.1||12.3||2343||88|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The 1DX Mark II indeed provides movie recording capabilities, while the S-E Typ 006 does not. The highest resolution format that the 1DX Mark II can use is 4K/60p.
Beyond body and sensor, cameras can and do differ across a range of features. The 1DX Mark II and the S-E Typ 006 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 1DX Mark II offers a wider field of view (100%) than the one in the S-E Typ 006 (98%), so that a larger proportion of the captured image is visible in the finder. On the other hand, the viewfinder of the S-E Typ 006 has a higher magnification (0.87x vs 0.76x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 1D X Mark II, the Leica S-E Typ 006, and comparable cameras.
|1.||Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|2.||Leica S-E Typ 006||optical||Y||3.0||922||fixed||n||1/4000s||1.5||n||n|
|3.||Canon 1D X Mark III||optical||Y||3.2||2100||fixed||Y||1/8000s||20.0||n||n|
|4.||Canon 6D Mark II||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n|
|6.||Canon 1D C||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n|
|7.||Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n|
|9.||Canon 1D X||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n|
|10.||Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
|11.||Canon 1Ds Mark III||optical||Y||3.0||230||fixed||n||1/8000s||5.0||n||n|
|14.||Leica S Typ 007||optical||Y||3.0||922||fixed||n||1/4000s||3.5||n||n|
|15.||Leica S Typ 006||optical||Y||3.0||922||fixed||n||1/4000s||1.5||n||n|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The 1DX Mark II has a touchscreen, while the S-E Typ 006 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The 1DX Mark II writes its imaging data to Compact Flash or CFast cards, while the S-E Typ 006 uses Compact Flash or SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D X Mark II and Leica S-E (Typ 006) and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|1.||Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|2.||Leica S-E Typ 006||Y||-||-||-||-||mini||2.0||-||-||-|
|3.||Canon 1D X Mark III||Y||mono||mono||Y||Y||mini||3.1||Y||-||Y|
|4.||Canon 6D Mark II||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y|
|6.||Canon 1D C||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|7.||Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|9.||Canon 1D X||Y||mono||-||Y||-||mini||2.0||-||-||-|
|10.||Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
|11.||Canon 1Ds Mark III||Y||mono||-||-||-||-||2.0||-||-||-|
|14.||Leica S Typ 007||Y||stereo||mono||Y||Y||mini||3.0||Y||-||-|
|15.||Leica S Typ 006||Y||-||-||-||-||mini||2.0||-||-||-|
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
Travel and landscape photographers will find it useful that the 1DX Mark II has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
Both the 1DX Mark II and the S-E Typ 006 have been discontinued, but can regularly be found used on eBay. The S-E Typ 006 was replaced by the Leica S Typ 007, while the 1DX Mark II was followed by the Canon 1DX Mark III. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Leica websites.
So what conclusions can be drawn? Is there a clear favorite between the Canon 1D X Mark II and the Leica S-E Typ 006? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Canon EOS-1D X Mark II:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Broader imaging potential: Can record not only still images but also 4K/60p movies.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More complete view: Has a viewfinder with a larger field of view (100% vs 98%).
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 922k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (16 vs 1.5 flaps/sec) to capture the decisive moment.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- More affordable: Was introduced into a lower priced category (65 percent cheaper at launch).
- More modern: Is somewhat more recent (announced 1 year and 4 months after the S-E Typ 006).
Arguments in favor of the Leica S-E (Typ 006):
- More detail: Has more megapixels (37.5 vs 20MP), which boosts linear resolution by 37%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.87x vs 0.76x).
- More compact: Is smaller (160x120mm vs 158x168mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 270g or 18 percent) and is thus easier to take along.
- More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
- More heavily discounted: Has been on the market for longer (launched in September 2014).
If the number of relative strengths (bullet points above) is taken as a guide, the 1DX Mark II is the clear winner of the match-up (14 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 1D X Mark II and the Leica S-E Typ 006 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the 1DX Mark II or the S-E Typ 006 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 1D X Mark II||..||..||89/100||4.5/5||4.5/5||Feb 2016||5,999|
|2.||Leica S-E Typ 006||..||..||..||..||..||Sep 2014||16,900|
|3.||Canon 1D X Mark III||..||+ +||..||4.5/5||4/5||Jan 2020||6,499|
|4.||Canon 6D Mark II||4/5||+||80/100||4.5/5||4/5||Jun 2017||1,999|
|5.||Canon 5DS||..||+||83/100||4.5/5||4.5/5||Feb 2015||3,699|
|6.||Canon 1D C||..||..||..||..||..||Apr 2012||14,999|
|7.||Canon 5D Mark III||..||+ +||82/100||4.5/5||4.5/5||Mar 2012||3,499|
|8.||Canon 6D||5/5||+ +||83/100||4.5/5||4.5/5||Sep 2012||2,099|
|9.||Canon 1D X||5/5||..||..||4.5/5||4.5/5||Oct 2011||6,799|
|10.||Canon 5D Mark II||4/5||91/100||79/100||4/5||..||Sep 2008||3,499|
|11.||Canon 1Ds Mark III||..||..||+ +||4.5/5||..||Aug 2007||7,999|
|12.||Leica S3||..||..||..||..||..||Sep 2018||18,995|
|13.||Leica SL||4/5||..||84/100||4.5/5||4/5||Oct 2015||7,450|
|14.||Leica S Typ 007||4/5||..||..||..||..||Sep 2014||24,490|
|15.||Leica S Typ 006||..||..||..||..||..||Sep 2012||21,950|
|16.||Leica S2||..||..||..||..||..||Sep 2008||22,995|
|17.||Nikon D5||..||..||89/100||4.5/5||5/5||Jan 2016||6,499|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon 1D X Mark II vs Leica S-E Typ 006
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 1D X Mark II||Leica S-E Typ 006|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Leica S mount lenses|
|Launch Date||February 2016||September 2014|
|Launch Price||USD 5,999||USD 16,900|
|Sensor Specs||Canon 1D X Mark II||Leica S-E Typ 006|
|Sensor Format||Full Frame Sensor||Medium Format Sensor|
|Sensor Size||36.0 x 24.0 mm||45.0 x 30.0 mm|
|Sensor Area||864 mm2||1350 mm2|
|Sensor Diagonal||43.3 mm||54.1 mm|
|Sensor Resolution||20 Megapixels||37.5 Megapixels|
|Image Resolution||5472 x 3648 pixels||7500 x 5000 pixels|
|Pixel Pitch||6.57 μm||6.00 μm|
|Pixel Density||2.31 MP/cm2||2.78 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||4K/60p Video||no Video|
|ISO Setting||100 - 51,200 ISO||100 - 1,600 ISO|
|ISO Boost||50 - 409,600 ISO||no Enhancement|
|DXO Sensor Quality (score)||88||..|
|DXO Color Depth (bits)||24.1||..|
|DXO Dynamic Range (EV)||13.5||..|
|DXO Low Light (ISO)||3207||..|
|Screen Specs||Canon 1D X Mark II||Leica S-E Typ 006|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||98%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View|
|Rear LCD Size||3.2inch||3.0inch|
|LCD Resolution||1620k dots||922k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon 1D X Mark II||Leica S-E Typ 006|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||16 shutter flaps/s||1.5 shutter flaps/s|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||CF or CFAST cards||CF or SDXC cards|
|Second Storage Option||Dual card slots||Dual card slots|
|Connectivity Specs||Canon 1D X Mark II||Leica S-E Typ 006|
|Studio Flash||PC Sync socket||PC Sync socket|
|USB Connector||USB 3.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||no Wifi||no Wifi|
|Geotagging||GPS built-in||no internal GPS|
|Body Specs||Canon 1D X Mark II||Leica S-E Typ 006|
|Environmental Sealing||Weathersealed body||Weathersealed body|
158 x 168 x 83 mm
(6.2 x 6.6 x 3.3 in)
160 x 120 x 80 mm
(6.3 x 4.7 x 3.1 in)
|Camera Weight||1530 g (54.0 oz)||1260 g (44.4 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
