Canon 1D X Mark II vs M100
The Canon EOS-1D X Mark II and the Canon EOS M100 are two digital cameras that were revealed to the public, respectively, in February 2016 and August 2017. The 1DX Mark II is a DSLR, while the M100 is a mirrorless interchangeable lens camera. The cameras are based on a full frame (1DX Mark II) and an APS-C (M100) sensor. The 1DX Mark II has a resolution of 20 megapixels, whereas the M100 provides 24 MP. Read on to find out how these two cameras compare with respect to their body size, their sensors, their features, their input-output connections, and their reception by expert reviewers.
|Canon 1D X Mark II||Canon M100|
|Digital single lens reflex||Mirrorless system camera|
|Canon EF mount lenses||Canon EF-M mount lenses|
|20 MP, Full Frame Sensor||24 MP, APS-C Sensor|
|4K/60p Video||1080/60p Video|
|ISO 100-51200 (50-409600)||ISO 100-25600|
|Optical viewfinder||No viewfinder, LCD framing|
|3.2" LCD, 1620k dots||3.0" LCD, 1040k dots|
|Fixed touchscreen||Tilting touchscreen|
|16 shutter flaps per second||6.1 shutter flaps per second|
|Weathersealed body||Not weather sealed|
|1210 shots per battery charge||295 shots per battery charge|
|158 x 168 x 83 mm, 1530 g||108 x 67 x 35 mm, 302 g|
Body comparison: Canon 1D X Mark II vs M100

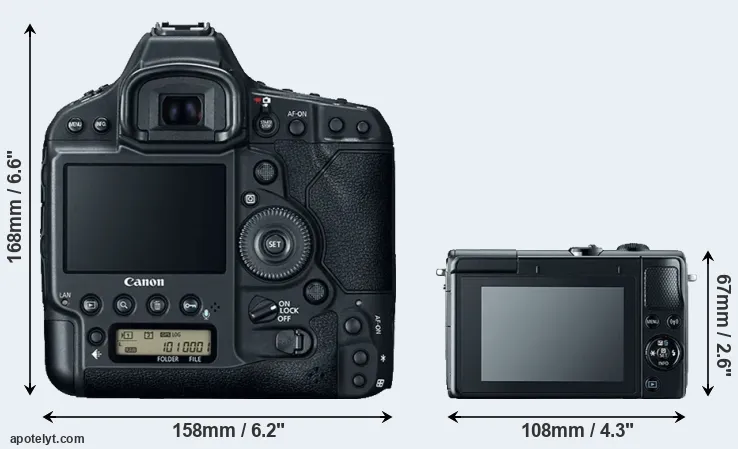

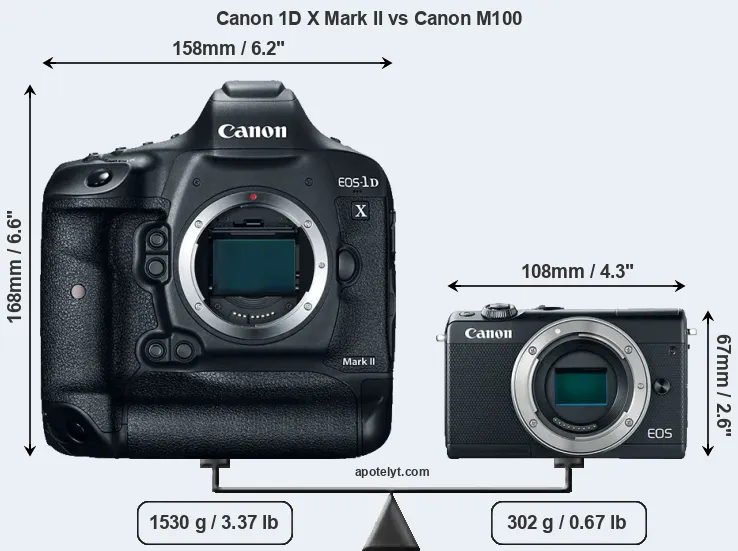

An illustration of the physical size and weight of the Canon 1D X Mark II and the Canon M100 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The M100 can be obtained in two different colors (black, white), while the 1DX Mark II is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon M100 is considerably smaller (73 percent) than the Canon 1D X Mark II. Moreover, the M100 is substantially lighter (80 percent) than the 1DX Mark II. It is worth mentioning in this context that the 1DX Mark II is splash and dust resistant, while the M100 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
Concerning battery life, the 1DX Mark II gets 1210 shots out of its LP-E19 battery, while the M100 can take 295 images on a single charge of its LP-E12 power pack. As can be seen in the images above, the 1DX Mark II has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Canon 1D X Mark II»||6.2 in||6.6 in||3.3 in||54.0 oz||1210||Y||Feb 2016||5,999||Canon 1D X Mark II|
|Canon M100«||4.3 in||2.6 in||1.4 in||10.7 oz||295||n||Aug 2017||499||Canon M100|
|Canon 6D Mark II« »||5.7 in||4.4 in||3.0 in||27.0 oz||1200||Y||Jun 2017||1,999||Canon 6D Mark II|
|Canon G9 X Mark II« »||3.9 in||2.3 in||1.2 in||7.3 oz||235||n||Jan 2017||529||Canon G9 X Mark II|
|Canon SL2« »||4.8 in||3.7 in||2.8 in||16.0 oz||650||n||Jun 2017||549||-||Canon SL2|
|Canon M5« »||4.6 in||3.5 in||2.4 in||15.1 oz||295||n||Sep 2016||979||Canon M5|
|Canon 5DS« »||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699||Canon 5DS|
|Canon M3« »||4.4 in||2.7 in||1.7 in||12.9 oz||250||n||Feb 2015||679||-||Canon M3|
|Canon M10« »||4.3 in||2.6 in||1.4 in||10.6 oz||255||n||Oct 2015||499||-||Canon M10|
|Canon 1D C« »||6.2 in||6.5 in||3.3 in||54.5 oz||1120||Y||Apr 2012||14,999||-||Canon 1D C|
|Canon 5D Mark III« »||6.0 in||4.6 in||3.0 in||33.5 oz||950||Y||Mar 2012||3,499||-||Canon 5D Mark III|
|Canon 6D« »||5.7 in||4.4 in||2.8 in||27.2 oz||1090||Y||Sep 2012||2,099||-||Canon 6D|
|Canon 1D X« »||6.2 in||6.6 in||3.3 in||54.7 oz||1120||Y||Oct 2011||6,799||-||Canon 1D X|
|Canon 5D Mark II« »||6.0 in||4.5 in||3.0 in||30.0 oz||850||Y||Sep 2008||3,499||-||Canon 5D Mark II|
|Canon 1Ds Mark III« »||5.9 in||6.3 in||3.1 in||48.9 oz||1800||Y||Aug 2007||7,999||-||Canon 1Ds Mark III|
|Canon 1Ds Mark II« »||6.1 in||6.2 in||3.1 in||42.9 oz||1200||Y||Sep 2004||7,999||-||Canon 1Ds Mark II|
|Nikon D5« »||6.3 in||6.3 in||3.6 in||49.9 oz||3780||Y||Jan 2016||6,499||Nikon D5|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The M100 was launched at a markedly lower price (by 92 percent) than the 1DX Mark II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
Sensor comparison: Canon 1D X Mark II vs M100

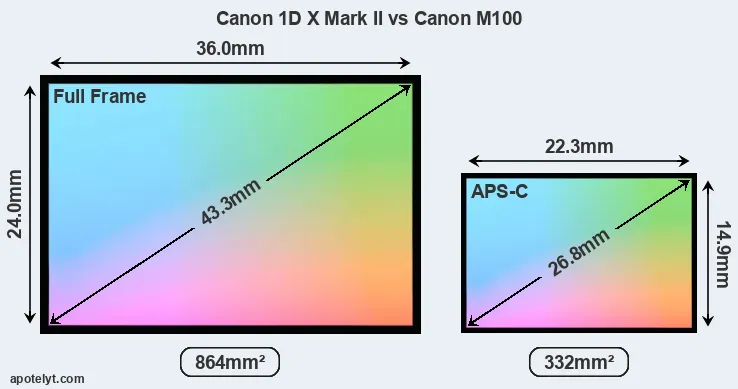

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 1D X Mark II features a full frame sensor and the Canon M100 an APS-C sensor. The sensor area in the M100 is 62 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.

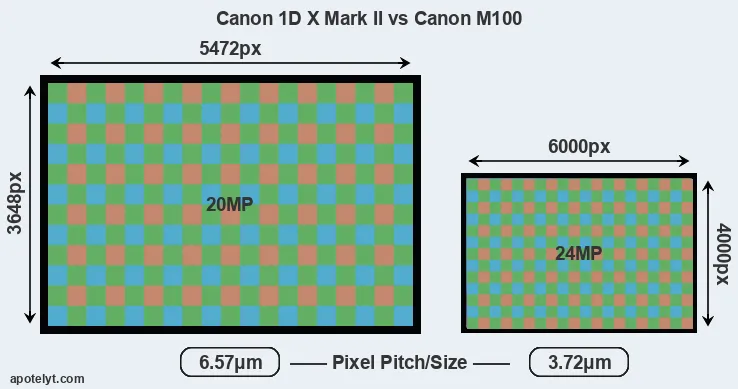

Despite having a smaller sensor, the M100 offers a higher resolution of 24 megapixels, compared with 20 MP of the 1DX Mark II. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.72μm versus 6.57μm for the 1DX Mark II). However, it should be noted that the M100 is a somewhat more recent model (by 1 year and 6 months) than the 1DX Mark II, and its sensor might have benefitted from technological advances during this time that partly offset its pixel-size disadvantage.
The Canon EOS-1D X Mark II has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-409600. The corresponding ISO settings for the Canon EOS M100 are ISO 100 to ISO 25600 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the 1DX Mark II has a notably higher overall DXO score than the M100 (overall score 10 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.6 bits higher color depth, 0.6 EV in additional dynamic range, and 1.3 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Canon 1D X Mark II»||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88||Canon 1D X Mark II|
|Canon M100«||APS-C||24.0||6000||4000||1080/60p||23.5||12.9||1272||78||Canon M100|
|Canon 6D Mark II« »||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85||Canon 6D Mark II|
|Canon G9 X Mark II« »||1-inch||20.0||5472||3648||1080/60p||21.9||12.5||522||65||Canon G9 X Mark II|
|Canon SL2« »||APS-C||24.0||6000||4000||1080/60p||23.6||13.4||1041||79||Canon SL2|
|Canon M5« »||APS-C||24.0||6000||4000||1080/60p||23.4||12.4||1262||77||Canon M5|
|Canon 5DS« »||Full Frame||50.3||8688||5792||1080/60p||24.7||12.4||2381||87||Canon 5DS|
|Canon M3« »||APS-C||24.0||6000||4000||1080/30p||22.8||11.8||1169||72||Canon M3|
|Canon M10« »||APS-C||17.9||5184||3456||1080/30p||22.2||11.4||753||65||Canon M10|
|Canon 1D C« »||Full Frame||17.9||5184||3456||4K/24p||-||-||-||-||Canon 1D C|
|Canon 5D Mark III« »||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81||Canon 5D Mark III|
|Canon 6D« »||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82||Canon 6D|
|Canon 1D X« »||Full Frame||17.9||5184||3456||1080/30p||23.8||11.8||2786||82||Canon 1D X|
|Canon 5D Mark II« »||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79||Canon 5D Mark II|
|Canon 1Ds Mark III« »||Full Frame||21.0||5616||3744||-||24.0||12.0||1663||80||Canon 1Ds Mark III|
|Canon 1Ds Mark II« »||Full Frame||16.6||4992||3328||-||23.3||11.3||1480||74||Canon 1Ds Mark II|
|Nikon D5« »||Full Frame||20.7||5588||3712||4K/30p||25.1||12.3||2343||88||Nikon D5|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the 1DX Mark II provides a higher video resolution than the M100. It can shoot video footage at 4K/60p, while the M100 is limited to 1080/60p.
Feature comparison: Canon 1D X Mark II vs M100
Beyond body and sensor, cameras can and do differ across a range of features. For example, the 1DX Mark II has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the M100 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon 1D X Mark II and Canon M100 along with similar information for a selection of comparators.
|Canon 1D X Mark II»||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n||Canon 1D X Mark II|
|Canon M100«||-||n||3.0||1040||tilting||Y||1/4000s||6.1||Y||n||Canon M100|
|Canon 6D Mark II« »||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n||Canon 6D Mark II|
|Canon G9 X Mark II« »||-||n||3.0||1040||fixed||Y||1/2000s||8.2||Y||Y||Canon G9 X Mark II|
|Canon SL2« »||optical||n||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon SL2|
|Canon M5« »||2360||n||3.2||1620||tilting||Y||1/4000s||9.0||Y||n||Canon M5|
|Canon 5DS« »||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n||Canon 5DS|
|Canon M3« »||-||n||3.0||1040||tilting||Y||1/4000s||4.2||Y||n||Canon M3|
|Canon M10« »||-||n||3.0||1040||tilting||Y||1/4000s||4.6||Y||n||Canon M10|
|Canon 1D C« »||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n||Canon 1D C|
|Canon 5D Mark III« »||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n||Canon 5D Mark III|
|Canon 6D« »||optical||Y||3.0||1040||fixed||n||1/4000s||4.5||n||n||Canon 6D|
|Canon 1D X« »||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n||Canon 1D X|
|Canon 5D Mark II« »||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n||Canon 5D Mark II|
|Canon 1Ds Mark III« »||optical||Y||3.0||230||fixed||n||1/8000s||5.0||n||n||Canon 1Ds Mark III|
|Canon 1Ds Mark II« »||optical||Y||2.0||230||fixed||n||1/8000s||4.0||n||n||Canon 1Ds Mark II|
|Nikon D5« »||optical||Y||3.2||2359||fixed||Y||1/8000s||14.0||n||n||Nikon D5|
One feature that is present on the 1DX Mark II, but is missing on the M100 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The M100 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 1DX Mark II does not have a selfie-screen.
The 1DX Mark II writes its imaging data to Compact Flash or CFast cards, while the M100 uses SDXC cards. The 1DX Mark II features dual card slots, which can be very useful in case a memory card fails. In contrast, the M100 only has one slot.
Connectivity comparison: Canon 1D X Mark II vs M100
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D X Mark II and Canon EOS M100 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Canon 1D X Mark II»||Y||mono||mono||Y||Y||mini||3.0||-||-||-||Canon 1D X Mark II|
|Canon M100«||-||stereo||mono||-||-||mini||2.0||Y||Y||Y||Canon M100|
|Canon 6D Mark II« »||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon 6D Mark II|
|Canon G9 X Mark II« »||-||stereo||mono||-||-||micro||2.0||Y||Y||Y||Canon G9 X Mark II|
|Canon SL2« »||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon SL2|
|Canon M5« »||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon M5|
|Canon 5DS« »||Y||mono||mono||Y||-||mini||3.0||-||-||-||Canon 5DS|
|Canon M3« »||Y||stereo||mono||Y||-||mini||2.0||Y||Y||-||Canon M3|
|Canon M10« »||-||stereo||mono||-||-||mini||2.0||Y||Y||-||Canon M10|
|Canon 1D C« »||Y||mono||mono||Y||Y||mini||2.0||-||-||-||Canon 1D C|
|Canon 5D Mark III« »||Y||mono||mono||Y||Y||mini||2.0||-||-||-||Canon 5D Mark III|
|Canon 6D« »||Y||mono||mono||Y||-||mini||2.0||Y||-||-||Canon 6D|
|Canon 1D X« »||Y||mono||-||Y||-||mini||2.0||-||-||-||Canon 1D X|
|Canon 5D Mark II« »||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon 5D Mark II|
|Canon 1Ds Mark III« »||Y||-||-||-||-||-||2.0||-||-||-||Canon 1Ds Mark III|
|Canon 1Ds Mark II« »||Y||-||-||-||-||-||2.0||-||-||-||Canon 1Ds Mark II|
|Nikon D5« »||Y||stereo||mono||Y||Y||mini||3.0||-||-||-||Nikon D5|
It is notable that the 1DX Mark II has a hotshoe, while the M100 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
Studio photographers will appreciate that the Canon 1D X Mark II (unlike the M100) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 1DX Mark II and the M100 are recent models that are part of the current product line-up. The 1DX Mark II replaced the earlier Canon 1DX, while the M100 followed on from the Canon M10. Further information on the two cameras, as well as related accessories, can be found on the official Canon website.
Review summary: Canon 1D X Mark II vs M100
So how do things add up? Is there a clear favorite between the Canon 1D X Mark II and the Canon M100? The listing below highlights the relative strengths of the two models.
Arguments in favor of the Canon EOS-1D X Mark II:
- Better image quality: Scores markedly higher (10 points) in the DXO overall assessment.
- More dynamic range: Captures a larger spectrum of light and dark details (0.6 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (1.3 stops ISO advantage).
- Better video: Provides higher definition movie capture (4K/60p vs 1080/60p).
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Easier framing: Has an optical viewfinder for image framing and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 1040k dots).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (16 vs 6.1 flaps/sec) to capture the decisive moment.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Can take more shots (1210 versus 295) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been on the market for longer (launched in February 2016).
Advantages of the Canon EOS M100:
- More detail: Has more megapixels (24 vs 20MP), which boosts linear resolution by 10%.
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- More compact: Is smaller (108x67mm vs 158x168mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 1228g or 80 percent) and is thus easier to take along.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More affordable: Was introduced into a lower priced category (92 percent cheaper at launch).
- More modern: Was introduced somewhat (1 year and 6 months) more recently.
If the number of relative strengths (bullet points above) is taken as a guide, the 1DX Mark II is the clear winner of the match-up (20 : 12 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera.
Do the specifications of the Canon 1D X Mark II and the Canon M100 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings.In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 1DX Mark II or the M100. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
Expert reviews: Canon 1D X Mark II vs M100
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog).
|Canon 1D X Mark II»||-||89/100||4.5/5||5/5||4.5/5||Feb 2016||5,999||Canon 1D X Mark II|
|Canon M100«||+||-||4/5||-||3.5/5||Aug 2017||499||Canon M100|
|Canon 6D Mark II« »||+||80/100||4.5/5||4/5||4/5||Jun 2017||1,999||Canon 6D Mark II|
|Canon G9 X Mark II« »||-||75/100||4.5/5||4.5/5||4.5/5||Jan 2017||529||Canon G9 X Mark II|
|Canon SL2« »||++||78/100||4.5/5||4.5/5||4.5/5||Jun 2017||549||-||Canon SL2|
|Canon M5« »||+||82/100||4/5||4.5/5||4/5||Sep 2016||979||Canon M5|
|Canon 5DS« »||+||83/100||4.5/5||5/5||4.5/5||Feb 2015||3,699||Canon 5DS|
|Canon M3« »||o||75/100||4.5/5||4.5/5||4/5||Feb 2015||679||-||Canon M3|
|Canon M10« »||-||-||-||o||4/5||Oct 2015||499||-||Canon M10|
|Canon 1D C« »||-||-||-||-||-||Apr 2012||14,999||-||Canon 1D C|
|Canon 5D Mark III« »||++||82/100||4.5/5||5/5||4.5/5||Mar 2012||3,499||-||Canon 5D Mark III|
|Canon 6D« »||++||83/100||4.5/5||4.5/5||4.5/5||Sep 2012||2,099||-||Canon 6D|
|Canon 1D X« »||-||-||4.5/5||4.5/5||4.5/5||Oct 2011||6,799||-||Canon 1D X|
|Canon 5D Mark II« »||91/100||79/100||4/5||5/5||-||Sep 2008||3,499||-||Canon 5D Mark II|
|Canon 1Ds Mark III« »||-||++||4.5/5||-||-||Aug 2007||7,999||-||Canon 1Ds Mark III|
|Canon 1Ds Mark II« »||-||++||-||-||-||Sep 2004||7,999||-||Canon 1Ds Mark II|
|Nikon D5« »||-||89/100||4.5/5||5/5||5/5||Jan 2016||6,499||Nikon D5|
|Notes: ++) highly recommended; +) recommended; o) reviewed; -) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon G3 X vs Panasonic ZS100
- Canon M5 vs Panasonic G80
- Canon T7 vs Leica M Typ 262
- Canon T7 vs Nikon D7000
- Fujifilm X-Pro1 vs Olympus PEN-F
- Fujifilm X-T30 vs Nikon D3400
- Olympus E-M10 III vs Panasonic LX15
- Panasonic LX10 vs Panasonic G85
- Panasonic S1 vs Sony A7R II
- Sony A6500 vs Fujifilm GFX 50R
- Sony A7 III vs Panasonic LX7
- Sony A7 vs Canon 1300D
Specifications: Canon 1D X Mark II vs Canon M100
|Camera Model||Canon 1D X Mark II||Canon M100|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Canon EF-M mount lenses|
|Launch Date||February 2016||August 2017|
|Launch Price||USD 5999||USD 499|
|Sensor Specs||Canon 1D X Mark II||Canon M100|
|Sensor Format||Full Frame Sensor||APS-C Sensor|
|Sensor Size||36.0 x 24.0 mm||22.3 x 14.9 mm|
|Sensor Area||864 mm2||332.27 mm2|
|Sensor Diagonal||43.3 mm||26.8 mm|
|Sensor Resolution||20 Megapixels||24 Megapixels|
|Image Resolution||5472 x 3648 pixels||6000 x 4000 pixels|
|Pixel Pitch||6.57 μm||3.72 μm|
|Pixel Density||2.31 MP/cm2||7.22 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||4K/60p Video||1080/60p Video|
|ISO Setting||100-51200 ISO||100-25600 ISO|
|ISO Boost||50-409600 ISO||no Enhancement|
|Image Processor||DIGIC 6+ (Dual)||DIGIC 7|
|DXO Sensor Quality (score)||88||78|
|DXO Color Depth (bits)||24.1||23.5|
|DXO Dynamic Range (EV)||13.5||12.9|
|DXO Low Light (ISO)||3207||1272|
|Screen Specs||Canon 1D X Mark II||Canon M100|
|Viewfinder Type||Optical viewfinder||No viewfinder|
|Viewfinder Field of View||100%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2 inch||3.0 inch|
|LCD Resolution||1620k dots||1040k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Shooting Specs||Canon 1D X Mark II||Canon M100|
|Autofocus System||Phase-detect AF||On-Sensor Phase-detect|
|Manual Focusing Aid||No Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000/s||1/4000/s|
|Continuous Shooting||16 shutter flaps/s||6.1 shutter flaps/s|
|Shutter Life Expectancy||500 000 actuations||100 000 actuations|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||CF or CFAST cards||SDXC cards|
|Second Storage Option||Dual card slots||Single card slot|
|Connectivity Specs||Canon 1D X Mark II||Canon M100|
|External Flash||Hotshoe||no Hotshoe|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 3.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||no Wifi||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Canon 1D X Mark II||Canon M100|
|Environmental Sealing||Weathersealed body||Not weather sealed|
|Battery Type||LP-E19 power pack||LP-E12 power pack|
|Battery Life (CIPA)||1210 shots per charge||295 shots per charge|
158 x 168 x 83 mm
(6.2 x 6.6 x 3.3 in)
108 x 67 x 35 mm
(4.3 x 2.6 x 1.4 in)
|Camera Weight||1530 g (54.0 oz)||302 g (10.7 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
