Canon 1D vs Olympus E-510
The Canon EOS-1D and the Olympus E-510 are two digital cameras that were officially introduced, respectively, in September 2001 and March 2007. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-H (1D) and a Four Thirds (E-510) sensor. The Canon has a resolution of 4.1 megapixels, whereas the Olympus provides 10 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 1D||Olympus E-510|
|Digital single lens reflex||Digital single lens reflex|
|Canon EF mount lenses||Four Thirds lenses|
|4.1 MP, APS-H Sensor||10 MP, Four Thirds Sensor|
|no Video||no Video|
|ISO 200-1,600 (100 - 3,200)||ISO 100-1,600|
|Optical viewfinder||Optical viewfinder|
|2.0 LCD, 120k dots||2.5 LCD, 215k dots|
|Fixed screen (not touch-sensitive)||Fixed screen (not touch-sensitive)|
|8 shutter flaps per second||3 shutter flaps per second|
|Lens stabilization only||In-body stabilization|
|Weathersealed body||not weather sealed|
|500 shots per battery charge||750 shots per battery charge|
|156 x 158 x 80 mm, 1585 g||136 x 92 x 68 mm, 538 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-1D and the Olympus E-510? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

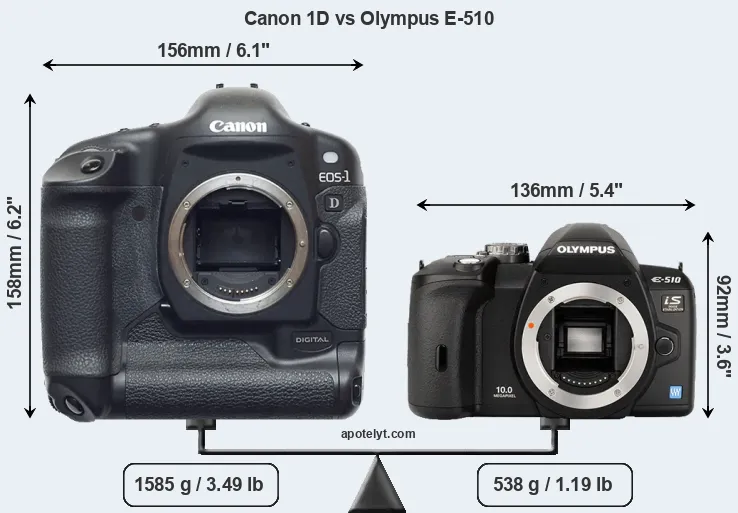

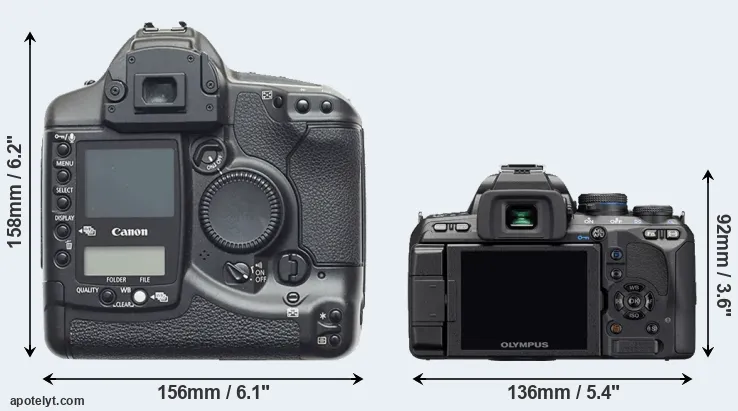

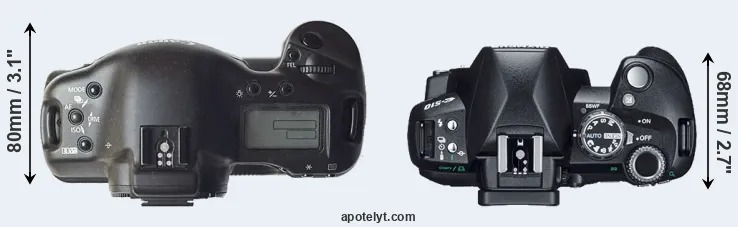

The side-by-side display below illustrates the physical size and weight of the Canon 1D and the Olympus E-510. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-510 is considerably smaller (49 percent) than the Canon 1D. Moreover, the E-510 is substantially lighter (66 percent) than the 1D. It is worth mentioning in this context that the 1D is splash and dust resistant, while the E-510 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (1D) and the Four Thirds Lens Catalog (E-510).
Concerning battery life, the 1D gets 500 shots out of its NP-E3 battery, while the E-510 can take 750 images on a single charge of its BLM-1 power pack. As can be seen in the images above, the 1D has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Canon 1D||156 mm||158 mm||80 mm||1585 g||500||Y||Sep 2001||6,499|
|Olympus E-510||136 mm||92 mm||68 mm||538 g||750||n||Mar 2007||799|
|Canon 1D X Mark III||158 mm||168 mm||83 mm||1440 g||2850||Y||Jan 2020||6,499|
|Canon 1D X Mark II||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999|
|Canon 5D Mark IV||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499|
|Canon 5DS||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|Canon 1D C||158 mm||164 mm||83 mm||1545 g||1120||Y||Apr 2012||14,999|
|Canon 1D X||158 mm||168 mm||83 mm||1551 g||1120||Y||Oct 2011||6,799|
|Canon 1Ds Mark III||150 mm||160 mm||80 mm||1385 g||1800||Y||Aug 2007||7,999|
|Canon 1D Mark II N||156 mm||158 mm||80 mm||1565 g||1200||Y||Aug 2005||3,999|
|Canon 1D Mark II||156 mm||158 mm||80 mm||1535 g||1200||Y||Jan 2004||4,499|
|Canon 1Ds||156 mm||158 mm||80 mm||1265 g||600||Y||Sep 2002||8,999|
|Olympus E-600||130 mm||94 mm||60 mm||535 g||500||n||Aug 2009||449|
|Olympus E-620||130 mm||94 mm||60 mm||521 g||500||n||Feb 2009||699|
|Olympus E-30||142 mm||108 mm||75 mm||701 g||750||n||Nov 2008||1,299|
|Olympus E-520||136 mm||92 mm||68 mm||535 g||750||n||May 2008||699|
|Olympus E-410||130 mm||91 mm||53 mm||435 g||500||n||Mar 2007||699|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-510 was launched at a markedly lower price (by 88 percent) than the 1D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

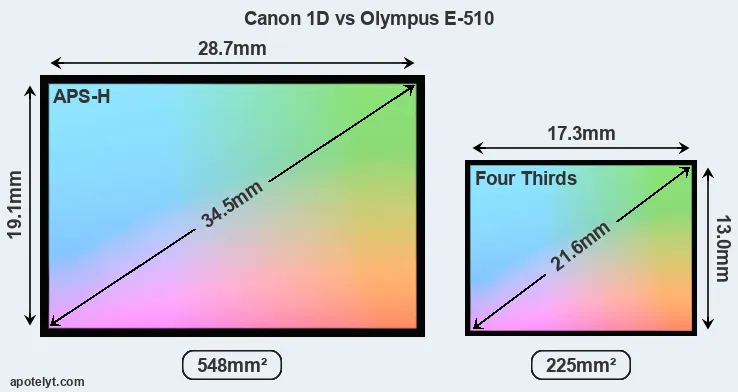

Of the two cameras under consideration, the Canon 1D features an APS-H sensor and the Olympus E-510 a Four Thirds sensor. The sensor area in the E-510 is 59 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.3 and 2.0. The sensor in the 1D has a native 3:2 aspect ratio, while the one in the E-510 offers a 4:3 aspect.

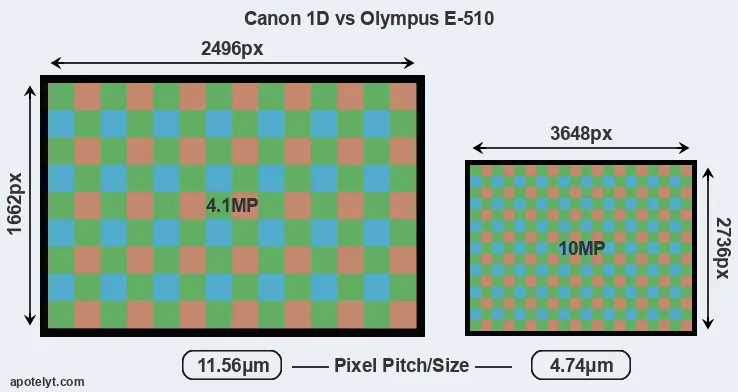

Despite having a smaller sensor, the E-510 offers a higher resolution of 10 megapixels, compared with 4.1 MP of the 1D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.74μm versus 11.56μm for the 1D). However, it should be noted that the E-510 is much more recent (by 5 years and 5 months) than the 1D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Olympus E-510 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-510 for good quality output (200 dots per inch) amounts to 18.2 x 13.7 inches or 46.3 x 34.7 cm, for very good quality (250 dpi) 14.6 x 10.9 inches or 37.1 x 27.8 cm, and for excellent quality (300 dpi) 12.2 x 9.1 inches or 30.9 x 23.2 cm. The corresponding values for the Canon 1D are 12.5 x 8.3 inches or 31.7 x 21.1 cm for good quality, 10 x 6.6 inches or 25.4 x 16.9 cm for very good quality, and 8.3 x 5.5 inches or 21.1 x 14.1 cm for excellent quality prints.
The Canon EOS-1D has a native sensitivity range from ISO 200 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Olympus E-510 are ISO 100 to ISO 1600 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Olympus E-510||Four Thirds||10.0||3648||2736||none||21.2||10.0||442||52|
|Canon 1D X Mark III||Full Frame||20.0||5472||3648||4K/60p||24.2||14.5||3248||91|
|Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|Canon 1D C||Full Frame||17.9||5184||3456||4K/24p||..||..||..||..|
|Canon 1D X||Full Frame||17.9||5184||3456||1080/30p||23.8||11.8||2786||82|
|Canon 1Ds Mark III||Full Frame||21.0||5616||3744||none||24.0||12.0||1663||80|
|Canon 1D Mark II N||APS-H||8.2||3504||2336||none||22.3||11.2||975||66|
|Canon 1D Mark II||APS-H||8.2||3504||2336||none||22.3||11.1||1003||66|
|Canon 1Ds||Full Frame||11.0||4064||2704||none||21.8||11.0||954||63|
|Olympus E-600||Four Thirds||12.2||4032||3024||none||21.5||10.3||541||55|
|Olympus E-620||Four Thirds||12.2||4032||3024||none||21.3||10.3||536||55|
|Olympus E-30||Four Thirds||12.2||4032||3024||none||21.3||10.4||530||55|
|Olympus E-520||Four Thirds||10.0||3648||2736||none||21.4||10.4||548||55|
|Olympus E-410||Four Thirds||10.0||3648||2736||none||21.1||10.0||494||51|
Apart from body and sensor, cameras can and do differ across a range of features. The 1D and the E-510 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 1D offers a wider field of view (100%) than the one in the E-510 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the 1D has a higher magnification (0.55x vs 0.46x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 1D, the Olympus E-510, and comparable cameras.
|Canon 1D X Mark III||optical||Y||3.2||2100||fixed||Y||1/8000s||20.0||n||n|
|Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n|
|Canon 1D C||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n|
|Canon 1D X||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n|
|Canon 1Ds Mark III||optical||Y||3.0||230||fixed||n||1/8000s||5.0||n||n|
|Canon 1D Mark II N||optical||Y||2.5||230||fixed||n||1/8000s||8.5||n||n|
|Canon 1D Mark II||optical||Y||2.0||230||fixed||n||1/8000s||8.3||n||n|
One feature that is present on the 1D, but is missing on the E-510 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The 1D writes its imaging data to Compact Flash cards, while the E-510 uses Compact Flash or xD Picture cards. The E-510 features dual card slots, which can be very useful in case a memory card fails. In contrast, the 1D only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D and Olympus E-510 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Canon 1D X Mark III||Y||mono||mono||Y||Y||mini||3.1||Y||-||Y|
|Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-|
|Canon 1D C||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|Canon 1D X||Y||mono||-||Y||-||mini||2.0||-||-||-|
|Canon 1Ds Mark III||Y||-||-||-||-||-||2.0||-||-||-|
|Canon 1D Mark II N||Y||-||-||-||-||-||1.1||-||-||-|
|Canon 1D Mark II||Y||-||-||-||-||-||1.1||-||-||-|
Studio photographers will appreciate that the Canon 1D (unlike the E-510) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 1D and the E-510 have been discontinued, but can regularly be found used on eBay. The 1D was replaced by the Canon 1D Mark II, while the E-510 was followed by the Olympus E-520. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what conclusions can be drawn? Which of the two cameras – the Canon 1D or the Olympus E-510 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Canon EOS-1D:
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.55x vs 0.46x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/16000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (8 vs 3 flaps/sec) to capture the decisive moment.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in September 2001).
Arguments in favor of the Olympus E-510:
- More detail: Has more megapixels (10 vs 4.1MP), which boosts linear resolution by 52%.
- Larger screen: Has a bigger rear LCD (2.5" vs 2.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (215k vs 120k dots).
- More compact: Is smaller (136x92mm vs 156x158mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 1047g or 66 percent) and is thus easier to take along.
- Longer lasting: Gets more shots (750 versus 500) out of a single battery charge.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More affordable: Was introduced into a lower priced category (88 percent cheaper at launch).
- More modern: Reflects 5 years and 5 months of technical progress since the 1D launch.
If the number of relative strengths (bullet points above) is taken as a guide, the E-510 emerges as the winner of the match-up (11 : 9 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 1D and the Olympus E-510 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 1D or the E-510. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 1D||..||+ +||..||..||..||Sep 2001||6,499|
|Olympus E-510||89/100||+ +||3.5/5||o||4.5/5||Mar 2007||799|
|Canon 1D X Mark III||+ +||..||..||..||..||Jan 2020||6,499|
|Canon 1D X Mark II||..||89/100||4.5/5||5/5||4.5/5||Feb 2016||5,999|
|Canon 5D Mark IV||+ +||87/100||4.5/5||5/5||4.5/5||Aug 2016||3,499|
|Canon 5DS||+||83/100||4.5/5||5/5||4.5/5||Feb 2015||3,699|
|Canon 1D C||..||..||..||..||..||Apr 2012||14,999|
|Canon 1D X||..||..||4.5/5||4.5/5||4.5/5||Oct 2011||6,799|
|Canon 1Ds Mark III||..||+ +||4.5/5||..||..||Aug 2007||7,999|
|Canon 1D Mark II N||..||..||..||..||..||Aug 2005||3,999|
|Canon 1D Mark II||..||+ +||..||o||..||Jan 2004||4,499|
|Canon 1Ds||..||+ +||..||..||..||Sep 2002||8,999|
|Olympus E-600||..||..||..||..||4.5/5||Aug 2009||449|
|Olympus E-620||88/100||72/100||4.5/5||o||5/5||Feb 2009||699|
|Olympus E-30||..||71/100||4.5/5||..||4/5||Nov 2008||1,299|
|Olympus E-520||87/100||+ +||4.5/5||4/5||4.5/5||May 2008||699|
|Olympus E-410||86/100||+ +||4/5||o||4.5/5||Mar 2007||699|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 1000D vs Canon 1D Mark IV
- Canon 1D C vs Canon M3
- Canon 1D C vs Canon SX730
- Canon 1D C vs Canon T4i
- Canon 1D Mark II N vs Canon M50
- Canon 1D Mark II N vs Sony A850
- Canon 1D Mark II vs Canon 1D X Mark III
- Canon 1D Mark III vs Canon 30D
- Canon 1D Mark IV vs Sony A99 II
- Canon 1D X vs Nikon D7500
- Canon 1D X vs Panasonic GX850
- Leica X Typ 113 vs Olympus E-510
Specifications: Canon 1D vs Olympus E-510
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 1D||Olympus E-510|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Four Thirds lenses|
|Launch Date||September 2001||March 2007|
|Launch Price||USD 6,499||USD 799|
|Sensor Specs||Canon 1D||Olympus E-510|
|Sensor Format||APS-H Sensor||Four Thirds Sensor|
|Sensor Size||28.7 x 19.1 mm||17.3 x 13.0 mm|
|Sensor Area||548.17 mm2||224.9 mm2|
|Sensor Diagonal||34.5 mm||21.6 mm|
|Sensor Resolution||4.1 Megapixels||10 Megapixels|
|Image Resolution||2496 x 1662 pixels||3648 x 2736 pixels|
|Pixel Pitch||11.56 μm||4.74 μm|
|Pixel Density||0.76 MP/cm2||4.44 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||no Video|
|ISO Setting||200 - 1,600 ISO||100 - 1,600 ISO|
|ISO Boost||100 - 3,200 ISO||no Enhancement|
|Image Processor||DIGIC||TruePic III|
|DXO Sensor Quality (score)||..||52|
|DXO Color Depth (bits)||..||21.2|
|DXO Dynamic Range (EV)||..||10.0|
|DXO Low Light (ISO)||..||442|
|Screen Specs||Canon 1D||Olympus E-510|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View|
|Rear LCD Size||2.0inch||2.5inch|
|LCD Resolution||120k dots||215k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon 1D||Olympus E-510|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||8 shutter flaps/s||3 shutter flaps/s|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||CF cards||CF or XD cards|
|Second Storage Option||Single card slot||Dual card slots|
|Connectivity Specs||Canon 1D||Olympus E-510|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||Firewire||USB 2.0|
|HDMI Port||no HDMI||no HDMI|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 1D||Olympus E-510|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||500 shots per charge||750 shots per charge|
156 x 158 x 80 mm
(6.1 x 6.2 x 3.1 in)
136 x 92 x 68 mm
(5.4 x 3.6 x 2.7 in)
|Camera Weight||1585 g (55.9 oz)||538 g (19.0 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
